JBL AW526 15-Inch All-Weather 2-Way Full-Range Speaker - Gray
Powerful 2-Way Outdoor Loudspeaker with a 15' LF Driver

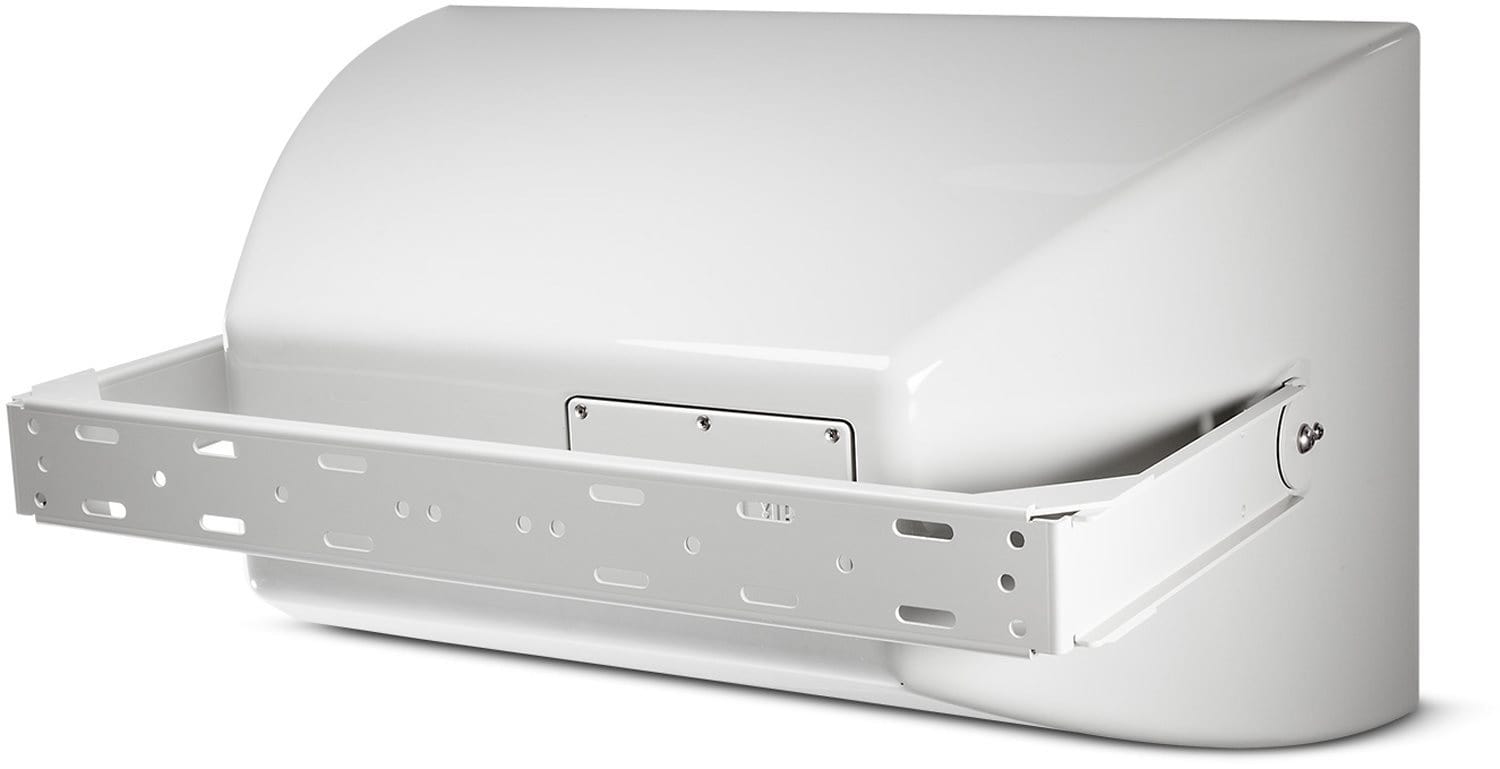

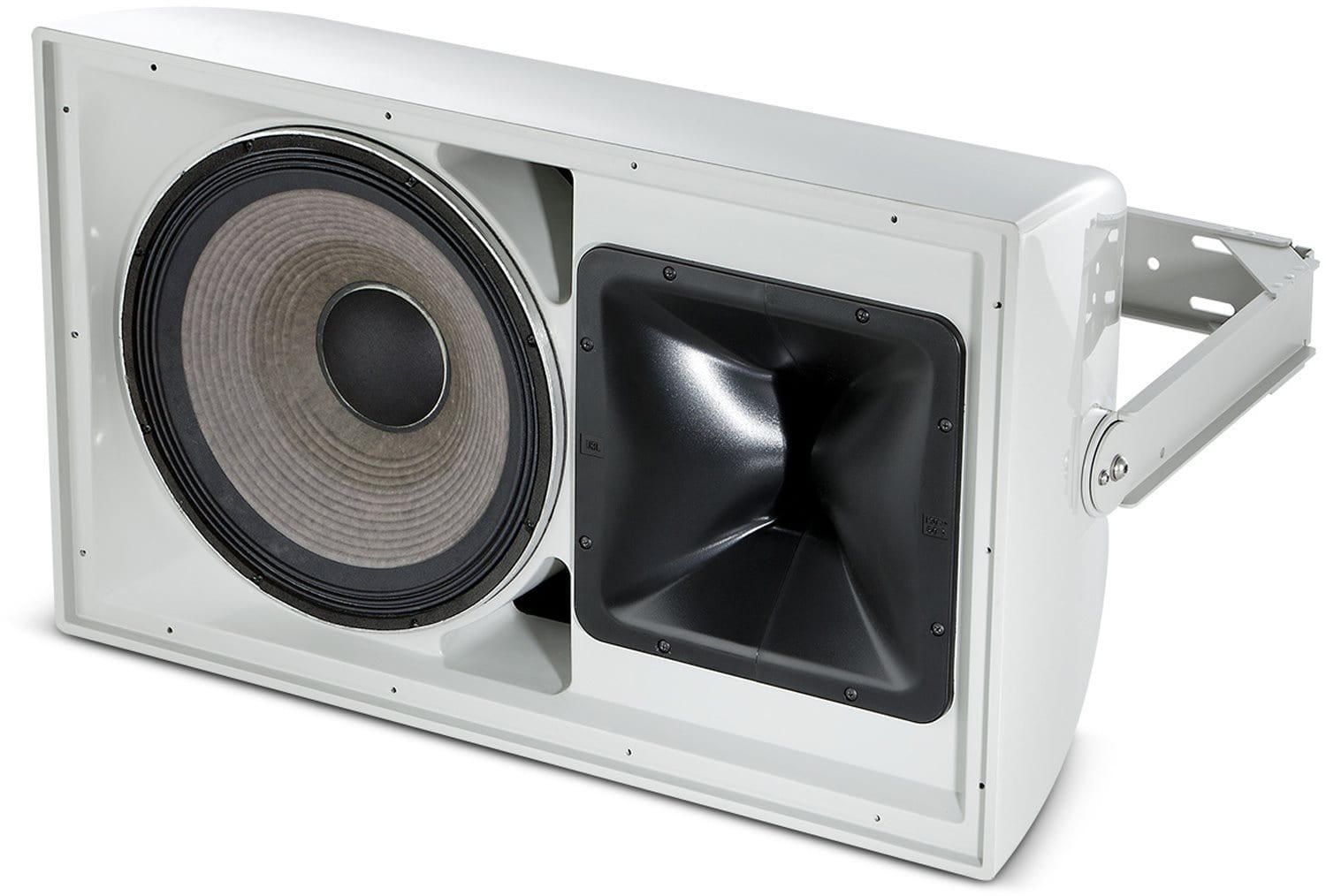

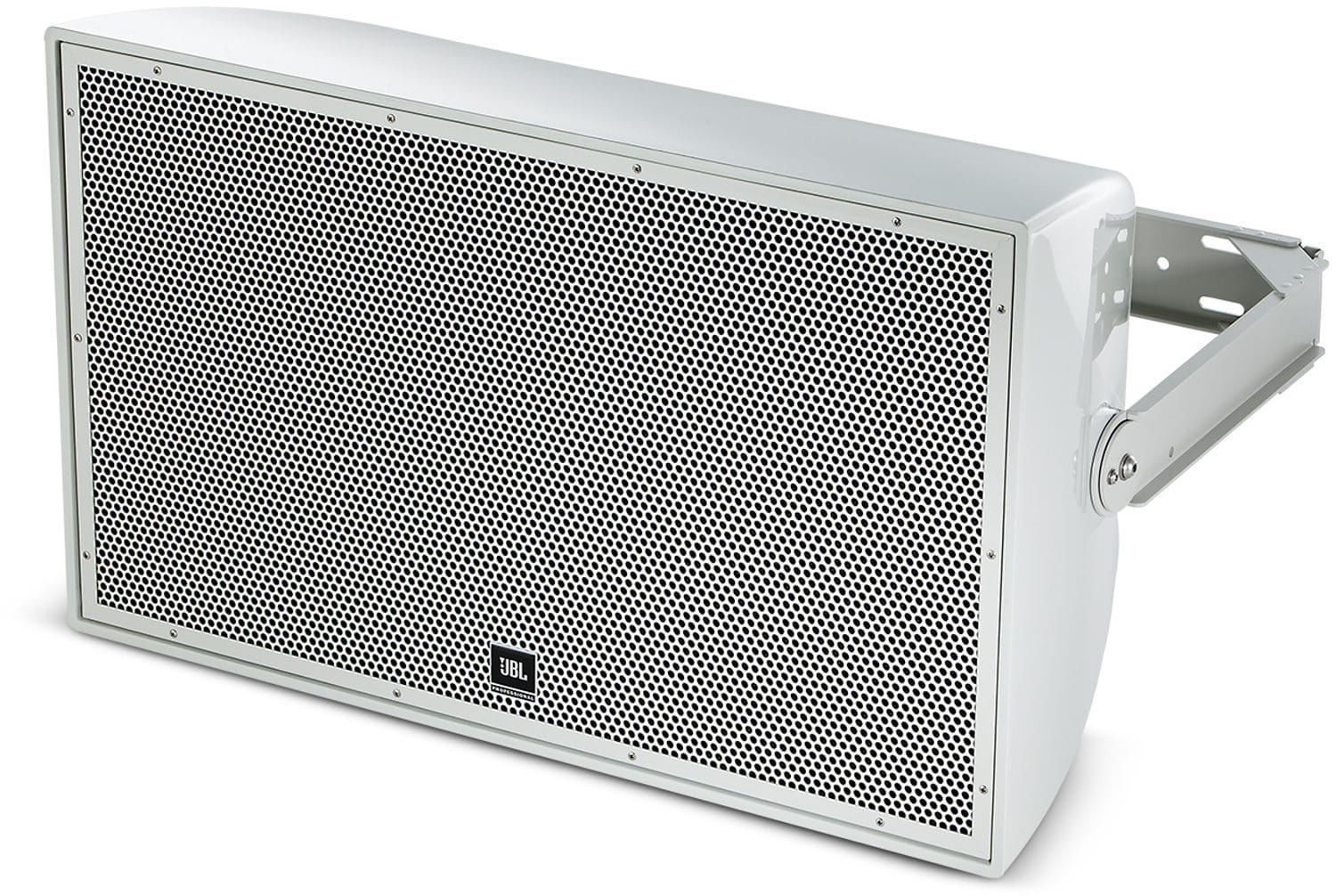

The AW526 is a high-powered, lightweight 2-way full-range loudspeaker system. It features a JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and a 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide offers great 120° x 60° coverage and the waveguide can be rotated for vertical or horizontal use. It comes with a 400 W 70/100V transformer, a heavy-duty stainless steel U-type mounting bracket for easy installation on flat surfaces or in 90° corners. The enclosure is made of multilayer glass composite for enhanced low-frequency performance. The 14-gauge stainless steel grille with open cell foam and stainless steel mesh protects it in tough environments. It's part of JBL's versatile AE Series.
Features:
- • Weather-Resistant Design for Outdoor Use
- • 120° x 60° Wide Coverage for Excellent Sound Projection
- • Rotatable Waveguide for Flexible Installation
Benefits:
- Perfect for sports facilities, themed entertainment venues, outdoor entertainment centers, cruise ships, and water parks.
- Delivers high-quality sound in various outdoor settings.
- Easy to install with the included mounting bracket.
Specifications:
- Frequency Range (-10 dB): 35 Hz – 20 kHz
- Frequency Response (±3 dB): 55 Hz – 17 kHz
- Coverage Pattern: 120° x 60°, rotatable waveguide
- Directivity Factor (Q): 7.9
- Directivity Index (DI): 9 dB
- Crossover Frequency: 1.1 kHz
- Long-Term System Power Rating (IEC): 600 W (2400 W peak), 100 hrs
- Maximum SPL: 128 dB-SPL cont avg (134 dB peak)
- System Sensitivity (1W @ 1m): 100 dB

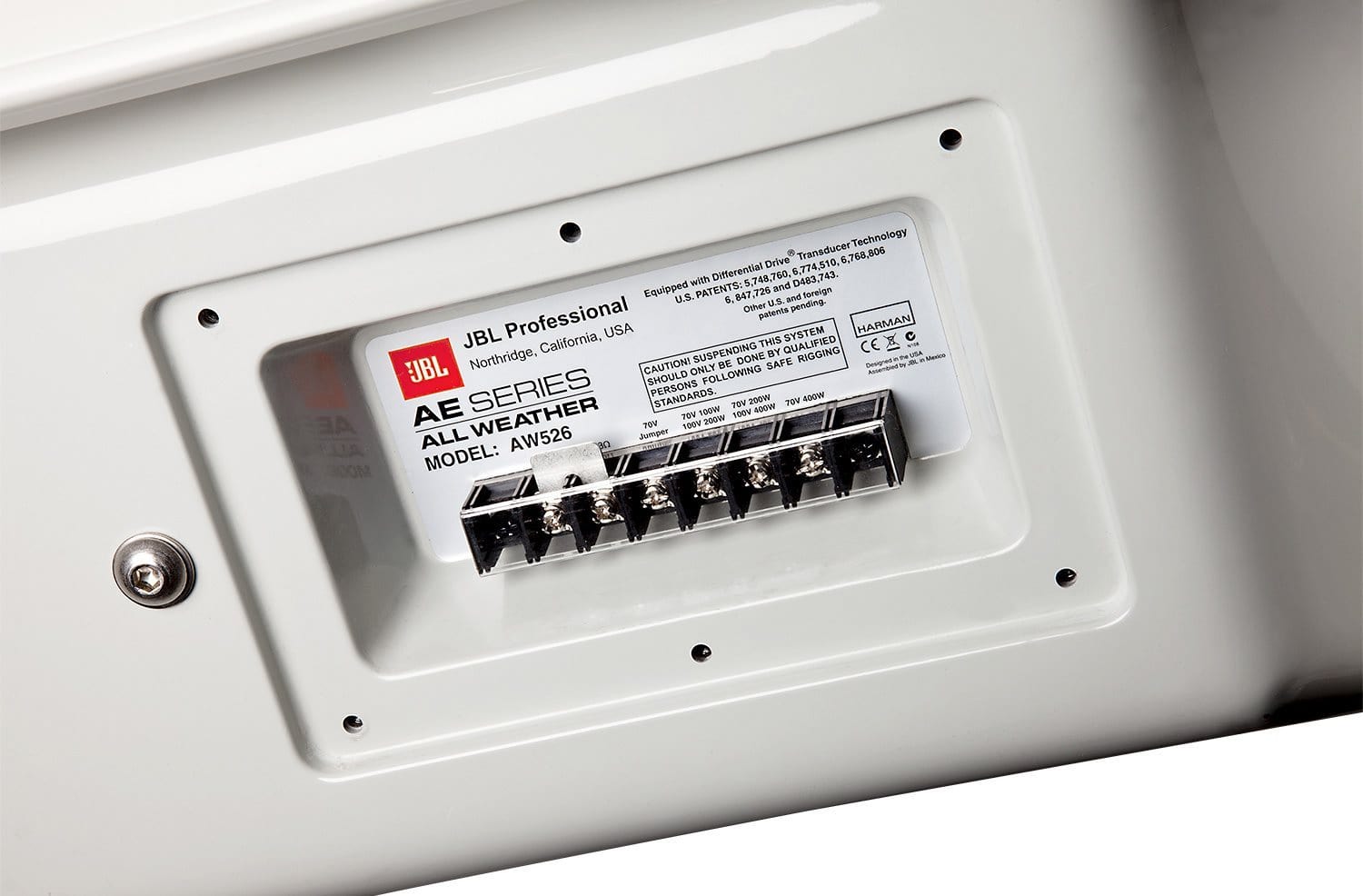

- 70V/100V Transformer Taps: 70V: 400W, 200W, 100W 100V: 400W, 200W
- Low Frequency Driver: 1 x JBL 2265H 380 mm (15 in.) Differential Drive driver with 75 mm (3 in) dual voice coil
- LFD Nominal Impedance: 8 ohms
- LFD Sensitivity (1W @ 1m, within operational band): 98 dB SPL
This JBL AW526 speaker is great for places like sports facilities, themed entertainment venues, outdoor entertainment centers, cruise ships, and water parks. It's designed for those who need high-quality outdoor sound. With a 15-inch size and lightweight build, it's easy to handle. Its key features include weather resistance, 120° x 60° coverage, and a rotatable waveguide. The frequency range is 35 Hz – 20 kHz, frequency response is 55 Hz – 17 kHz, and it has a maximum SPL of 128 dB-SPL cont avg (134 dB peak).
