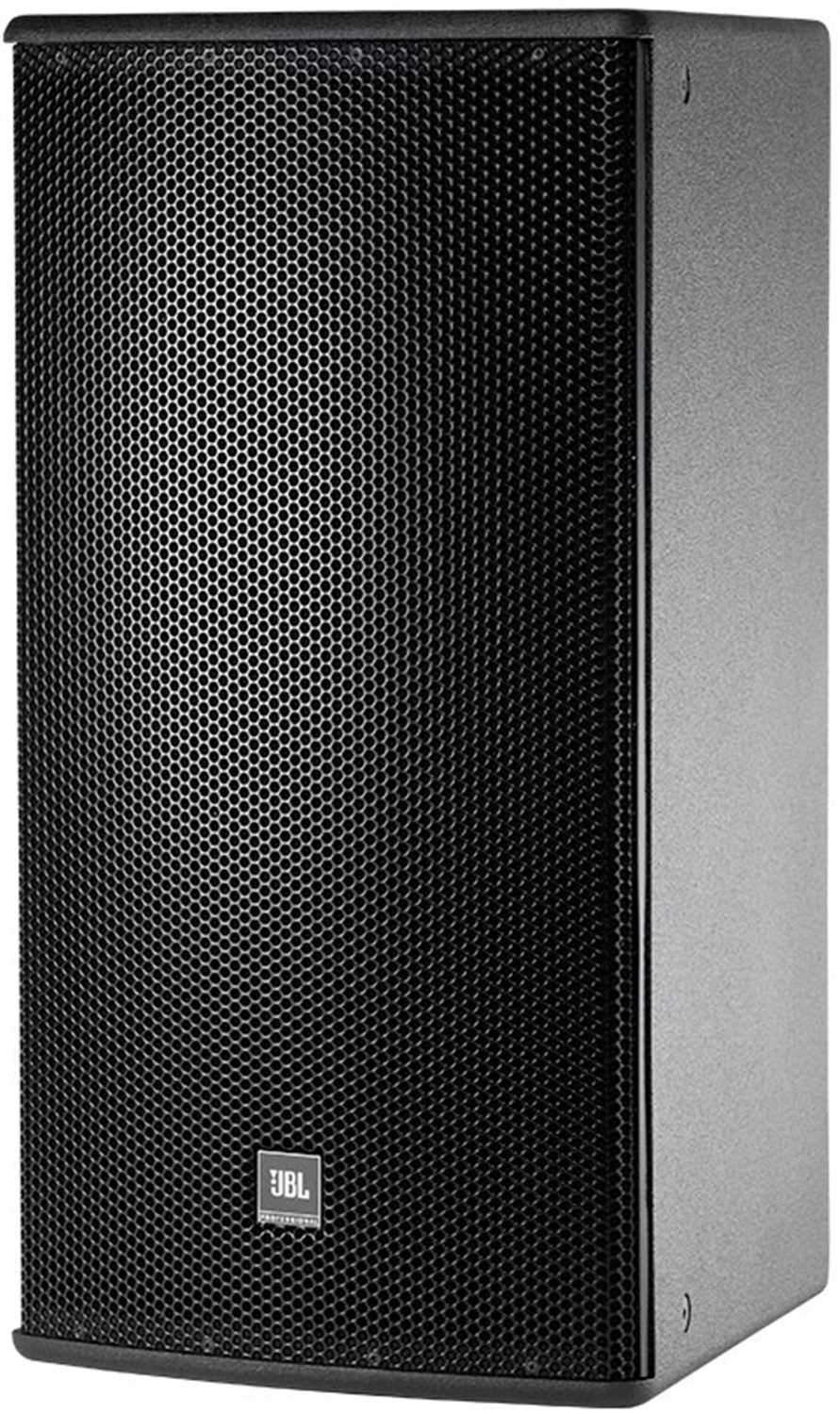

JBL AM7215/66 High - Power Rotatable 15 - Inch Loudspeaker
Powerful 2 - Way Loudspeaker with a 15' LF and Rotatable Horn
• High - power and lightweight design for great portability. • Rotatable waveguide for flexible orientation. • Multiple finishes available for aesthetic customization.

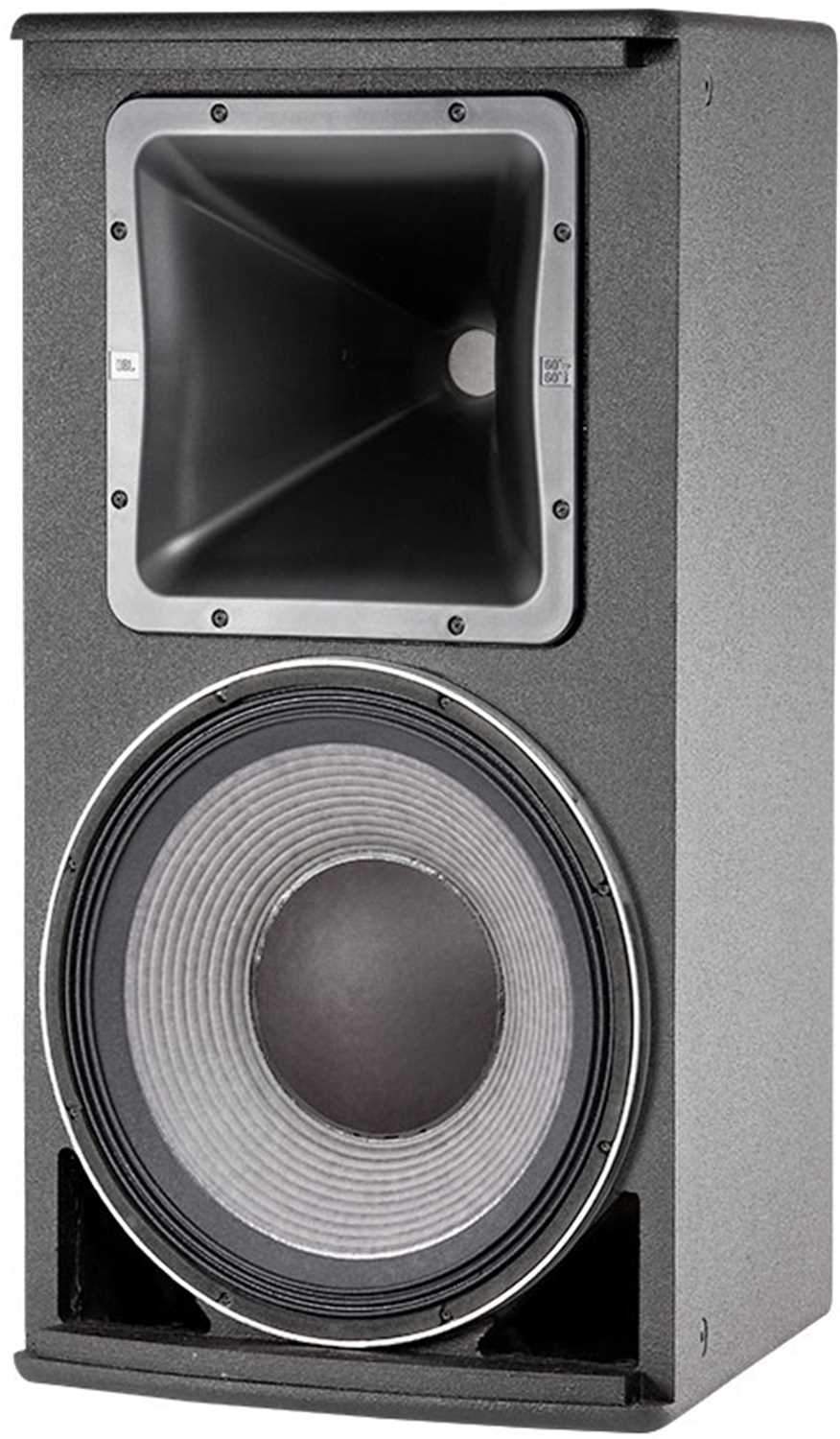

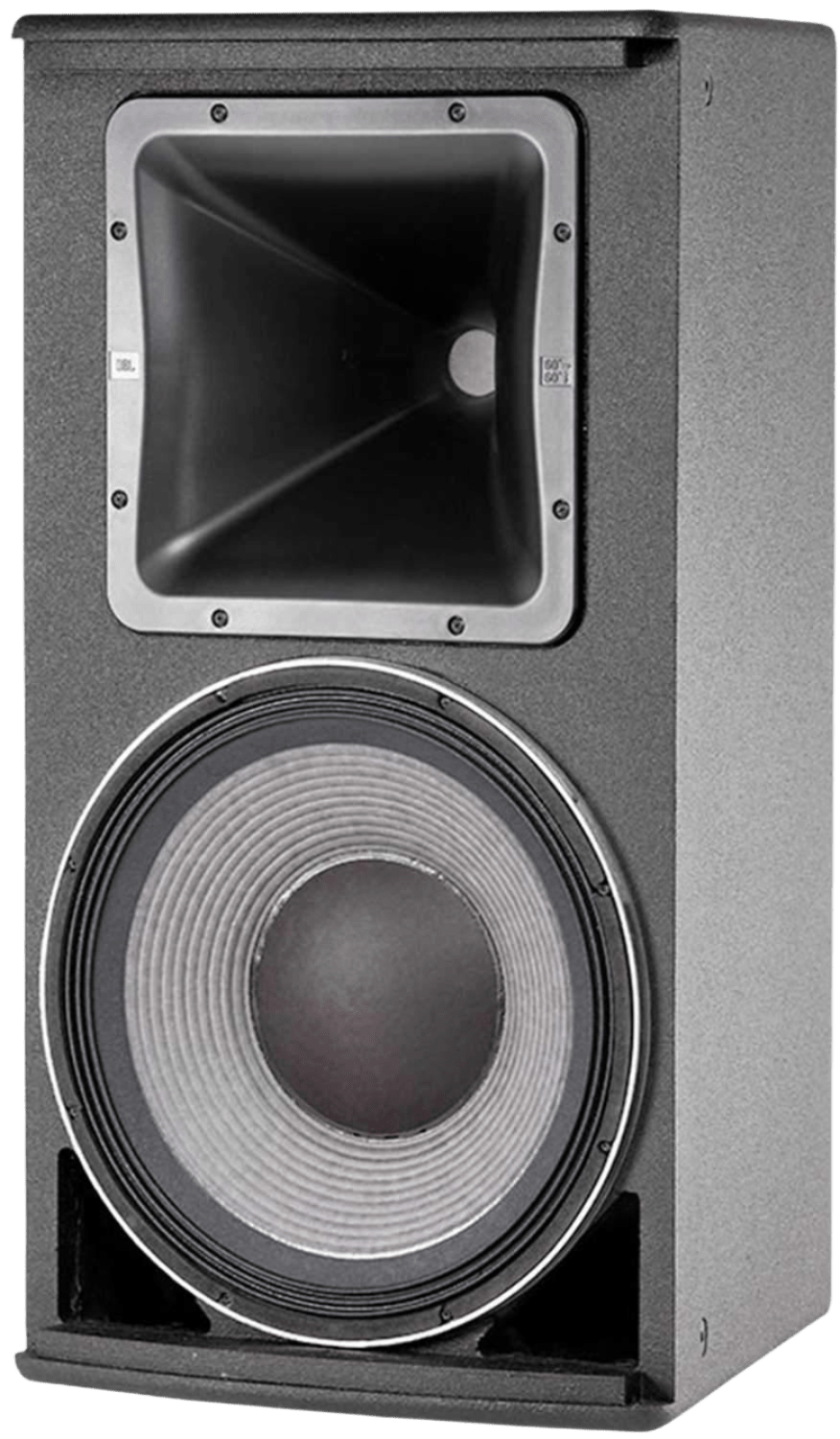

The AM7215 speakers are high - power, lightweight, 2 - way, full - range loudspeaker systems. They come with the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low - frequency driver and 2432H high - frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice - coil compression driver. The large format Progressive Transition waveguide offers excellent coverage and is rotatable, allowing the loudspeaker system to be used vertically or horizontally. High - slope passive networks minimize band overlap, and well - controlled off - axis response enhances arrayability.
Features:
- 2265H Differential Drive Low - Frequency Driver
- 2432H High - Frequency Compression Driver
- Large PT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi - Amp/Passive Switchable
- Available in Black, White and WRC/WRX finishes
Applications:
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
Specifications:
- Frequency Range ( –10 dB): 34 Hz - 20 kHz
- Frequency Response ( ± 3 dB): 40 Hz - 18 kHz
- Coverage: 60° x 60°
- LF Driver: 2265H
- HF Driver: 2432H
- System Type: 15' Two - Way, High Power, Full - Range
- Dimensions (H x W x D): 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
- Weight: 27.2 kg (60 lb)
- Crossover Modes: Bi - amp/Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- Transducer Power Rating (AES): LF: 1000 W (4000 W peak), 2 hr 750 W (3000 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
- Long - Term System Power Rating (IEC): Passive mode: 600 W (2400 W peak), 100 hrs
- Maximum SPL (dB - SPL, 1W @ 1m): Bi - amp mode: LF: 128 dB - SPL cont avg (134 dB peak) HF: 135 dB - SPL cont avg (141 dB peak) Passive mode: 124 dB - SPL cont avg (130 dB peak)
- System Sensitivity (1W @ 1m): Passive mode: 96 dB SPL
- Nominal Impedance: 8 ohms
This JBL AM7215/66 high - power rotatable 15 - inch loudspeaker is perfect for various venues. It's great for performing arts facilities, auditoriums, and live clubs. The target users are sound engineers and venue managers who need high - quality sound solutions. It has a height of 781 mm, width of 420 mm, depth of 503 mm, and weighs 27.2 kg. With its high - power and rotatable features, it can be used in vertical or horizontal orientations, making it adaptable to different setups.
