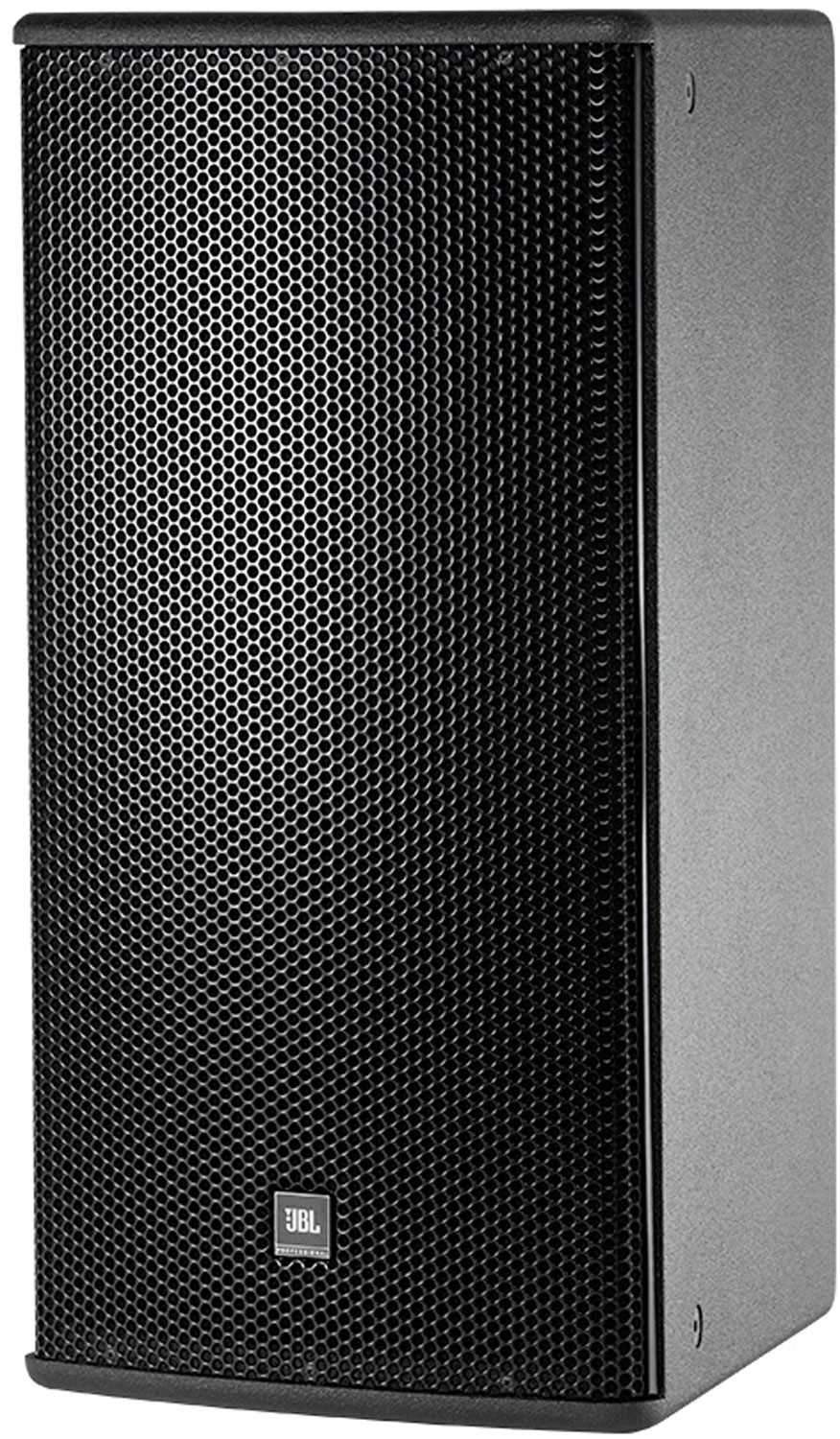

JBL AM7212/26 High - Power 12 - Inch Rotatable Loudspeaker
High - power 2 - way loudspeaker with amazing features!

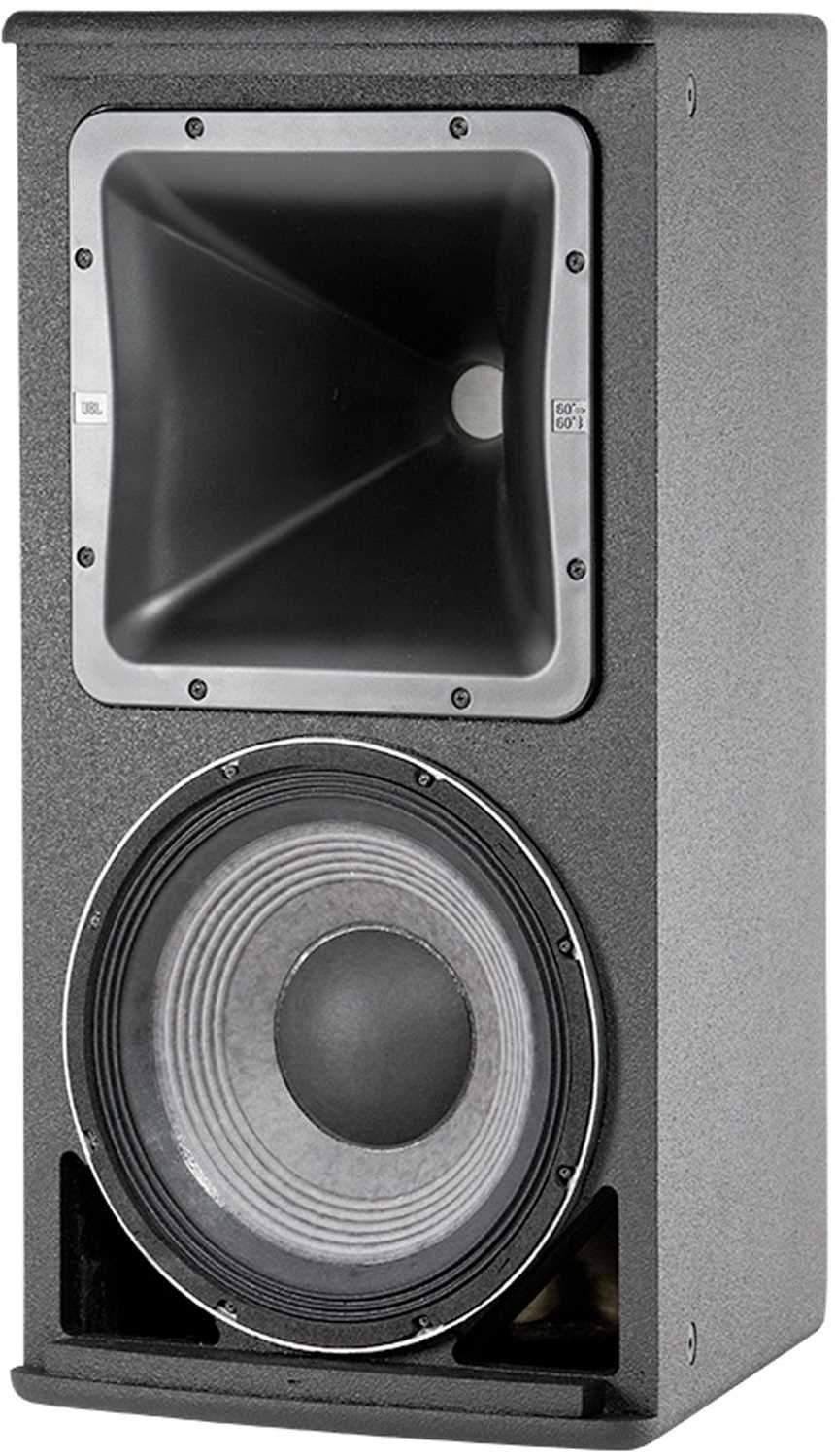

• High - power performance for all your audio needs. The AM7212/26 combines a 1 x 12' LF with a rotatable horn for a great sound experience.
• Features a large PT Progressive Transition waveguide for excellent pattern control and low distortion. The rotatable waveguide allows for vertical or horizontal orientation, giving you flexibility.
• Bi - Amp/Passive switchable, available in multiple finishes like Black, White and WRC/WRX. It's a must - have for audiophiles and event organizers alike.
Technical Highlights:
- Powerful 2262H Differential Drive Low - Frequency Driver and 2432H High - Frequency Compression Driver for outstanding sound quality.
- High - slope passive networks minimize band overlap for a cleaner sound.
- Well - controlled off - axis response enhances arrayability, making it great for setups.
Specifications:
- Frequency Range ( –10 dB): 36 Hz - 20 kHz
- Frequency Response ( ± 3 dB): 42 Hz - 18 kHz
- Coverage: 120° x 60°
- LF Driver: 2262H
- HF Driver: 2432H
- System Type: 12' Two - Way, High Power, Full - Range
- Dimensions (H x W x D): 711 x 369 x 458 mm (28 x 14.5 x 18 in)
- Weight: 23.1 kg (51 lb)
- Crossover Modes: Bi - amp/Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- Transducer Power Rating (AES): LF: 1000 W (4000 W peak), 2 hr 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
- Long - Term System Power Rating (IEC): Passive mode: 600 W (2400 W peak), 100 hrs
- Maximum SPL (dB - SPL, 1W @ 1m): Bi - amp mode: LF: 126 dB - SPL cont avg (132 dB peak)HF: 135 dB - SPL cont avg (141 dB peak) Passive mode: 123 dB - SPL cont avg (129 dB peak)
- System Sensitivity (1W @ 1m): Passive mode: 95 dB SPL
- Nominal Impedance: 8 ohms
The JBL AM7212/26 is a high - power 12 - inch rotatable loudspeaker. It's perfect for various audio setups like concerts, parties, and public events. Ideal for audiophiles, event organizers, and anyone who needs great sound. With dimensions of 711 x 369 x 458 mm (28 x 14.5 x 18 in) and weighing 23.1 kg (51 lb), it's easy to install and move around. Its high - power performance, rotatable waveguide, and multiple finish options make it a top choice for delivering excellent sound in different environments.
