JBL AM5212/26 2-Way Full-Range Loudspeaker
• 2-Way Loudspeaker System with 1 x 12' LF

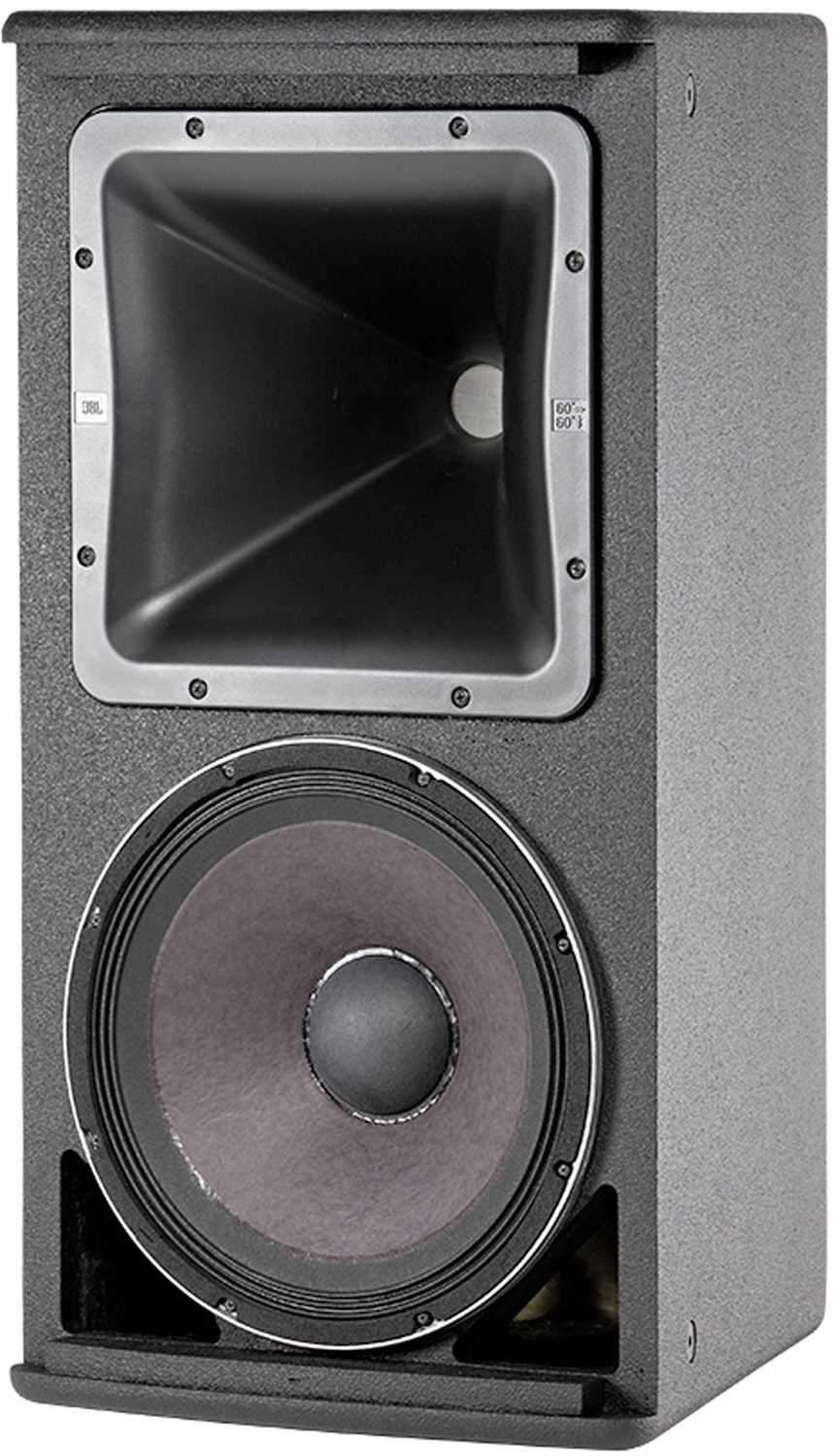

The AM5212/64 is a great choice for those seeking a powerful and versatile sound solution. It features a 262H-1 Differential Drive low-frequency driver and a 2408H-1 high-frequency compression driver, delivering clear and impactful sound. The large PT Progressive Transition waveguide provides excellent 60° x 40° coverage and low distortion. The waveguide is rotatable for flexible orientation. It's also bi-amp/passive switchable, available in multiple finishes. Whether it's for performing arts, auditoriums, or live clubs, this loudspeaker is a top pick for audio enthusiasts and professionals alike.
Features:
- 60° x 40° Coverage
- 262H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White and WRC/WRX weather resistant finishes
Applications:
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
Specifications:
- Frequency Range (-10 dB): 37 Hz – 20 kHz
- Frequency Response (±3 dB): 43 Hz – 18 kHz
- Coverage Pattern: 120° x 60°
- Crossover Modes: Bi-amp/Passive switchable
- Passive Crossover Frequency: 1.5 kHz
- Transducer Power Rating (AES): LF: 400 W (1600 W peak), 2 hrs 300 W (1200 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
- Long-Term System Power Rating (IEC): Passive mode: 300 W (1200 W peak), 100 hrs
- Maximum SPL: Bi-amp mode: LF: 122 dB HF: 131 dB
- System Sensitivity (1W @ 1m): Passive mode: 115 dB SPL
- Low Frequency Driver: 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m, within operational band): 97 dB SPL
- High Frequency Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m): 113 dB SPL
- Waveguide: PT-H126HF-1
- Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish: Black DuraFlex finish. White available upon request.

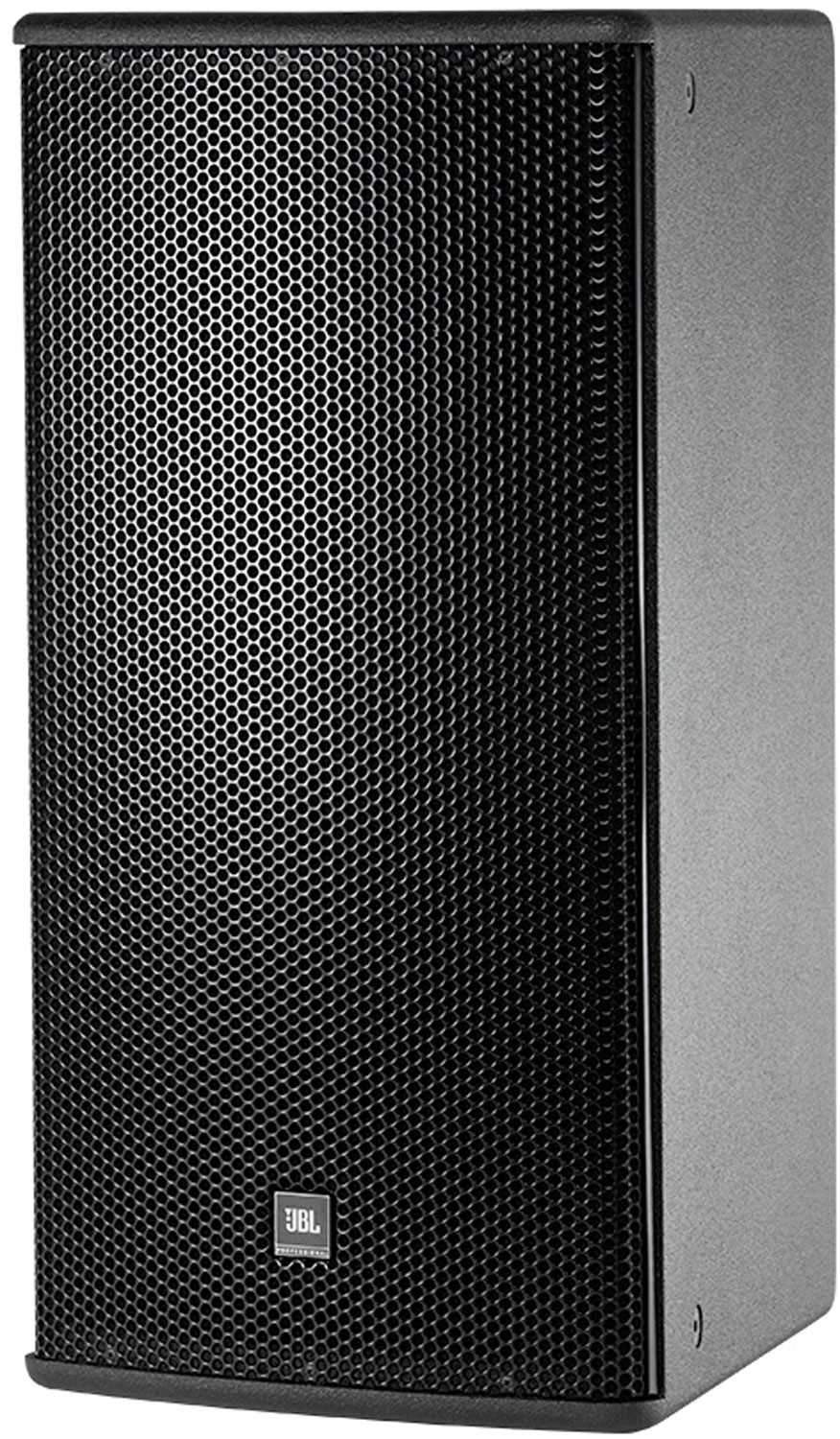

- Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

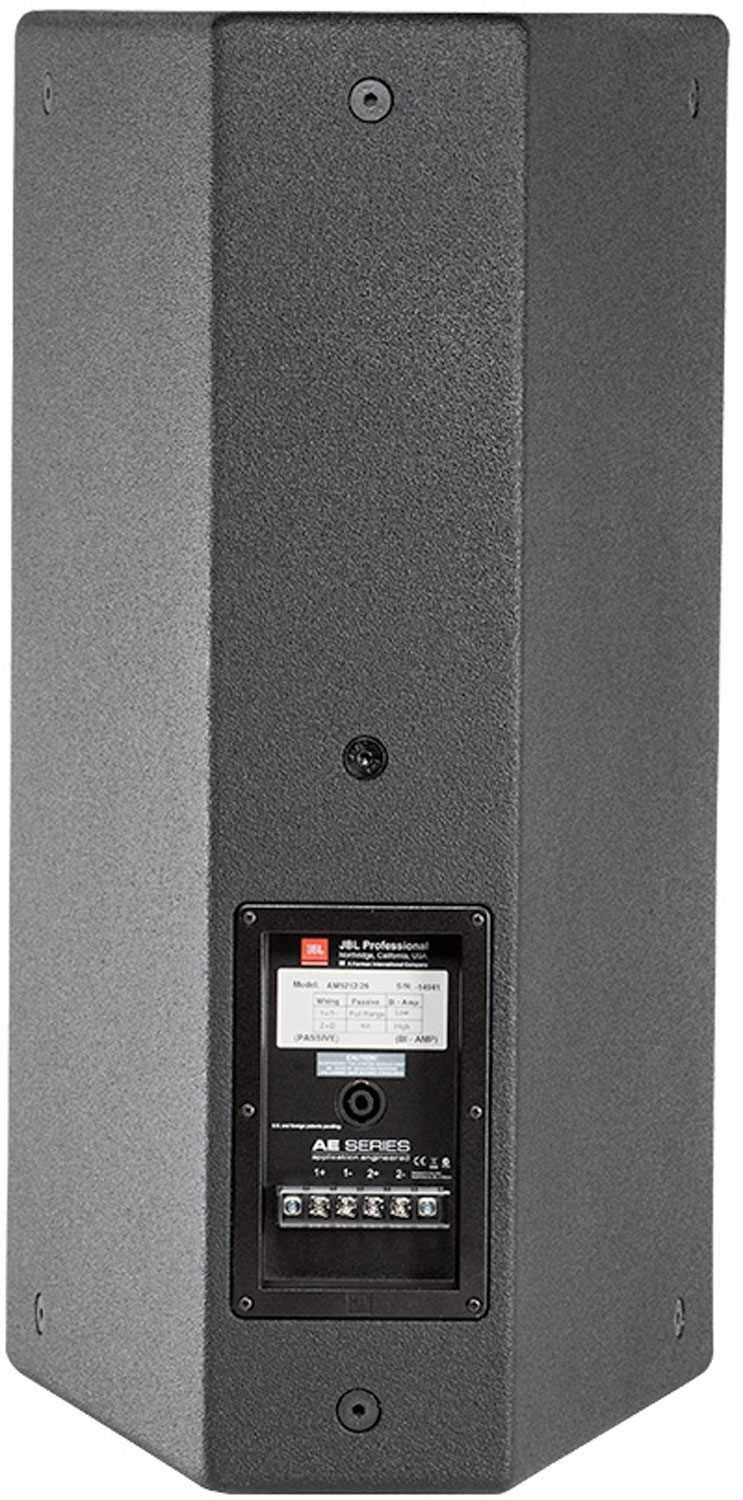

- Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- Environmental Specifications: Mil-Std 810; IP-x3 per IEC529
- Dimensions (H x W x D in vertical cabinet orientation): 713 x 371 x 458 mm (28.06 x 14.6 x 18.1 in)
- Net Weight: 20.2 kg (45 lb)
- Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
This JBL AM5212/00 2-Way Full-Range Loudspeaker is perfect for various venues like performing arts facilities, auditoriums, and live clubs. It's great for audio enthusiasts and professionals. With a trapezoidal enclosure made of 16 mm (5/8 in) exterior grade 11-ply birch plywood and 15 degree side angles, it has a height of 713 mm (28.06 in), width of 371 mm (14.6 in), and depth of 458 mm (18.1 in) in vertical cabinet orientation. It weighs 20.2 kg (45 lb). It offers excellent sound quality and features for different audio needs.
