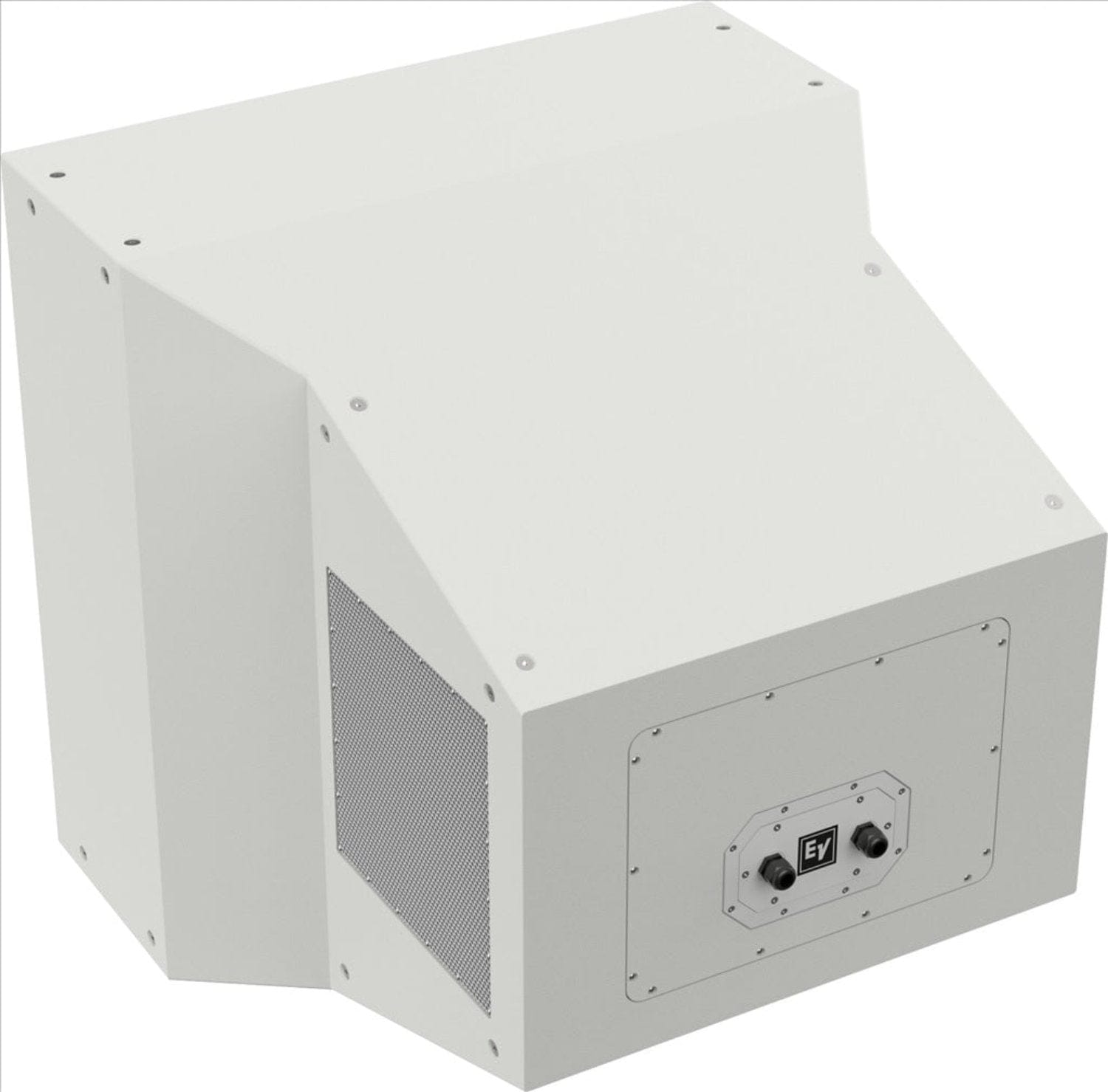

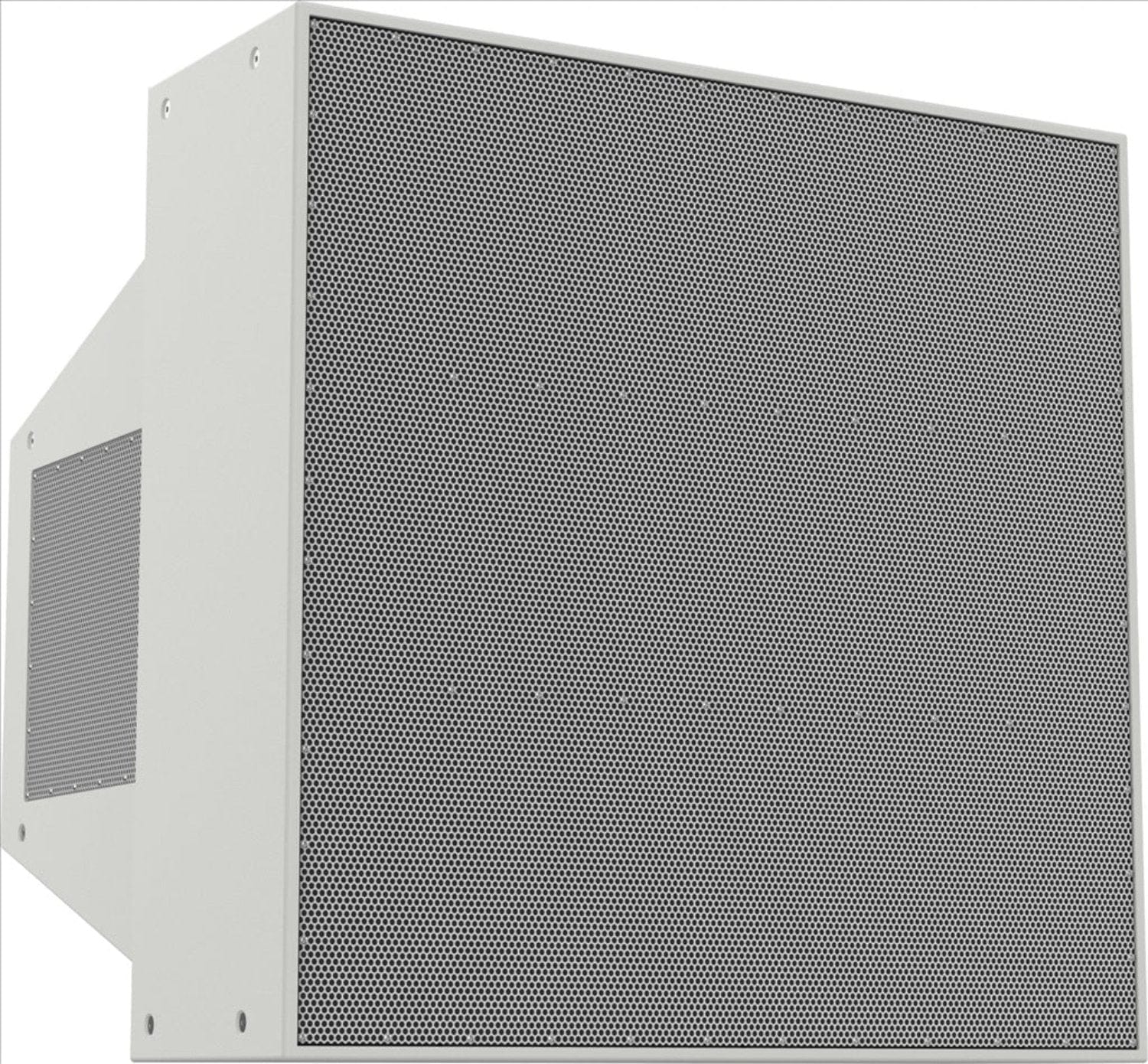

Electro-Voice MTS-6154-64CFWW Weatherized IPX Amplifier Speaker - Ideal for Long-Throw Applications
The MTS-6154-64CFWW is a high-performance loudspeaker designed for long-throw applications. It offers exceptional sound quality and reliability, making it perfect for outdoor use.
• Full-range sound: Delivers clear and balanced audio across a wide frequency range.
• High output: Produces powerful sound with a peak output of 154 dB.
• Weatherized design: Built to withstand the elements with an IP55 rating.
This full-range, high-output, point-source loudspeaker features exact directivity for long-throw applications. Four slot-loaded, 15-inch high efficiency low-frequency drivers are combined with two coaxial mid/high frequency compression drivers for a true point-source sound. The speaker's coverage pattern is 60° x 40°, ensuring precise sound distribution. It can deliver 151 dB peak (music, with low-frequency response extending to 55 Hz at -10 dB) and 154 dB peak (speech). The speaker is typically configured in tri amp mode and is designed for outdoor use with full exposure to the elements. All MTS loudspeakers have an IP55 rating, indicating they are impervious to dust and water ingress. Proprietary speaker settings and limiter functions ensure exceptional performance with long term reliability at extremely high output levels. A package of design files is provided for advanced system simulation in venues. Electro-Voice PREVIEW Loudspeaker Software is the fastest and most accurate way to create acoustic designs with MTS.
Features:
- Full-range, high-output, horn-loaded loudspeaker with exact directivity for very long throw applications

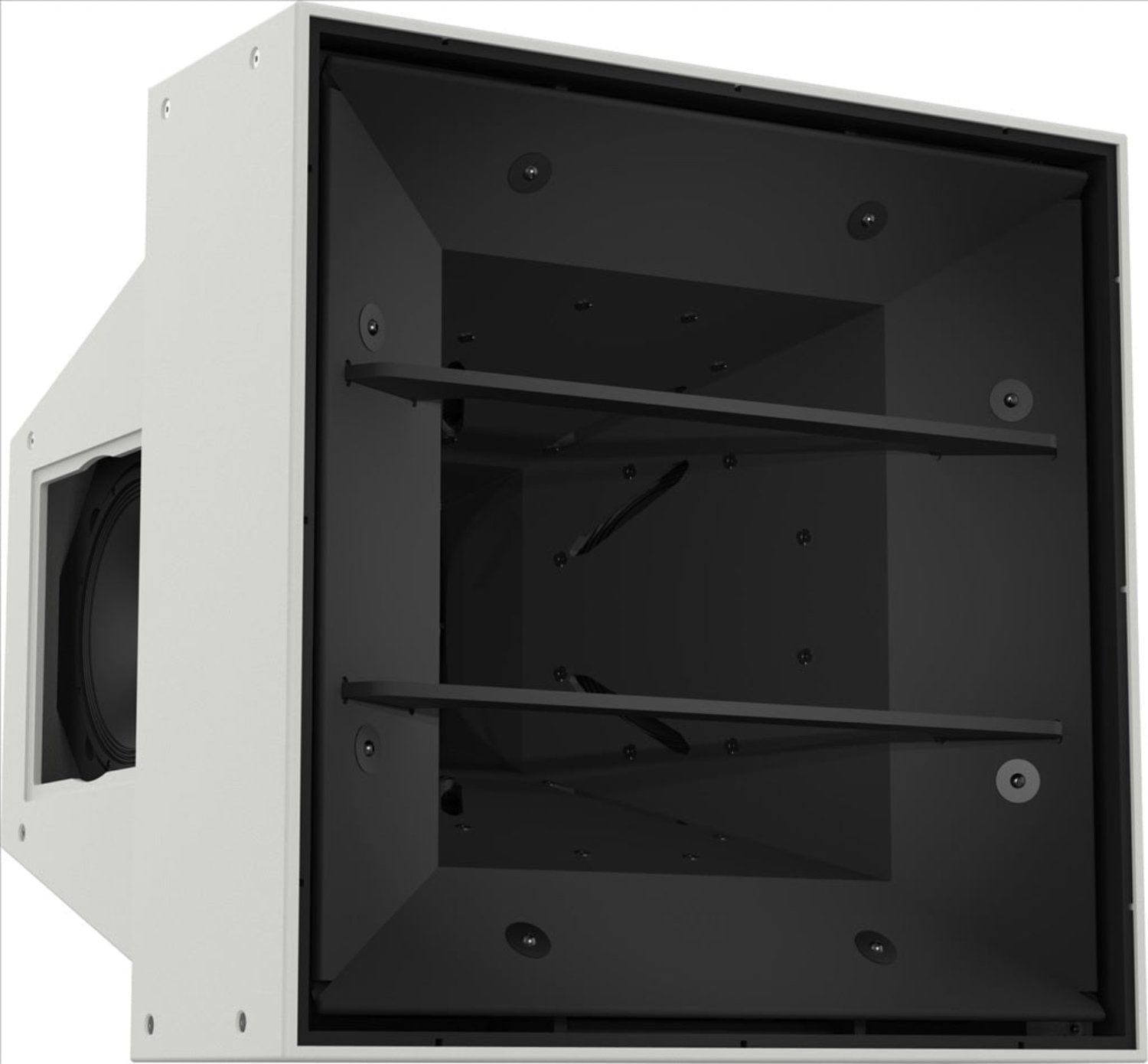

- Lossless Hydra' waveform converter couples dual coaxial compression drivers to a constant directivity (CD) waveguide with pattern control to below 350 Hz
- Four woofers couple to the same waveguide, creating a true point source with substantial bass response
- Optimized acoustic design, amplifier matching, and DSP to ensure perfectly controlled SPL and coverage, even at full output
- Full-bandwidth directivity control cardioid versions reduce sound spill and improve dynamics, sound quality and speech intelligibility
Specifications:
- Height: 1092.20 mm
- Width: 1092.20 mm
- AC Voltage: 150 Volts
- Maximum SPL (Sound Pressure Level): 154 dB
- Coverage Horizontal: 60 degrees
- Coverage Vertical: 40 degrees
- Sustainability Rating: IP55
- Color: White
- Construction: Stainless Steel/Plywood
- Minimum Frequency Response (Bandwidth): 55 Hz
- Maximum Frequency Response (Bandwidth): 20000 Hz
- Maximum Frequency Response (Bandwidth): 20 kHz
- Speaker Diameter (Driver): 381 mm
- Impedance (High Frequency): 8 ohm
- Impedance (Mid Frequency): 6 ohm
- Impedance (Low Frequency): 8 ohm
- Power Handling (High Frequency): 1250 Watt
- Power Handling (Mid Frequency): 1250 Watt
- Power Handling (Low Frequency): 1250 Watt
- Minimum Frequency Response (Bandwidth): 0.06 kHz
- Depth: 1191.26 mm
- Product Weight: 196.41 kg
- Shipping Weight: 244.03 kg
The Electro-Voice MTS-6154-64CFWW is a weatherized IPX amplifier speaker designed for outdoor use. It's perfect for long-throw applications like concerts, outdoor events, and large venues. With a height of 1092.20 mm, width of 1092.20 mm, depth of 1191.26 mm, and product weight of 196.41 kg, it's a substantial yet reliable option. The speaker offers full-range sound, high output, and a weatherized design with an IP55 rating, making it ideal for those seeking a durable and powerful outdoor audio solution.
