Electro-Voice EVOLVE 50 White Portable Column Array Speaker System Kit - Unleash Superior Sound!
Designed to deliver an uncompromising combination of light weight, low-profile looks, and superior audio quality, the EVOLVE 50 sets a new performance standard for powered column systems.
The perfect choice for DJs, mobile entertainers, bands, singer/songwriters, and any venue where high-output portable sound is needed – no other column system currently available sounds as good, looks as good, or is as easy to use. The smooth clarity of the EV sound in a sleek new form factor.
Clean, compact design – built to blend in

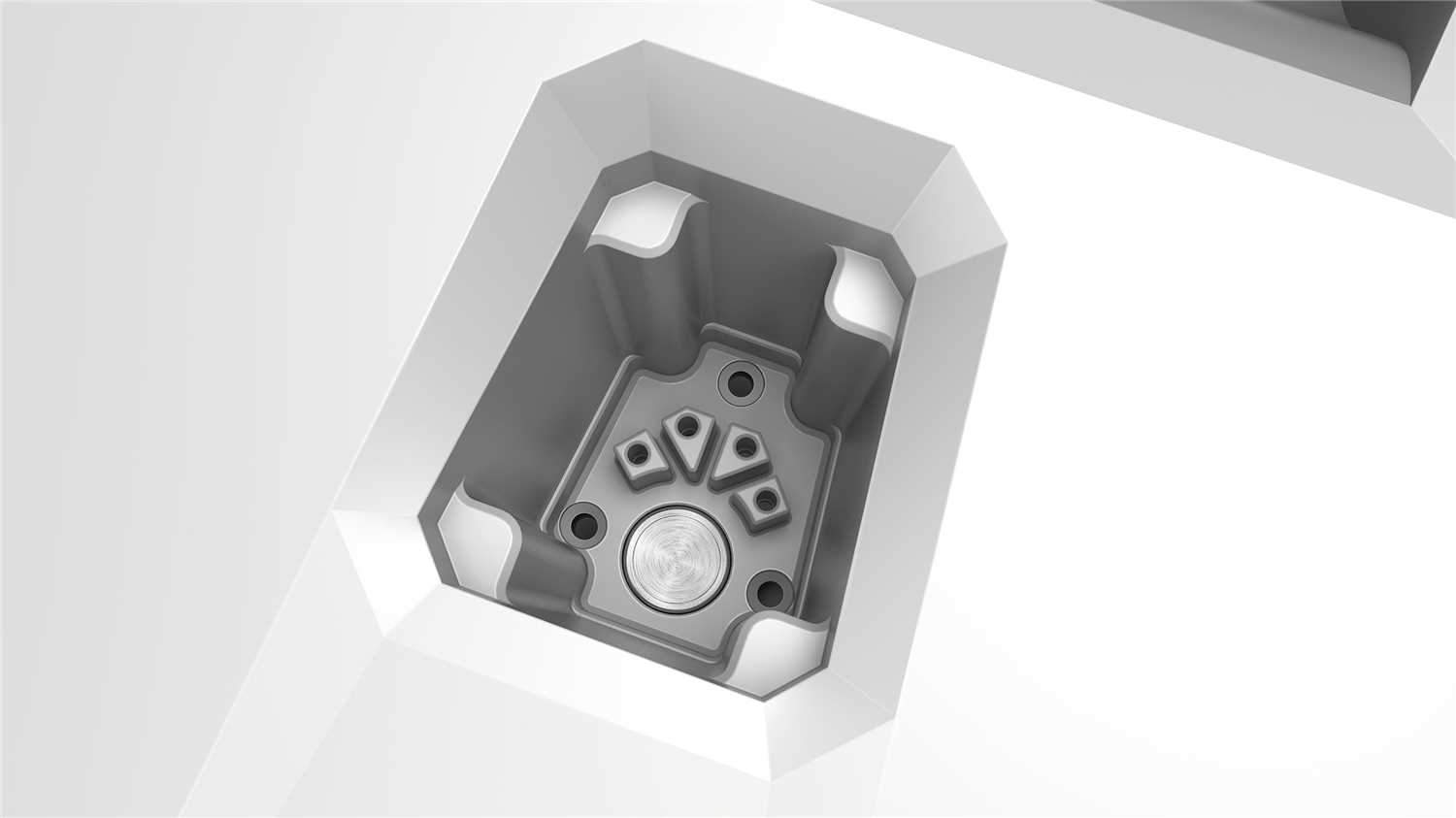

• Lightweight column speaker array with cable-free connection quickly secures pole to sub.
Easy transport and setup
• Ergonomically designed handles on both the array and the sub to enhance portability.

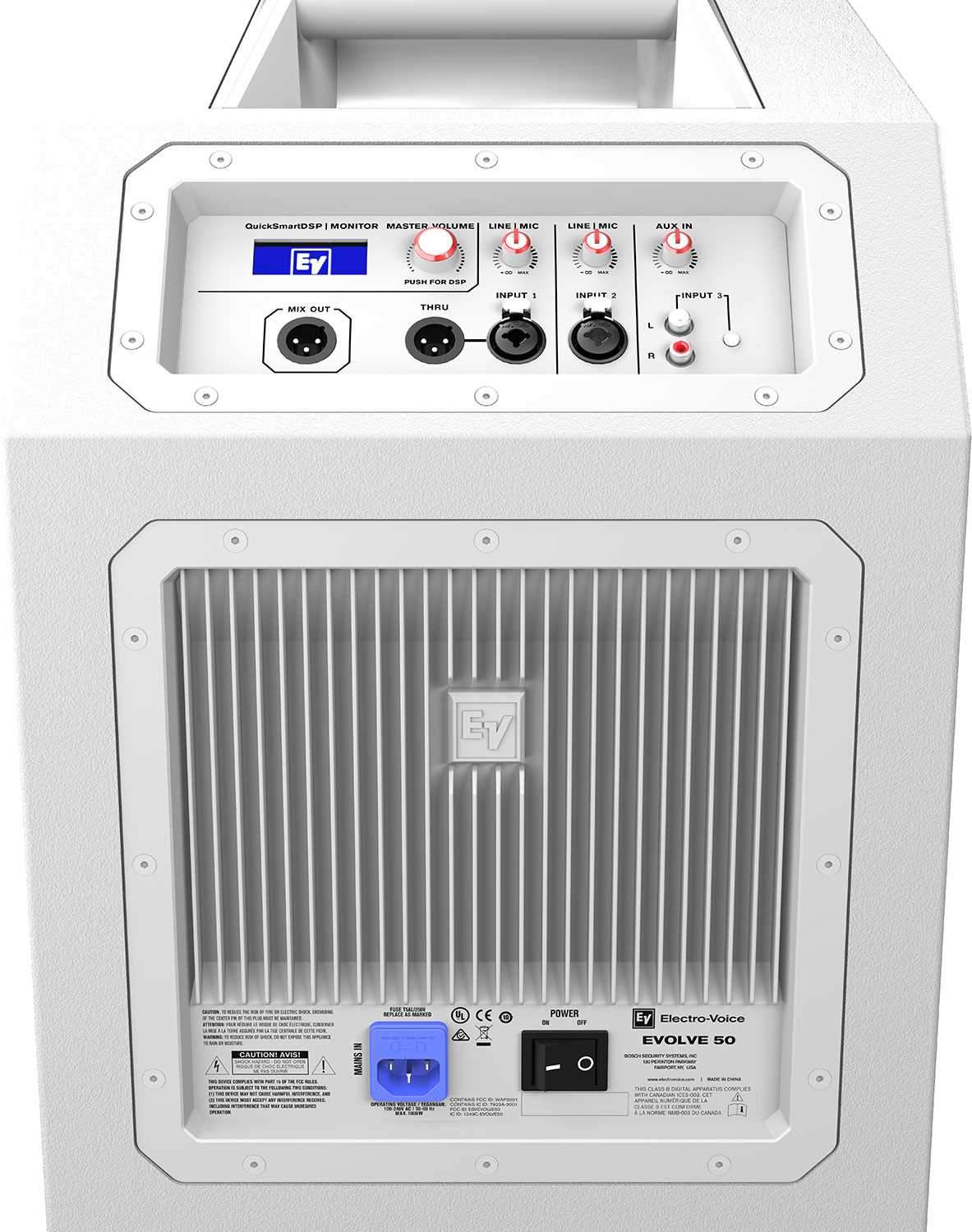

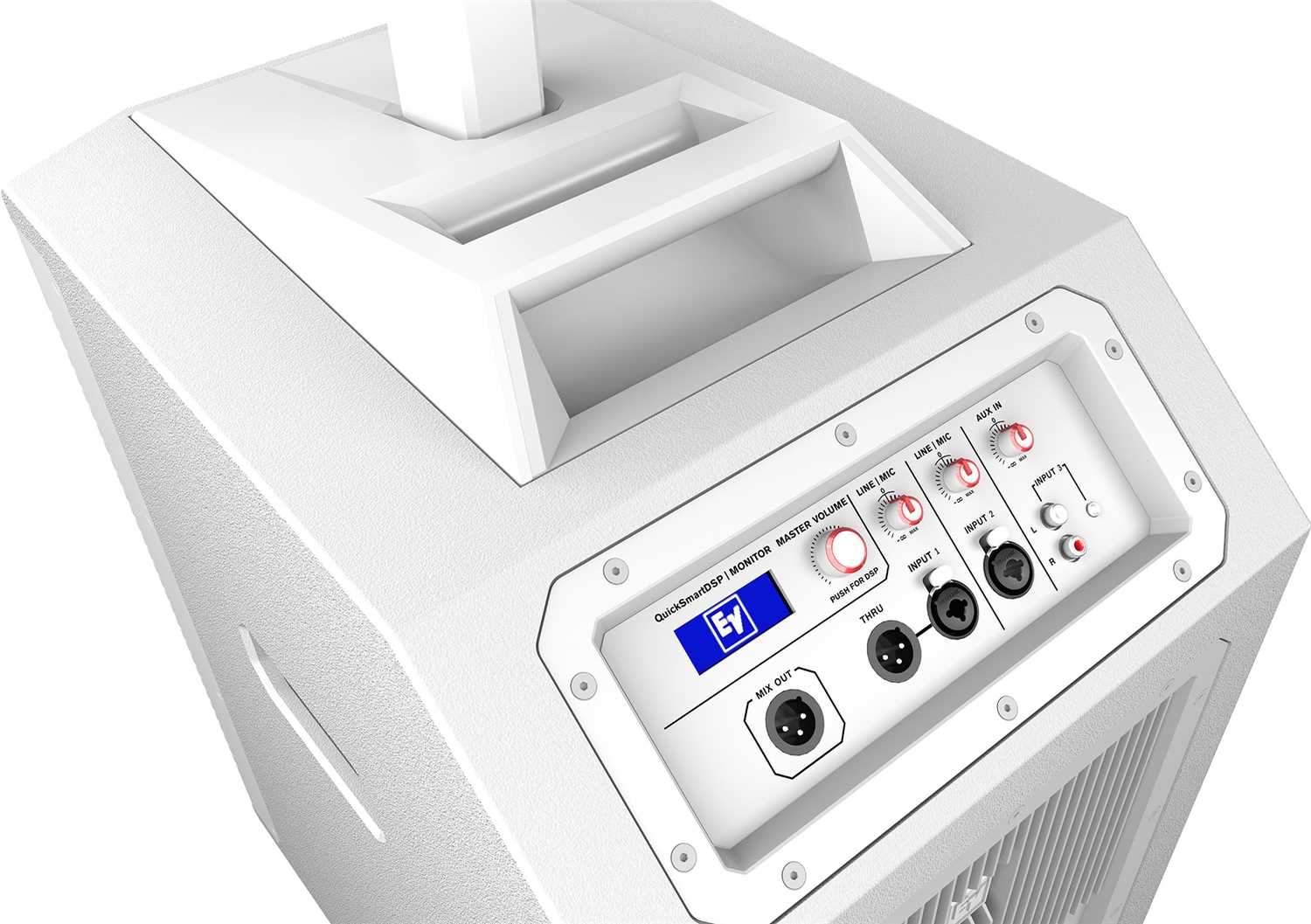

• Angled interface gives user easy access to make adjustments and connections on input panel.
Real PA performance
• Eight 3.5-inch full-range drivers and a 12-inch subwoofer, powered by a three-channel amp for high output.
• Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plug-and-play format.
Wide, even coverage
• Custom waveguides provide ultra-wide 120° horizontal coverage and array-formed 40° asymmetrical vertical pattern control.
• No energy is wasted for exceptional audience coverage and clarity from front to back.
High-quality Bluetooth audio
• For convenient streaming of background music or musical accompaniment direct from any mobile device.
Wireless control and monitoring via the new Bluetooth QuickSmartMobile app
• Quickly configure up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.
QuickSmartDSP provides best-in-class processing via EV's signature single-knob user interface with LCD
• Easy setup via four presets (Music, Live, Speech, Club), three-band EQ, five user-programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.
Specifications:
- Available Color: White
- Connector Type:
- 2x XLR/TRS combo jack input
- 1x 3.5 mm Input
- 1x Stereo RCA input
- 1x Wireless Bluetooth audio input
- 1x XLR THRU output
- 1x XLR MIX OUT output
- Coverage (Nominal -6 dB) H: 120 °
- Coverage (Nominal -6 dB) V: 40 °
- Crossover Frequency: 200 Hz
- Depth:
- Sub: 471mm (18.5 in)
- Column: 172mm (6.9 in)
- Pole: 55mm (2.2 in) mm
- Enclosure Material: Wood
- Family: EVOLVE 50
- Frequency Range (-10 dB): 37 Hz - 20
- Frequency Response (-3 dB): 43 Hz - 20 Hz
- Grill: Steel with black powder coat
- HF Power Handling: 500 Watts
- LF Power Handling: 500 Watts
- Max. SPL/1m (calc): 127 dB
- Maximum SPL (1% THD):
- Sub: 230mm (20.9 in)
- Column: 825mm (32.5 in)
- Pole: 929mm (36.6 in) dB
- Power Consumption: 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
- Power Rating: 1000 W
- Powered or Passive: Powered
- Shipping Weight: 31.3 kg
- Speaker Type: Full-Range
- Weight Net: 26.25 kg
- Width:
- Sub: 345mm (13.6 in)
- Column: 102mm (4.0 in)
- Pole: 48.5mm (1.9 in) mm
- Woofer Size: 12 inch
The EVOLVE 50 Portable Column Array Speaker System Kit is perfect for DJs, mobile entertainers, bands, and singer/songwriters. It's great for any venue needing high-output portable sound. The system has a clean, compact design with a lightweight column speaker array that quickly secures the pole to the sub with cable-free connection. It's easy to transport and set up, with ergonomic handles on the array and sub, and an angled interface for easy access to input panel adjustments and connections. The system features eight 3.5-inch full-range drivers and a 12-inch subwoofer, powered by a three-channel amp for high output. Custom waveguides provide ultra-wide 120° horizontal coverage and 40° asymmetrical vertical pattern control for even coverage. It also offers high-quality Bluetooth audio for convenient streaming from mobile devices, wireless control and monitoring via the Bluetooth QuickSmartMobile app, and QuickSmartDSP for easy setup. The system comes in white. Sub depth is 471mm (18.5 in), column depth is 172mm (6.9 in), pole depth is 55mm (2.2 in). Shipping weight is 31.3 kg, net weight is 26.25 kg. Sub width is 345mm (13.6 in), column width is 102mm (4.0 in), pole width is 48.5mm (1.9 in). Woofer size is 12 inch.
