Audio-Technica NET 3000 Series BP892XCH 470-530 Wireless System

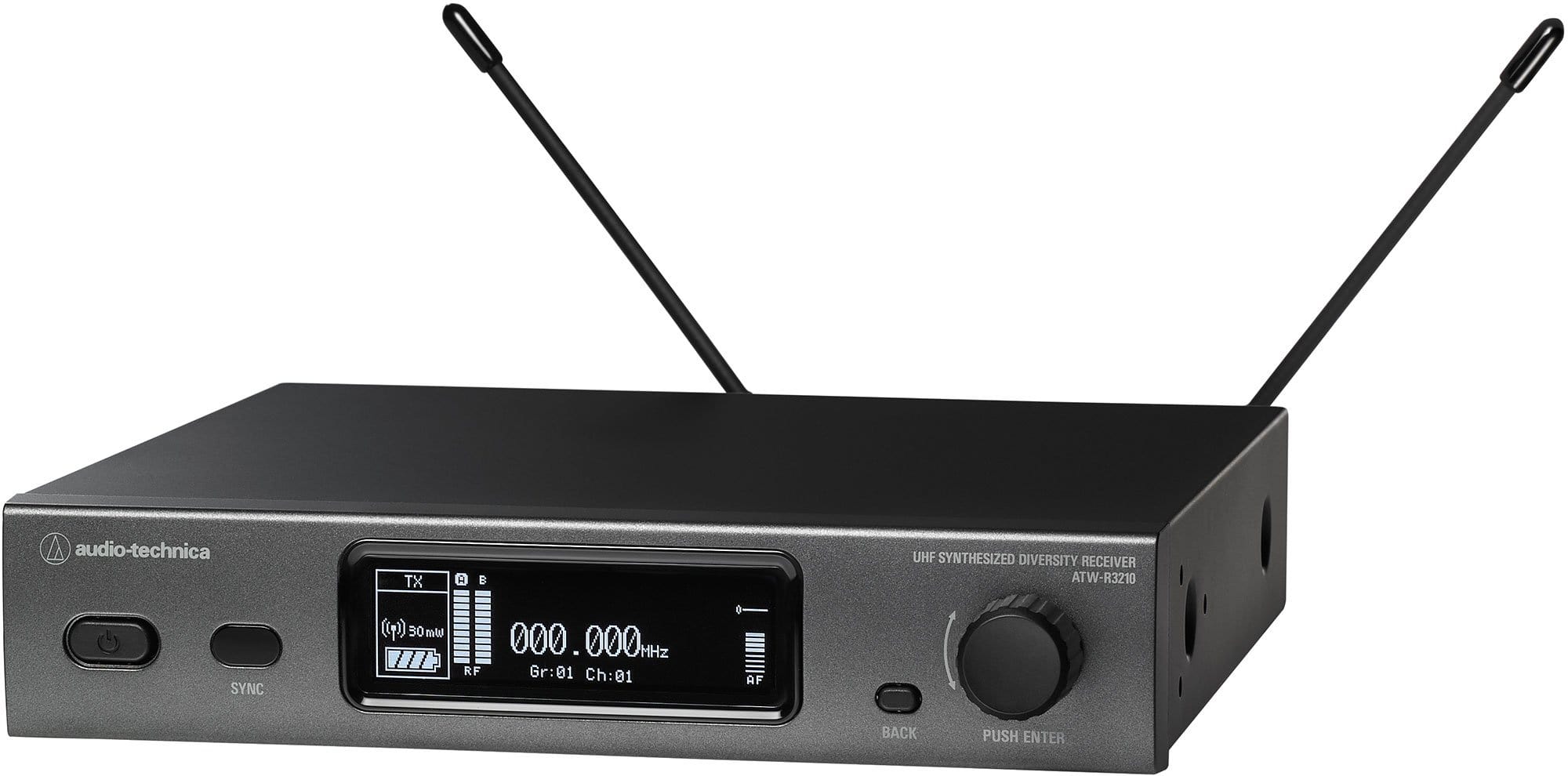

The 3000 Series network-enabled systems bring you the same great features and configurations as the standard systems, plus network monitoring and control via Audio-Technica's Wireless Manager software. Each network-enabled receiver also comes with an AT8631 joining plate.

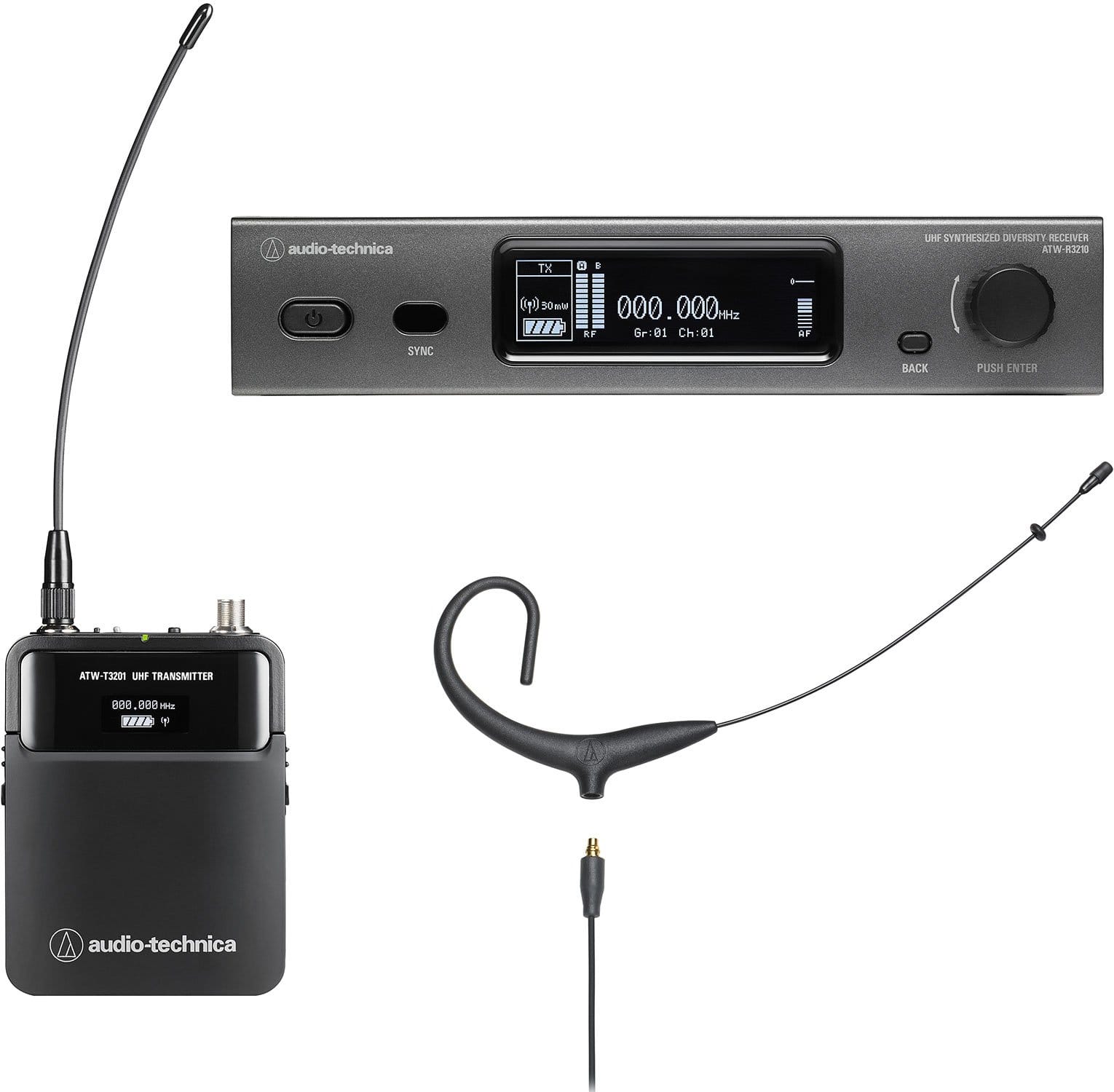

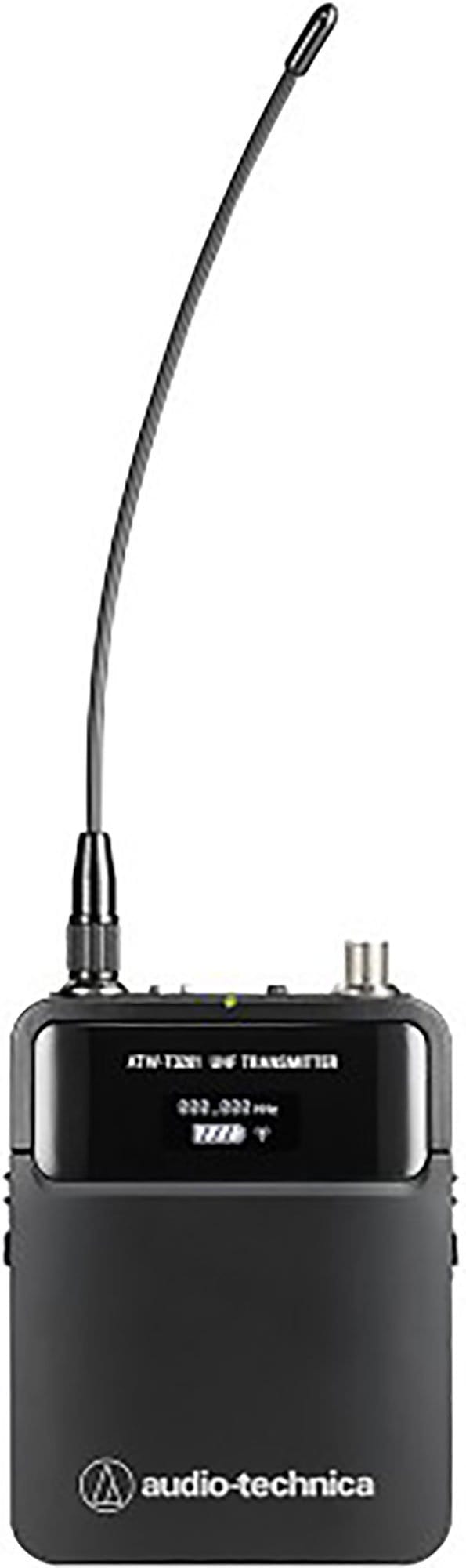

Get the ATW-R3210N network-enabled receiver and ATW-T3201 body-pack transmitter with BP892xcH MicroSet omnidirectional condenser headworn microphone. Comes with element covers, windscreens, clothing clip, and dual-ear adapter kit.
Features:
- • Wide 60 MHz UHF tuning bandwidth for maximum versatility in crowded RF environments, available in DE2 (470–530 MHz) and EE1 (530–590 MHz).
• Unique multifunction button on transmitters to switch to backup frequency in case of interference.
• Network-enabled system with ATW-R3210N receiver for network monitoring and control via Wireless Manager software.
Benefits:
- • True Diversity operation reduces dropouts, ensuring clear audio.
• Auto Squelch feature adjusts squelch for maximum range and minimal interference.
• Frequency scan and IR sync for easy setup.
User-Friendly Design:

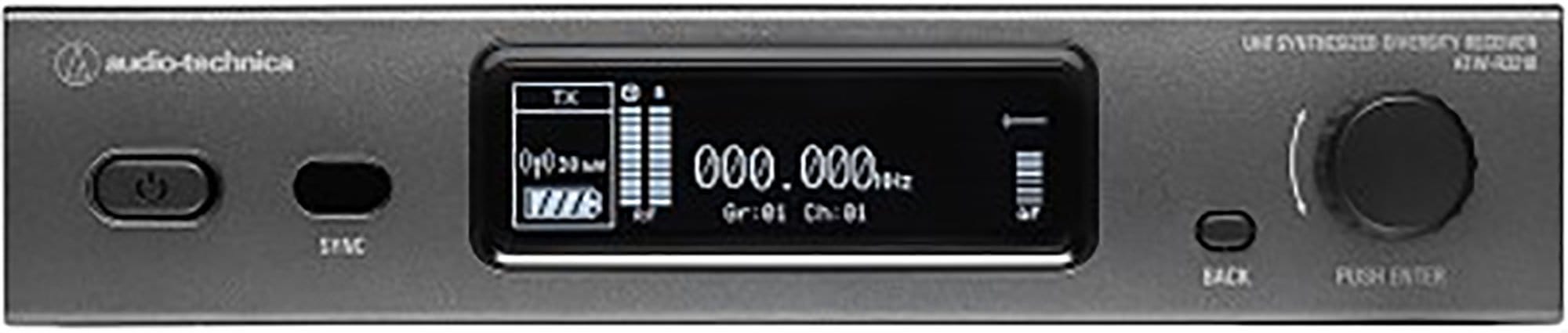

- • Dual-mode receiver display switches between standard and performance views.
• Transmitters and receivers have OLED screens for clear key settings and alerts.
• Handheld transmitter has low handling noise and interchangeable microphone capsules.
Specifications:
- Operating Frequencies: Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Minimum Frequency Step: 25 kHz
Modulation Mode: FM
Maximum Deviation: ATW-T3201: ±38 kHz (THD:10%); ATW-T3202: ±36 kHz (THD:10%)
Dynamic Range: ATW-T3201 Mic input: > 115 dB (A-weighted), typical; ATW-T3201 Inst input: > 112dB (A-weighted), typical; ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Range: 100 m (328') in open range with no interference
Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
This Audio-Technica wireless system is perfect for event organizers, presenters, and performers. It offers a wide 60 MHz UHF tuning bandwidth for maximum versatility in crowded RF environments, available in DE2 (470–530 MHz) and EE1 (530–590 MHz). The unique multifunction button on transmitters allows you to switch to a backup frequency in case of interference. The network-enabled system with the ATW-R3210N receiver provides network monitoring and control via Wireless Manager software. With true diversity operation, auto squelch, and frequency scan and IR sync, setup is a breeze. The dual-mode receiver display and OLED screens on transmitters and receivers make it easy to see key settings and alerts. The handheld transmitter has low handling noise and interchangeable microphone capsules. Operating frequencies are in Band DE2 from 470.125 to 529.975 MHz, with a minimum frequency step of 25 kHz, FM modulation, and specific maximum deviation, dynamic range, and total harmonic distortion values. The operating range is 100 m in an open range environment with no interfering signals, and the operating temperature range is -5° C to +45° C.
