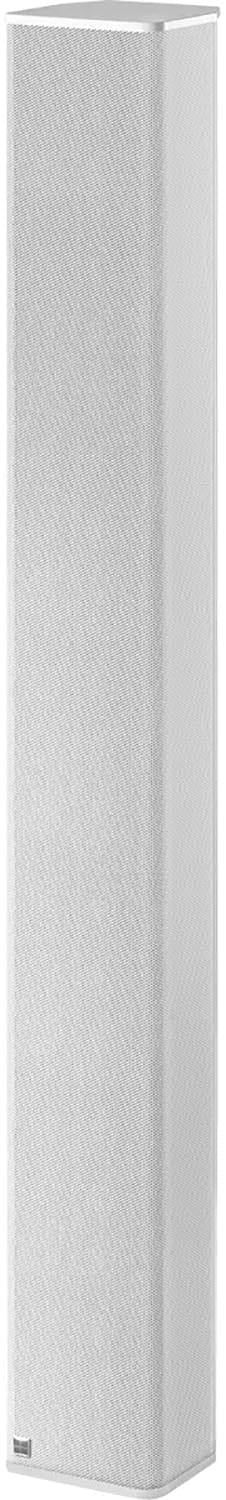

D&B Audiotechnik Z1700.000 24C Column Passive Loudspeaker Extension - White

D&B Audiotechnik Z1700.000 24C Column Passive Loudspeaker Extension - White

• Exceptional Sound Quality: With six 4” neodymium drivers and six 1.1” dome tweeters, this 2-way passive column loudspeaker delivers outstanding sound. The HF array offers a 90° horizontal dispersion and a 20° nominal vertical dispersion (adjustable from 0° to -14°), while the low/mid drivers' beam is tilted downwards by 5°, ensuring clear sound across the listening area.
• Cardioid Design Advantage: The unique cardioid setup of the 4' drivers provides a constant 90° directivity pattern in the horizontal plane with about 18 dB broadband attenuation to the rear. This reduces reflections, balances the level distribution, and boosts gain before feedback, especially useful with open microphones.

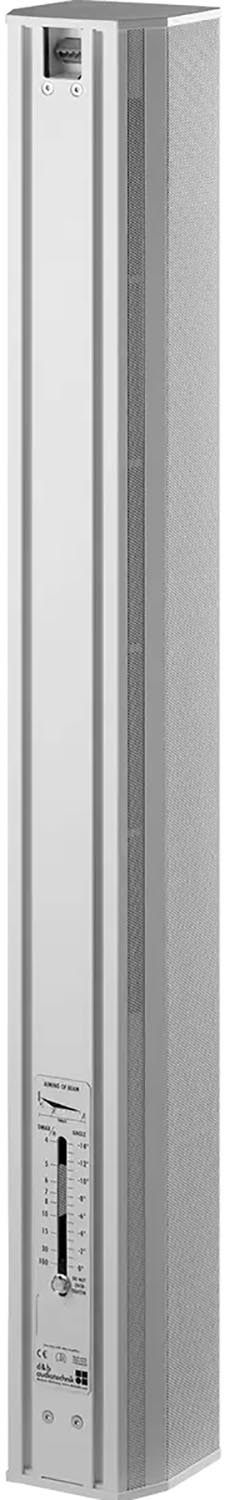

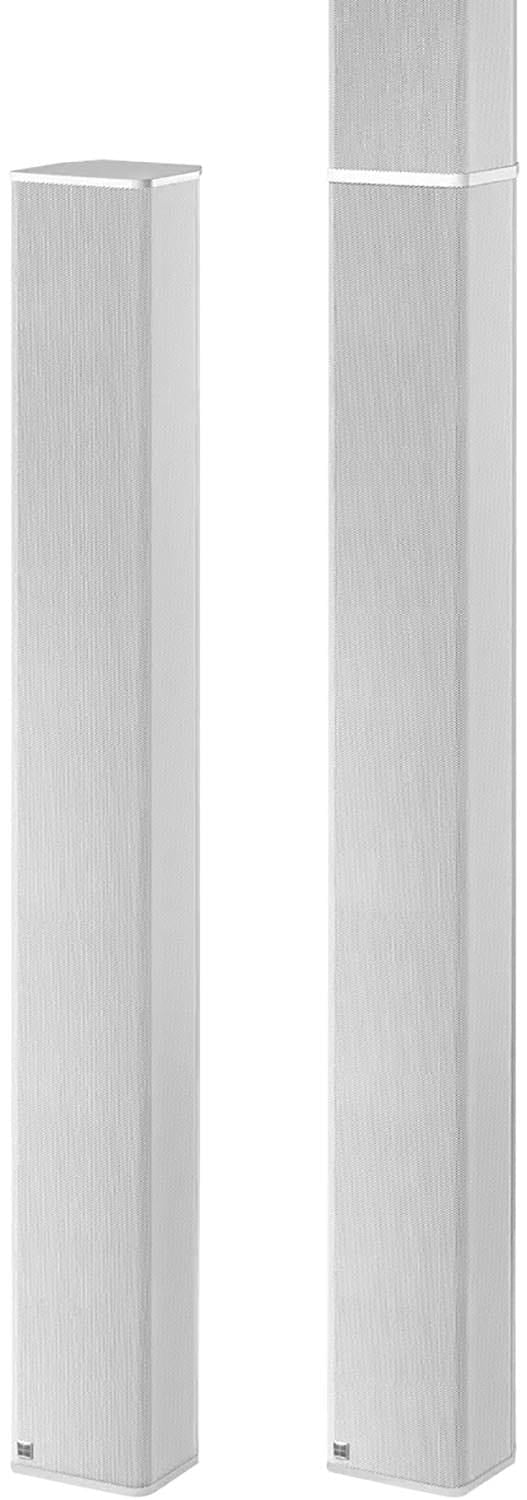

• Durable and Versatile Build: Constructed from an extruded aluminium back, metal baffle, and a metal grill-protected front and sides. It has continuous T-slot rails at the rear for easy mounting and a 4-pole Phoenix combicon terminal connector. Available in white or black standard, or customizable in all RAL colours with the Special Colour (SC) option. Can be combined with the 24C-E passive extension for enhanced vertical pattern control down to 190 Hz.

Features:

• Components: 6 x 4'/6 x 1.1'
• Dispersion: 90° x 20°
• SPLmax: 126 dB
• Weight: 9 kg / 19.8 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 110 Hz - 17 kHz
  • Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
  • Max. sound pressure: 126 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: Installation specific cardioid column loudspeaker
  • Power handling capacity (RMS/peak 10 ms): 125/600 W
  • Vertical downtilt of low-mid beam: 5°
  • Vertical adjustment of HF section: 0° -14°
  • Nominal dispersion angle (h x v): 90° x 20°
  • Components:
    • 6 x 4' driver with neodymium magnet
    • 6 x 1.1' dome tweeter mounted in vertical horn array
    • Passive crossover network
  • Connections: 4-pole Phoenix terminal NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 1000 x 124.5 x 124 mm / 39.4 x 4.9 x 4.88'
  • Weight: 9 kg / 19.8 lb

This D&B Audiotechnik Z1700.000 24C column passive loudspeaker extension is perfect for venues like auditoriums, conferences, and live events. It's designed to reach a wide audience. With a height of 1000 mm, width of 124.5 mm, depth of 124 mm, and weighing 9 kg, it's easy to install and handle. The 24C can be combined with the 24C-E passive extension for enhanced vertical pattern control down to 190 Hz.
