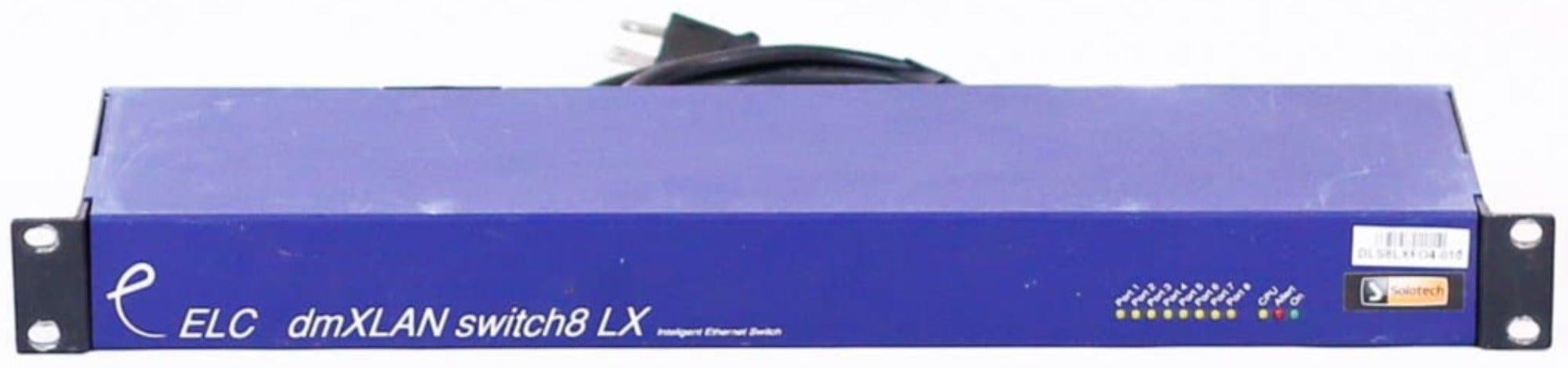

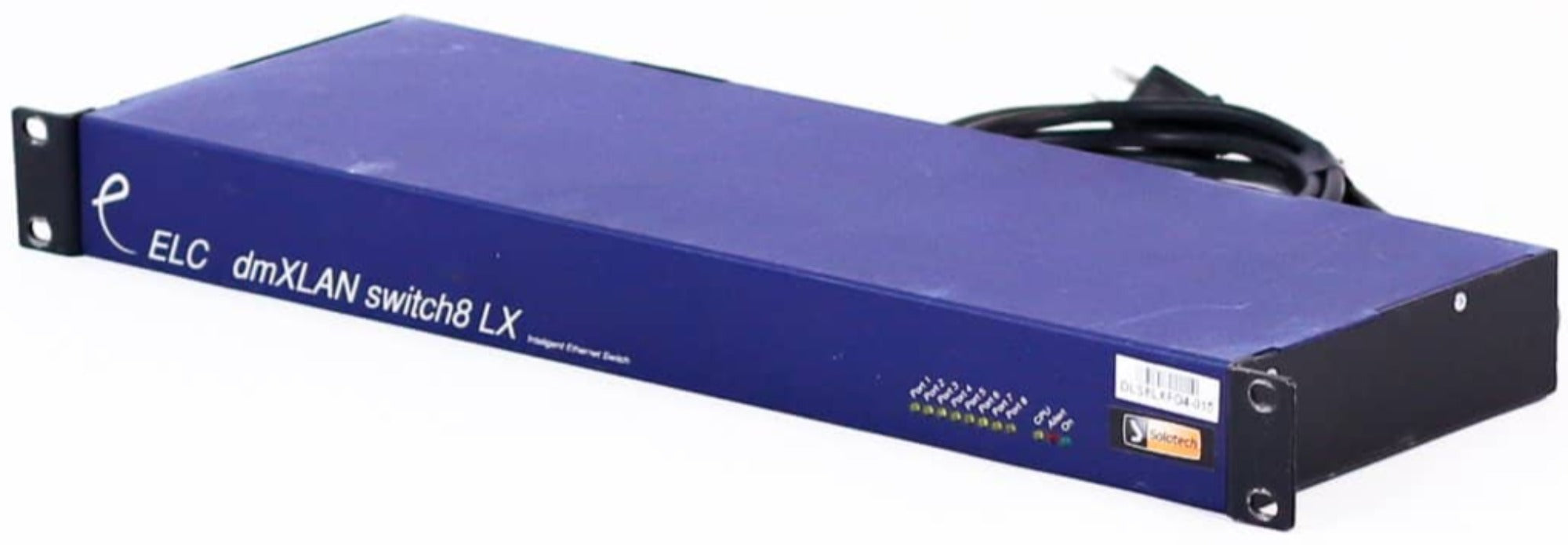

ELC dmXLAN 8LX FO4 Network Switch - Your Ultimate Live Entertainment Network Solution
Discover the ELC dmXLAN switch8LX FO4 Network Switch, a game-changer for live entertainment! Designed with a high-spec 10/100 MBit Ethernet layer 2 switching engine and an optimized controller CPU, it features 8 programmable network ports and programmable static multicast routing. This switch is perfect for live entertainment applications where data protocol mixtures can overload and saturate ordinary network switches.
Features:
- • Real-time backup loop for seamless connectivity
- • Multicast filtering for efficient data management
- • Gateway support for enhanced network access
- Available in 4 versions:
- 8 x CAT5 Ethernet ports on Neutrik Ethercon
- 6 x CAT5 Ethernet ports on Neutrik Ethercon and 2 x fiberoptic 100MBit ports (ports 1 & 2) on SC connector
- 8 x CAT5 Ethernet ports on Neutrik Ethercon, with Power Over Ethernet on ports 3 to 8
- 6 x CAT5 Ethernet ports on Neutrik Ethercon and 2 x fiberoptic 100MBit ports (ports 1 & 2) on SC connectors with Power over Ethernet on ports 3 to 8
Specifications:
- Dimensions: 19” x 1U x 6.3in, 5.5lbs (box size: 22.5 x 11 x 2.8in, 6.4lbs gross)
- Power: 100-240VAC 50/60Hz, fixed power cord

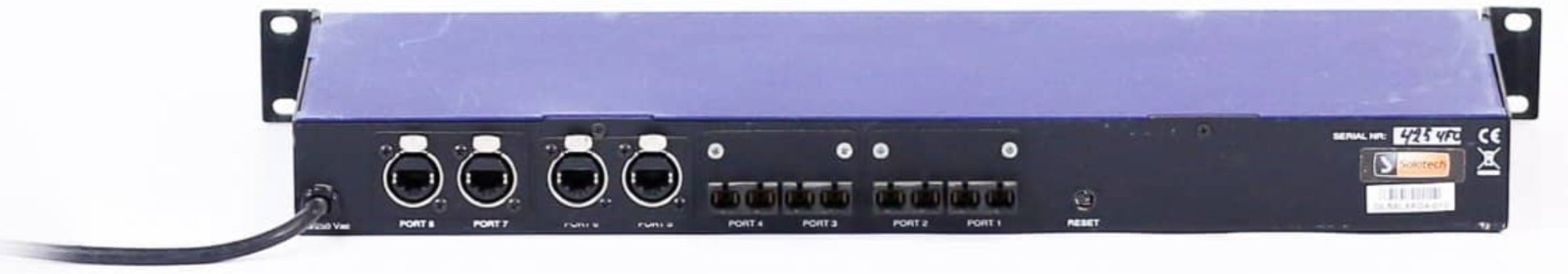

- Connections: Ethernet ports RJ45 on Neutrik Ethercon, fiberoptic ports on SC connectors
- Supplied: DLS8LX, fitted power cord, operator instructions
- Versions:
- DLS8LX: 8 x CAT5 ethernet ports
- DLS8LX FO: 6 x CAT5 ethernet ports and 2 x fiberoptic 100MBit ports
- DLS8LX POE: 8 x CAT5 ethernet ports, with Power Over Ethernet
- DLS8LX FO POE: 6 x CAT5 ethernet ports and 2 x fiberoptic 100MBit ports, with PoE
The ELC dmXLAN 8LX FO4 Network Switch is a must-have for live entertainment professionals. Its high-spec design and multiple features make it ideal for handling various data protocols. It comes in different versions to suit your needs. The switch has dimensions of 19” x 1U x 6.3in and weighs 5.5lbs. It operates on 100-240VAC 50/60Hz with a fixed power cord. With Ethernet ports on Neutrik Ethercon and fiberoptic ports on SC connectors, it's easy to connect. Supplied with DLS8LX, power cord, and operator instructions, it's ready to use right out of the box.
