Elation PIX289 Pixel Driver 4000 V2

Elation PIX289 4000 V2 Pixel Driver - Your Ultimate Lighting Control Solution

• Tailored for Elation's Pixel Tape and Bar series
• Effortless control with on-board dimming and strobe
• Full pixel mapping via multiple protocols

The Pixel Driver 4000 V2 is a must-have for lighting professionals. It's designed specifically for the Elation Pixel Tape 16IP, 40IP, Pixel Bar 30IP, 60IP, and 120IP series. With features like simple on-board manual dimming and strobe control, and full pixel mapping control of up to 4,080 max pixels via Kling-Net, and 680 max pixels via Art-Net and sACN protocols, it offers easy and versatile control options.

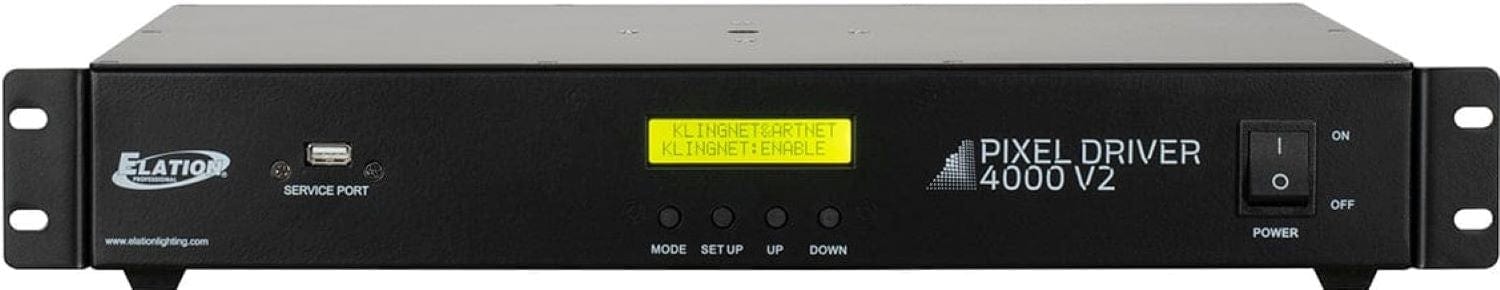

Featuring a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and 4 outputs using proprietary IP rated 4pin combo cables (sold separately), it's a breeze to set up. The cables are available in lengths from 2 to 50 feet. You can mount it in a standard 19-inch rack (rack ears included) or attach it to truss with a clamp (not included).

Searching for a reliable lighting control product? Look no further! Our Pixel Driver 4000 V2 is here to meet all your needs. Don't miss out on this amazing lighting solution!

Features

• Power/Data Supply for Elation Pixel Tape 16IP, 40IP, Pixel Bar 30IP, 60IP, and 120IP
• Simple On-Board Manual Dimming and Strobe Control
• Kling-Net, Art-Net, and sACN Protocol Support
• 4,080 Max Pixel Mapping via Kling-Net
• 680 Max Pixel Mapping via Art-Net and sACN
• 19-inch (483mm) Rack Mount Kit Included

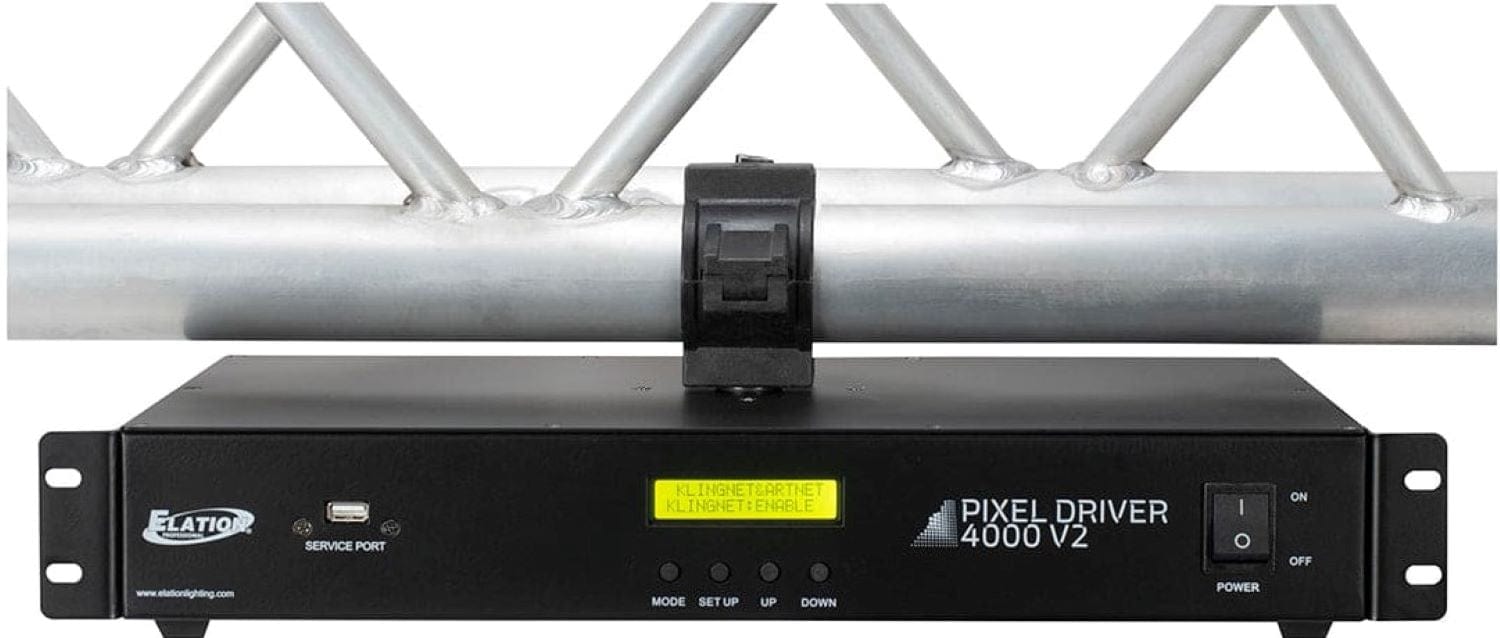

• Truss Mounting Options (clamp not included)
• Multi Unit Linking via RJ45 Ethernet
• (4) Outputs

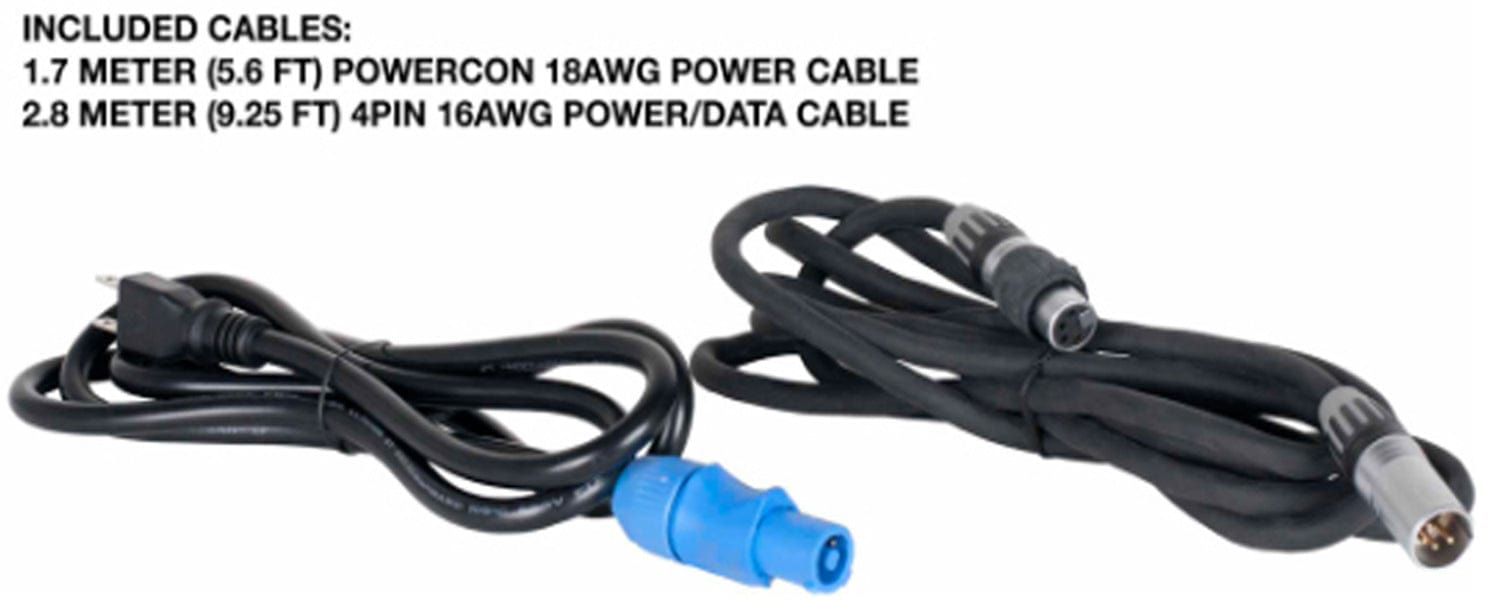

• 5.65ft (1.7m) Power Cable Included
• 9.25ft (2.8m) 16AWG Power/Data Cable Included
• Proprietary IP Rated Power/Data Combo Cables*

*Available in, 16AWG; 2/3/5/10/12/15/20/25/30/50 Foot Lengths and 12AWG; 20/25/30/50 Foot Lengths. See Related Products and Accessories at the bottom of this page.

Specifications

• CONTROL / CONNECTIONS
• Manual RGB Mode
• Internal Programs
• Art-NET | sACN | Kling-NET
• 2 RJ45 Ethernet Ports

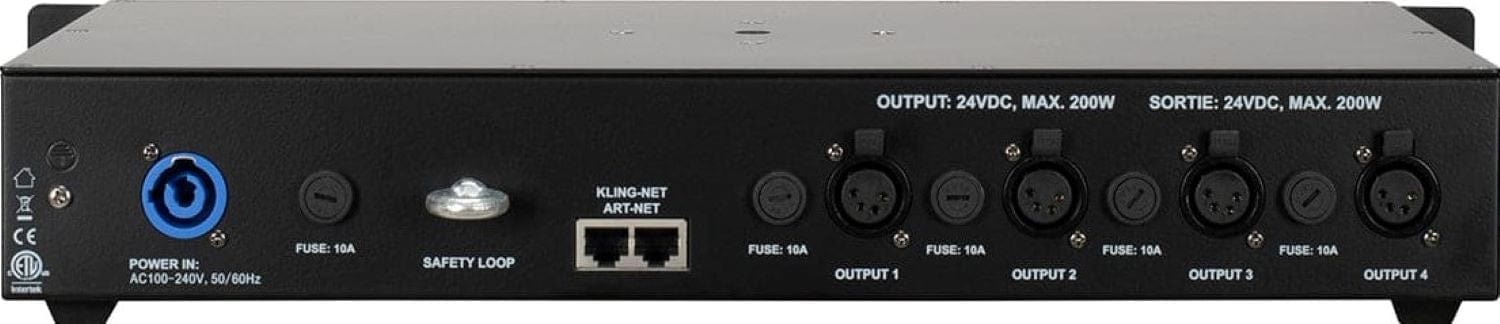

• 4 4pin Power/Data Outputs
• USB Port for Firmware Updates
• SIZE / WEIGHT
• Length: 16.7” (425mm)
• Width: 11.8” (301mm)
• Height: 2.9” (74mm)
• Weight: 9.5 lbs. (4.3kg)
• ELECTRICAL
• AC 100-240V - 50/60HZ
• 800W Max Power Consumption
• -4°F to 113°F (-20°C to 45°C)
• APPROVALS
• CE | cETLus (Pending)

Specifications and documentation subject to change without notice.

This Elation PIX289 4000 V2 Pixel Driver is perfect for lighting setups. It's designed for professionals working with Elation's Pixel Tape 16IP, 40IP, Pixel Bar 30IP, 60IP, and 120IP series. The device measures 16.7” (425mm) in length, 11.8” (301mm) in width, and 2.9” (74mm) in height, weighing 9.5 lbs. (4.3kg). It features a universal auto switching power supply (100-240v), allowing for easy installation in various locations. The 4-button LCD control menu display and RJ45 Ethernet in/out ports make it user-friendly and convenient to operate. With 4 outputs using proprietary IP rated 4pin combo cables (sold separately), it can supply power and data to each pixel bar. These cables are available in lengths from 2 to 50 feet. You can mount it in a standard 19-inch rack (rack ears included) or attach it to truss with a clamp (not included). It supports multiple protocols like Kling-Net, Art-Net, and sACN, offering versatile control options for your lighting needs.
