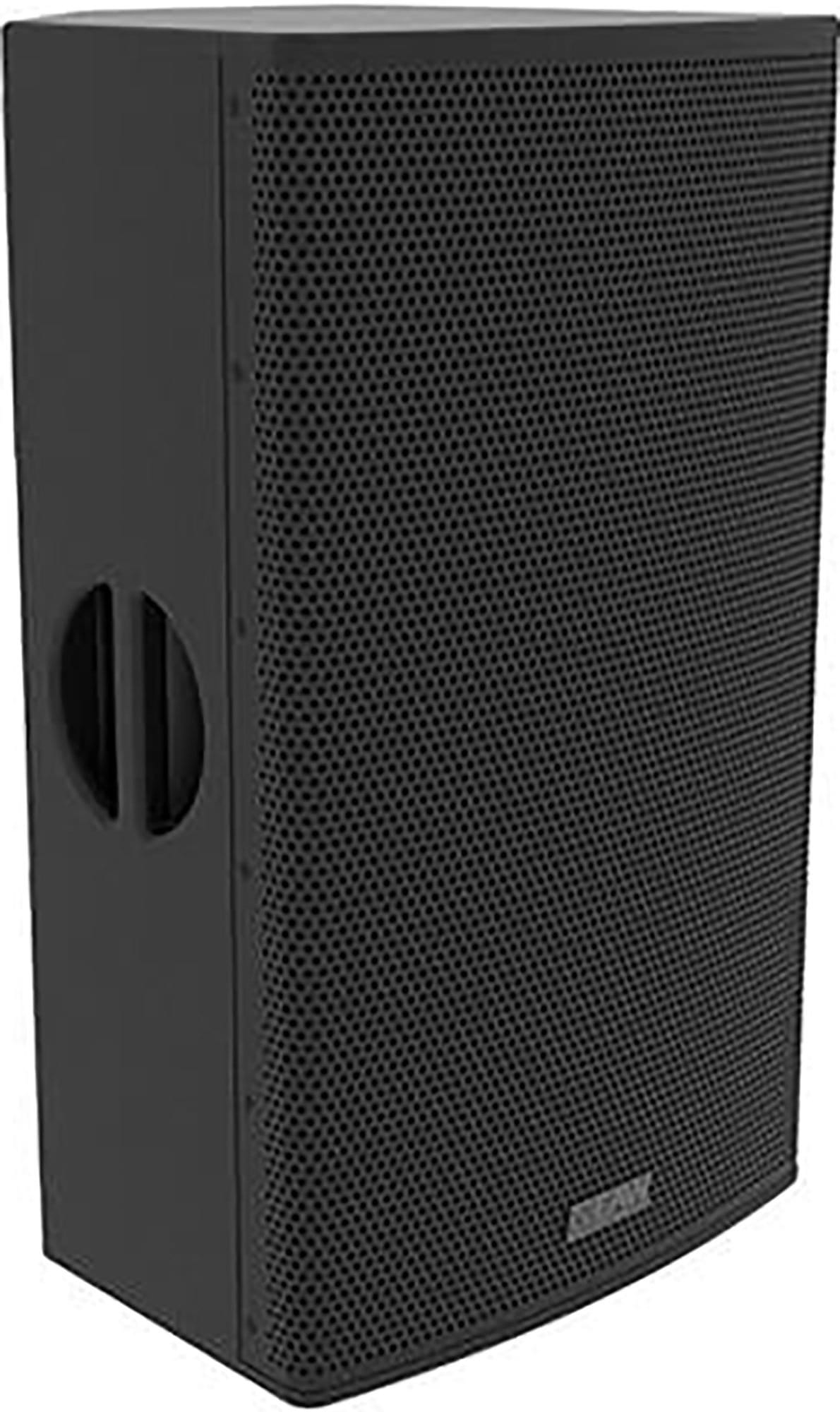

EAW RS153 1500-Watt 15-Inch RS Series Self Powered Loudspeaker
The RS Series offers exceptional performance in a portable and lightweight wooden enclosure. Here's why it's a must-have:
- • Signature Performance: Delivers EAW's renowned sound quality for an immersive experience.
- • Intelligent Features: EAW Focusing provides crystal-clear music and precise tonal accuracy.
- • Unique Design: The constant directivity HF horn enhances pattern control, inspired by the legendary MK Series.
The lightweight and durable wooden enclosure reduces resonance and houses 1500W of bi-amplified electronics with signature EAW DSP. Their Resolution software platform makes it easy to predict performance.
Applications:
- Houses of Worship
- Theatres, Auditoria and Performing Arts Centers
- Live Music Clubs
- Corporate AV Houses
- Live Production/Regional Rental Houses
- Dry Hire
Features:
- • Leading-edge touring grade transducers for top-notch sound
- • EAW Focusing for unparalleled clarity and accuracy
- • Rotatable MK inspired horn for precise pattern control
- • Lightweight and durable wooden enclosure with M10 threaded suspension points
Specifications:
Performance
- Max SPL: 138dB
- Operating range: 50 Hz to 20 kHz
- Nominal Beamwidth: 90° Horizontal and 60° Vertical, Constant Directivity, User Rotatable
Configuration
- LF Transducer, Loading: 15in Cone, 3in Voice Coil, Vented
- HF Transducer, Loading: 15in Cone, 3in Voice Coil, Vented
- Operating Mode: Bi-Amp LF, HF
- Signal processing: DSP w/EAW Focusing and DynO
- Modes: Main / Monitor, HPF Select
Electrical performance
- Input: Electronically Balanced XLR / TRS
- Loop: Electronically Balanced XLR
- Amplifier:
- Type Class – D
- Max Output LF/HF (Peak) – 1500W
- AC Mains (nominal):
- Connector – Neutrik PowerCON
- Input – 100-120V or 200-240V, 50-60Hz
- Dimensions (HxWxD)*: 28.7″ x 17.1″ x 16.1″ (730mm x 435mm x 410mm)
- Net Weight*: 55lb (25kg)
The EAW RS153 is a 1500-Watt 2-Way 15-Inch Self-Powered Loudspeaker designed for a variety of applications. It's perfect for Houses of Worship, Theatres, Live Music Clubs, and more. With its lightweight and durable wooden enclosure, it's easy to transport and set up. The dimensions are 28.7″ x 17.1″ x 16.1″ (730mm x 435mm x 410mm) and it weighs 55lb (25kg). It offers great sound quality with features like EAW Focusing for clarity and a rotatable MK inspired horn for pattern control.
