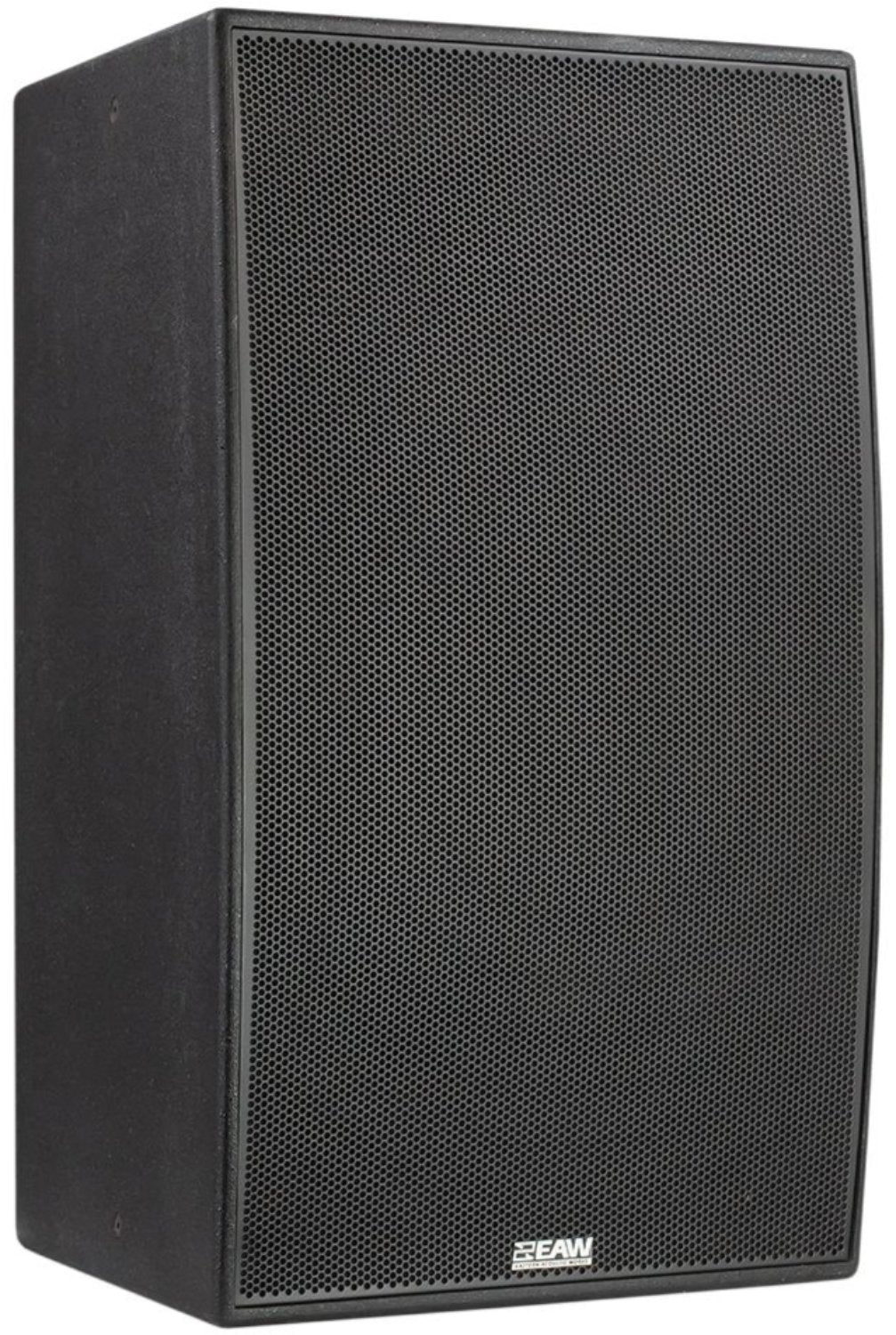

EAW MKD1564 3-Way Full-Range Loudspeaker - High-Output Sound for Any Venue
The MKD series of installation loudspeakers is designed to deliver outstanding performance in a variety of settings, from stadiums to intimate music clubs. With high output, broadband pattern control, and exceptional fidelity, these speakers are perfect for any application that requires clear, powerful sound.
Built on EAW's reputation for excellence in installation speakers, the MKD series features a compact, durable Baltic birch enclosure with an array of M10 mounting points for easy installation. Weather protection options, custom colors, and a gently curved front make these speakers suitable for concealed installations in even the most visually sensitive environments.
The MKD series leverages the design principles and core technologies of the QX series, with a pair of spaced low frequency transducers centered around a large format rotatable horn.
Features:
- High output bi-amplified two-way performance for powerful sound
- High performance coaxial compression driver with extended bandwidth for clear audio
- Precision EAW signature broadband pattern control for focused sound
- Flexible mounting, weather protection, and color options for easy customization
Specifications:
- Beamwidth (H x V): 60° x 45°
- Frequency Response: 45Hz – 18kHz
- Max SPL: 147dB
- Operating Mode: Bi-Amp
- Subsystem:
- LF Transducer, Loading: 2 x 15in Cone, 4in Voice Coil
- MF Transducer, Loading: 1 x 2in Exit, 4in Voice Coil, Compression Midrange, Horn Loaded
- HF Transducer, Loading: 1 x 2in Exit, 2.5in Voice Coil, Compression driver, Horn Loaded
- Power Handling:
- LF: 1600W @ 4ohms
- MF/HF: 250W @ 8ohms
- Connections: Terminal block
- Dimensions:
- Height: 37H (935mm)
- Width: 23W (580mm)
- Depth: 24D (600mm)
- Weight: 130lbs (59kg)
The EAW MKD1564 3-Way Full-Range Loudspeaker is a versatile sound solution for a variety of venues. Whether you're filling a stadium with music or creating an intimate atmosphere in a club, these speakers deliver high-quality sound. They're easy to install with a compact design and multiple mounting points. The speakers are also weather-protected and available in custom colors. With a beamwidth of 60° x 45°, a frequency response of 45Hz – 18kHz, and a max SPL of 147dB, they're perfect for any application. Measuring 37H (935mm) in height, 23W (580mm) in width, and 24D (600mm) in depth, and weighing 130lbs (59kg), they're a great choice for any installation.
