EAW 2070747-70 NTX210L 2-Way Self-Powered Loudspeaker - Black

EAW NTX210L 2-Way Self-Powered Loudspeaker - The Ultimate Sound Solution

The NTX Series, building on the Radius line, offers a high-performance sound solution with reduced setup times. It's perfect for rental firms, production companies, and system integrators. Here are its amazing features:

• • Auto Array Optimization: Onboard sensors enable near-instant setup and tuning, saving you time.
• • Comprehensive Software Control: Manage your system from anywhere in the venue with ease.
• • Integrated Dante Networking: Enjoy seamless connectivity with loop-thru and analog redundancy.

With EAW's signature acoustics and full Dante integration, the NTX Series provides an intelligent and flexible system for any budget.

Specifications:

• Performance:
  • Calculated Axial Output Limit (whole space SPL):
    • Peak 140dB LF/HF (12dB Crest Factor)
  • Operating Range: 55Hz–18kHz
  • Nominal Beamwidth:
    • Horz: 90°
    • Vert: 12°
• Configuration:

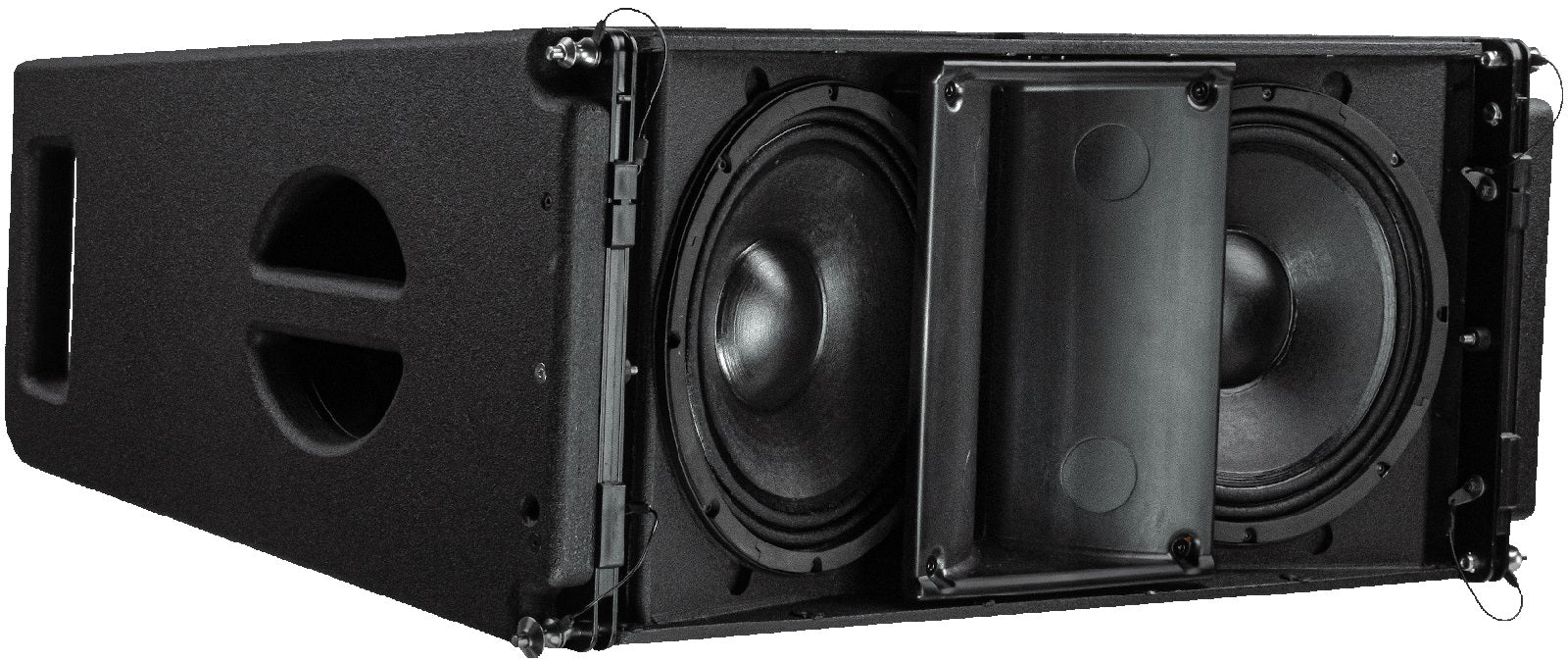

  • Subsystem Transducer Loading:
    • LF 2x10' cone, 2.5' VC Vented
    • HF 1x1.4' exit, 3' VC compression drivers Isophasic Wave Guide
  • Operating Mode:
    • Bi-amp LF, HF
  • Amplifier Channels External Signal Processing:
    • DSP w/EAW Focusing & DynO
• Electrical:
  • Input Type: Electronically Balanced
  • Max Input Level: 21dBu
  • Impedance: 20 kOhm (balanced)
  • Input Wiring: XLRF, Pin 1 chassis, pin 2 +, pin 3 – separate loop-thru XLRM (for analog signal only)
  • Input Selection: Analog, Dante
  • Amplifiers & Processing (LF/HF) Type: Modified Class D
  • Maximum Output:
    • LF: 1200W
    • HF: 400W
  • Driver Protection: Integral DSP limiting
  • AC Mains (nominal):
    • Connector: Neutrik True1
    • Input: 100 V TO 240 V
    • Frequency: 50 Hz to 60 Hz
  • Power Consumption:
    • Idle – 20W
    • 1/8th - 200W
    • 1/3rd - 300W
    • Full - 550W
  • Controls/Communication:
    • Connections: Neutrik PowerCON TRUE1 TOP
    • Protocols: Ethernet/Dante
    • Software: EAW Resolution 2

The EAW NTX210L 2-Way Self-Powered Loudspeaker is designed for rental firms, production companies, and system integrators. It features onboard sensors for auto array optimization, comprehensive software control, and integrated Dante networking. The speaker has a calculated axial output limit of peak 140dB LF/HF, an operating range of 55Hz–18kHz, and a nominal beamwidth of 90° horizontally and 12° vertically. It has a bi-amp configuration with specific transducer loading for LF and HF. Electrical specifications include electronically balanced input, max input level of 21dBu, impedance of 20 kOhm, and various input/output options. The power consumption varies depending on usage, and it comes with Neutrik PowerCON TRUE1 TOP connections and Ethernet/Dante protocols, along with EAW Resolution 2 software.
