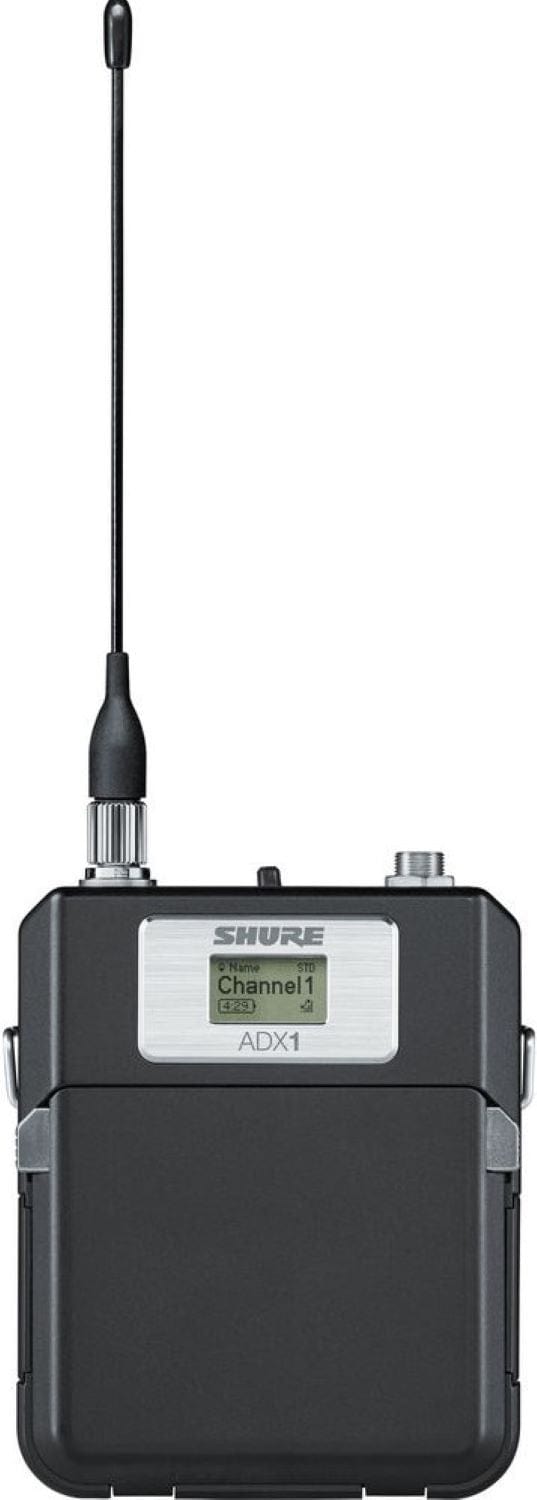

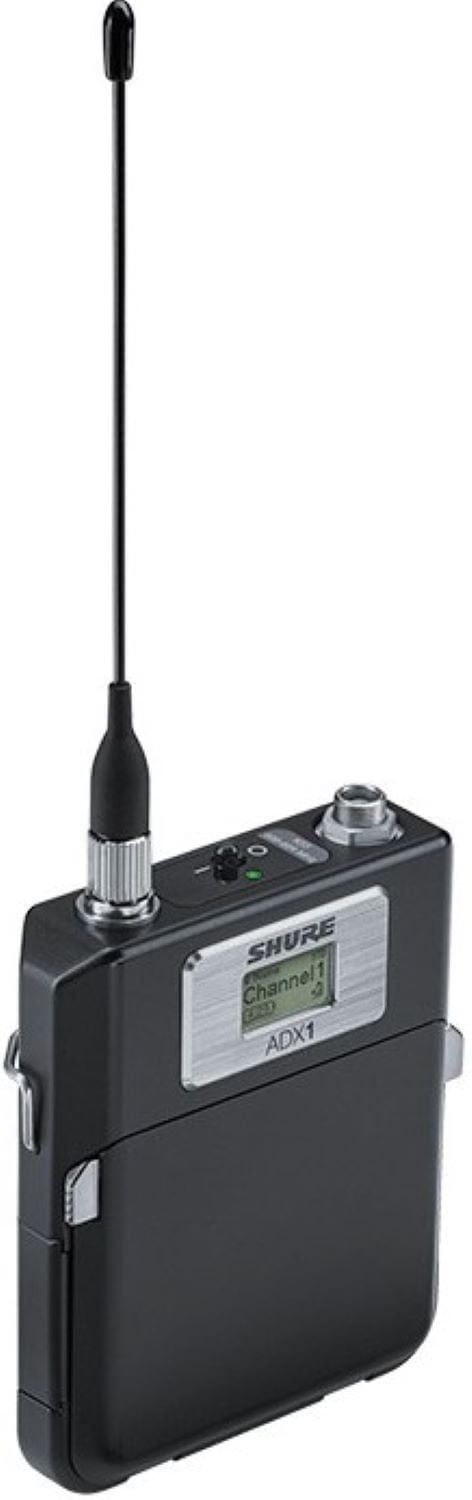

Shure Axient ADX1 LEMO3 Bodypack Transmitter - G57 Band
Get ready for outstanding performance with the ADX1 bodypack transmitter! It offers wide tuning up to 184 MHz, interference protection, and advanced rechargeability. Its streamlined design and ShowLink remote control let you adjust parameters in real time right from the booth.
Features:
- • Removable antenna and fully concealed buttons and switch

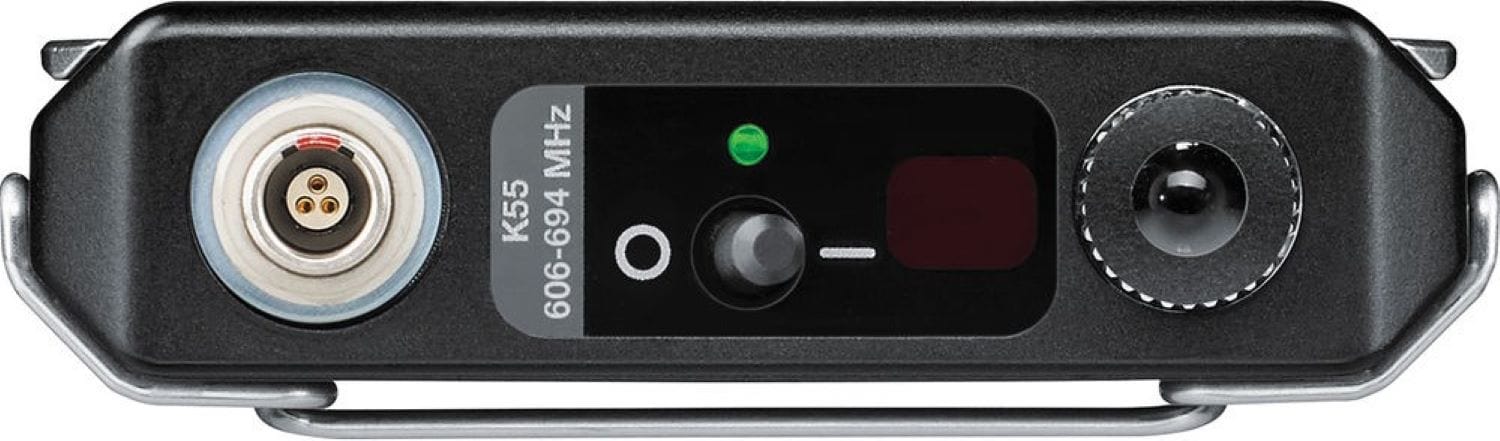

- • Two connector options: TA4 and LEMO3
- • Advanced control menu with powerful features
- • Durable, moisture-resistant*, lightweight metal case
- • Up to 10 hours of runtime with SB910 rechargeable batteries
- • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- • External contacts for docked charging
- • Two transmission modes:
- Standard for optimal coverage
- New High Density for maximum system channel count and robust coverage
- • Encryption-enabled, secure transmission
Specifications:
- Gain Offset Range: –12 to 21 dB (in 1 dB steps)
- Battery Type: SB910 Rechargeable Lithium-Ion
- Battery Run Time (@10 mW): up to 10 hours
- Dimensions (H ¡Á W ¡Á D):
- 3.6 ¡Á 2.7 ¡Á 0.8 in
- (91 ¡Á 68 ¡Á 19 mm)
- Weight: 5.0 oz (142 g) without batteries
- Housing: Aluminum
- Audio Input:
- Connector:
- 4-Pin male mini connector (TA4M)
- LEMO3 Connector
- Configuration: Unbalanced
- Impedance:
- TA4M: 910 kΩ
- LEMO3: 8.2 kΩ
- Maximum Input Level (1 kHz at 1% THD):
- Pad Off: 8.5 dBV (7.5 Vpp)
- Pad On: 20.5 dBV (30 Vpp)
- Preamplifier Equivalent (Input Noise (EIN)) System Gain Setting ¡Ý20: –120 dBV A-weighted, typical
- RF Output:
- Connector: SMA
- Antenna Type: UHF 1/4 Wave
- Impedance: 50 Ω
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Axient Digital Proprietary
- Power: 2 mW, 10 mW, 20 mW, 40 mW
- Specific Absorption Rate (SAR): <0.20 W/kg
- Showlink :
- Network Type: IEEE 802.15.4
- Antenna Type: ZigBee Dual Conformal
- Frequency Range: 2.40 to 2.4835 GHz (24 Channels)
- RF Output Power Varies By Region: 10 dBm (ERP)
- Available Models:
- AD1-LEMO3:
- Axient Digital Showlink -Enabled
- Bodypack Transmitter, LEMO3 Connector
- Frequency Band: 470 to 636 Mhz
The Shure Axient ADX1 LEMO3 Bodypack Transmitter - G57 Band is perfect for on-the-go audio needs. Ideal for performers, presenters, and event organizers. It has a compact size of 3.6 x 2.7 x 0.8 inches and weighs 5.0 oz without batteries, making it easy to carry. With features like wide tuning, interference protection, and advanced rechargeability, it offers reliable performance. The two connector options (TA4 and LEMO3) provide flexibility, and the advanced control menu allows for powerful adjustments. It also has a durable, moisture-resistant metal case and up to 10 hours of runtime with SB910 rechargeable batteries.
