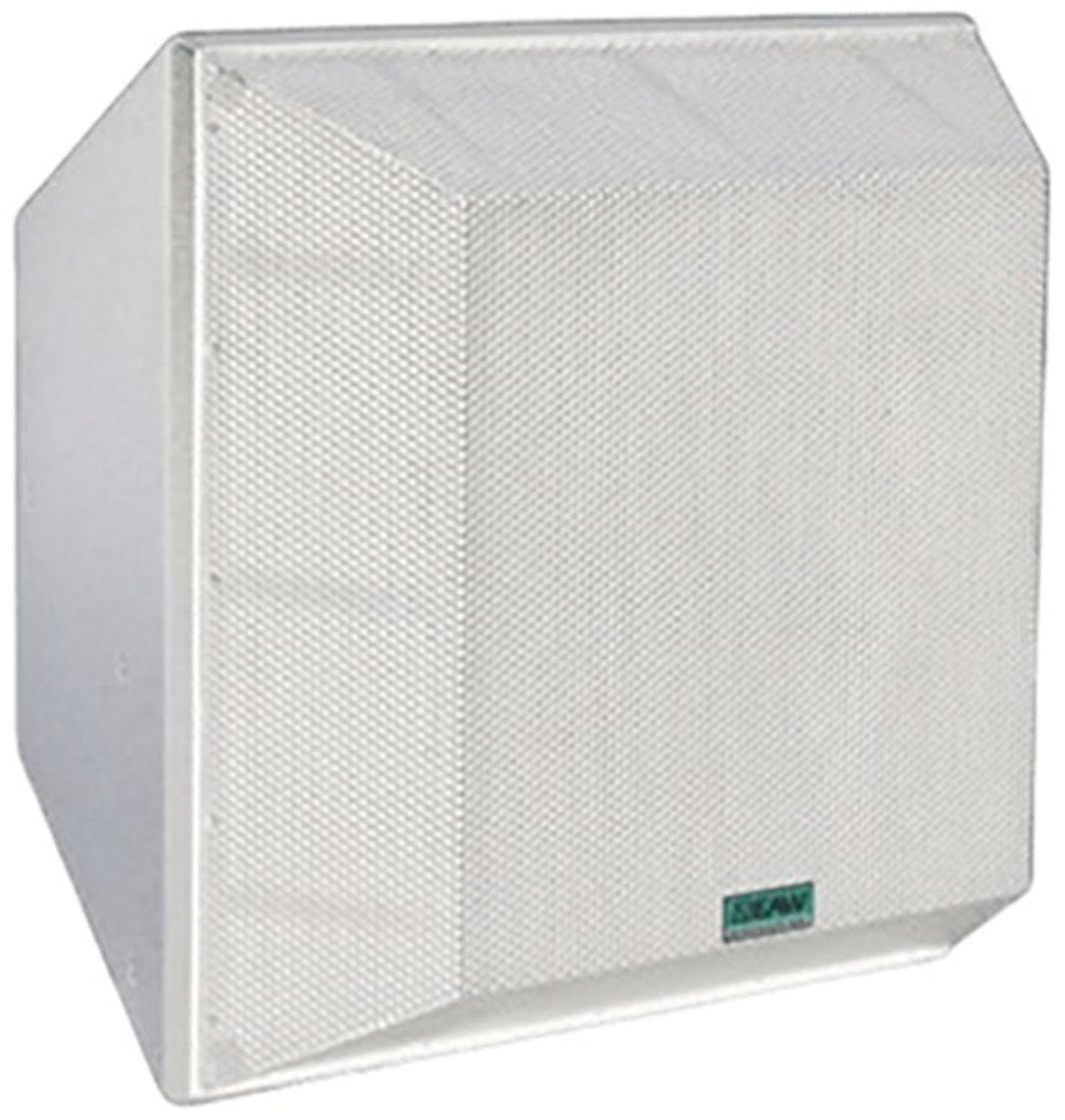

EAW QX364-WP 2-Way Trapezoidal Weather Protected Loudspeaker - White
• Ultra-efficient high compression driver with a 60° x 45° constant directivity horn for outstanding sound projection.
• Four Phase Aligned 10-in low frequency transducers for extended pattern control and immersive audio.
• Selectable single-amp or bi-amp operating modes with independent woofer pair wiring for maximum installation flexibility.
The QX364 features an ultra-efficient and unique high compression driver paired with a 60° x 45° constant directivity horn (one of six available horn patterns). Four Phase Aligned 10-in low frequency transducers, arranged in vertical and horizontal pairs, use their spacing for beneficial interaction to enhance pattern control. Since the four low frequency transducers symmetrically surround the high compression driver in both horizontal and vertical planes, the full frequency spectrum response seems to originate from a single point in space. Users can choose between single-amp and bi-amp operating modes. Each woofer pair is independently brought out to the input plate, allowing for independent, series, or parallel wiring, providing great installation flexibility.
Features:
- High output, single or bi-amplified, two-way performance
- Broadband pattern control
- Ultra-efficient HF compression driver
- Four Phase Aligned 10-in cone transducers (vertical and horizontal pairs)
- Installation flexibility, compact size
Specifications:
- Frequency Response: 66hz – 20khz
- Max SPL: 144 dB
- Operating Mode:
- Single-amp LF/HF
- Bi-amp LF, HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4 x 10-in cone
- HF: 1 x 1.4-in. exit, 4-in. voice coil compression driver
- Nominal Beamwidth:
- Horizontal: 60°
- Vertical: 45°
- Power Handling:
- LF: 1800W @ 2ohms (single amp), 800W @ 4ohms (2x pairs)
- HF: 150W @ 8ohms
- Connections: Barrier Strip
- Dimensions:
- Height: 23.7 in (602 mm)
- Width: 23.7 in (602 mm)
- Depth: 19.9 in (505 mm)
- Weight: 94 lbs (43 kg)
- Color: White
The EAW QX364-WP 2-Way Trapezoidal Weather Protected Loudspeaker is perfect for outdoor events and installations. It's designed for professionals seeking high-quality audio. With a height of 23.7 in (602 mm), width of 23.7 in (602 mm), and depth of 19.9 in (505 mm), weighing 94 lbs (43 kg), it offers a compact and portable solution for various setups.
