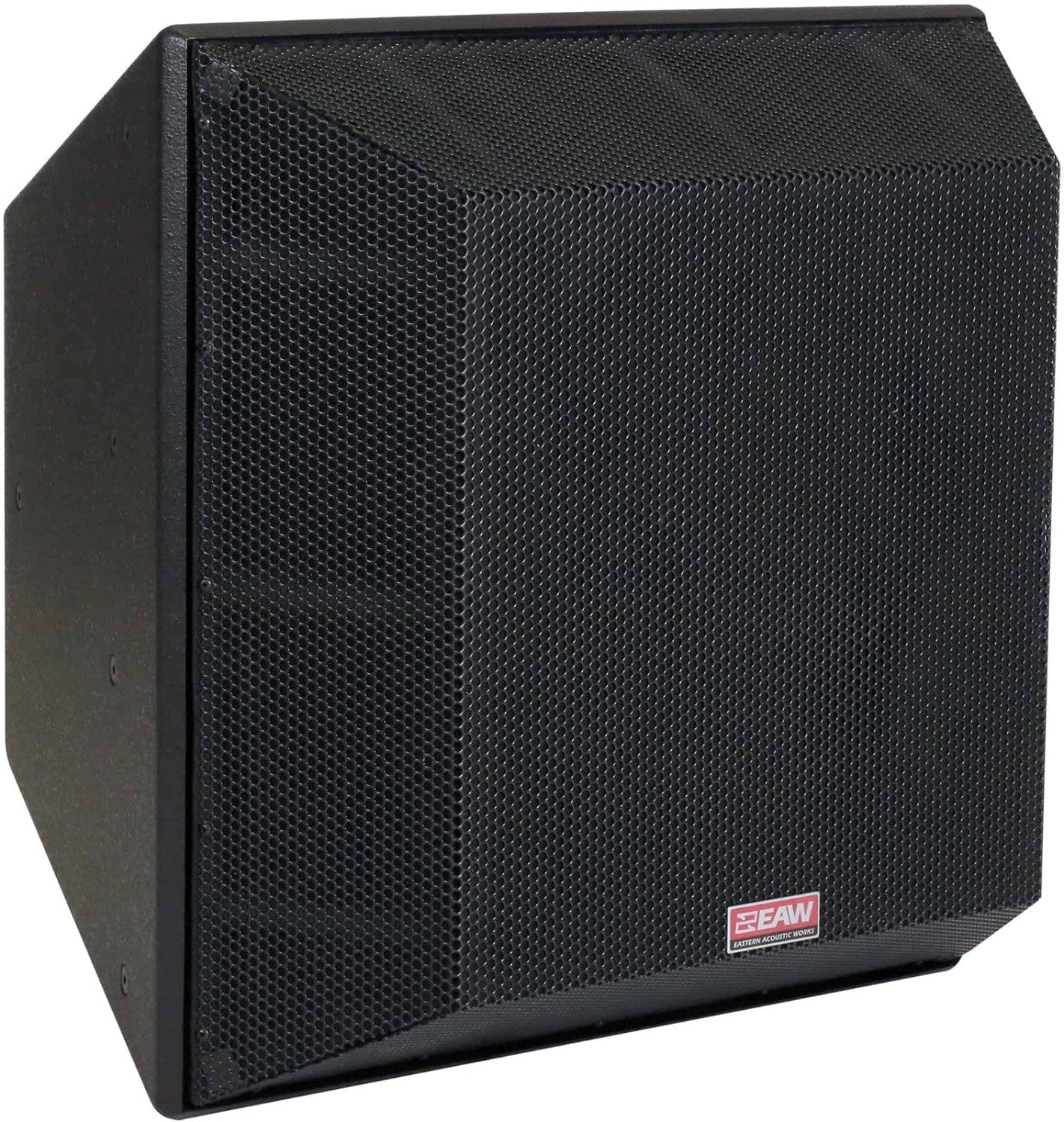

EAW QX364-WP 2-Way Trapezoidal Weather Protected Loudspeaker - The Ultimate Sound Solution
• Ultra-efficient high compression driver with a 60° x 45° constant directivity horn for amazing sound quality.
• Four Phase Aligned 10-in low frequency transducers for extended pattern control and a single-point sound source.
• Single-amp or bi-amp operating modes and independent woofer pair wiring for maximum installation flexibility.
Features:
- High output, single or bi-amplified, two-way performance
- Broadband pattern control
- Ultra-efficient HF compression driver
- Four Phase Aligned 10-in cone transducers (vertical and horizontal pairs)
- Installation flexibility, compact size
Specifications:
- Frequency Response: 66hz – 20khz
- Max SPL: 144 dB
- Operating Mode:
- Single-amp LF/HF
- Bi-amp LF, HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4 x 10-in cone
- HF: 1 x 1.4-in. exit, 4-in. voice coil compression driver
- Nominal Beamwidth:
- Horizontal: 60°
- Vertical: 45°
- Power Handling:
- LF: 1800W @ 2ohms (single amp), 800W @ 4ohms (2x pairs)
- HF: 150W @ 8ohms
- Connections: Barrier Strip
- Dimensions:
- Height: 23.7 in (602 mm)
- Width: 23.7 in (602 mm)
- Depth: 19.9 in (505 mm)
- Weight: 94 lbs (43 kg)
- Color: Black
This EAW QX364-WP 2-Way Trapezoidal Weather Protected Loudspeaker is perfect for outdoor events. It's designed for professionals who demand high-quality sound. With a height of 23.7 in (602 mm), width of 23.7 in (602 mm), and depth of 19.9 in (505 mm), weighing 94 lbs (43 kg), it's compact yet powerful. Ideal for concerts, festivals, and other outdoor gatherings where great sound is a must.
