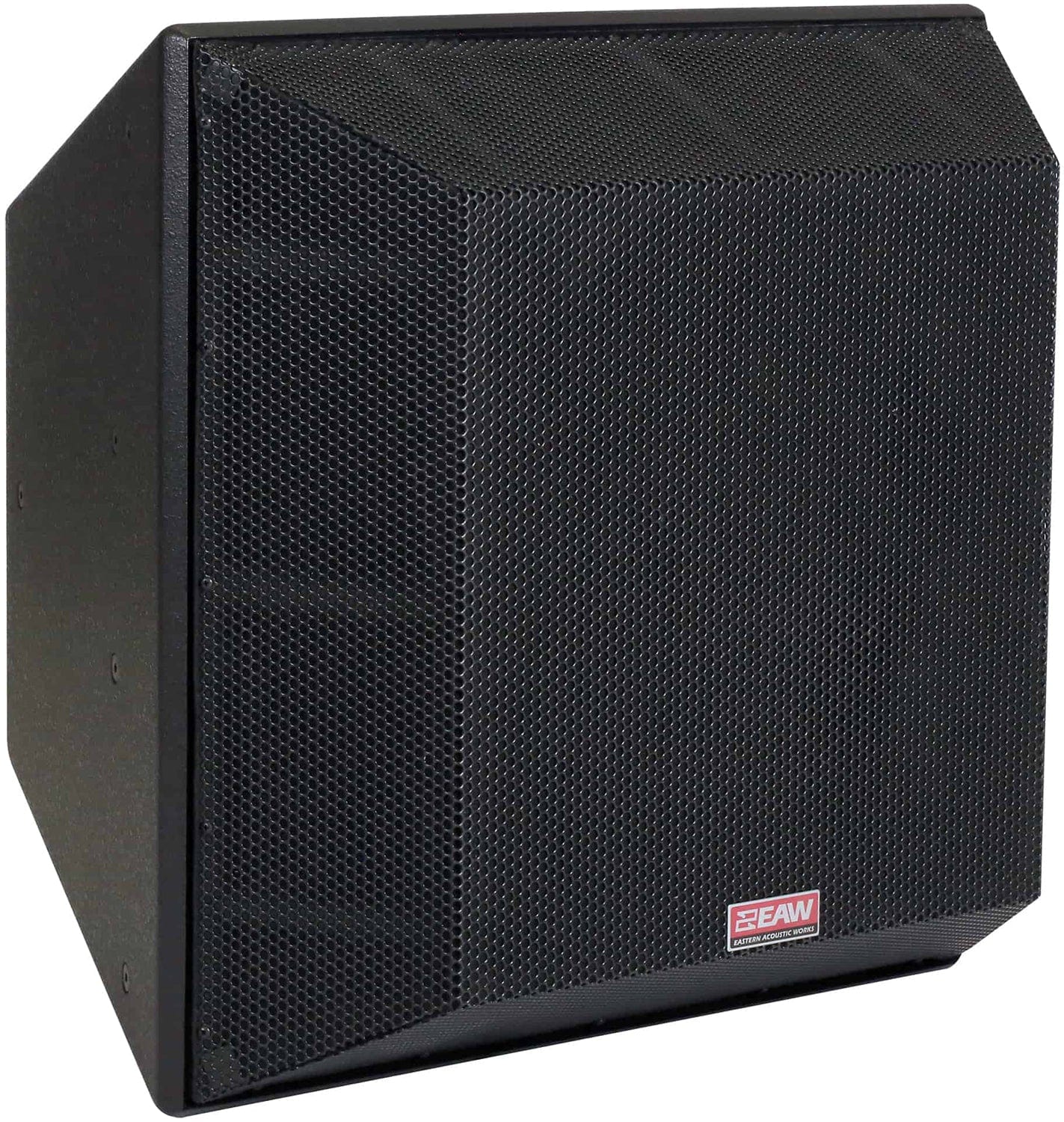

EAW QX564i-WP Weather Protected Speaker - The Ultimate Sound Solution
• High Output: Experience powerful sound with high output, bi-amplified, three-way performance.
• Precision Coverage: Enjoy broadband pattern control for precise sound distribution.
• Ultra-Efficient Design: Benefit from an ultra-efficient, coaxial MF/HF compression driver.
The QX564i features a 60° (h) x 45° (v) constant directivity horn and four Phase Aligned 12-in low frequency transducers. This unique design ensures idealized coherence across the full frequency spectrum, eliminating anomalies.
Features:
- High output, bi-amplified, three-way performance
- Broadband pattern control
- Ultra-efficient, coaxial MF/HF compression driver
- Four Phase Aligned 12-in cone transducers (vertical and horizontal pairs)
- Installation flexibility
Specifications:
- Frequency Response: 55 Hz – 20 kHz
- Max SPL: 147 dB
- Operating Mode: Bi-amp (Passive MF/HF) LF, MF/HF
- External Signal Processing: DSP with EAW Focusing
- Subsystem:
- LF: 4x 12 in. cone
- MF: 1x 2 in. exit, 3.5 in. compression
- HF: 1x 2 in. exit, 1.75 in. compression driver
- Nominal Beamwidth:
- Horizontal: 60°
- Vertical: 45°
- Power Handling:
- LF: 2000W @ 2 ohms (single amp), 1000W @ 4 ohms (2x pairs)
- Passive MF/HF: 175W @ 8 ohms
- Connections: Barrier Strip
- Dimensions:
- Height: 28 in (710 mm)
- Width: 28 in (710 mm)
- Depth: 23.8 in (605 mm)
- Weight: 149 lbs (68 kg)
- Color: Black
This speaker is perfect for outdoor events. Ideal for sound engineers and event organizers. It has a height of 28 in (710 mm), width of 28 in (710 mm), depth of 23.8 in (605 mm), and weighs 149 lbs (68 kg).
