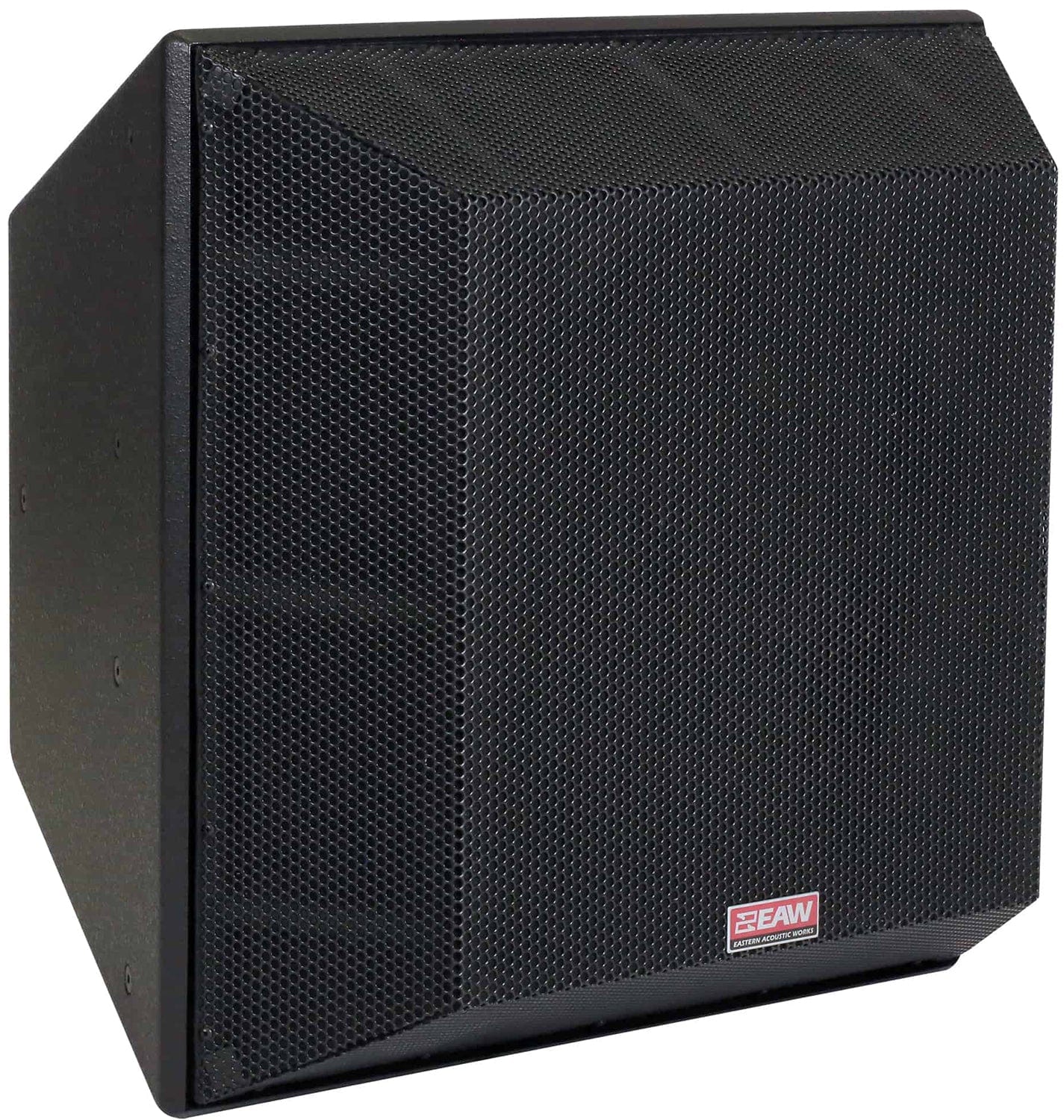

EAW QX594i-WP Weather Protected 3-Way Speaker - The Ultimate Sound Solution
Discover the QX594i, a speaker that delivers high output and exceptional sound quality. With its unique design, it offers:
- • Ultra-efficient coaxial MF/HF compression driver for clear sound
- • Four Phase Aligned 12-in cone transducers for powerful bass
- • Broadband pattern control for even sound distribution
This speaker is perfect for outdoor events, concerts, and more. It's easy to install and can handle various audio needs.
Features:
- High output, bi-amplified, three-way performance
- Broadband pattern control
- Ultra-efficient, coaxial MF/HF compression driver
- Four Phase Aligned 12-in cone transducers (vertical and horizontal pairs)
- Installation flexibility
Specifications:
- Frequency Response: 55 Hz – 20 kHz
- Max SPL: 145 dB
- Operating Mode: Bi-amp (Passive MF/HF) LF, MF/HF
- External Signal Processing: DSP with EAW Focusing
- Subsystem:
- LF: 4x 12 in. cone
- MF: 1x 2 in. exit, 3.5 in. compression
- HF: 1x 2 in. exit, 1.75 in. compression driver
- Nominal Beamwidth:
- Horizontal: 90°
- Vertical: 45°
- Power Handling:
- LF: 2000W @ 2 ohms (single amp), 1000W @ 4 ohms (2x pairs)
- Passive MF/HF: 175W @ 8 ohms
- Connections: Barrier Strip
- Dimensions:
- Height: 28 in (710 mm)
- Width: 28 in (710 mm)
- Depth: 23.8 in (605 mm)
- Weight: 149 lbs (68 kg)
- Color: Black
The EAW QX594i-WP is a weather-protected 3-way speaker designed for outdoor events. It's great for concert organizers, venue owners, and anyone who needs high-quality sound outdoors. With a height of 28 in (710 mm), width of 28 in (710 mm), and depth of 23.8 in (605 mm), weighing 149 lbs (68 kg), it's easy to install and move around. Its unique design ensures clear and powerful sound, making it a top choice for various outdoor audio needs.
