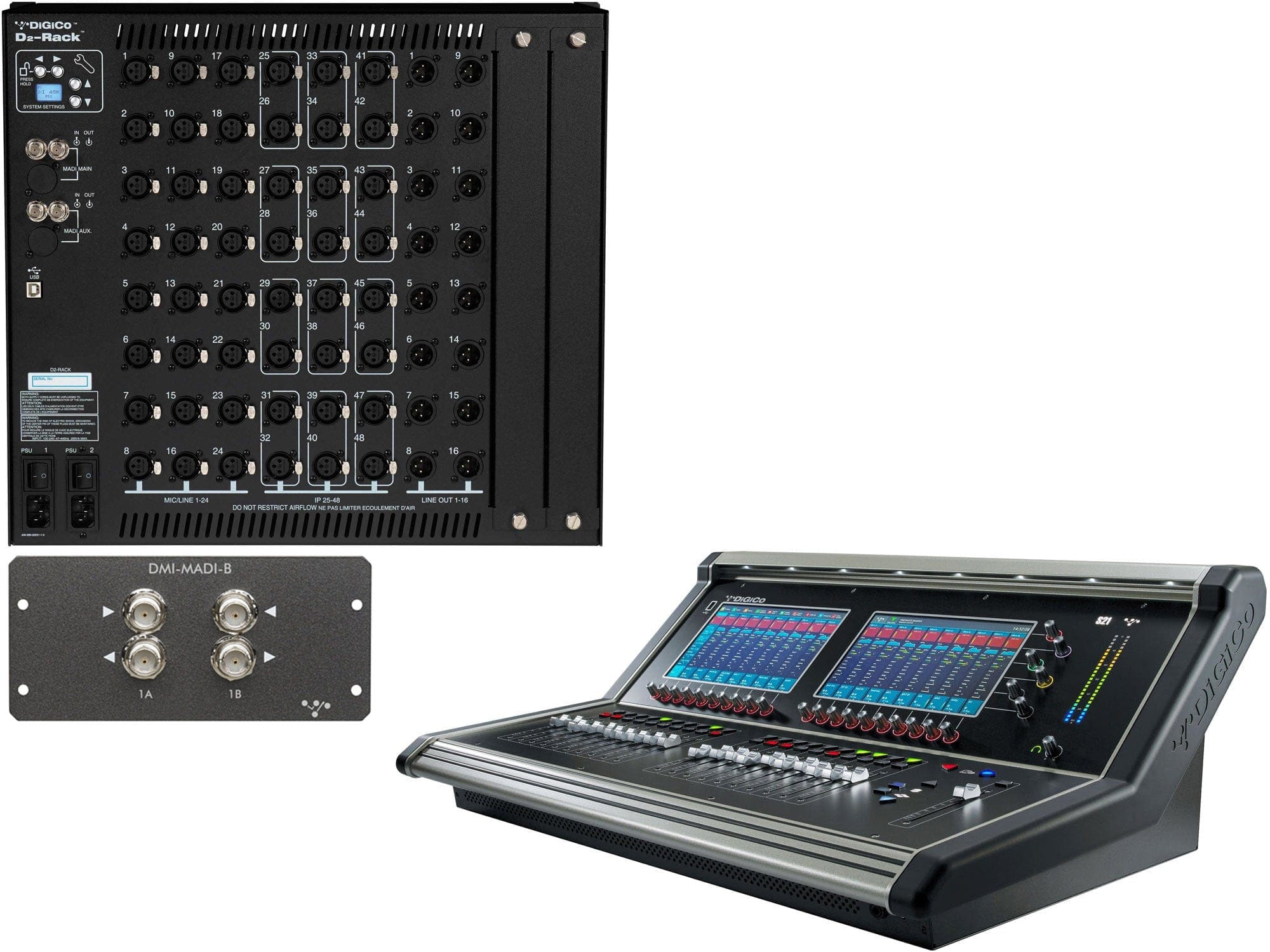

DiGiCo X-S21-D2M-B-RP S21 D2 Rack Pack with MADI-DMI-B Expansion Card and Blank DMI Slot
This DiGiCo package is a game-changer! It comes with the following amazing components:

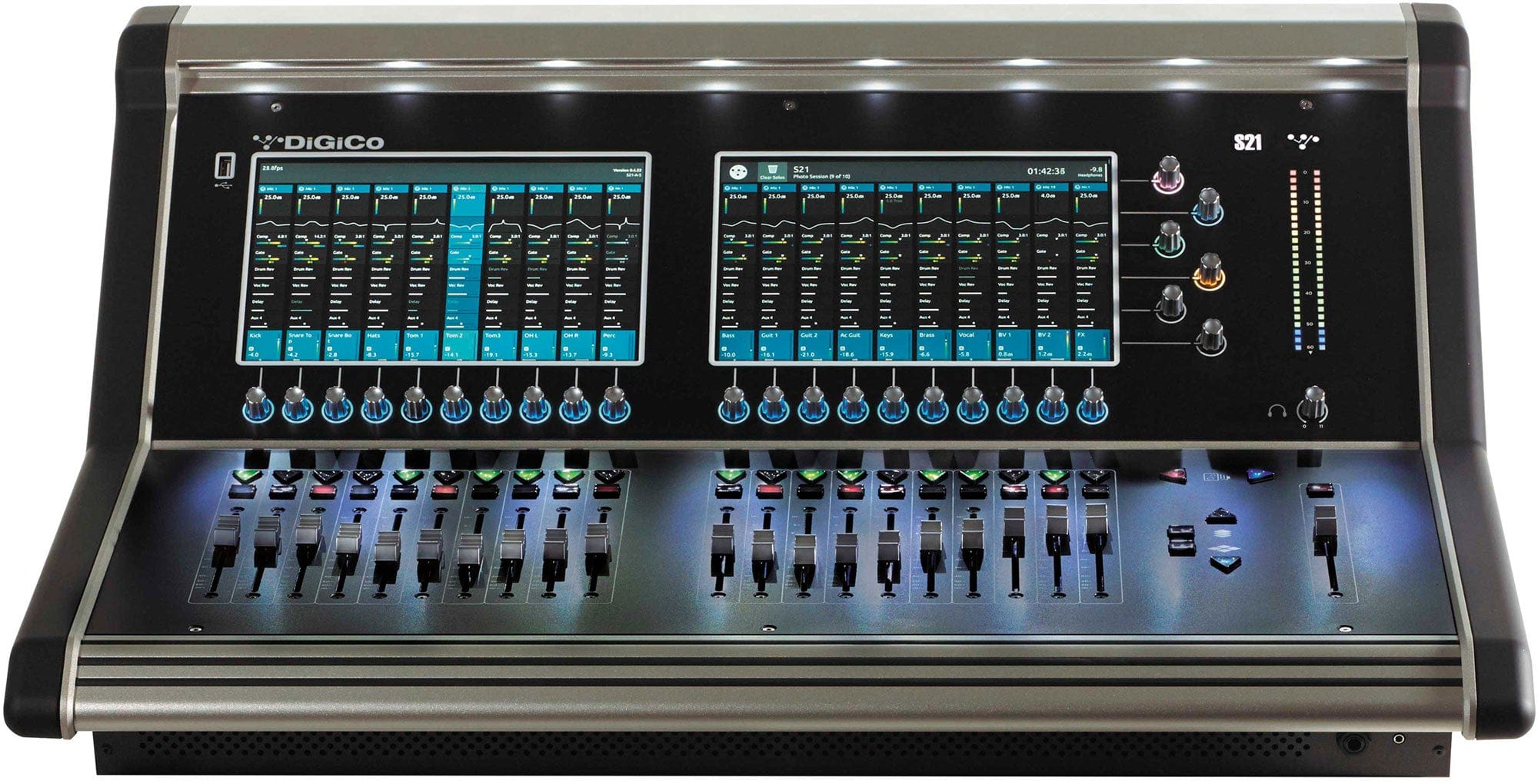

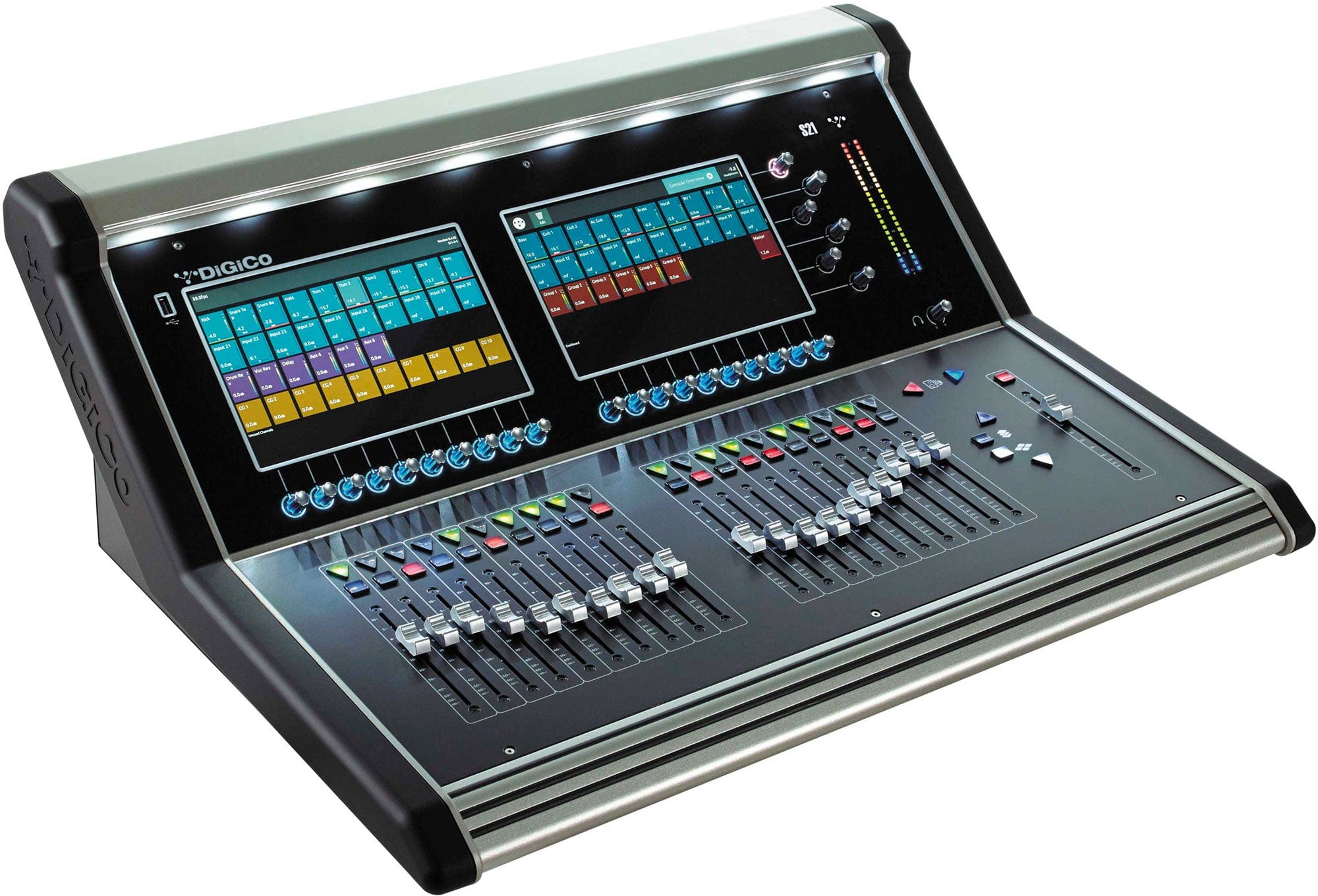

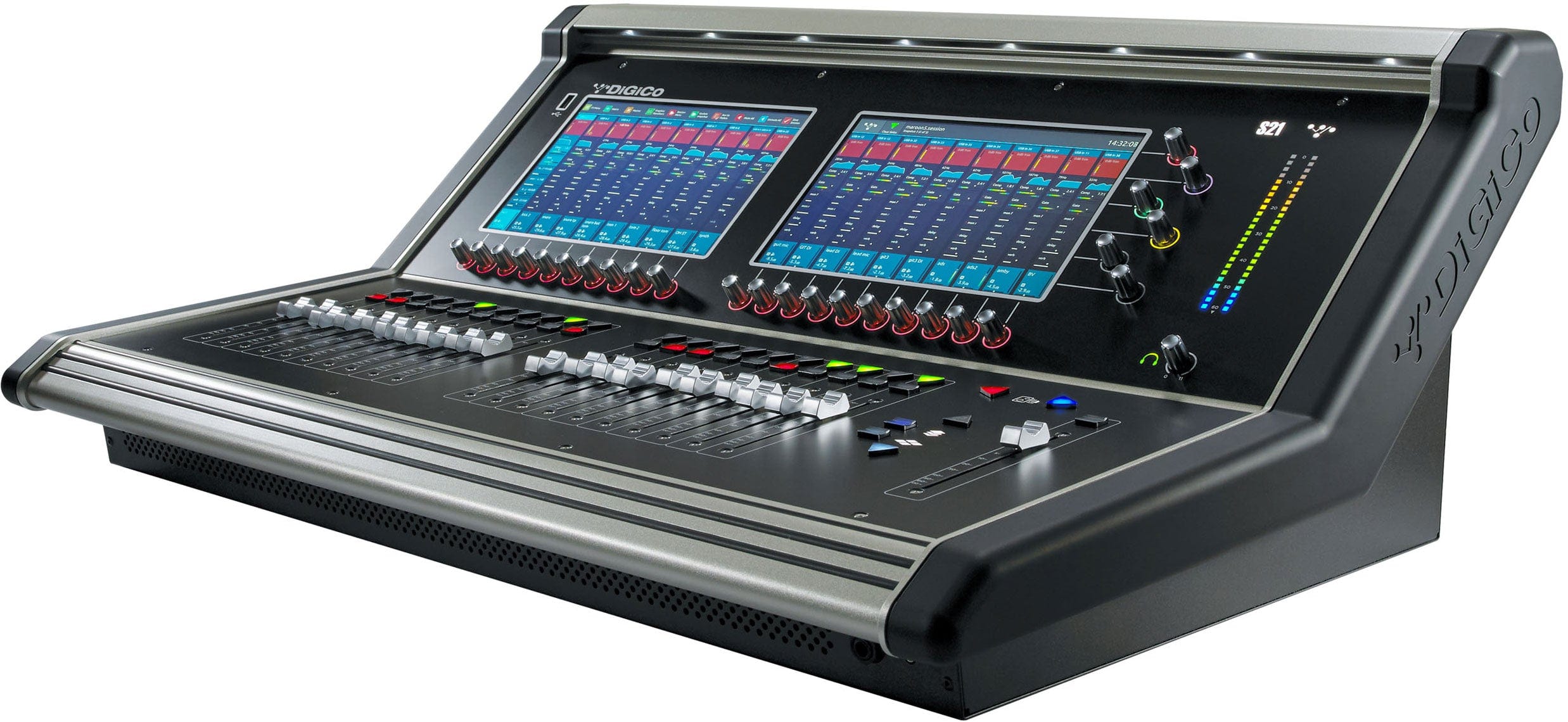

• DiGiCo S21 Mixing Console
The DiGiCo S21 is a 48-channel mixing console with 21 physical faders and 2 x 10” multitouch screens. It uses state-of-the-art FPGA technology to deliver high-quality audio like the legendary SD-Range.
• DiGiCo S-Series
DiGiCo consoles are used in many big live sound tours and events worldwide. The compact S-Series makes top-notch audio performance accessible to the whole industry. With Stealth Digital Processing, it sets a new standard of audio quality, power, and flexibility at its price point.
DiGiCo's renowned innovation, deep feature-set, and flagship audio quality are now within reach. Meet the S21 – a world-class DiGiCo mixing console at an astonishing price.
Based on the same pioneering design as the leading SD series, the S21 has the same proprietary audio algorithms and a new ARM QuadCore RISC processor that works in harmony with the FPGA core. This results in faster processing with lower power consumption, all in a workflow trusted by the industry's most respected engineers – now available to everyone.
• Key Features Galore
Get ready for features that will blow you away! It has 48 Flexi Input Channels, 16 Flexi Aux / Sub-Group Busses, and a 10 x 8 Matrix with full processing. The channel layout is fully assignable, and it comes with 24 local mic/line inputs, 12 line outputs, and 2 DMI slots for expanding I/O as you like. Snapshots let you change many parameters at once, and it has offline software, iPad control, and is compatible with the DMI-AMM for automatic microphone mixing. Plus, it has OSC control of snapshots.
Visual feedback is enhanced by the HTL functionality of the encoder rings, and unused parameters are greyed out to keep you focused. The dual screen concept helps new users learn and reduces distractions. You can view more channels at once, use one screen for setup and the other for operation. Both touchscreens respond to EQ shaping, and fine-tuning is available via rotary encoders.
Changing the Channel Bank layout is a breeze with drag and drop.
The S21's local I/O section includes 24 mic/line inputs, 12 line outs, two mono AES/EBU, and two DMI card slots that interface with standard industry formats. It connects seamlessly with the DiGiCo remote I/O D-Rack for more inputs and outputs. And by fitting the DiGiCo SoundGrid DMI card, you can access 32 fully integrated low-latency Waves stereo MultiRacks.
In terms of audio specifications, it has a sample rate of 48kHz or 96kHz, low processing delay, and high-quality internal processing. The A>D & D>A conversion is 24-bit, and it has great frequency response, low THD, and excellent channel separation.
The physical dimensions are 763mm (w) x 586mm (d) x 295mm (h), and it weighs 19kg (65kg with optional flightcase). It has a power requirement of 90-264 VAC, 47-63Hz Auto Sensing, and 208 watts, 232VA.
Options include a flightcase and various compatible DMI cards.

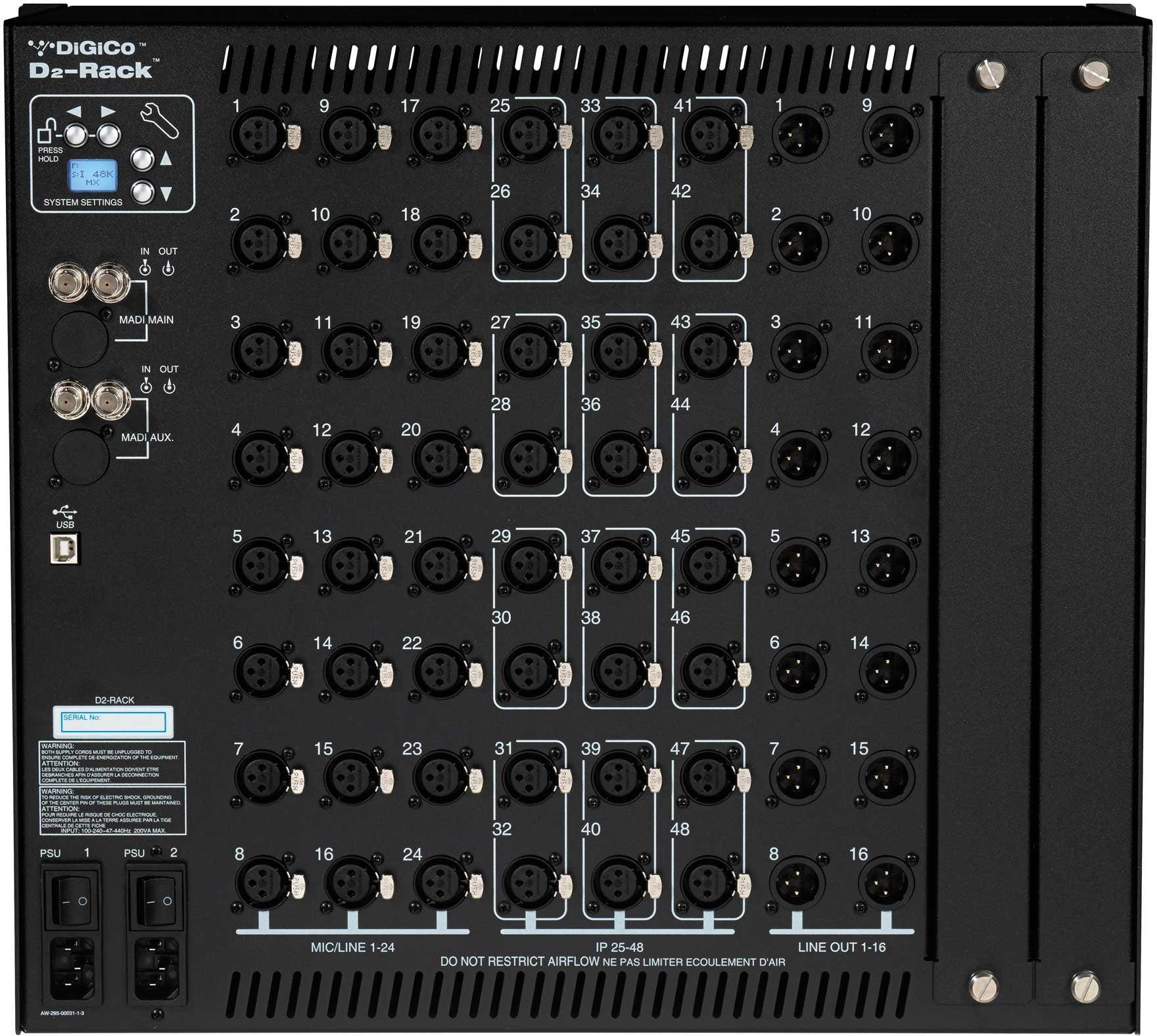

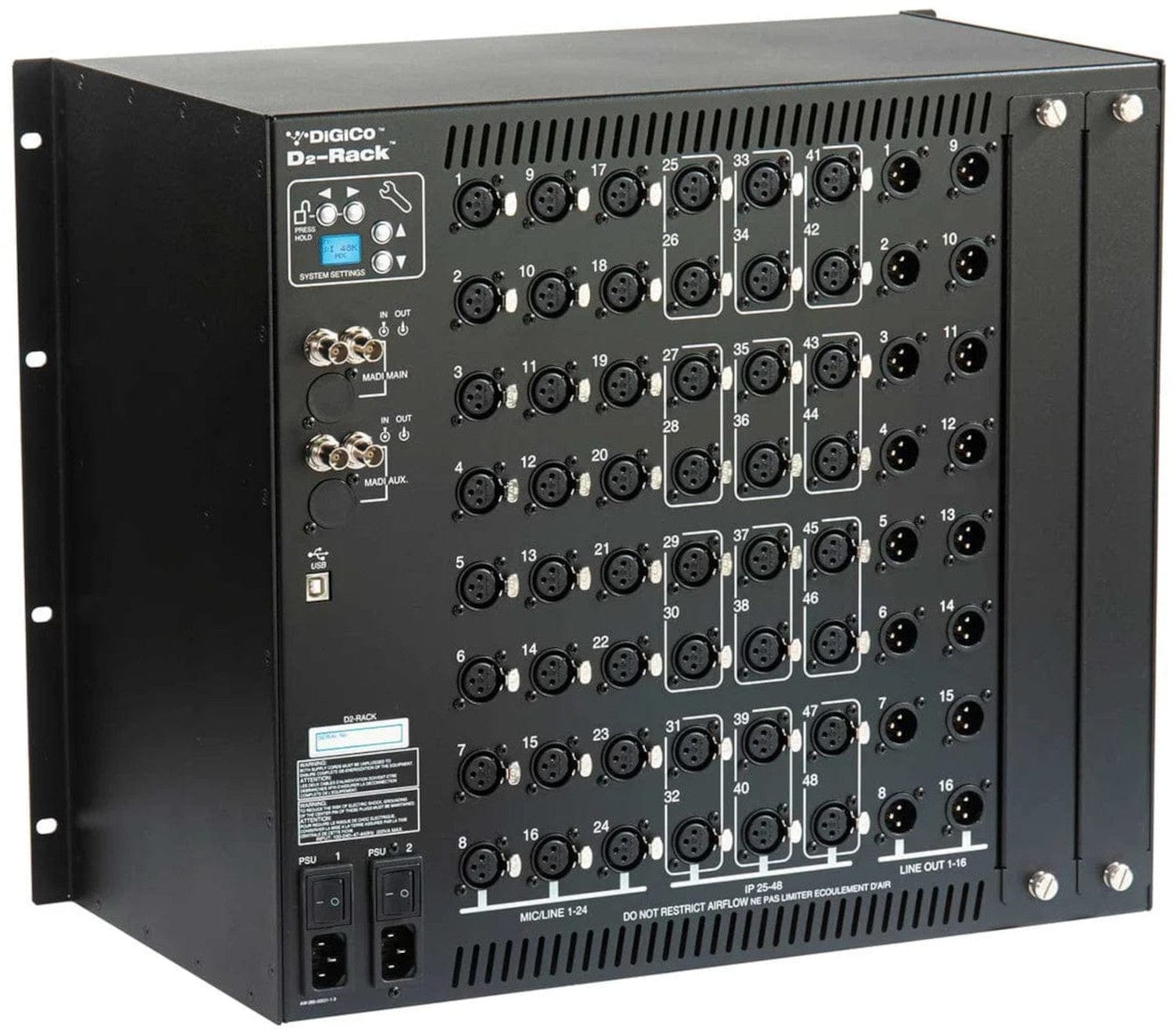

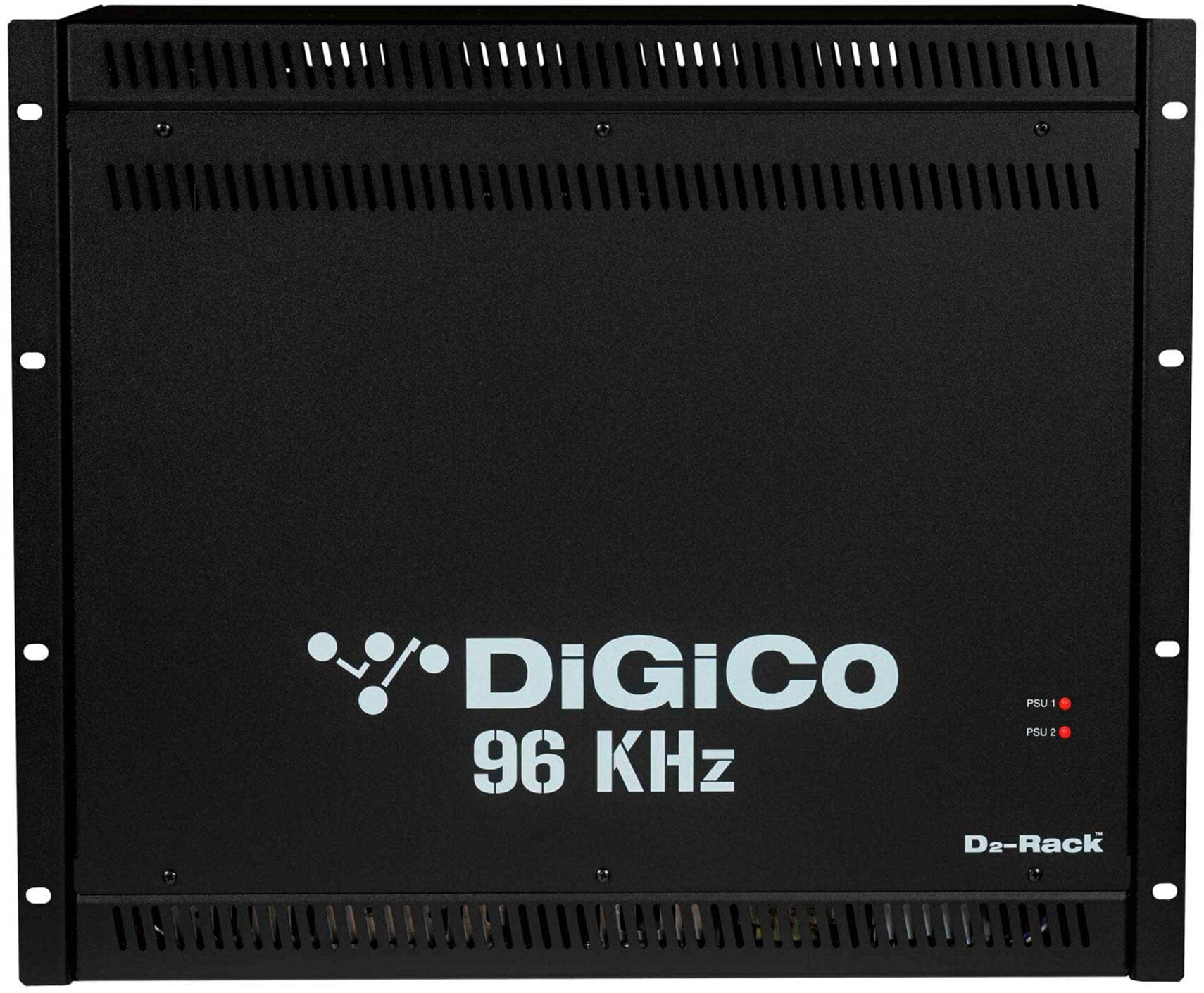

There's also the DiGiCo X-D2-AN-M D2-RACK with 48-Channel XLR and BNC MADI Connection, which delivers 96KHz on BNC. It's a compact 9U rack with 48 inputs and 16 outputs as standard, expandable to 32 outputs. It has dual MADI ports for rack sharing or digital splits, and comes with dual redundant power supplies.

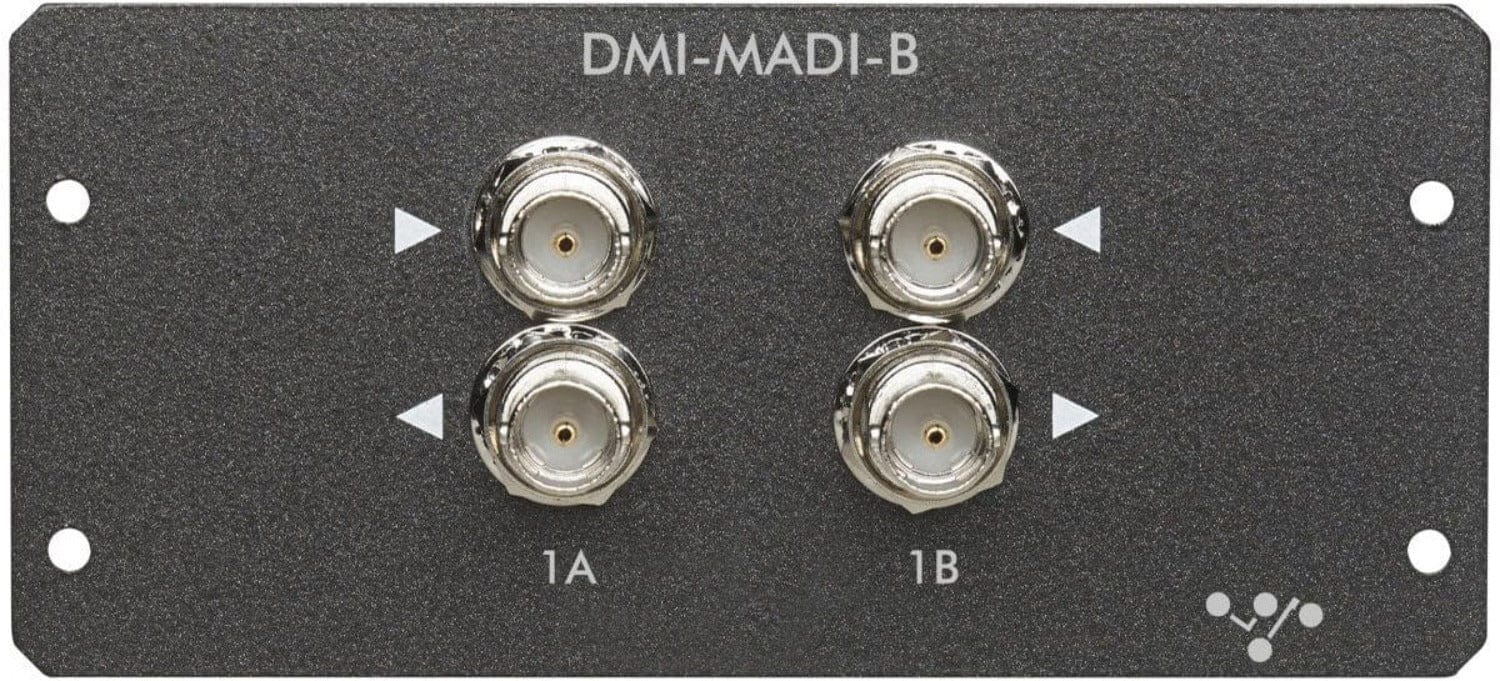

And the DiGiCo MOD-DMI-MADI-B 56/64-Channel 96 kilohertz MADI I/O Expansion Card with BNC Connectors can connect a Standard MADI stream at 48KHz or 96KHz or an SD Series DiGiCo Rack.
This DiGiCo package is perfect for live sound engineers and event organizers. Whether you're working on a big tour or a local event, this setup has you covered. The DiGiCo S21 Mixing Console with its 48 channels, 21 physical faders, and 2 x 10” multitouch screens is a powerful tool. It uses state-of-the-art FPGA technology to deliver high-quality audio. The DiGiCo S-Series is known for its use in big live sound events around the world. The compact size makes it accessible to every part of the industry. With features like 48 Flexi Input Channels, 16 Flexi Aux / Sub-Group Busses, and a 10 x 8 Matrix with full processing, it offers great flexibility. The physical dimensions of the main console are 763mm (w) x 586mm (d) x 295mm (h) and it weighs 19kg (65kg with optional flightcase). It has a power requirement of 90-264 VAC, 47-63Hz Auto Sensing, and 208 watts, 232VA. There are also options like a flightcase and various compatible DMI cards to further customize your setup.
