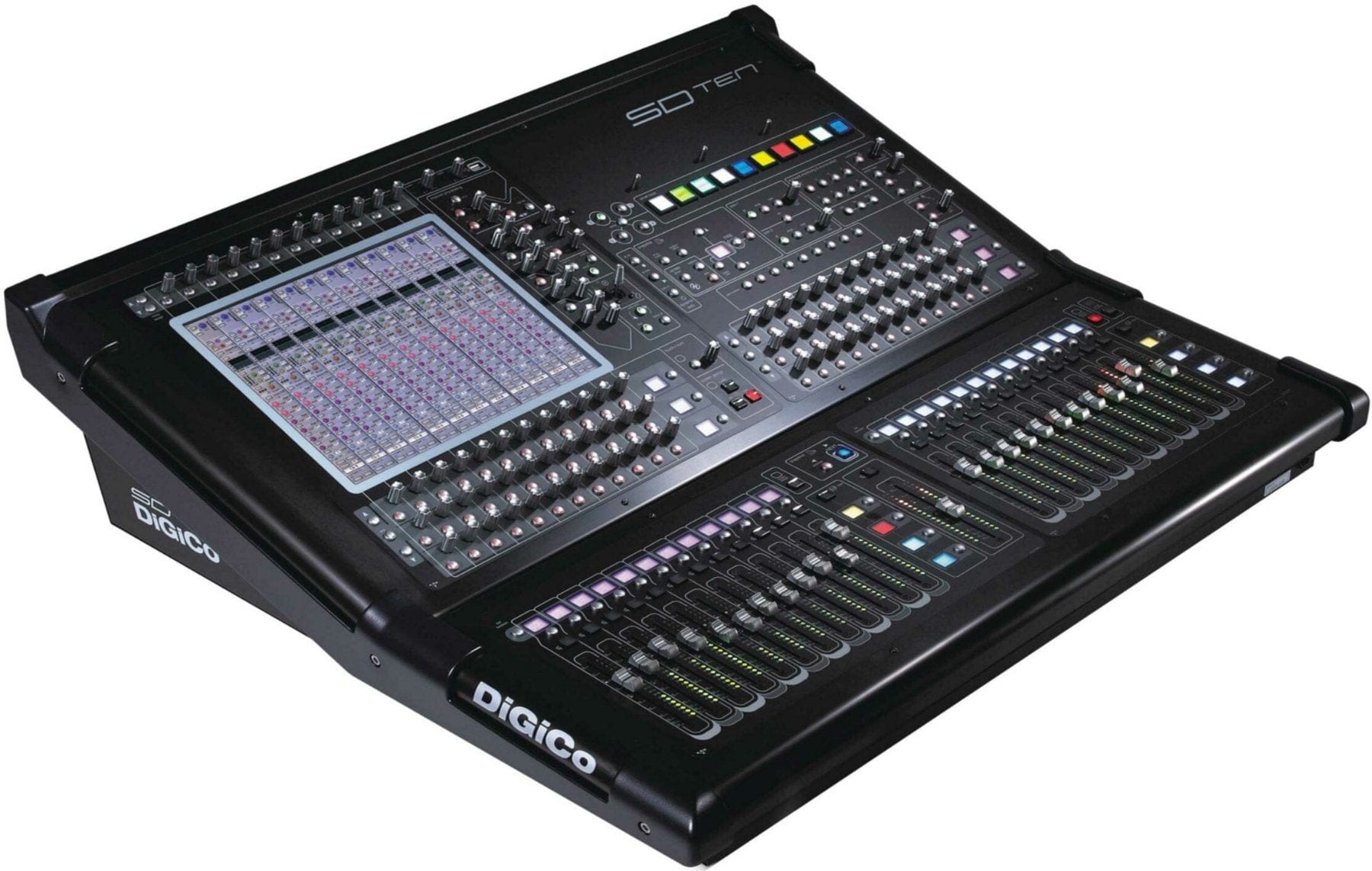

DiGiCo SD10-24 Compact Digital Mixing Console - MADI Only
The SD10-24 packs in many of the amazing features of our flagship SD7, like Stealth Digital Processing and floating-point Super FPGA technology. It's a powerhouse that meets all the needs of front-of-house or monitor engineers.

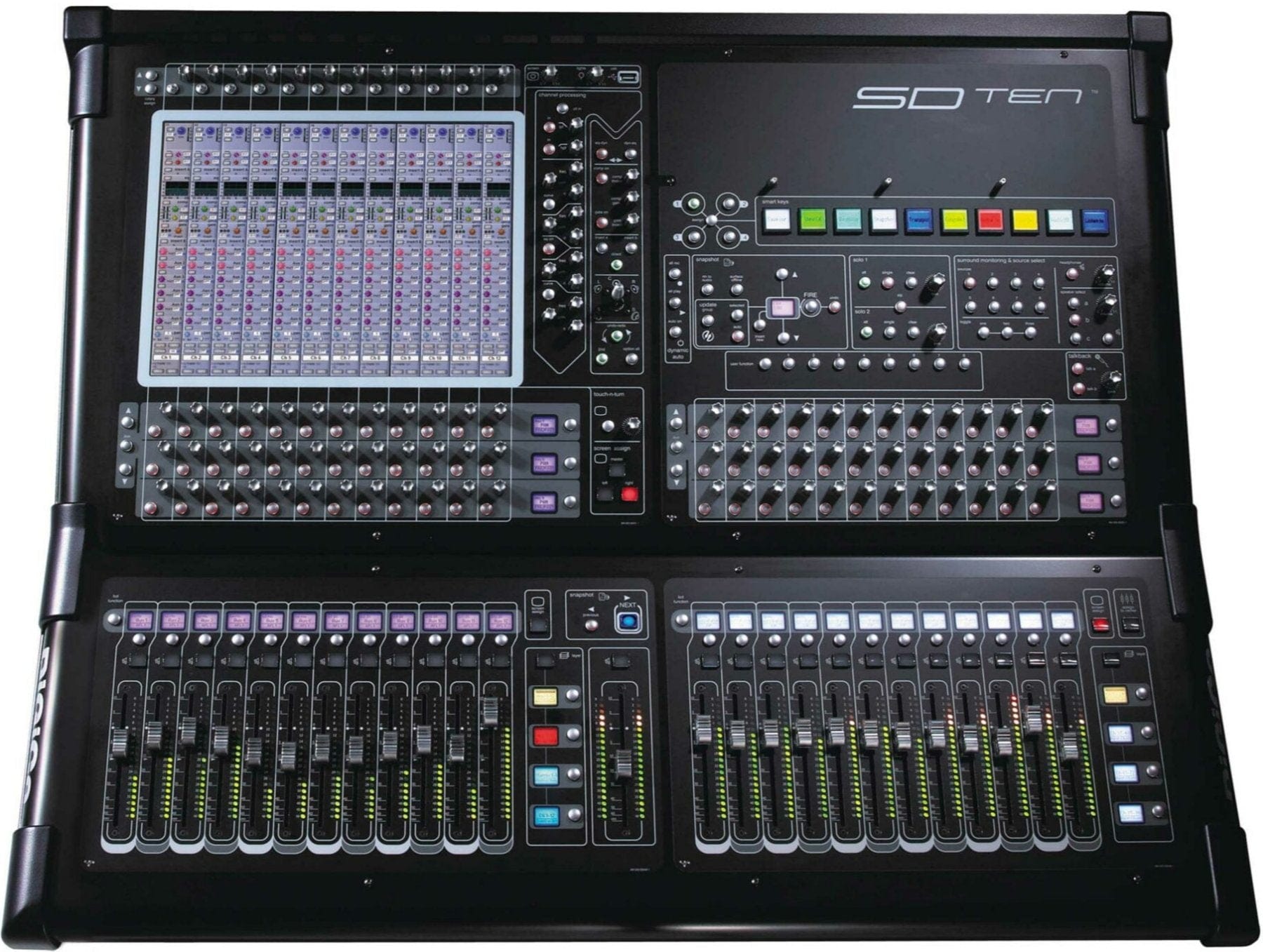

This 25-channel version has two banks of 12 motorised faders and one master fader. It's got the same great power and functionality as the larger SD10, but in a more compact frame with 24 main channel faders and a master fader.
Key Features:
- • 144 Input Channels for comprehensive audio handling
- • 64 Aux / Sub-Group Busses for flexible signal routing
- • 48/96kHz Sample Rate for high-quality audio processing
Specifications:
- Faders: 25 x 100mm Touch-Sensitive, Motorised
- Screens: 1 x 15” (38cm) LCD High - Resolution Touch Screen
- Meters: 26 x 20-Segment LED Bargraph
- Input Channels: 132
- Busses: 56 assignable for groups / auxiliary busses + LR or LCR/LCRS/5.1 Master
- Solo Busses: 2 Stereo Busses
- Matrix: 24 x 24 Matrix (extra to busses above)
- Control Groups: 24, selectable for VCA-style, Moving Fader, Mute Group
- Graphic EQ: 24 x 32-band, Gain +/- 12dB
- Internal FX: 24 Stereo FX Processors
- Local I/O: 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
- MADI Interface: 2 Redundant Interfaces, 75 Ohm BNC Connectivity
- Optic Interface: Optocore
- MIDI Interface: In / Out / Thru
- VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
- USB Ports: (3) USB 2
- Light Connection: (2) XLR3 1.2 – 12V
- Ext Sync: Word Clock, AES, MADI, Optics
- Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
- Dimensions: 982mm (w) x 799mm (d) x 286mm (h)
- Weight: 45Kg/ 99.20lbs (140Kg/ 308.64lbs with Optional Flightcase)
- Flightcase: 1170mm (w) x 1158mm (h) x 498mm (d) Weight 95kg/ 209.43lbs (Optional)
- Power Requirements: 90-264 VAC, 47-63Hz Auto Sensing. 235 watts
The DiGiCo SD10-24 Compact Digital Mixing Console - MADI Only is a top-notch solution for front-of-house or monitor engineers. With its compact size of 982mm (w) x 799mm (d) x 286mm (h) and weighing 45Kg/ 99.20lbs (140Kg/ 308.64lbs with optional flightcase), it's easy to handle and transport. It has 144 input channels, 64 Aux / Sub-Group Busses, and a 48/96kHz sample rate, making it perfect for handling all your audio mixing needs in various settings.
