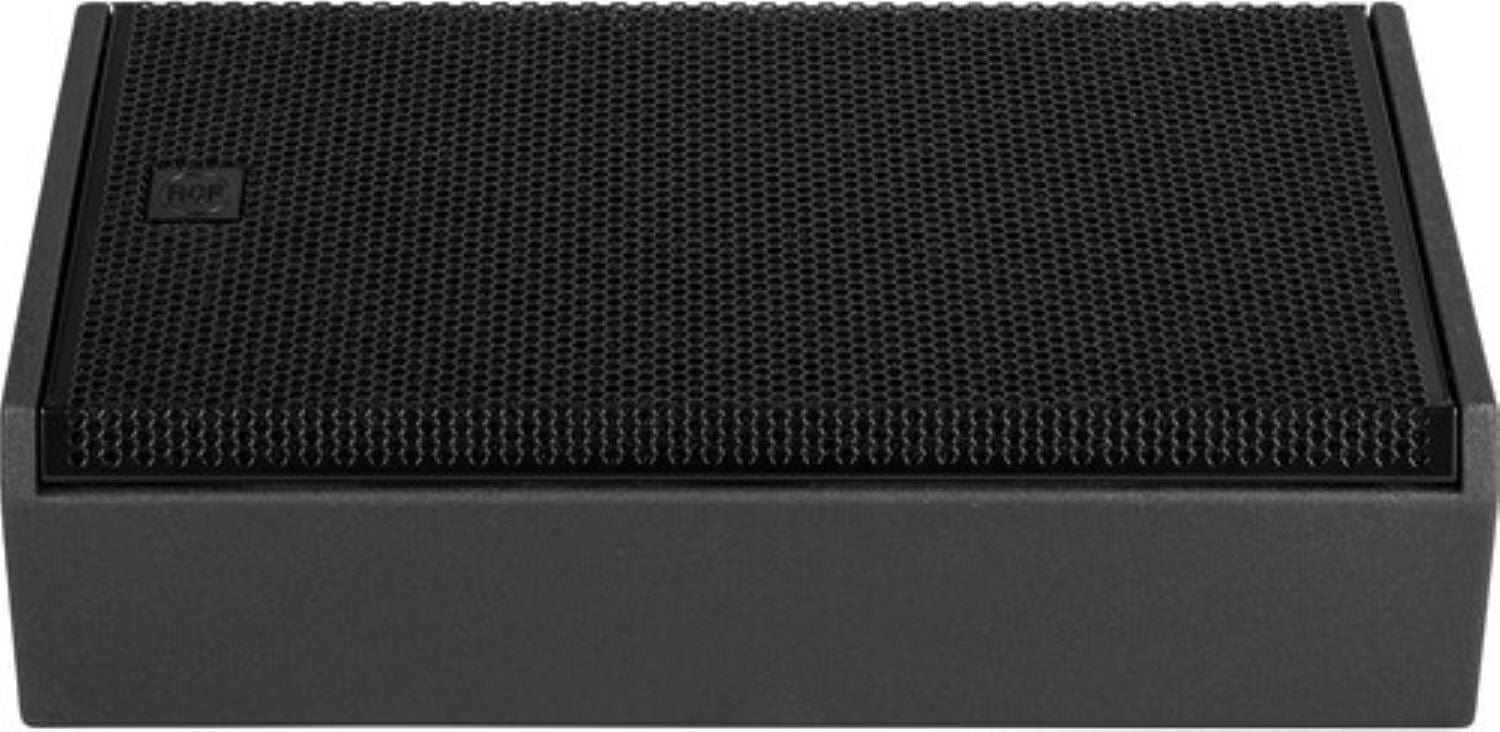

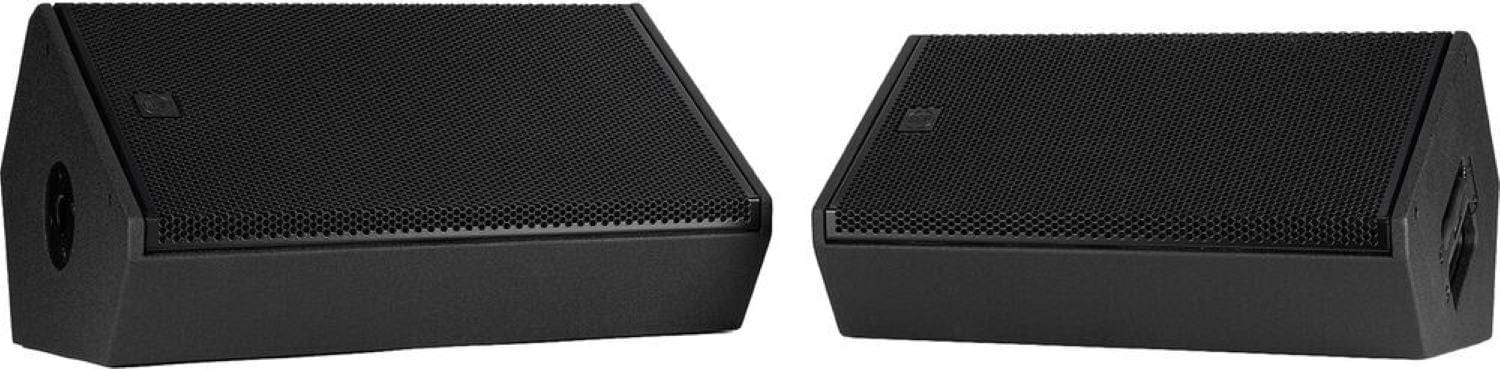

RCF NX912-SMA 12-Inch Pro Active Stage Monitor
Unleash the power of crystal-clear sound with the RCF NX912-SMA! This professional active stage monitor is a game-changer for sound providers, musicians, bands, and DJs. Here's why:
- • Immense Sound Power: Experience up to 130 dB of distortion-free sound, filling the air with every beat.
- • Precision Engineering: Boasts a 1.75” compression driver, 12” woofer, and a two-channel 2,100W amplifier for exceptional audio quality.
- • Smart DSP Processing: Incorporates RCF proprietary FiRPHASE and Bass Motion Control DSP, delivering absolute clarity and deep, powerful bass.
The NX 912-SMA speaker offers versatile usage. Whether it's a stage monitor, a stand-alone speaker system, or a satellite paired with a subwoofer, it combines high performance and reliability in a compact package. Its tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.
Features:
- Up to 130 dB Sound Pressure Level
- 2100W Class-D bi-amplification
- 50-20000 Hz linear frequency response
- 1.75' Compression Driver
- 12' Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management
- 70°x100° Constant Directivity Coverage Angle

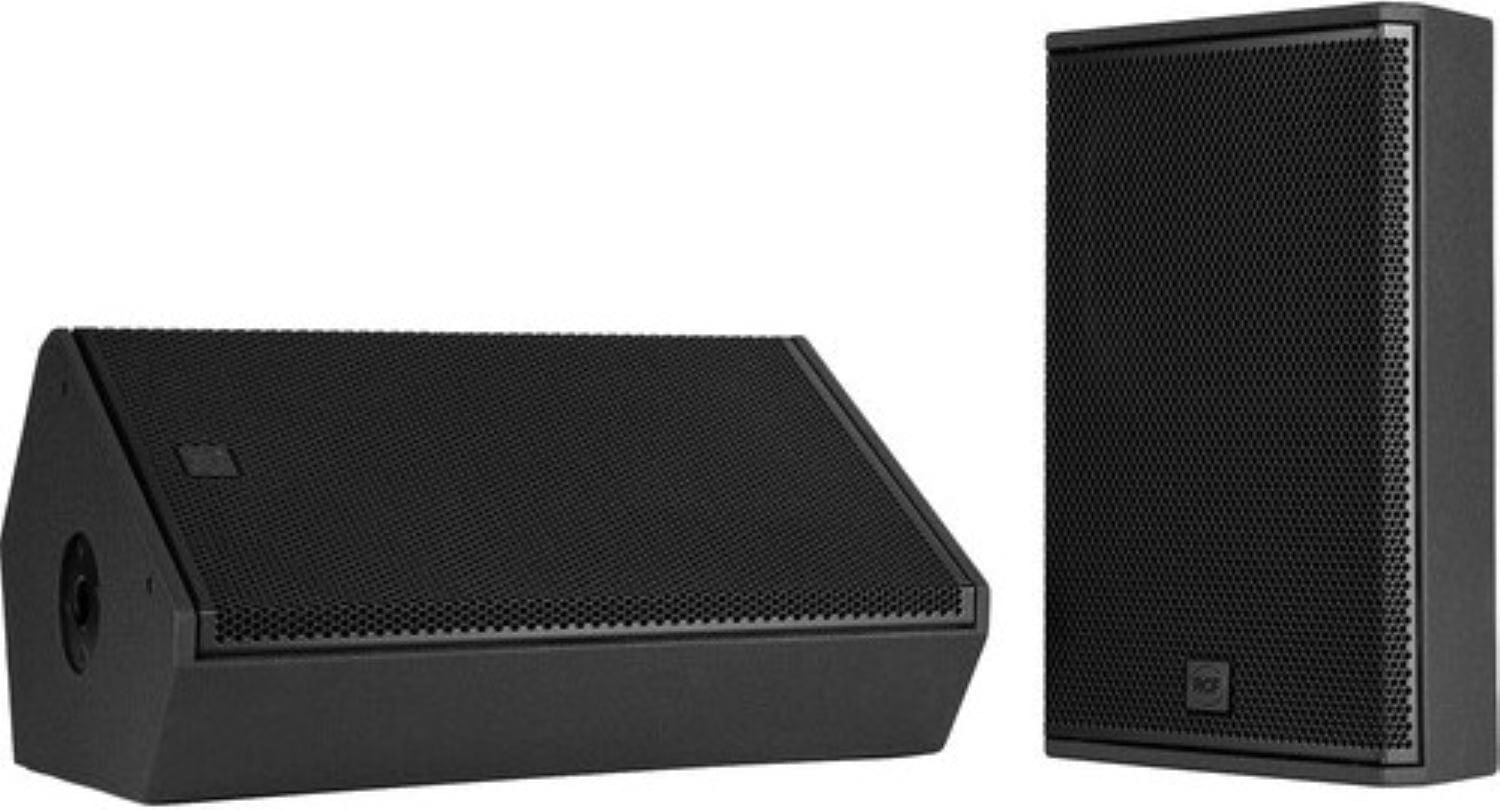

- Perfectly tailored for horizontal or vertical deployment
Specifications:
- Acoustical Specifications:
- Frequency Response: 50 Hz ¡ 20000 Hz
- Max SPL @ 1m: 130 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 70°

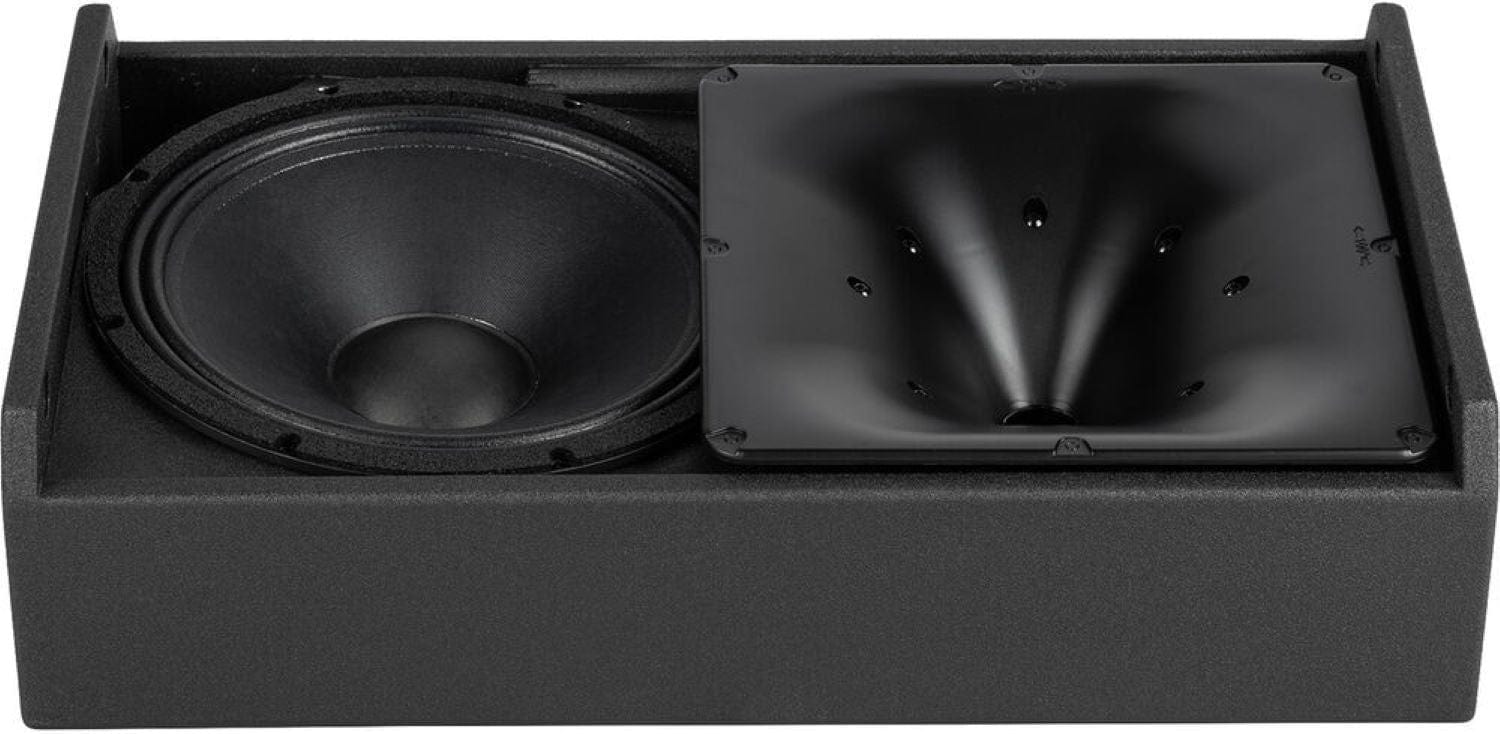

- Transducers:
- Compression Driver: 1 x 1.0', 1.75' v.c

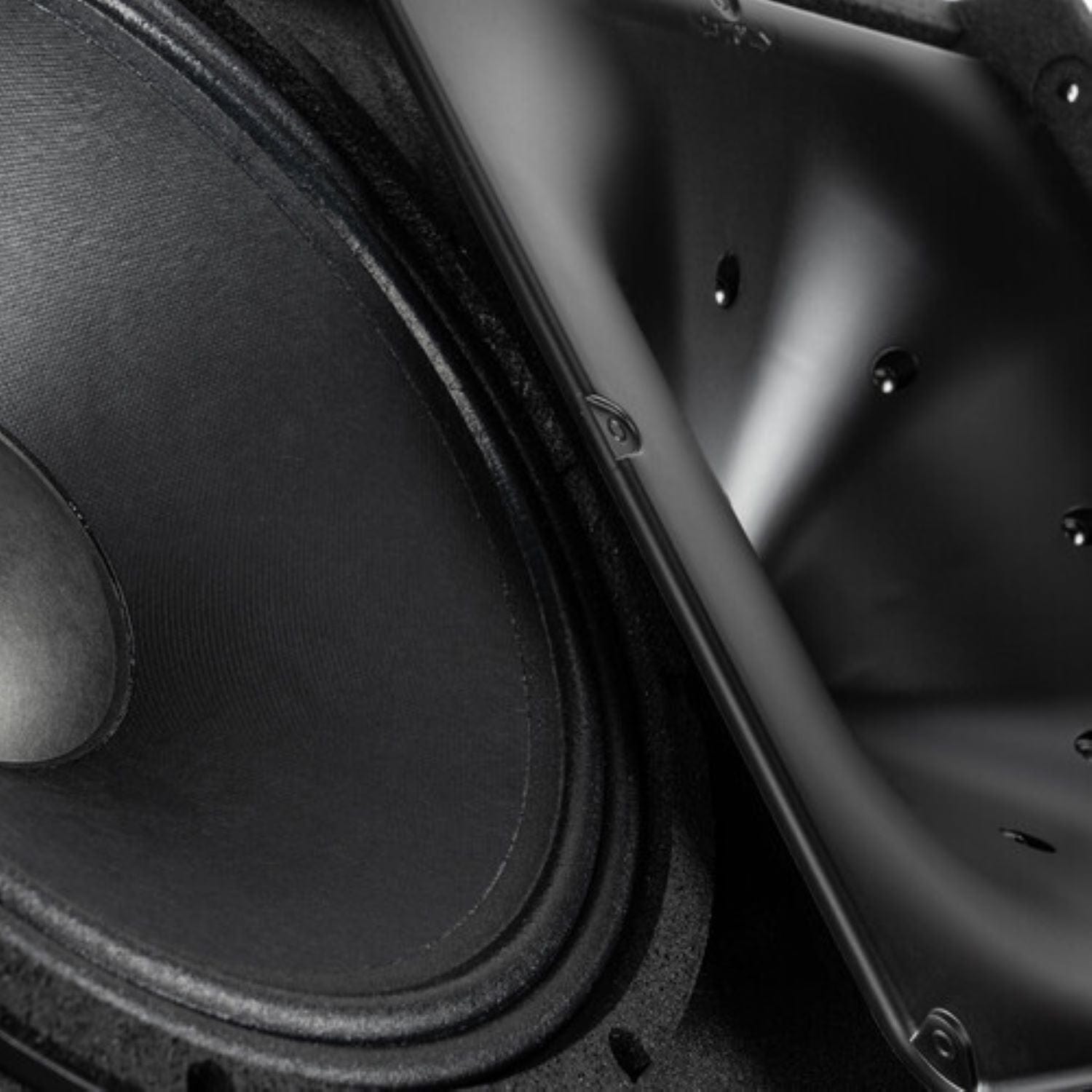

- Woofer: 12', 2.5' v.c

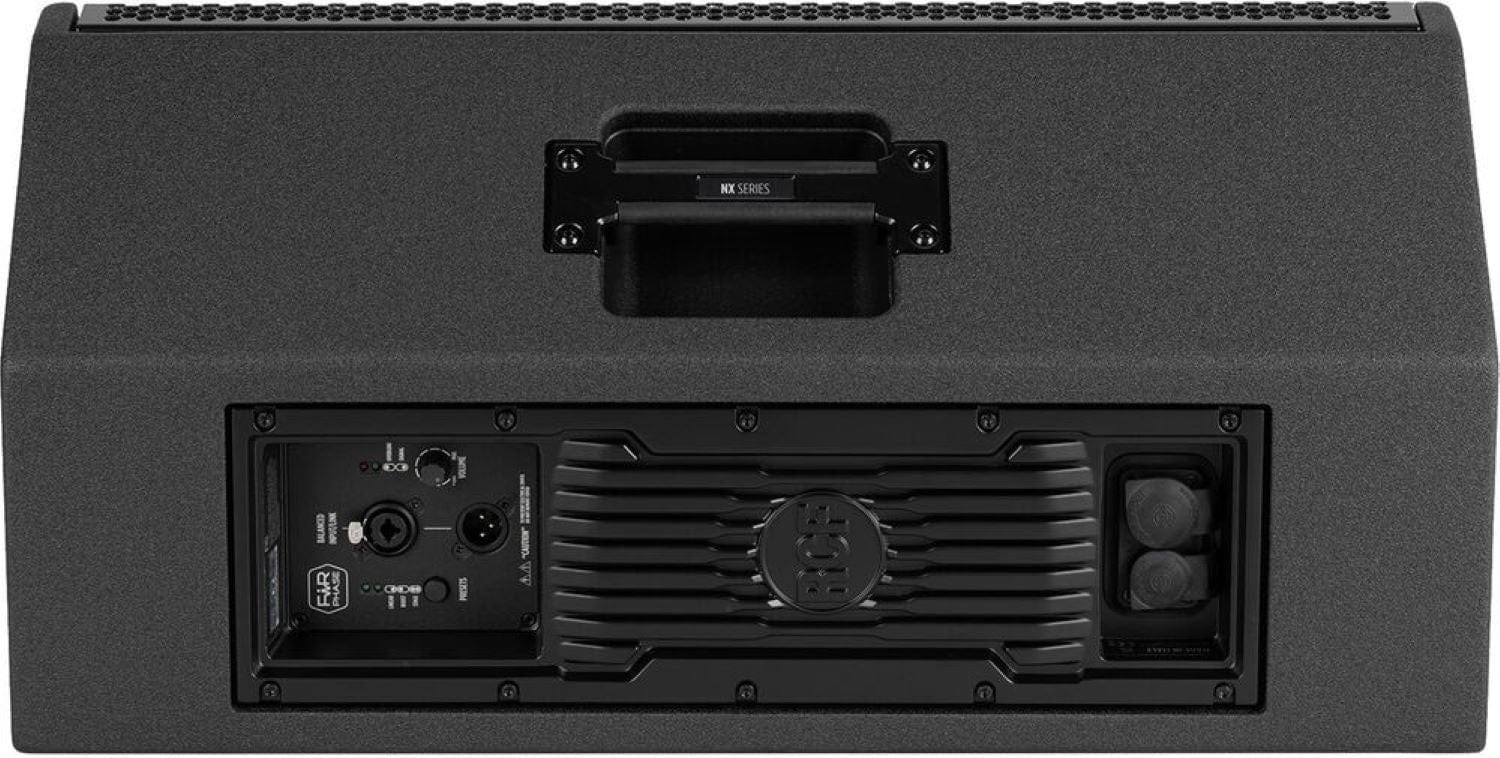

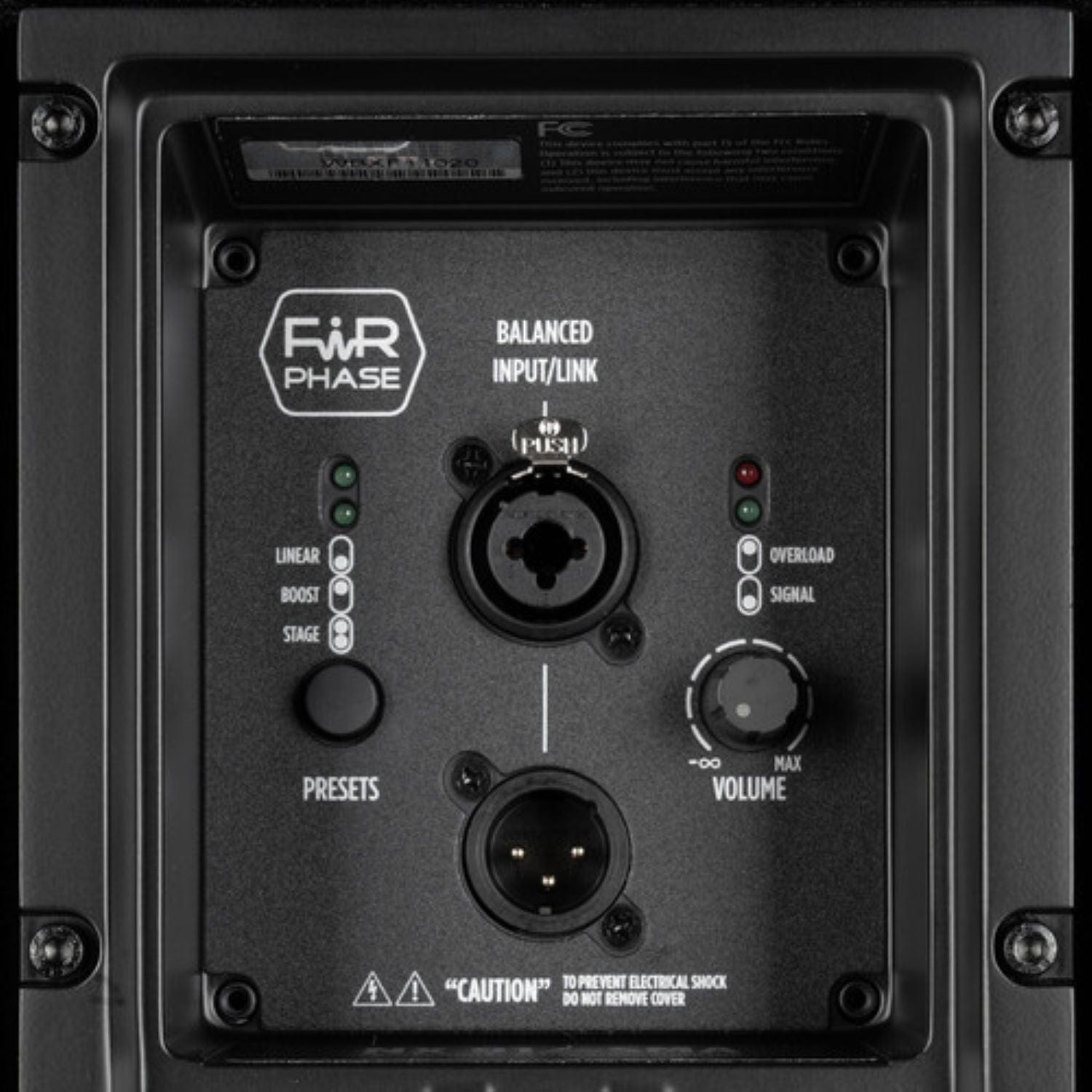

- Input/Output Section:
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Processor Section:
- Crossover Frequencies: 1600 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Power Section:
- Total Power: 2100 W Peak
- High frequencies: 700 W Peak
- Low frequencies: 1400 W Peak
- Cooling: Convection

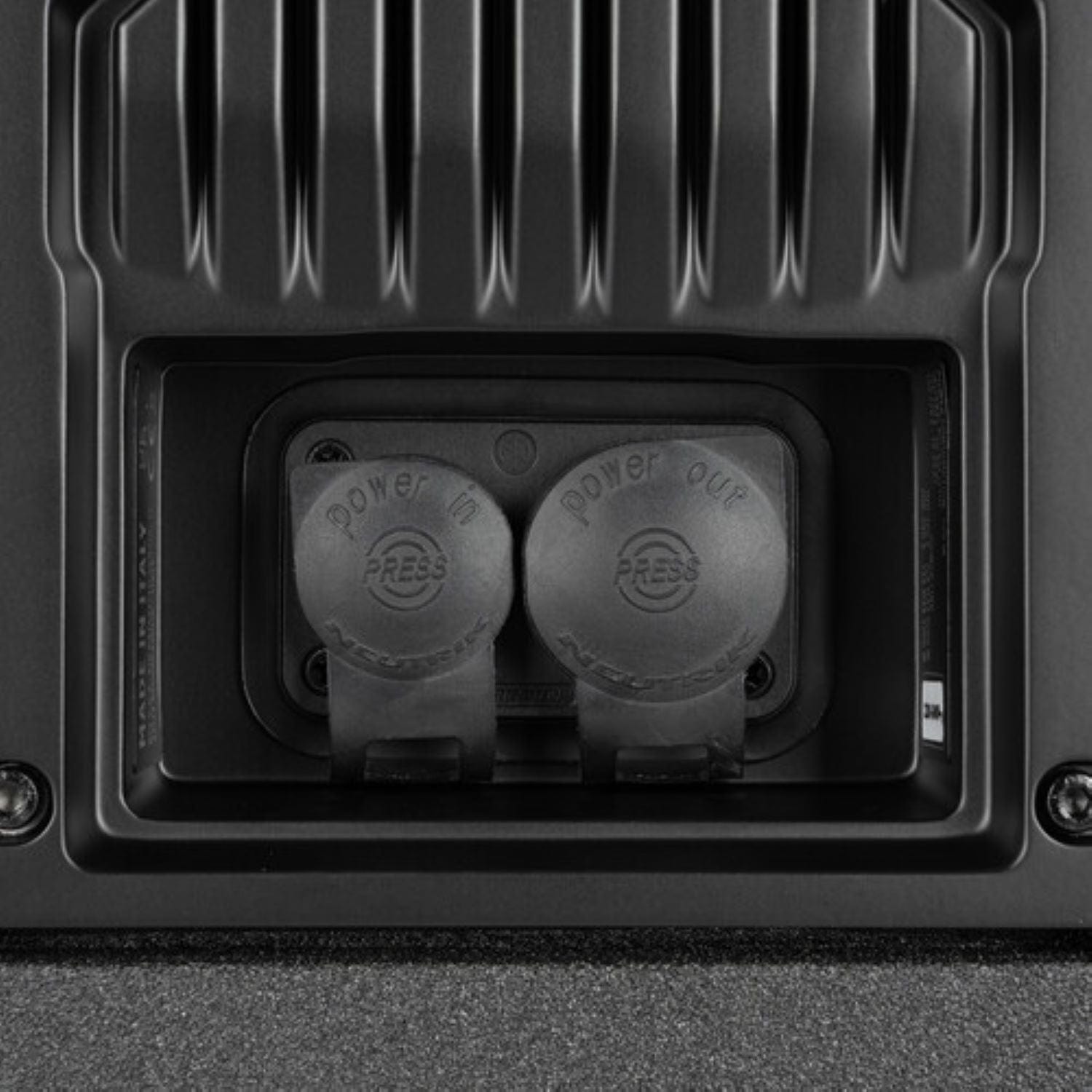

- Connections: Powercon TRUE1 TOP IN/OUT
- Standard Compliance:
- Safety agency: CE compliant
- Physical Specifications:
- Cabinet/Case Material: Plywood

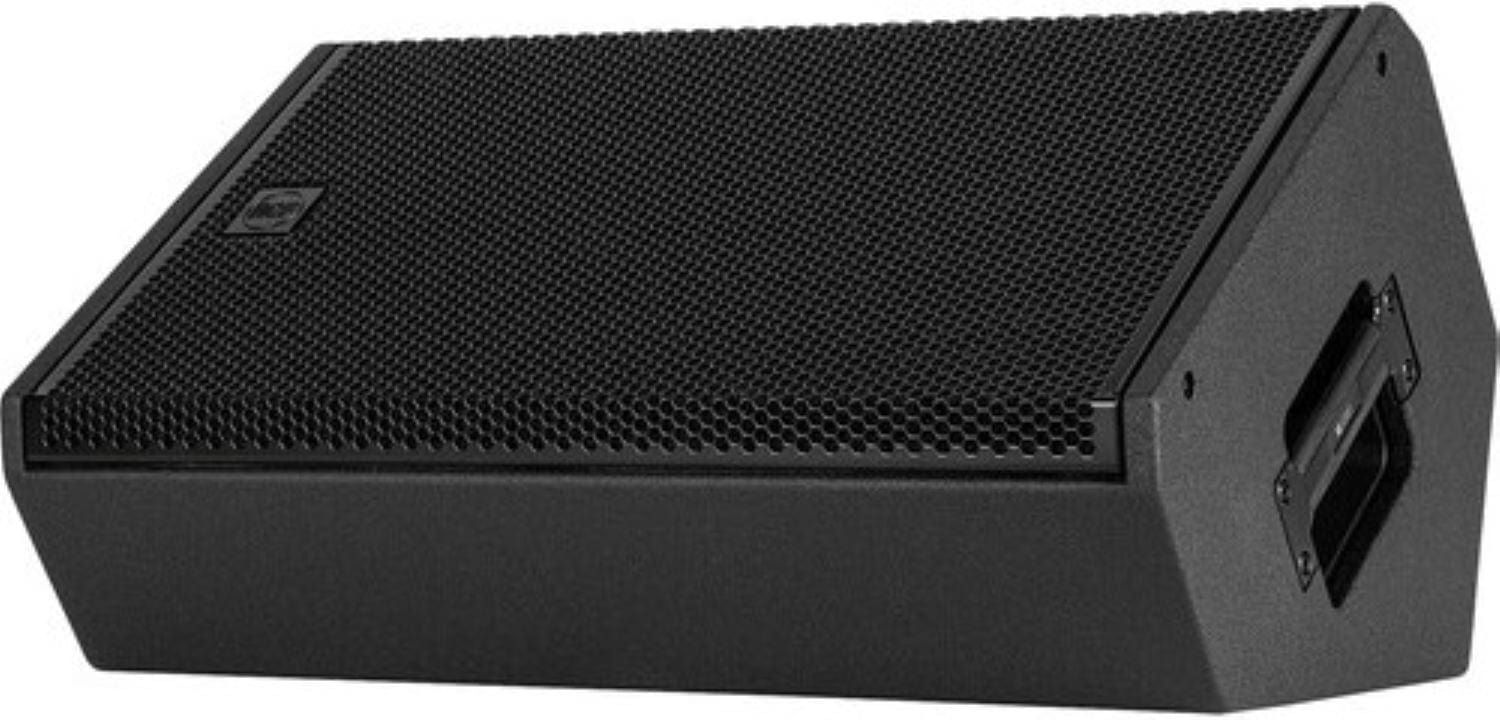

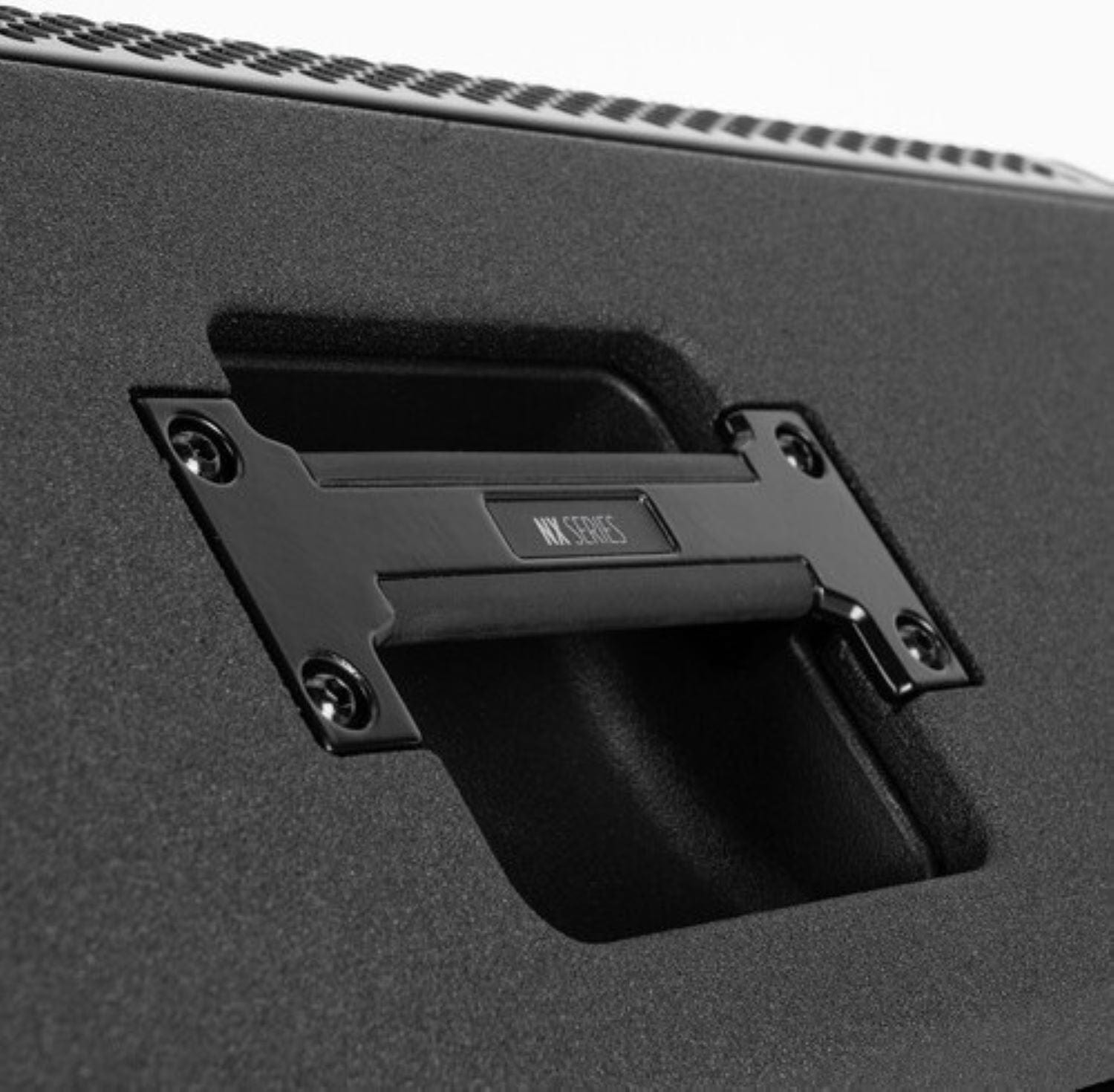

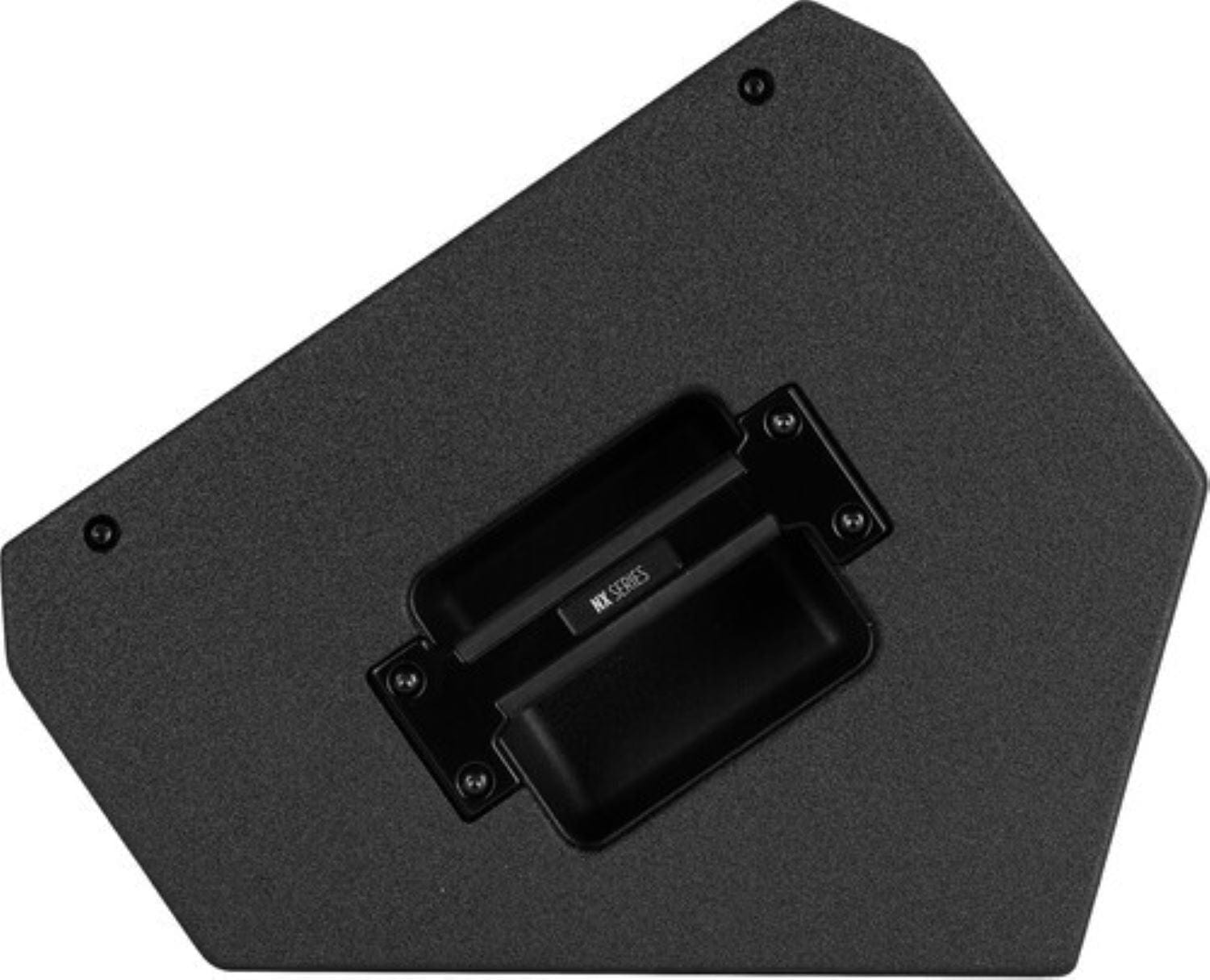

- Handles: 1 on side and 1 on top

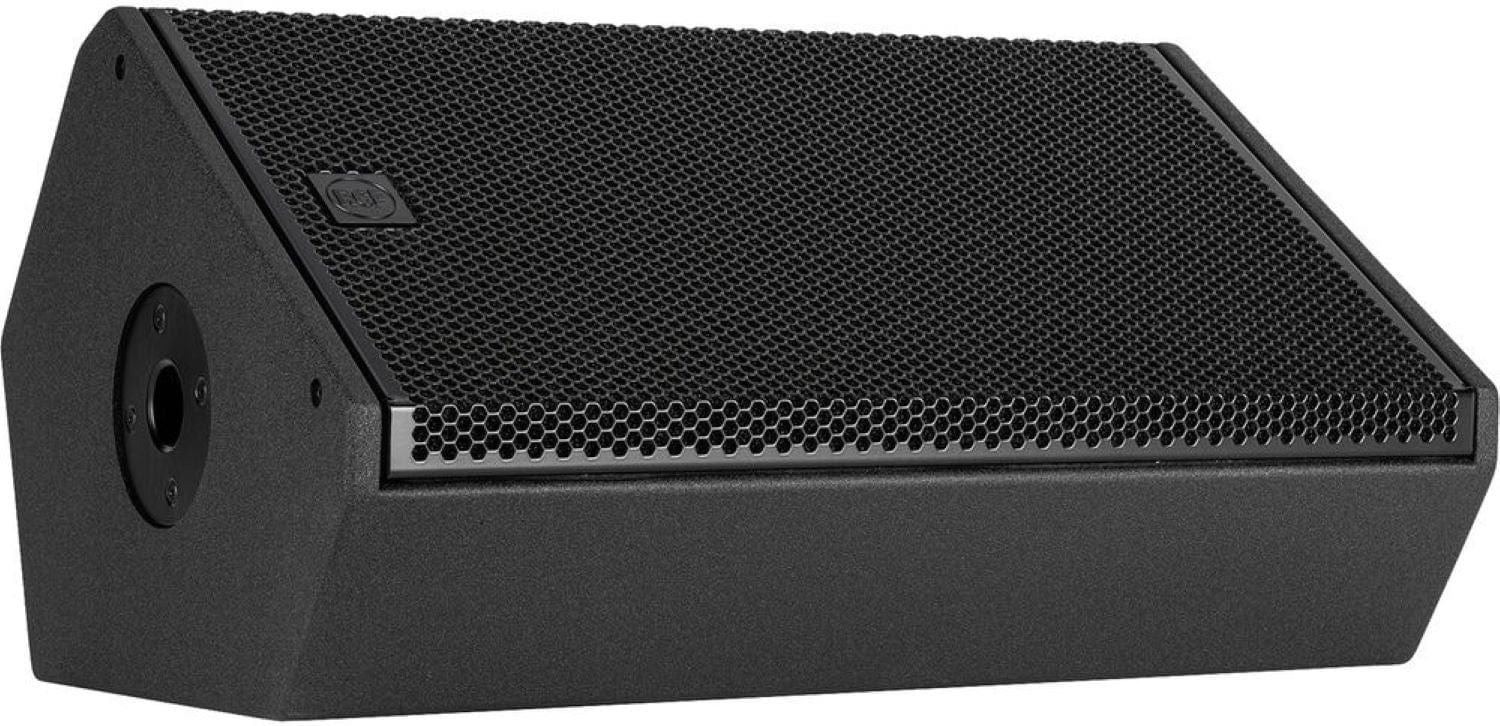

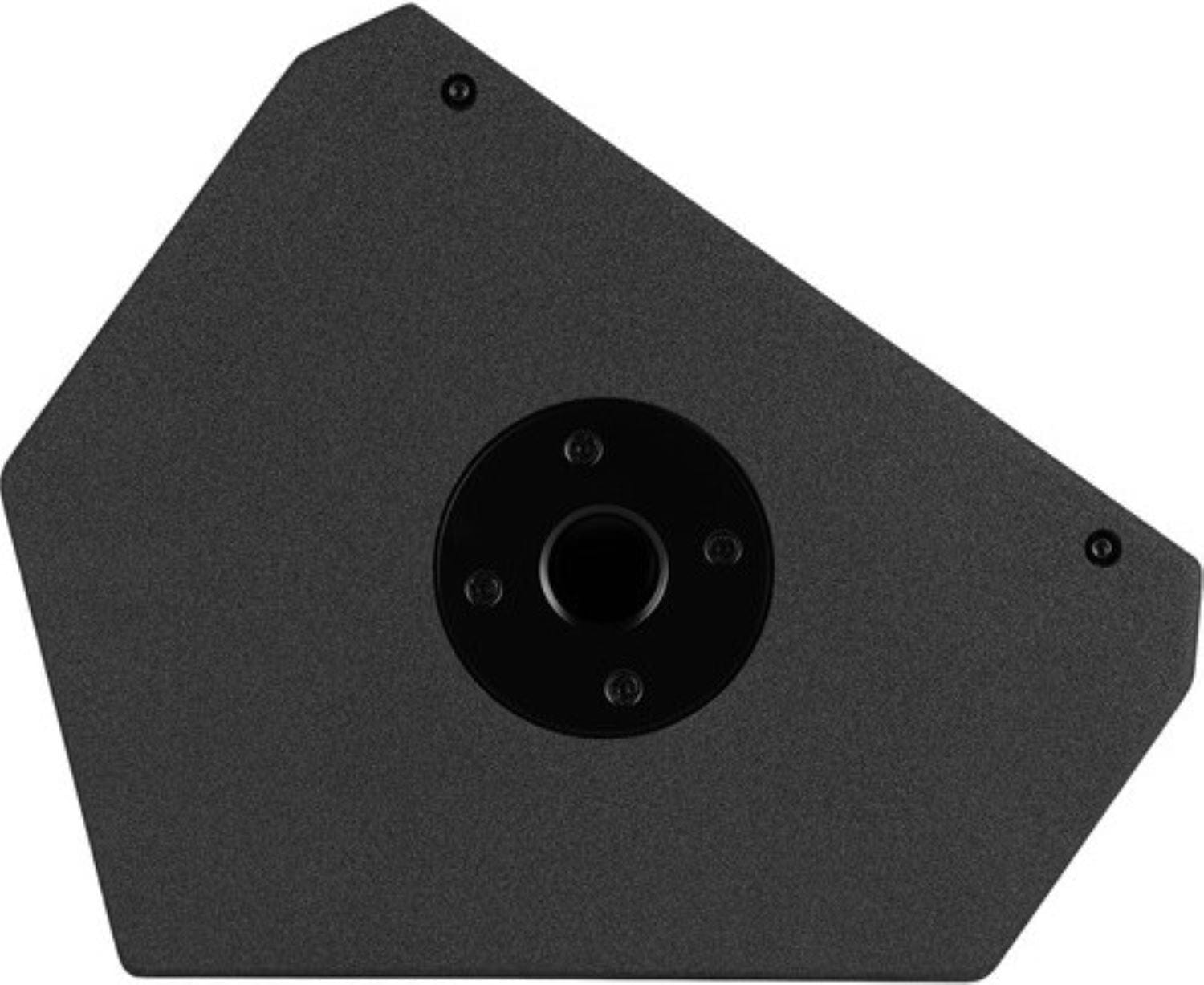

- Pole mount/Cap: Yes
- Grille: Steel
- Color: Black
- Size:
- Height: 320 mm / 12.6 inches
- Width: 620 mm / 24.41 inches
- Depth: 394 mm / 15.51 inches
- Weight: 20 kg / 44.09 lbs
The RCF NX912-SMA is a professional active stage monitor designed for sound providers, musicians, bands, and DJs. It features a 1.75” compression driver, 12” woofer, and a two-channel 2,100W amplifier. With a 70°x100° coverage angle, it delivers up to 130dB SPL of distortion-free sound. The monitor is easy to carry and set up, thanks to its tour-ready, rugged all-wood cabinet. It's perfect for use as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer. The NX912-SMA measures 320 mm (height) x 620 mm (width) x 394 mm (depth) and weighs 20 kg.
