DiGiCo S31 Rack Pack: The Ultimate Live Sound Solution

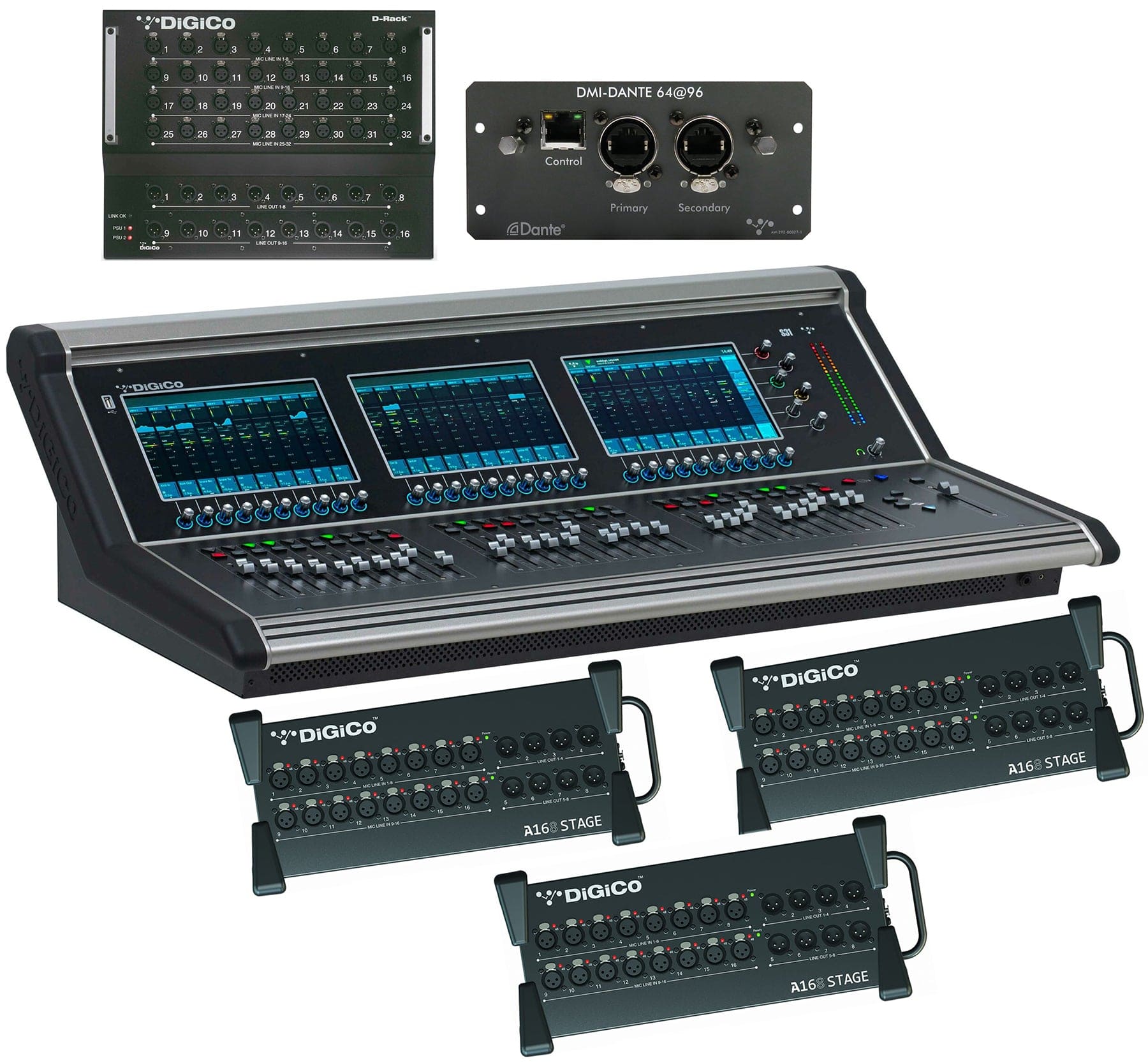

Unleash your creativity with the DiGiCo S31 Rack Pack! This all-in-one solution includes the S31 Digital Console, DMI-DANTE2 module, and three A168D racks, providing everything you need for professional live sound applications.
Why Choose the DiGiCo S31 Rack Pack?
• Exceptional Audio Quality: Experience flagship sound quality with the S31 Digital Console, featuring 48 flex-channels, 16 busses, and 96kHz performance.
• Versatile Connectivity: The DMI-DANTE2 module offers 64 channels in and out at 48kHz and 96kHz, with switched and redundant modes for reliable connectivity.
• Portable and Expandable: The three A168D racks provide 16 mic/line in and 8 line out expander I/O units, allowing you to add remote I/O connectivity wherever you need it.

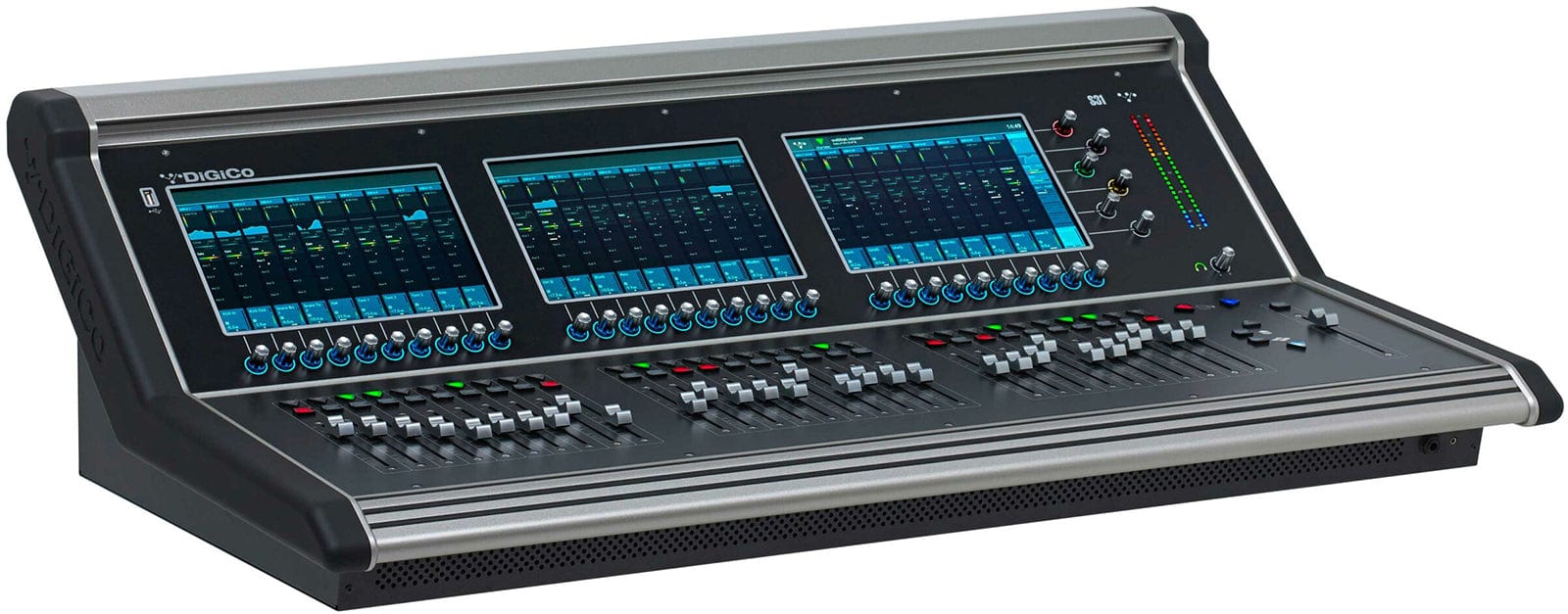

S31 Digital Console
The S31 Digital Console is a favorite among sound engineers worldwide, offering a compact and portable solution without compromising on audio quality, power, or flexibility. With its intuitive multi-touch screens and expanded work surface, you can easily control 30 channels simultaneously and unlock limitless mixing creativity.

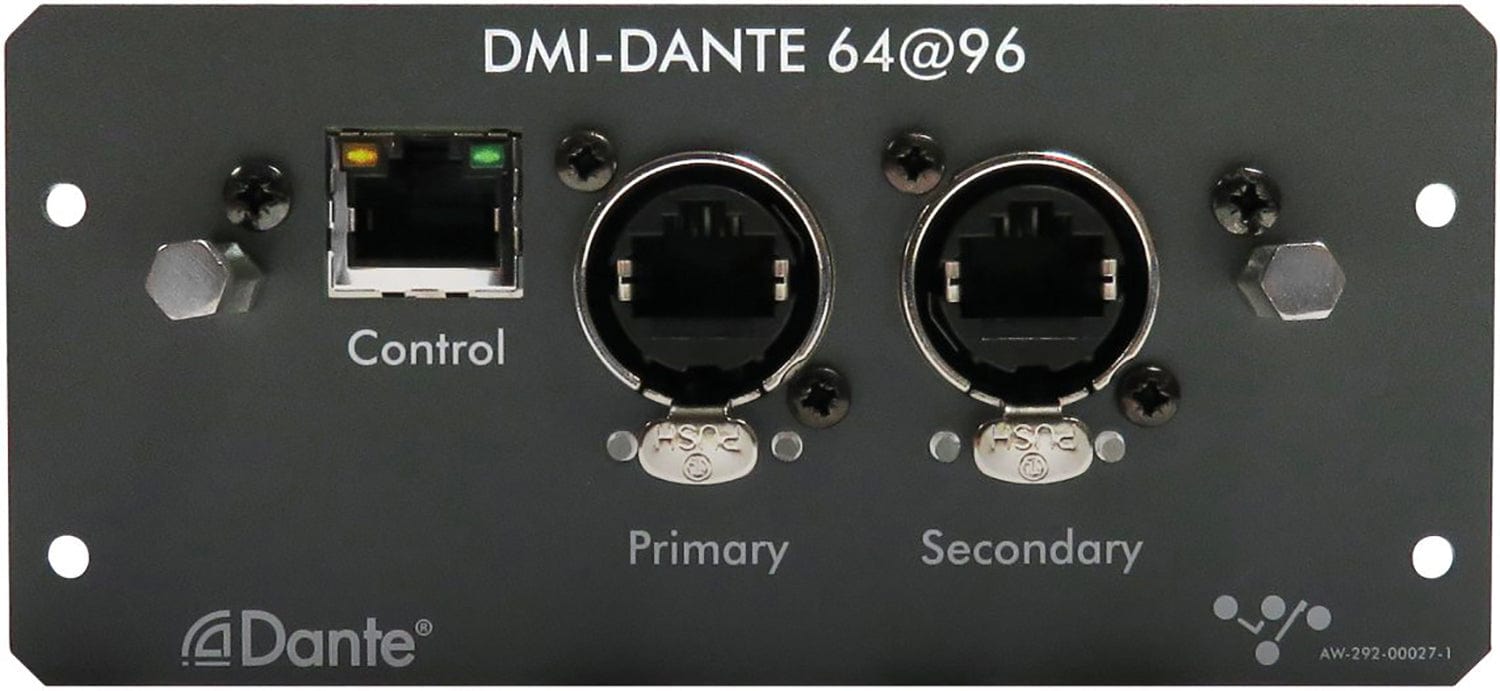

DMI-DANTE2
The DiGiCo DMI-DANTE2 module allows for seamless integration with Dante-enabled systems, providing 64 channels in and out at both 48kHz and 96kHz. With its switched and redundant modes, you can ensure reliable connectivity and uninterrupted audio performance.

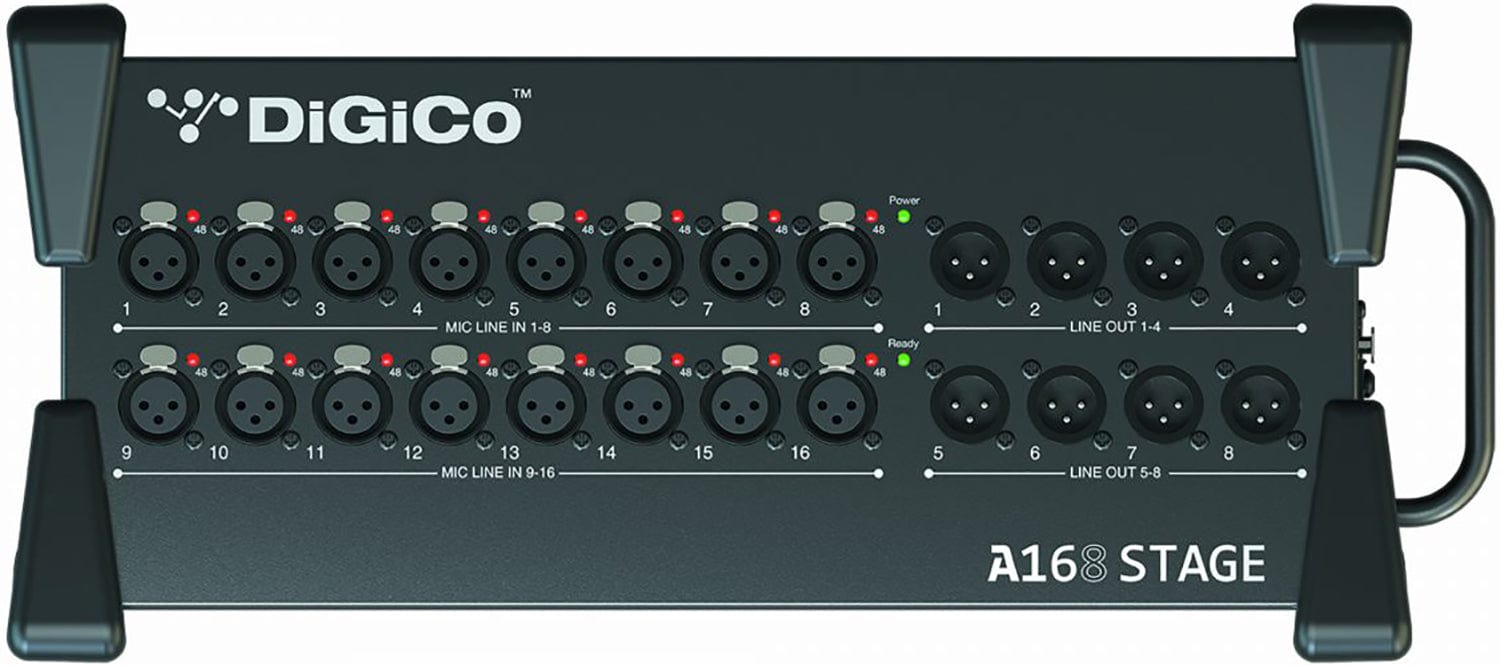

A168D Rack
The A168D Rack is a portable remote I/O unit that provides 16 mic/line in and 8 line out expander I/O connectivity. Ideal for live sound applications, this rack allows you to add additional inputs and outputs wherever you need them.
Features:
- S31 Digital Console:
- 48 flexi input channels (mono/stereo)
- 16 flexi aux / sub-group busses (mono/stereo)
- 10 x 8 matrix with full processing
- Fully assignable channel layout
- 24 local mic/line inputs and 12 line outputs
- 2 DMI slots to expand the I/O as desired
- Snapshots for seamlessly changing many parameters at once
- Offline software
- iPad control
- Compatible with the DMI-AMM for automatic mic mixing
- OSC control of snapshots
- DMI-DANTE2:
- 2 EtherCON Ports
- 1 RJ45 Port
- Switched mode switches the ports together
- Redundant mode allows the ports to work as a redundant pair
- AES67 Compatible
- Inbuilt SRC between 48kHz and 96kHz
- Compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4
- Dante A168D STAGE:
- 16 Mic preamps on XLR with phantom power status LEDs
- 8 XLR line outs
- Dante connectivity
Specifications:
- S31 Digital Console:
- 48 x input flex-channels mono/stereo (equivalent of 96 DSP channels)
- 46 busses: 16 x flexi-busses mono/stereo (equivalent of 32 DSP busses), stereo master (2), solo busses (2 stereo, 4 total), and 10 x 8 matrix (8)
- 10 x control groups
- 1 x compressor per channel and buss
- 1 x gate per channel and buss (switchable to ducker, or compressor with side chain access)
- 16 x assignable 32 band graphic EQs
- 8 x FX engines (reverbs, delays, w/modulation and enhancer)
- 21 x assignable DiGiTuBes
- 21 x assignable multiband compressors
- 21 x assignable dynamic EQs
- User definable macros
- An extremely high power headphone amplifier with 1/4 inch and mini jack socket
- 96kHz as standard
- 24 mic/line inputs
- 12 analogue outs
- 2 AES/EBU I/O (mono)
- Word clock I/O
- 1 GPI and 1 GPO
- DVI out (for an external monitor)
- 2 DMI card slots (up to 64 I/O per slot)
- 2 Ethernet connections for networking
- 2 x 24 segment master/solo meters
- Touch sensitive rotaries with integrated switch & HTL
- 3 x multi-touch screens
- 31 x touch sensitive moving faders
- 4 x layers of banks of 10 faders
- Customisable bank and channel layout
- Snapshots
- Integrated USB2 audio I/O interface for recording and playback of up to 48 channels
- DMI-DANTE2:
- Signal processing:
- 64 inputs and 64 outputs at 48kHz and 96kHz
- Inbuilt SRC between 48kHz and 96kHz
- Options:
- Compatible with S-Series, SD12, Quantum Range, Orange Box, 4REA4
- Physical:
- Dimensions: 126.4mm (w) x 176.3mm (d) x 58mm (h)
- Weight: 260g
- Product code: MOD-DMI-DANTE2
- Audio specifications:
- Sample rate: 48kHz or 96kHz
- Dante A168D STAGE:
- Mix/Line XLR Inputs: Balanced XLR, +48V Phantom Power
- Mic/Line Preamp: Fully recallable
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN: -127dB with 150 source
- Analogue XLR Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -93dBu (22Hz-22kHz)
- Operating Temperature Range: 0°C to 35°C (32°F to 95°F)
- Mains Voltage Operating Range: 100-240V AC, 50/60Hz
- Mains Power Consumption: 35W max
The DiGiCo S31 Rack Pack is a must-have for live sound engineers and musicians. This all-in-one solution includes the S31 Digital Console, DMI-DANTE2 module, and three A168D racks, providing everything you need for professional live sound applications. The S31 Digital Console offers exceptional audio quality, power, and flexibility, while the DMI-DANTE2 module provides versatile connectivity options. The A168D racks are portable and expandable, allowing you to add remote I/O connectivity wherever you need it. With its intuitive multi-touch screens and expanded work surface, the S31 Digital Console makes it easy to control 30 channels simultaneously and unlock limitless mixing creativity. The DMI-DANTE2 module allows for seamless integration with Dante-enabled systems, providing 64 channels in and out at both 48kHz and 96kHz. The A168D racks provide 16 mic/line in and 8 line out expander I/O units, allowing you to add additional inputs and outputs wherever you need them. Whether you're performing on stage or recording in the studio, the DiGiCo S31 Rack Pack has you covered. The S31 Digital Console measures 126.4mm (w) x 176.3mm (d) x 58mm (h) and weighs 260g. The DMI-DANTE2 module measures 126.4mm (w) x 176.3mm (d) x 58mm (h) and weighs 260g. The A168D racks measure 126.4mm (w) x 176.3mm (d) x 58mm (h) and weigh 260g each.
