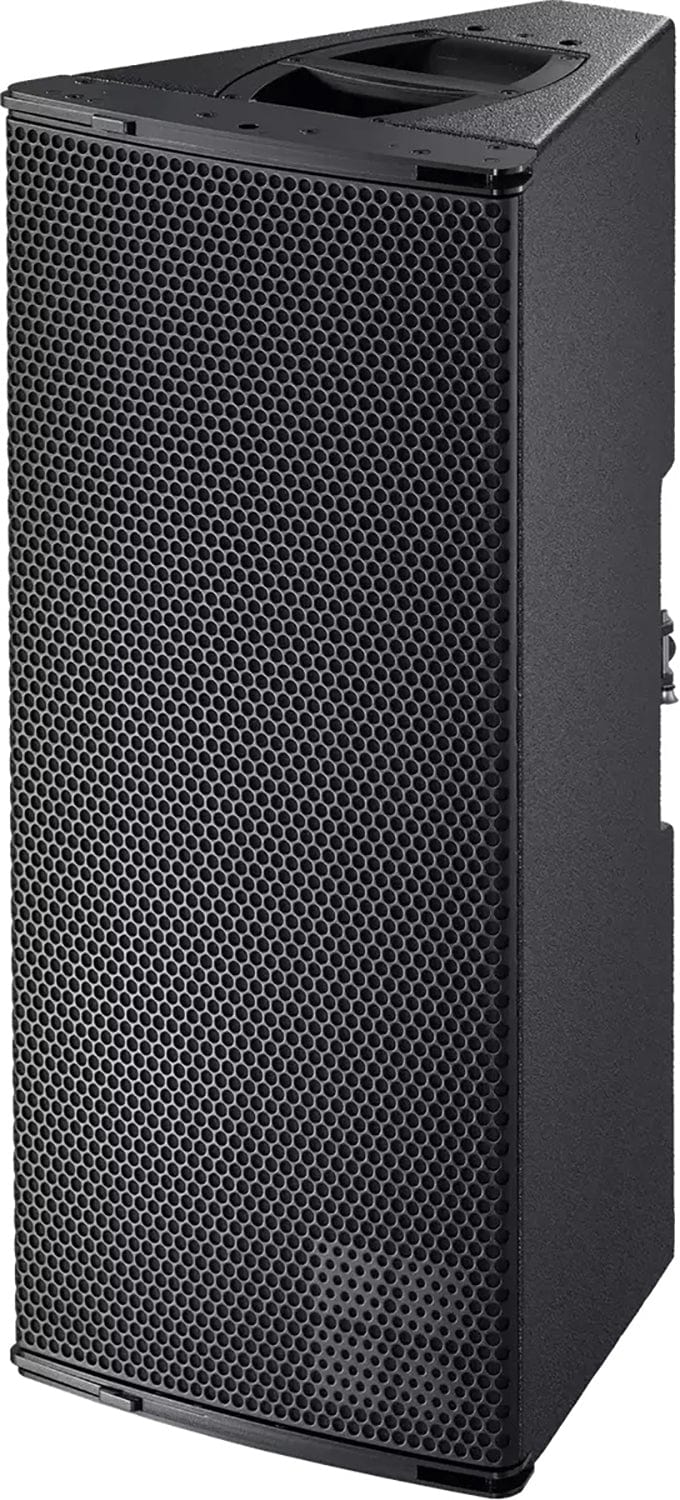

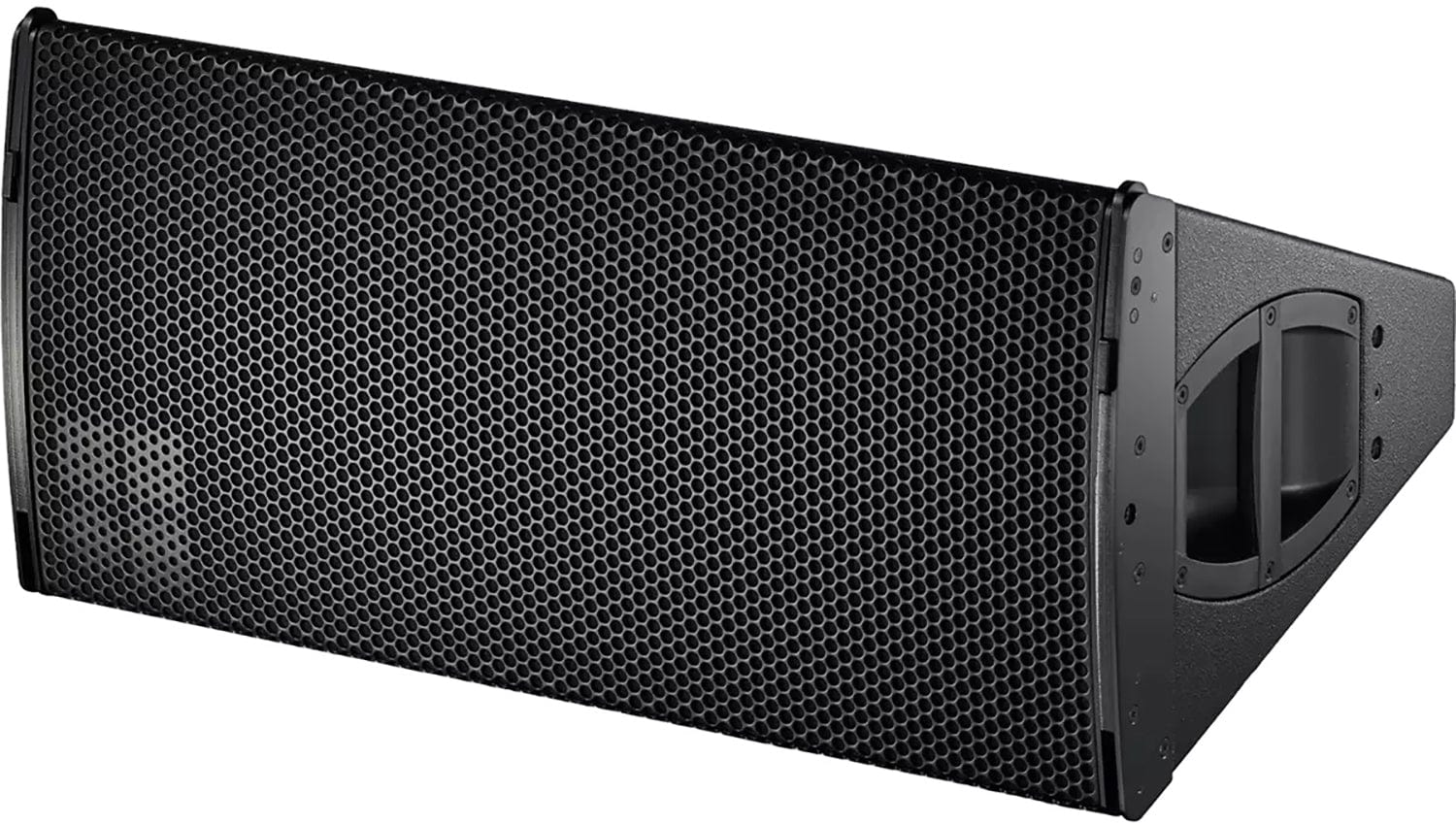

D&B Audiotechnik Z0730.002 AL60 High-Performance Loudspeaker with NLT4 F/M Connections
Upgrade your sound reinforcement with the AL60! • Ideal for medium-scale events. • Features a 60° constant directivity dispersion pattern. • Delivers powerful and clear audio.
Specifications:
- System data:
- Frequency response (-5 dB standard): 60 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 95 Hz - 18 kHz
- Max. sound pressure:
- with D20/30D: 138 dB
- with D40/D80/40D: 139 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Nominal dispersion angle (h x v - horizontal setup): 60 ° x 30 °
- Nominal impedance: 8 ohms
- Power handling capacity (RMS/peak 10 ms): 400/1800 W
- Splay angle settings: 20 ¡ 40° (5° increment)
- Components:
- 2 x 10' LF driver
- 1 x 1.4' exit compression driver with 3' coil
- Passive crossover network

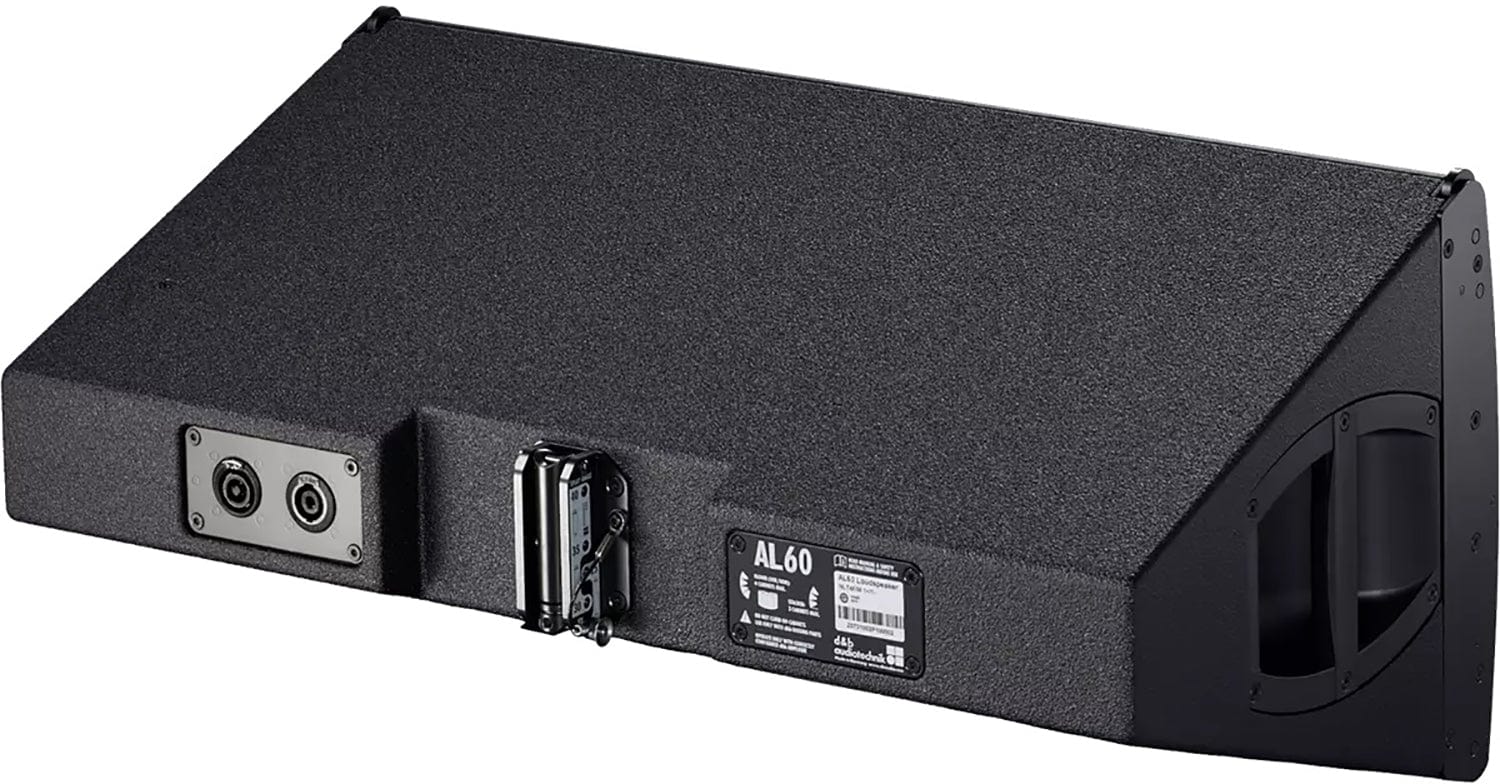

- Connections: 1 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D)322 x 700 x 356 mm (12.7 x 27.6 x 14')
- Weight: 23 kg (51 lb)
The D&B Audiotechnik Z0730.002 AL60 is a great choice for medium-scale sound reinforcement. It's suitable for event organizers and venue managers looking for high-quality audio. With dimensions of 322 x 700 x 356 mm (12.7 x 27.6 x 14') and a weight of 23 kg (51 lb), it's easy to handle and install.
