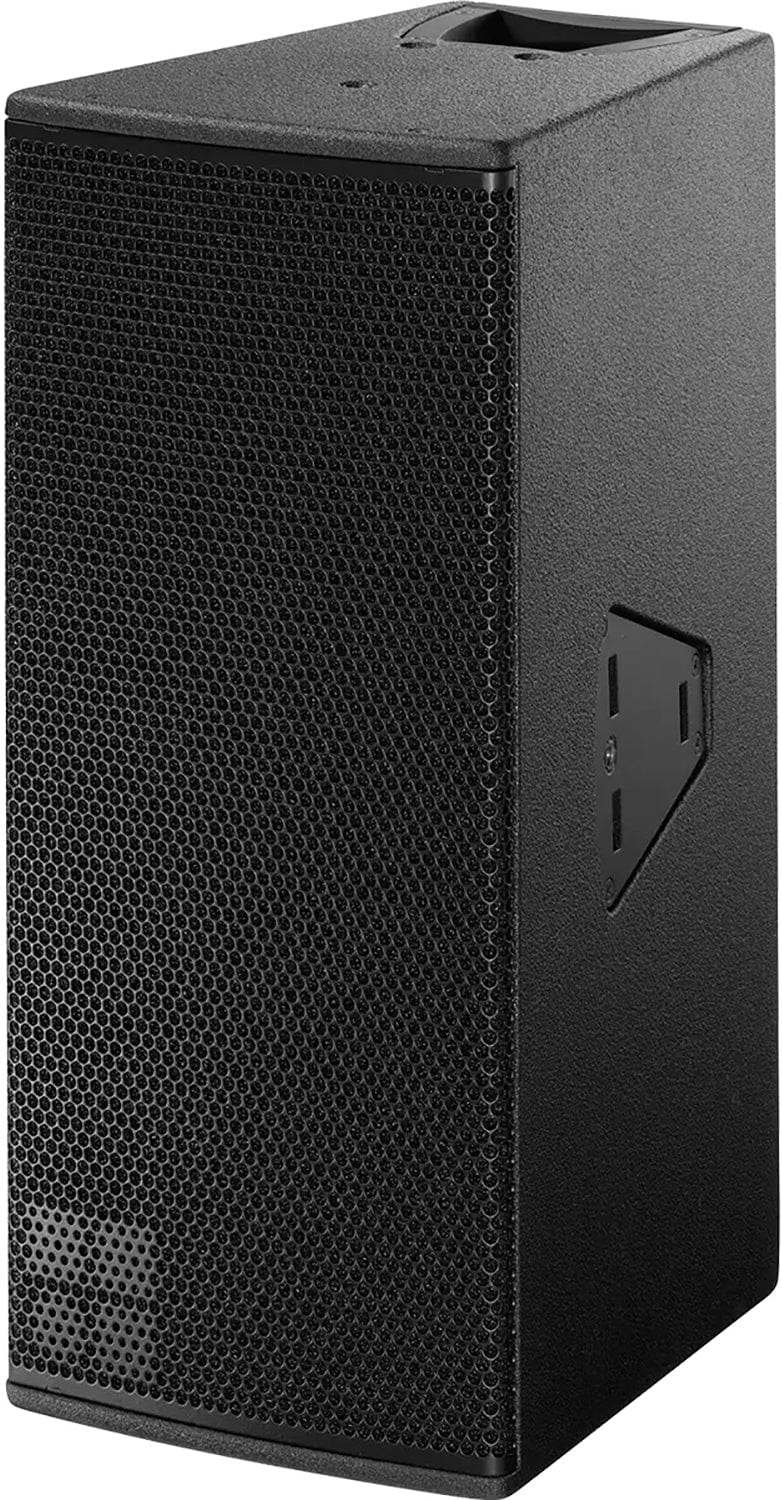

D&B Audiotechnik Z0703.001 Y10P High-Performance Loudspeaker with NL4 Connections
Get ready to experience immersive sound like never before with the D&B Audiotechnik Z0703.001 Y10P! This compact, 2-way passive loudspeaker is a game-changer. Here's why:
- • Compact Design: It's easy to set up and fits well in various spaces.
- • High Performance: Delivers outstanding sound quality with two 8” drivers and a 1.4” compression driver.

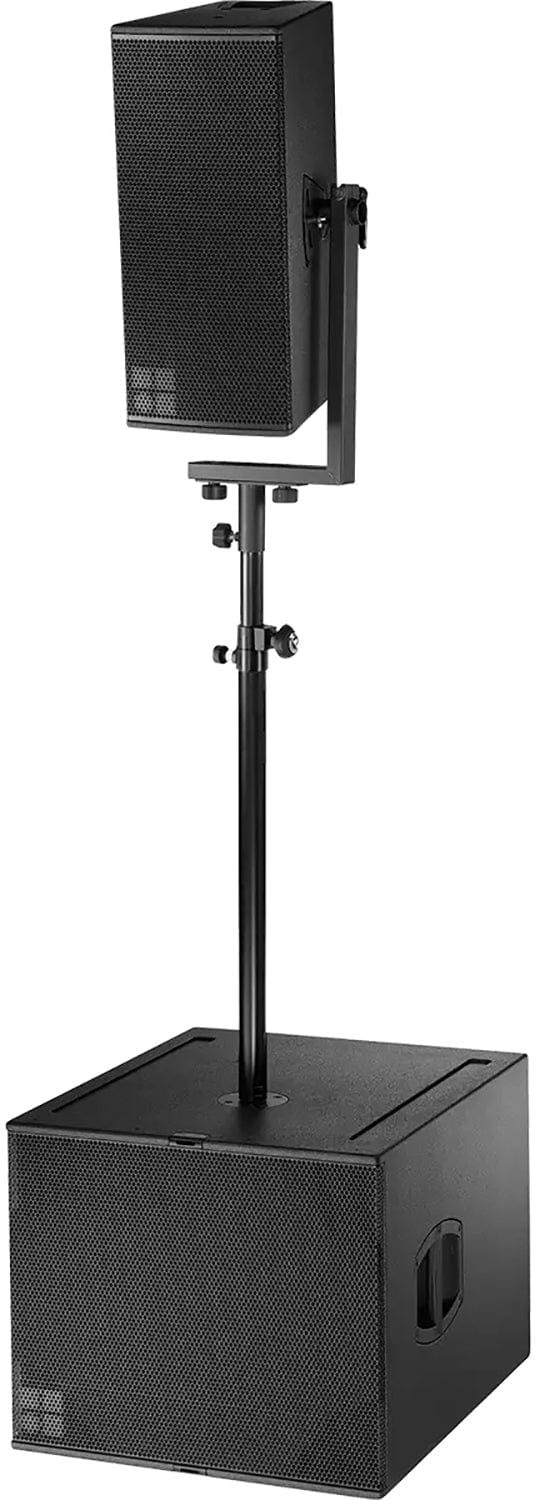

- • Versatile Deployment: Can be used as a stand-alone full range system or combined with other Y-Series elements.

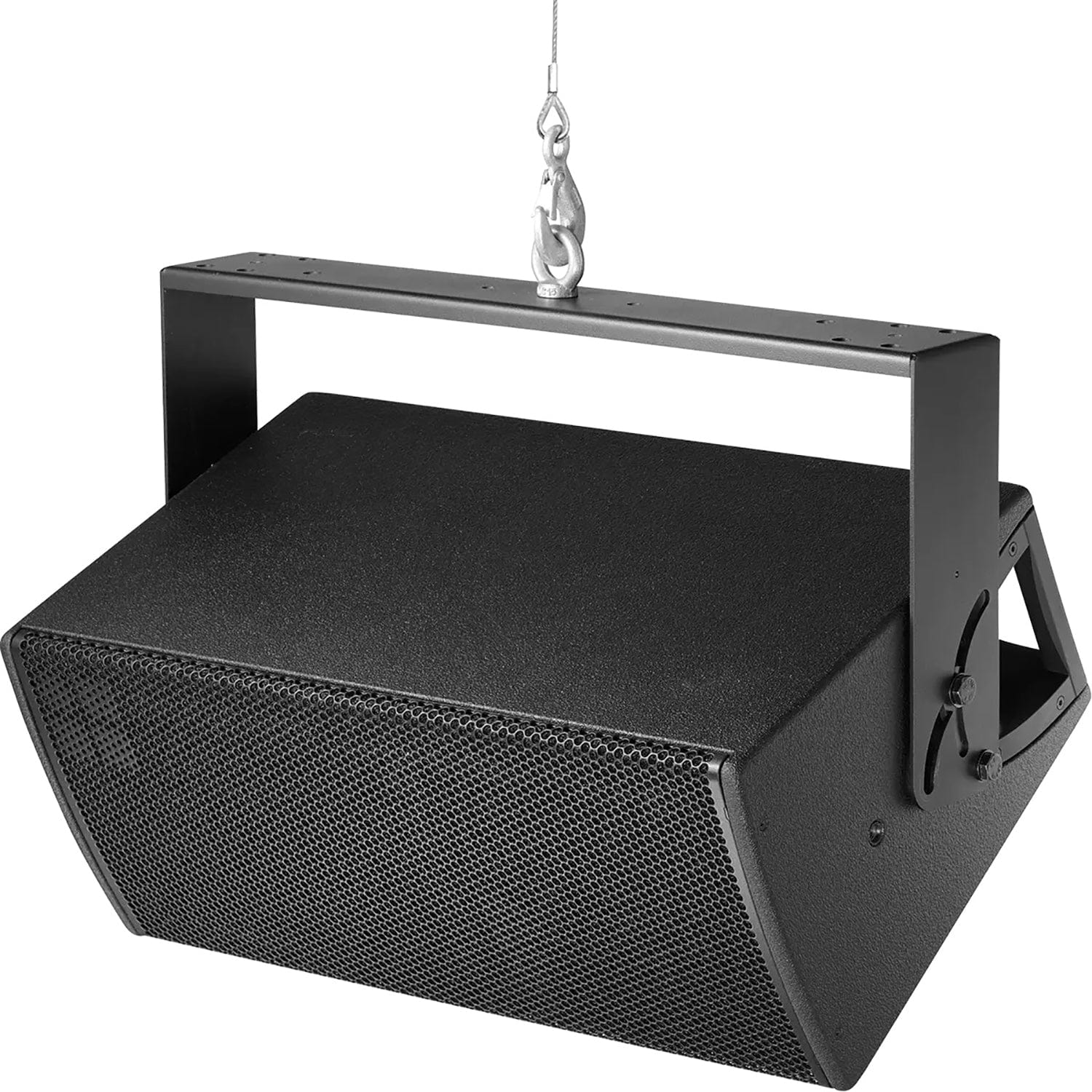

The Y10P offers 110° horizontal directivity controlled down to 500 Hz and 40° vertical dispersion. The horn can be rotated by 90° for horizontal orientation. It's made of marine plywood with a protected finish. The front is safeguarded by a metal grill. It has handles and threaded inserts for easy rigging. With its great sound and multiple mounting options, it's perfect for events, venues, and installations.
Specifications:
- System data:
- Frequency response (-5 dB standard): 59 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 118 Hz - 18 kHz
- Max. sound pressure:
- with 10D: 131 dB
- with D20/30D: 134 dB
- with D40/D80/40D: 136 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: High performance 2-way passive point source loudspeaker
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 400/1600 W
- Nominal dispersion angle (h x v): 110° x 40°
- Components:
- 2 x 8' driver with neodymium magnet
- 1.4' exit compression driver
- passive crossover network

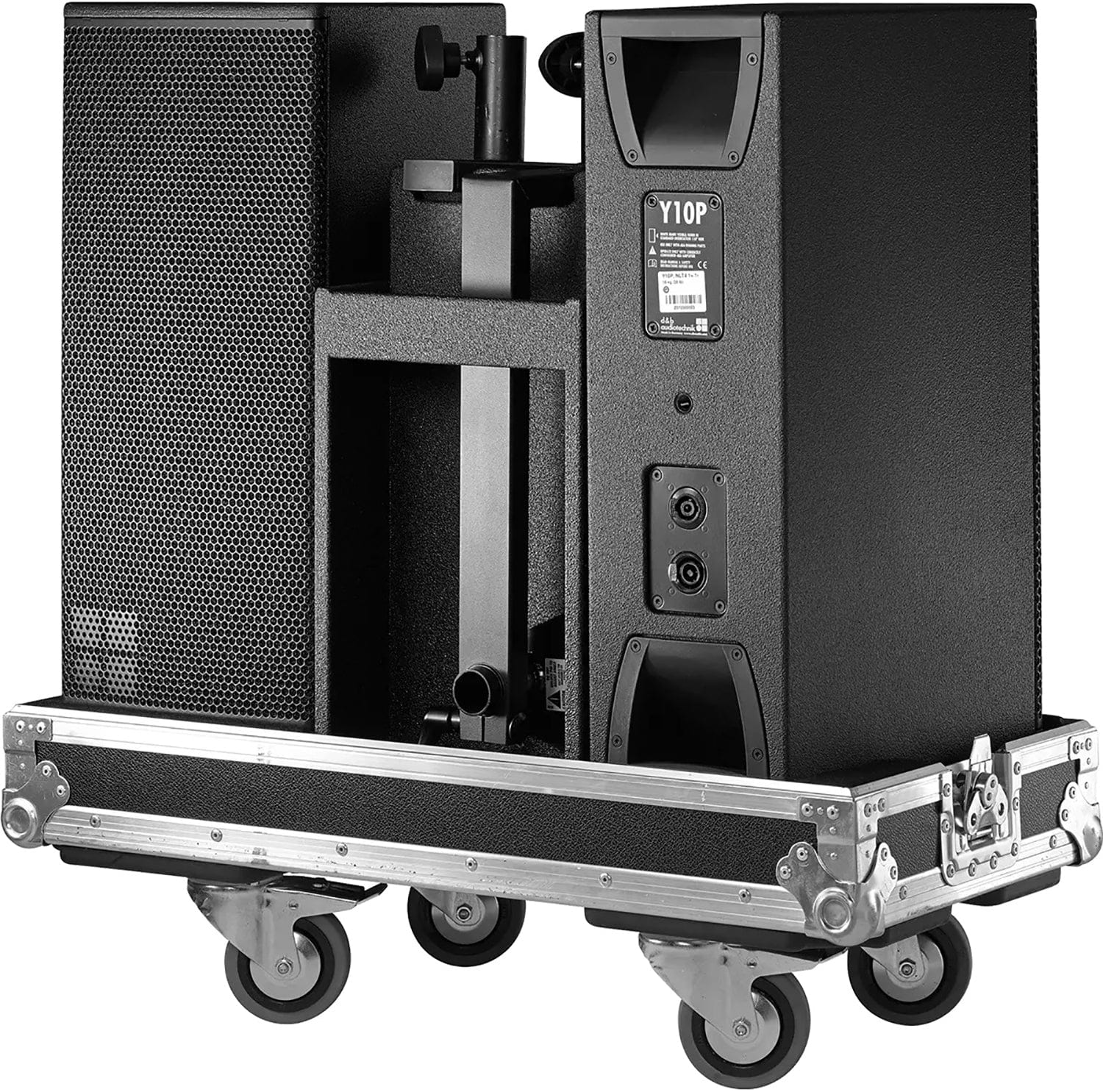

- Connections: 2 x NL4
- Dimensions / weight:
- Dimensions (H x W x D): 580 x 257 x 341 mm (22.8 x 10 x 13.4')
- Weight: 18 kg (40 lb)
The D&B Audiotechnik Z0703.001 Y10P loudspeaker is perfect for event organizers, venue owners, and audio installers. It's compact, measuring 580 x 257 x 341 mm and weighing 18 kg. Use it as a stand-alone full range system or combine with other Y-Series elements. With its great sound quality and multiple mounting options, it's ideal for creating amazing audio experiences in various spaces.
