DiGiCo S21 Rack Pack - The Ultimate Live Sound Solution

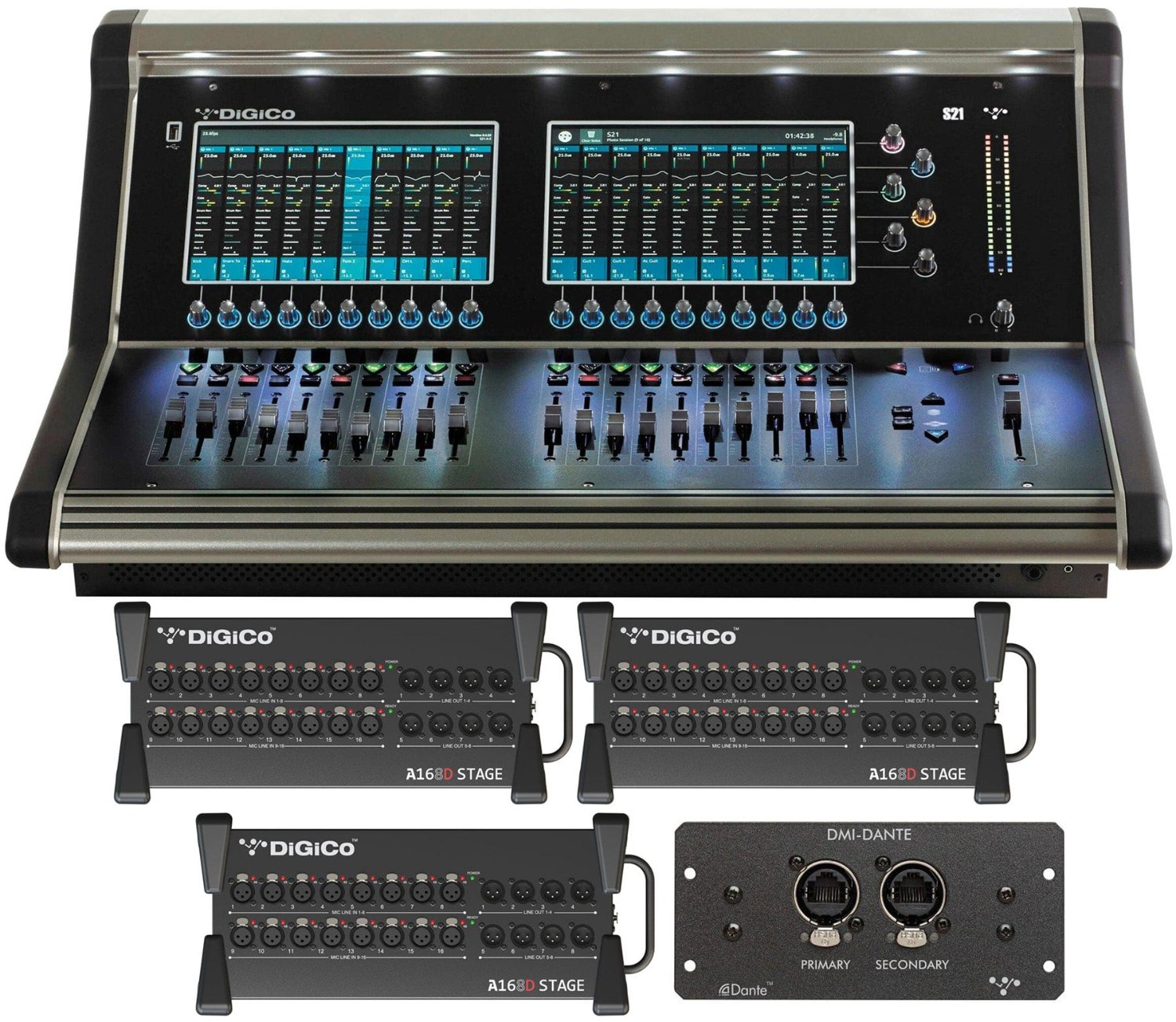

Unleash the power of professional audio with the DiGiCo S21 Rack Pack! This all-in-one package includes the S21 Digital Console, three A168D racks, and the Live Stage48 DANTE system, delivering a complete and immersive audio experience for live sound applications.
• Intuitive Control: The S21 digital console offers easy-to-use controls and advanced processing, ensuring seamless audio management even in the most demanding setups.
• Extensive I/O Flexibility: Each A168D rack provides 16 mic/line inputs and 8 line outputs, giving you the freedom to connect all your audio devices.

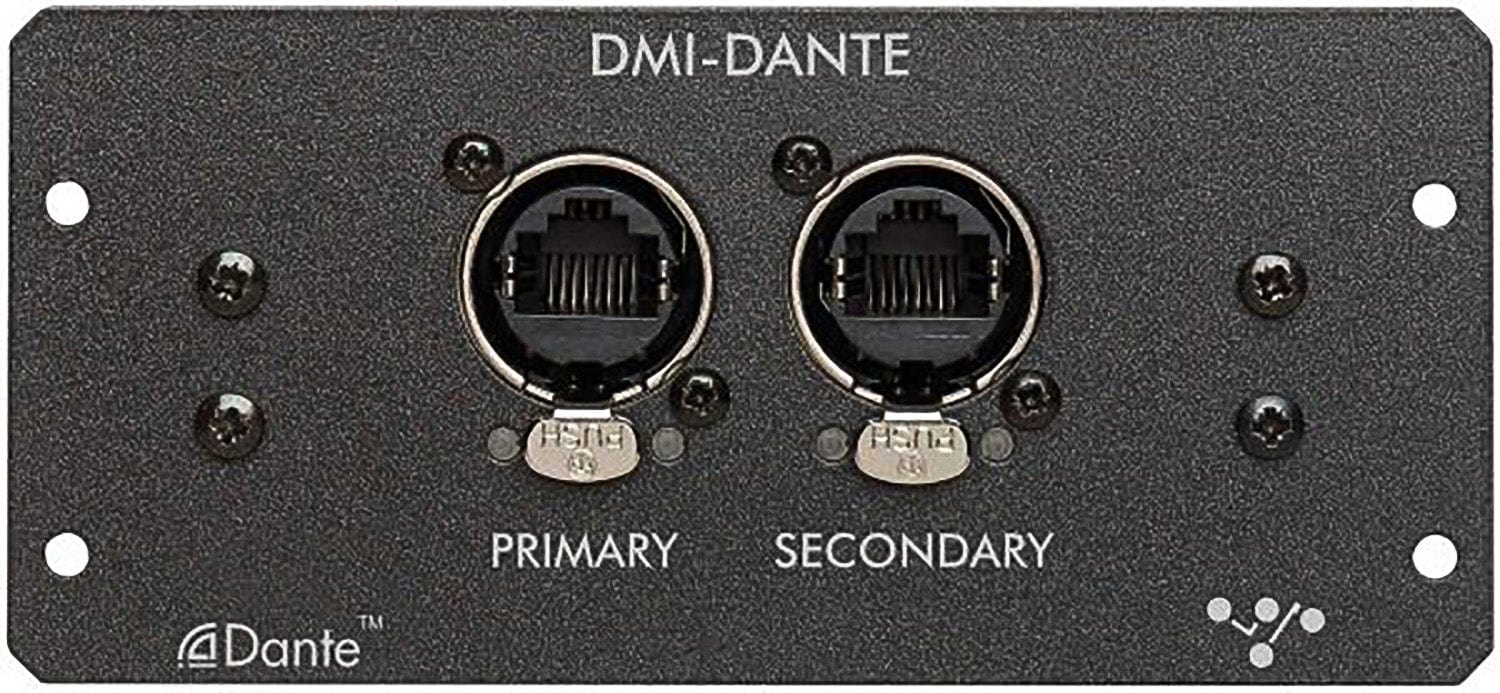

• Seamless Dante Integration: The Live Stage48 DANTE system enables effortless integration with Dante networks, making it ideal for efficient audio routing, distribution, and control in live performances and touring environments.

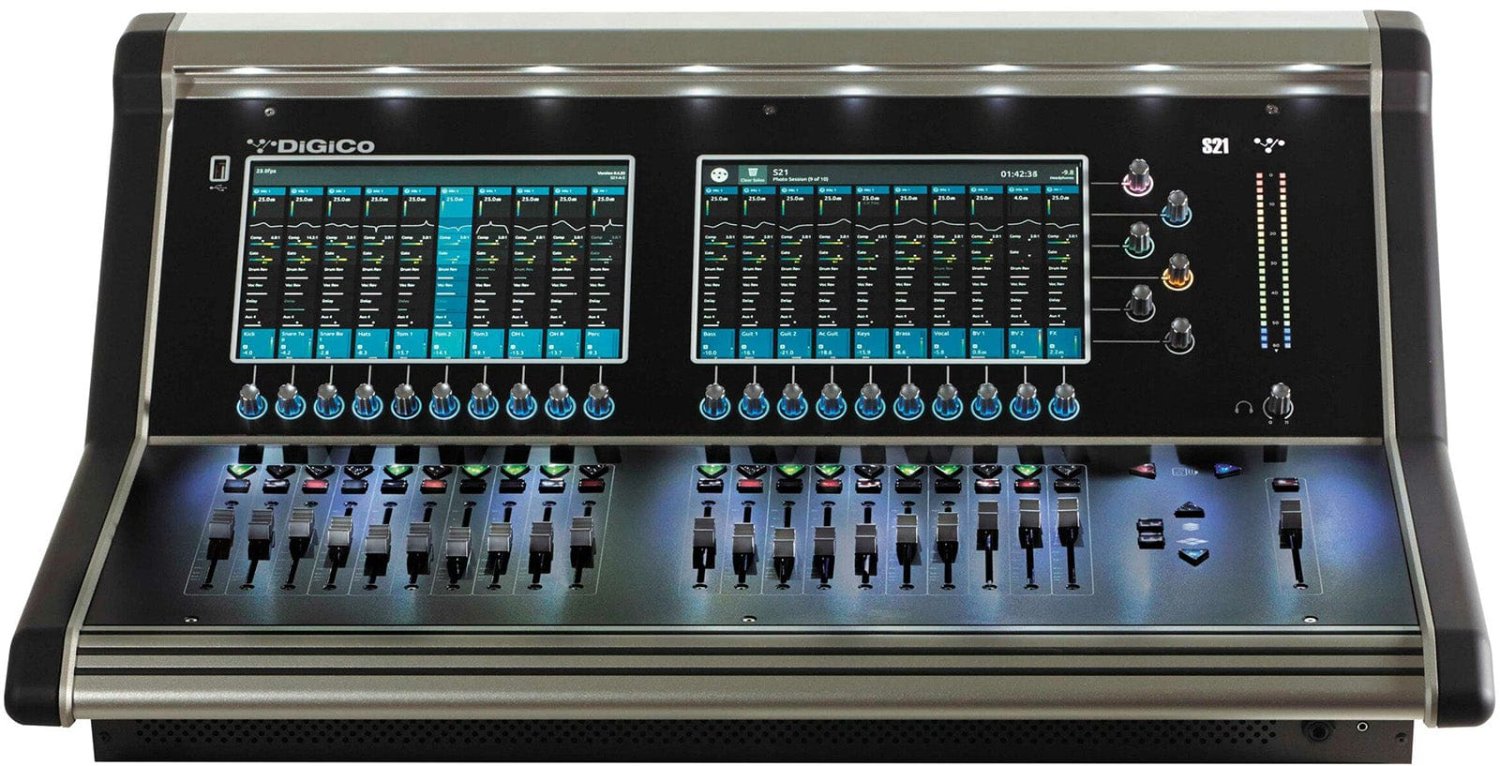

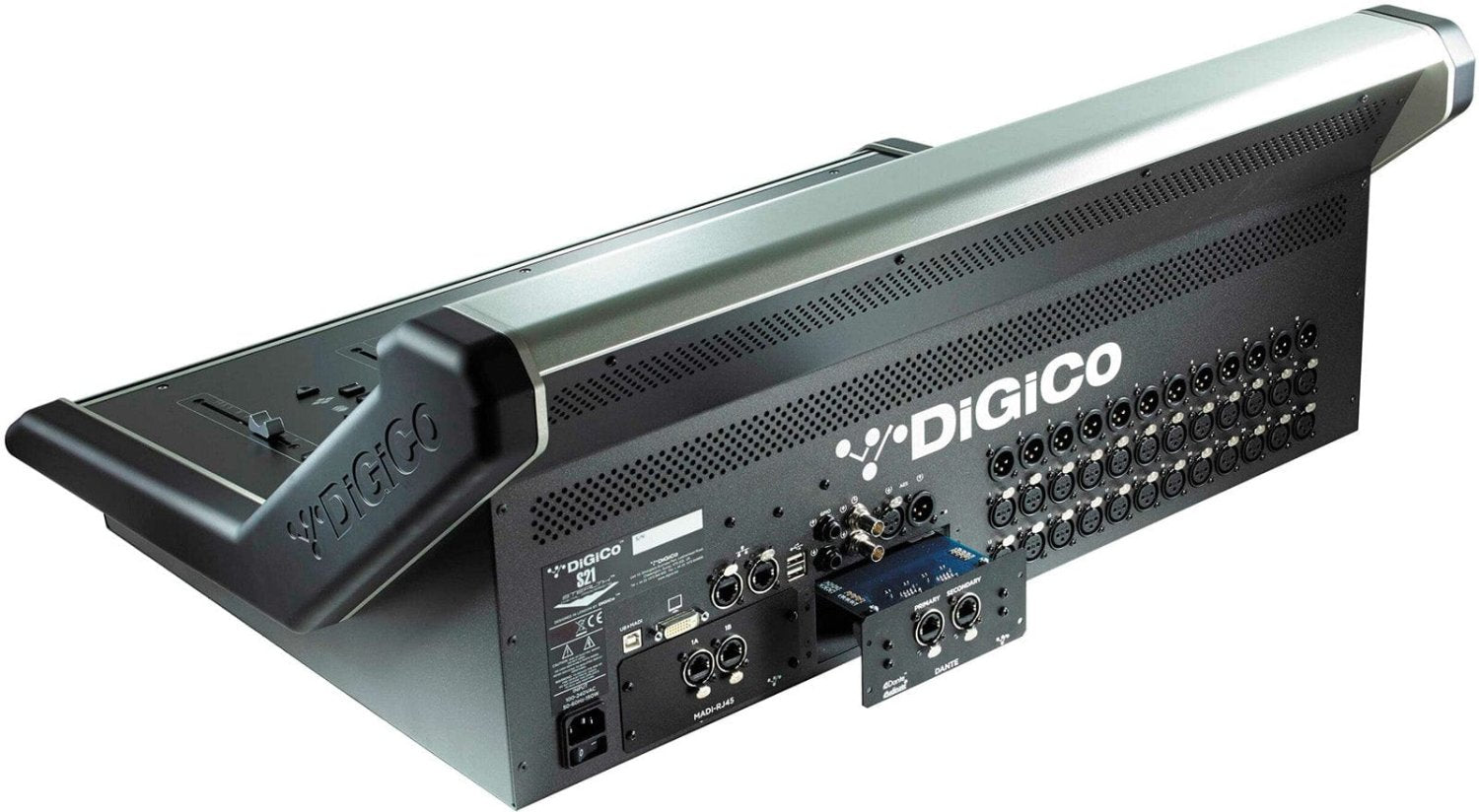

DiGiCo S21 Mixing Console
The DiGiCo S21 is a 48-channel mixing console with 21 physical faders and 2 x 10” multitouch screens. It delivers high-quality audio using state-of-the-art FPGA technology, just like the legendary SD-Range.

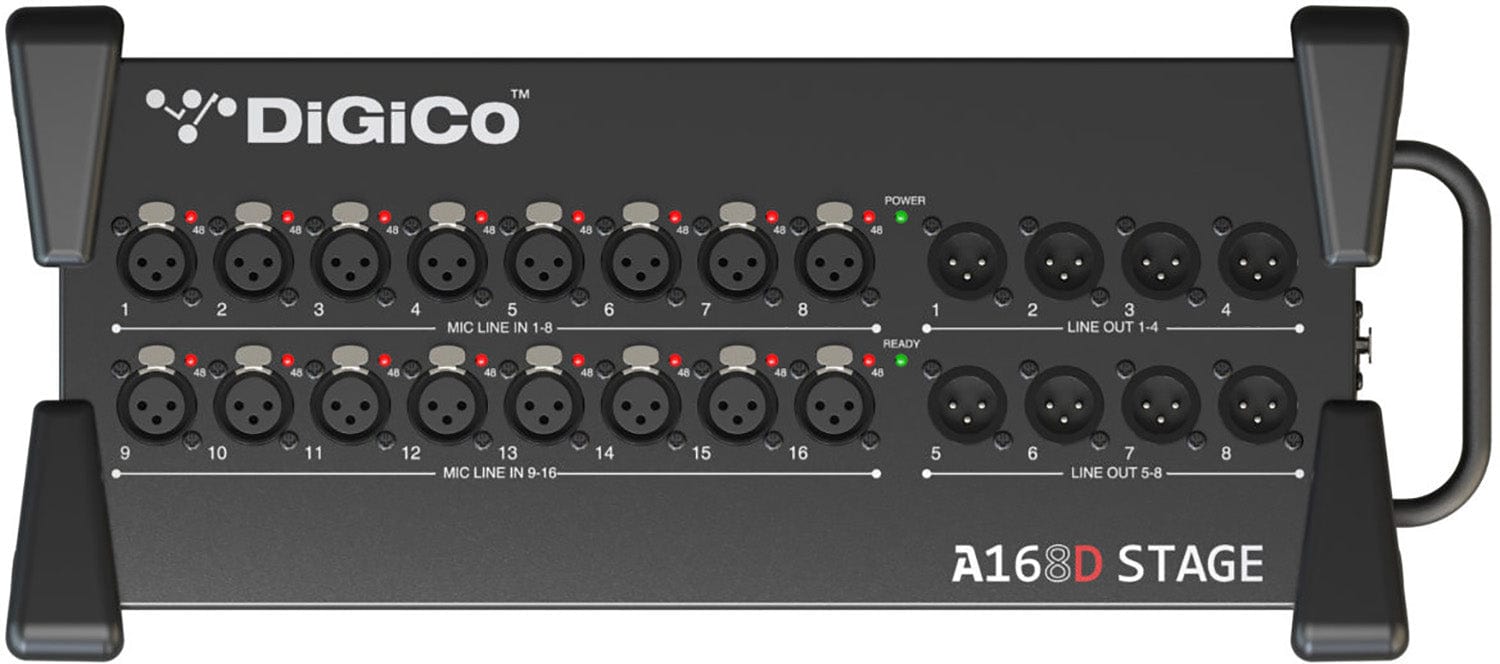

3x DiGiCo X-A-168D 16 Input/8 Output I/O Expander Dante Stage Box
The DiGiCo X-A-168D is a 16 input/8 output I/O expander designed for seamless integration into Dante audio networks. It features the A3232 network protocol, offering flexible connectivity and expandability.
Features:
- DiGiCo S21 Mixing Console:
- 48 Flexi Input Channels (mono/stereo)
- 16 Flexi Aux / Sub-Group Busses (mono/stereo)
- 10 x 8 Matrix with full processing
- Fully assignable channel layout
- 24 local mic/line inputs and 12 line outputs
- 2 DMI slots to expand the I/O as desired
- Snapshots for seamless parameter changes
- Offline software
- iPad control
- Compatible with the DMI-AMM for automatic microphone mixing
- OSC control of snapshots
- DiGiCo X-A-168D 16 Input/8 Output I/O Expander Dante Stage Box:
- 16 Mic Preamps on XLR with Phantom Power status LEDs
- 8 XLR Line Outs
- Proprietary CAT5e connection via new DiGiCo A3232 protocol
- 2 x A3232 Port for expansion or redundancy
- FRONT PANEL
- 16 x Mic Preamps on XLR with
- Phantom Power status LEDs
- 8 x XLR Line outs
- SIDE PANEL
- 2 x A3232 connections
- 1 x IEC C14
- 1 x Mains input (100-240VAC)
- 1 x Mode switch
Specifications:
- DiGiCo S21 Mixing Console:
- Audio Specifications:
- Sample Rate: 48kHz or 96kHz
- Procesing Delay: 2ms Typical @ 48K (60 Stereo Channels,
- Stage input Through L-R Buss to Stage Output) 1.1ms @96k
- Internal Processing: Up to 40-bit, Floating Point
- A>D & D>A: 24-bit Converter Bit Depth
- Frequency Response: +/- 0.6dB (20Hz – 20kHz)
- THD: <0.05% @ Unity Gain,: 10dB Input @ 1kHz
- Channel Separation: Better Than 90dB: (40Hz-15kHz)
- Residual Output Noise: <90dBu Typical (20Hz-20kHz)
- Microphone Input: Better Than -126dB: Equivalent Noise
- Maximum Output Level: +22dBu
- Maximum Input Level: +22dBu
- Signal Processing:
- 48 Flexi Input Channels (Mono or Stereo)
- Analogue Gain
- Phase Inversion Control
- Gain Tracking
- Digital Trim (-40dB to +40dB)
- Variable Delay (0ms to 682ms)
- DiGiTube*
- HPF/LPF (-24dB/Oct)
- 4 Band Parametric EQ / Dynamic EQ*
- DYN 1: Compressor, Multiband Compressor*
- DYN 2: Compressor with Side-Chain, Keyed Gate, Ducker
- EQ/Dyn Order Control
- 2 Insert Points per Channel
- Channel Mute
- Channel Direct Output (pre-mute, pre-fade, postfade)
- Record Send and Return
- 16 Flexi Aux/Sub-Group Busses (Mono or Stereo)
- Phase Inversion Control
- Digital Trim (-40dB to +40dB)
- Variable Delay (0ms to 682ms)
- DiGiTube*
- HPF/LPF (-24dB/Oct)
- 4 Band Parametric EQ / Dynamic EQ*
- DYN 1: Compressor, Multiband Compressor*
- DYN 2: Compressor with Side-Chain, Keyed Gate, Ducker
- EQ/Dyn Order Control
- 2 Insert Points per Channel
- Channel Mute
- Channel Direct Outputs
- 1 LR Master Buss
- 10 input x 8 output Full Processing Matrix
- 10 Control Groups (CGs)
- 2 Solo Busses (Stereo)
- 16 x 32-band GEQs
- 8 x Internal Stereo FX Processors
- Reverbs
- Delays
- Audio Enhancer
- Choruses
- Flanger
- Stereo Thicken
- * Up to 21 DiGiTubes
- * Up to 21 Dynamic EQs
- * Up to 21 Multiband Compressors
- Physical:
- Dimensions: 763mm (w) x 586mm (d) x 295mm (h)
- Weight: 19kg (65kg with optional flightcase)
- Flightcase: 846mm (w) x 467mm (d) x 866mm (h) (Optional)
- Power Requirements: 90-264 VAC, 47-63Hz Auto Sensing. 208 watts, 232VA
- Product Code: X-S21-WS
- DiGiCo X-A-168D 16 Input/8 Output I/O Expander Dante Stage Box:
- Mix/Line XLR Inputs: Balanced XLR, +48V Phantom Power
- Mic/Line Preamp: Fully recallable
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN: -127dB with 150 source
- Analogue XLR Outputs: Balanced, Relay protected
- Output Impedance:
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -93dBu (22Hz-22kHz)
- Operating Temperature Range: 0°C to 35°C (32°F to 95°F)
- Mains Voltage Operating Range: 100-240V AC, 50/60Hz
- Mains Power Consumption: 35W max
The DiGiCo S21 Rack Pack is a complete audio solution designed for live sound applications. It's perfect for professional sound engineers and touring musicians. The S21 Digital Console offers intuitive control with advanced processing. Each A168D rack provides 16 mic/line inputs and 8 line outputs for extensive I/O flexibility. The Live Stage48 DANTE system ensures seamless integration with Dante networks. The S21 Mixing Console has 48 channels, 21 physical faders, and 2 x 10” multitouch screens. The DiGiCo X-A-168D 16 Input/8 Output I/O Expander Dante Stage Box features 16 mic preamps and 8 line outs. The S21 Rack Pack is easy to use and delivers high-quality audio. It's suitable for live performances, concerts, and tours. The dimensions of the S21 Mixing Console are 763mm (w) x 586mm (d) x 295mm (h) and it weighs 19kg (65kg with optional flightcase). The DiGiCo X-A-168D has an operating temperature range of 0°C to 35°C (32°F to 95°F) and mains voltage operating range of 100-240V AC, 50/60Hz.
