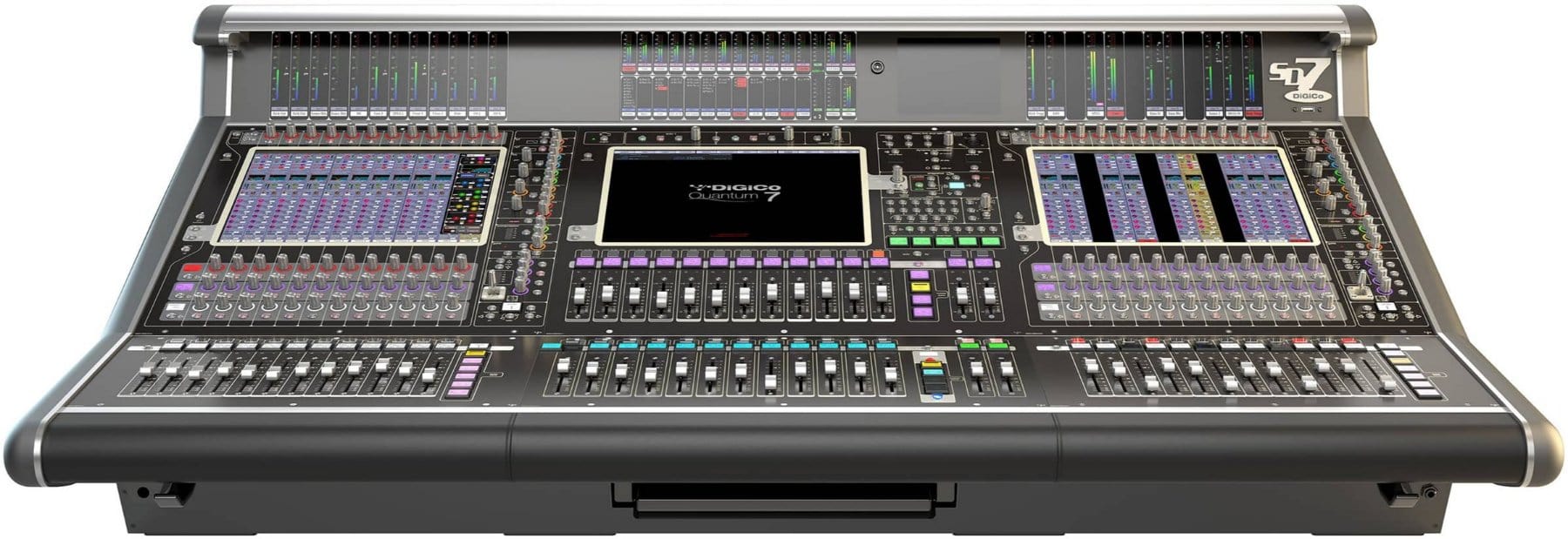

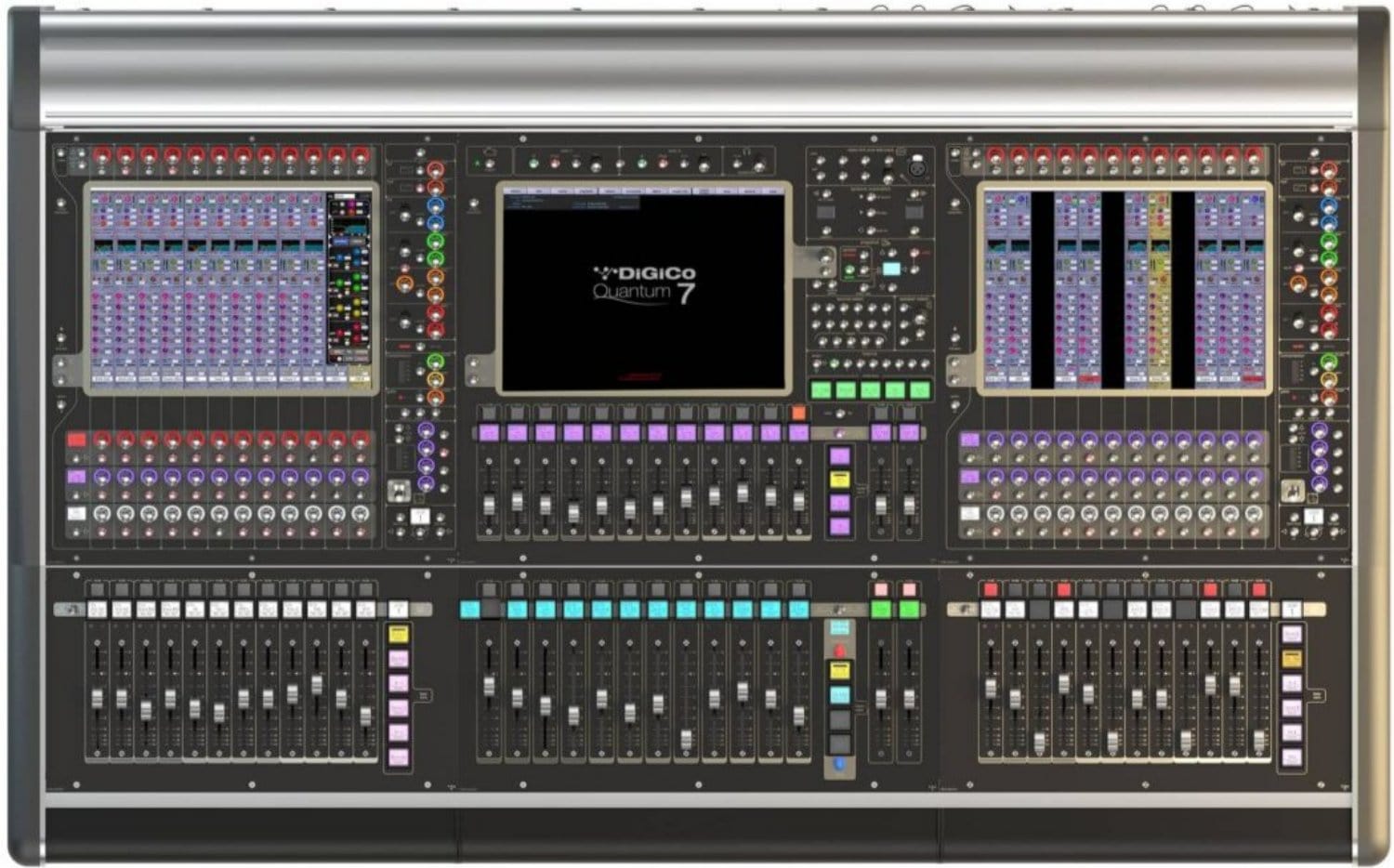

DiGiCo Quantum 7 Digital Mixing Console - Unleash Your Audio Power
Quantum 7 is the ultimate digital mixing console that empowers you to take on any audio challenge and dominate the room. It's fast, smart, and built for the largest productions, both now and in the future.
Designed to exceed the expectations of tomorrow's touring shows, Quantum 7 breaks through the limits of seventh generation FPGA technology, delivering a huge leap in power and connectivity. You can even add it to your existing SD7 surface, maximizing your rental partner's return on investment.
Key Features:
- • Arm Processor: Acts as the translator between the host PC and FPGA core, handling all communications and surface flow.
- • Fourth-generation SHARCS: Three of them control interpolation algorithms in the FPGA, creating a warm analogue feel for engineers.
- • Nodal Processing: Patented technology that allows for creativity on each aux buss node, tailoring mixes for artists or audiences.
- • True Solo: Replicates any console section for operator monitoring, saving time and simplifying channel management.
Specifications:
- Faders: 38 x 100mm touch-sensitive, motorised + 14 x 60mm touch-sensitive, motorised
- Screens: 3 x 15” LCD high – resolution touch screens
- Meterbridge: 3 x Custom Mounted LCD high-resolution TFT-LCD screens
- Redundancy: Internal removable engine x 2, Internal hot-swappable PSU x 2
- Processing Channels: Up to 432 (combination of Input Channels / Aux / Solo Group Busses)
- Busses: Up to 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
- Matrix: Up to 48 Input / 48 Outputs with full processing
- Control Groups: Up to 36, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq: 48 x 32-band, Gain +/- 12dB
- Internal FX: Up to 48 stereo effects comprising 16 floating point reverbs and 32 delay/chorus/pitch/enhancer

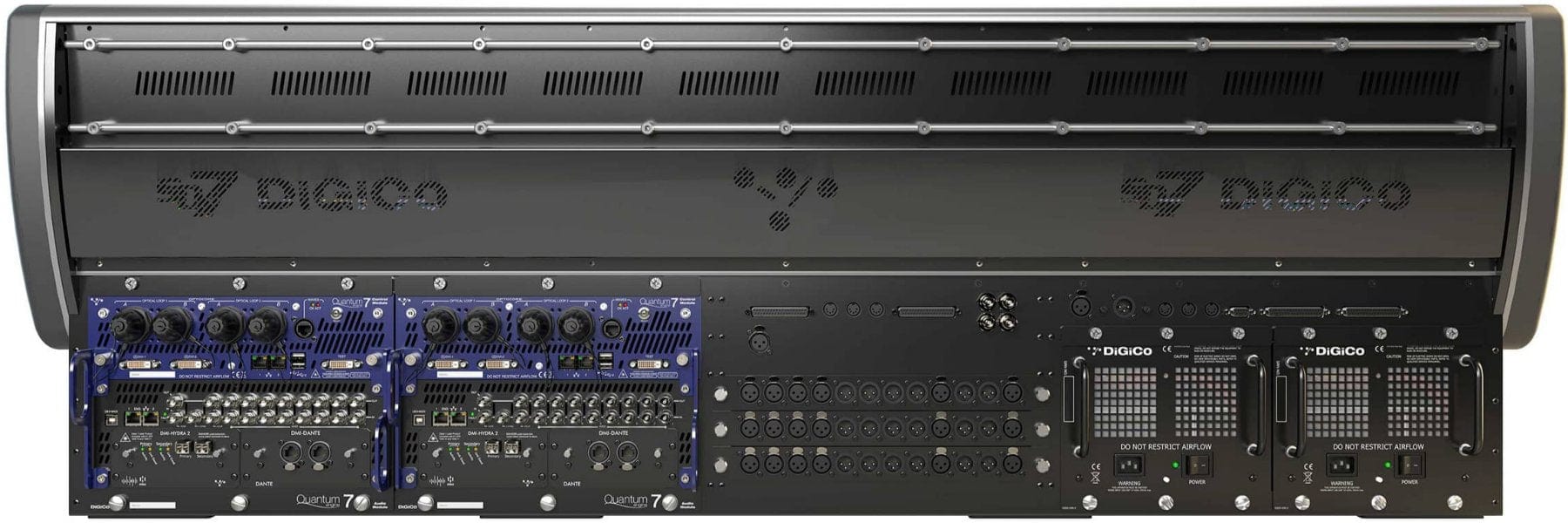

- Local I/O: 12 x mic/line I/O, 12 x AES I/O
- 8 x MADI interfaces @ 48kHz, 4 redundant interfaces @ 96kHz, BNC connectivity
- Standard Optocore (Dual Loop – Optional)
- Sampling rates: 48kHz / 96kHz
- GPIO: 2 x DSub37 – 16 as standard, expandable to 32
- Video: Inputs x 2, Outputs x 2
- DMI: 2 x DiGiCo Multichannel Interface
- Waves: Fitted as Standard
- Ext Sync: Wordclock, AES, Video, MADI, Optocore
- SD7 Quantum Dimensions: 1496mm (w) x 875mm (d) x 503mm (h)
- SD7 Quantum Weight: 141Kg / 311lbs (245Kg / 540 lbs. with flightcase)
- SD7 Quantum Flightcase: 1600mm (w) x 600mm (d) x 1240mm (h)
- Power Requirements: 90V-260V, 50-60Hz, 600VA
Audio Specification:
- Sample Rate: 48kHz or 96kHz
- Processing Delay: 2ms Typical @ 48k (253 Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @96k
- Internal Processing: Up to 40-bit, Floating Point
- A>D & D>A: 24-bit Converter Bit Depth
- Frequency Response: +/- 0.6dB (20Hz – 20kHz)
- THD: <0.05% @ Unity Gain, 10dB Input @ 1kHz
- Channel Separation: Better Than 90dB (40Hz – 15kHz)
- Residual Output: <90dBu Typical
- Noise: (20Hz – 20kHz)
- Microphone Input: Better Than -126dB Equivalent Noise
- Maximum Output Level: +22dBu
- Maximum Input Level: +22dBu
The DiGiCo Quantum 7 Digital Mixing Console is a powerful tool for audio professionals in large-scale productions. Whether you're a touring sound engineer or working on a major event, this console has the features and capabilities to handle any challenge. With its advanced technology and intuitive interface, you can create unique mixes tailored to your needs. The console's dimensions are 1496mm (w) x 875mm (d) x 503mm (h), and it weighs 141Kg / 311lbs (245Kg / 540 lbs. with flightcase). It offers a wide range of features and specifications, including multiple faders, high-resolution screens, and extensive processing channels. The Quantum 7 is the perfect choice for those who demand the best in audio mixing technology.
