DiGiCo Quantum 5 Digital Mixing Console - MADI and One Multi-Mode Optics ST

DiGiCo Quantum 5 Digital Mixing Console - Unleash Your Mixing Potential

The Quantum 5 is a game-changer for audio engineers. With over 450 processing paths at 96kHz, it offers unparalleled flexibility. Here are its key features:

• • 288 processing channels configurable as up to 256 input channels and up to 128 busses, plus a 36 x 36 matrix for ultimate mixing control.
• • Four redundant, or eight individual, MADI ports and two DMI slots for diverse connectivity options, along with a built-in Waves port and up to two Optocore loops.
• • Advanced features for input and output channels like Channel Delay, DiGiTube, Dual insert points, parametric EQ, Dynamic EQ, and DiGiCo's DYN 1 and DYN 2 processing options.

Features:

• • Nodal Processing for monitor engineers to creatively manage IEM mixes.
• • True Solo feature for hearing exactly what the artist hears.
• • 48 channels of Mustard processing with multiple pre-amp models, boutique-style compressors, and gate/ducker.
• • Spice Rack for native FPGA processing, supporting up to 12 insertable processors.
• • Chilli 6 multi-band compressor for advanced control over vocals, instruments, and problem frequencies.

Specifications:

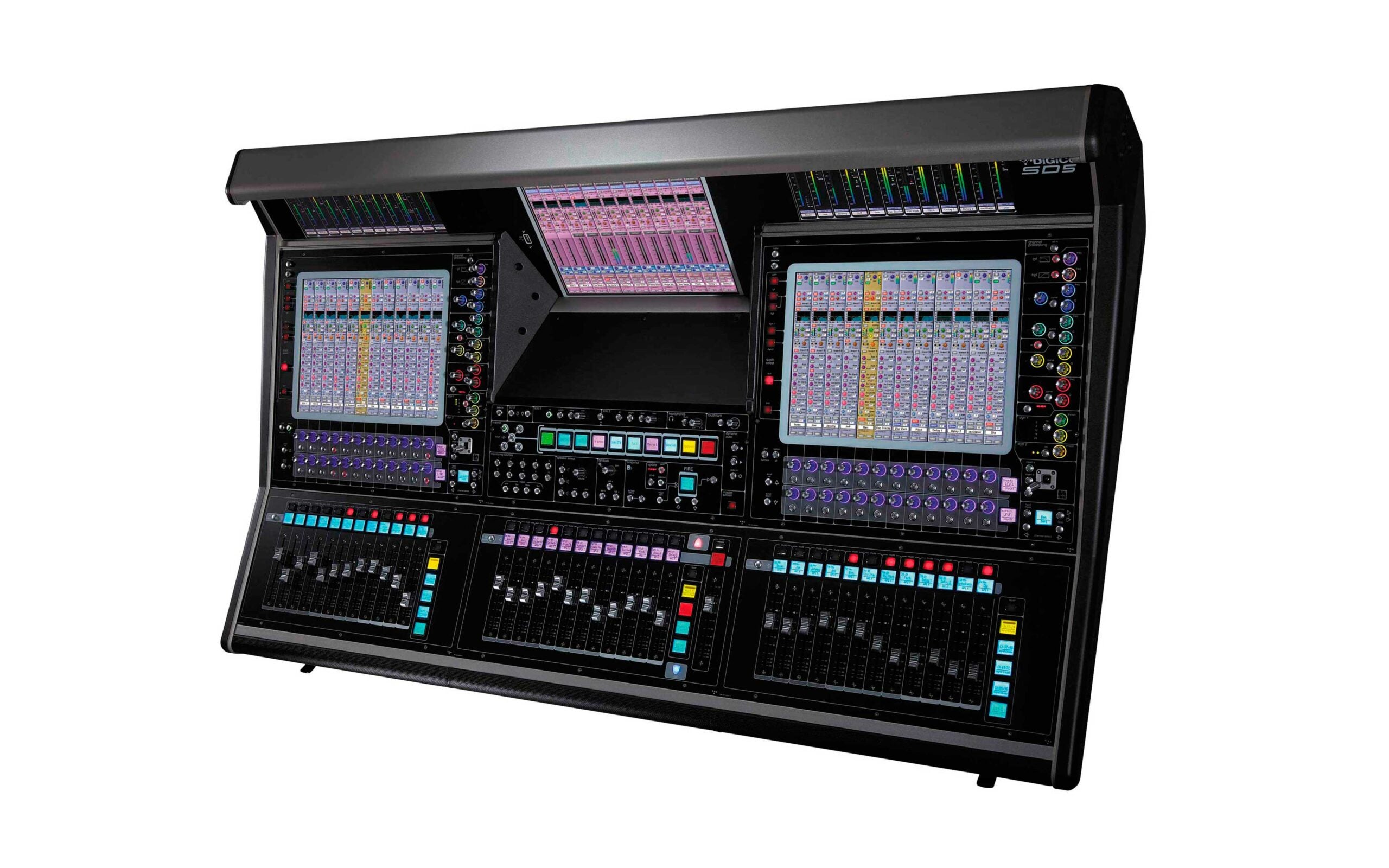

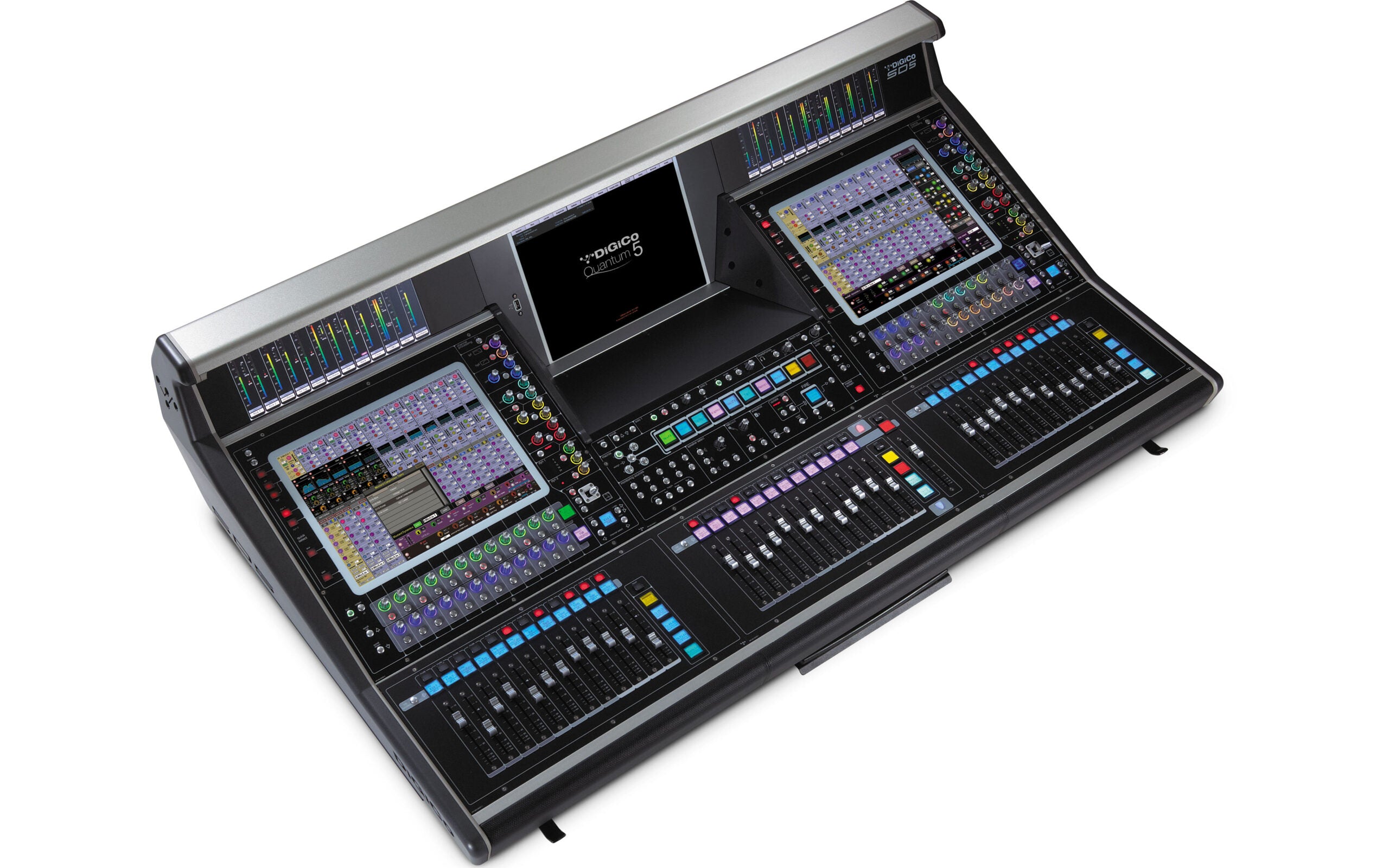

• Worksurface:
  • 37 x 100mm touch-sensitive, motorised faders
  • 3 x 15” LCD high-resolution touchscreens
  • 2 x Custom mounted LCD high-resolution TFT-LCD Meterbridge screens
  • 2 x ” Headphone socket
  • 1 x USB 2.0 slot
  • Integrated Light Bar
• Options:
  • Upgrade to Dual Loop Optocore (HMA, OpticalCon or ST)
  • Upgrade to SingleMode Optocore
  • Broadcast Software
  • Flightcase
  • Quantum Upgrade kit for SD5
  • Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC / Dante / Hydra 2 / KLANG

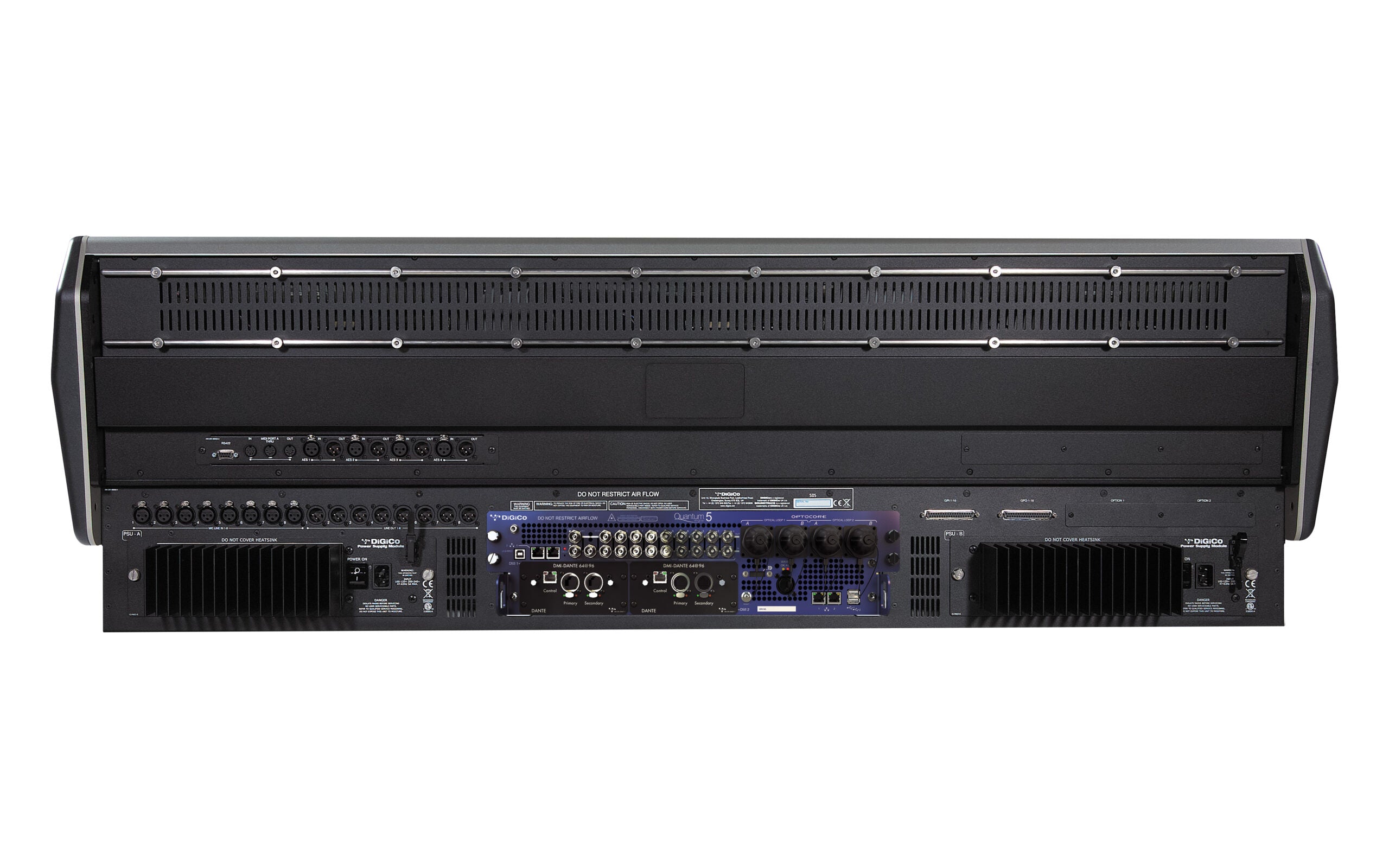

• Rear:
  • 2 x Redundant PSUs
  • 8 x XLR Mic/Line Inputs
  • 8 x XLR Line Outputs
  • 4 x XLR AES/EBU Inputs (8 channels)
  • 4 x XLR AES/EBU Outputs (8 channels)
  • 8 x MADI BNC I/O at 48k, 4 interfaces at 96k
  • 1 x MultiMode Optocore Interface (expandable to 2)
  • 1 x Waves port as standard
  • 2 x DMI Slots (up to 64 I/O per slot)
  • 1 x UB MADI (USB Type B Audio I/O interface for recording and playback of up to 48 channels)
  • 4 x Ethernet ports
  • 2 x USB 2.0 slots
  • 1 x DSub37 GPI (16 inputs)
  • 1 x DSub37 GPO (16 outputs)
  • 1 x MIDI In/Thru/Out (5 pin DIN)
  • 1 x Word Clock I/O BNC
  • 1 x DisplayPort Output
  • 1 x AES/EBU Sync I/O
  • 1 x BNC Video Sync
  • 1 x RS422 port (9 pin)

The DiGiCo Quantum 5 Digital Mixing Console is designed for audio engineers in live events, studios, and broadcast. It offers over 450 processing paths at 96kHz for a flexible mixing experience. The console has a 37 x 100mm touch-sensitive, motorised faders work surface, 3 x 15” LCD high-resolution touchscreens, and more. Connectivity options include four redundant, or eight individual, MADI ports, two DMI slots, a built-in Waves port, and up to two Optocore loops.
