DiGiCo BNC MADI Expansion Card: 56/64 Channels, 96kHz

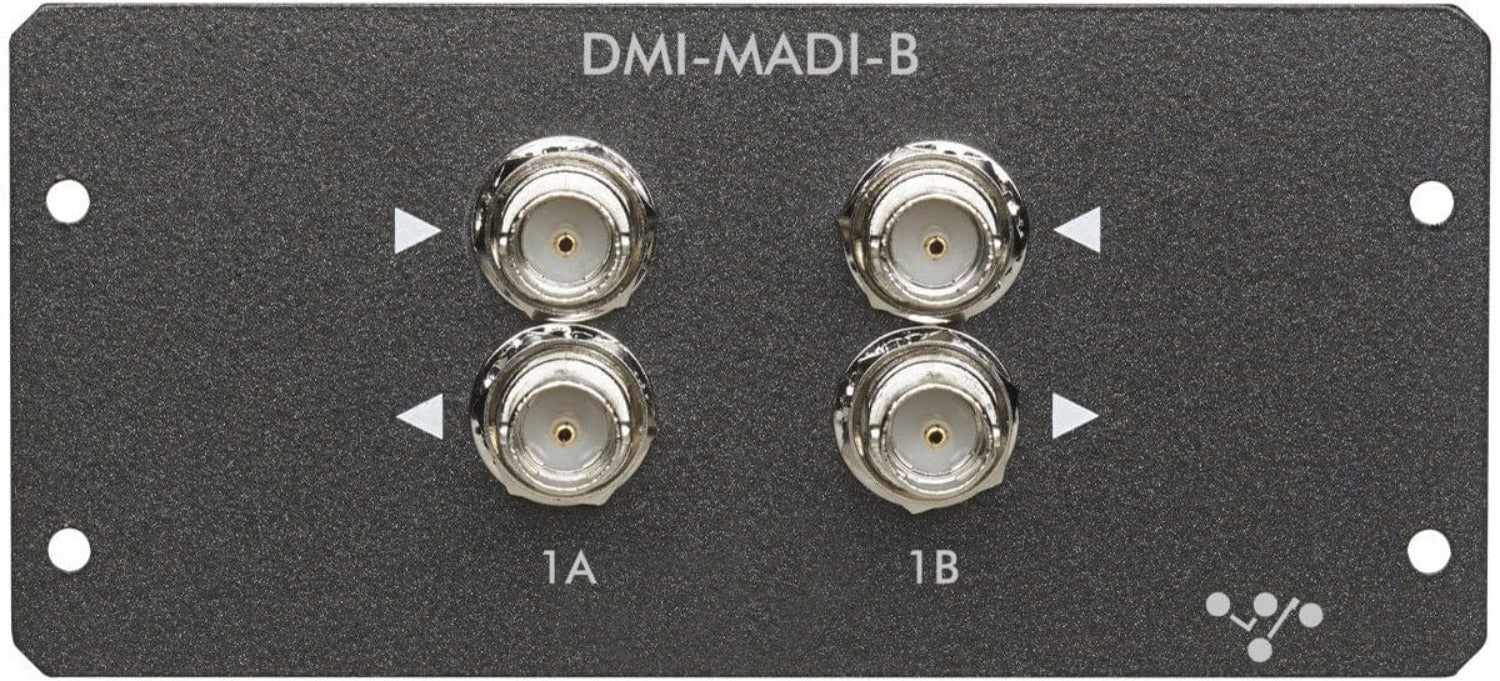

DMI-MADI-B
• Connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz
• Connect to an SD Series DiGiCo Rack with the right connector (D2-Rack, SD-Rack, SD-MINIRack)
• Use with any standard BNC MADI audio device
MADI is a popular protocol for high channel count audio. It's easy to use and has low signal loss over long cables. It now transmits up to 64 channels.
DiGiCo offers two MADI DMI cards. The MADI-B (BNC) can connect 64 channels of audio in and out at 48kHz and 96kHz. At 96kHz, the B connection is needed for full channels.
With SD/4REA4 integration, control I/O connected to 4REA4 from an SD console.
Main Features
- 75Ω Coaxial (BNC) connections
• 64 channels in and out, 48kHz and 96kHz
• Works with standard BNC MADI audio devices
• Control DiGiCo I/O via SD console through 4REA4
• Compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4
This DiGiCo MOD-DMI-MADI-B card is perfect for audio professionals who need to expand their MADI I/O capabilities. It can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz, or an SD Series DiGiCo Rack with the appropriate connector (D2-Rack, SD-Rack, SD-MINIRack). With 75Ω Coaxial (BNC) connections, it's easy to use and compatible with any standard BNC MADI audio device. It also allows DiGiCo I/O to be controlled via an SD console through a 4REA4, and is compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4.
