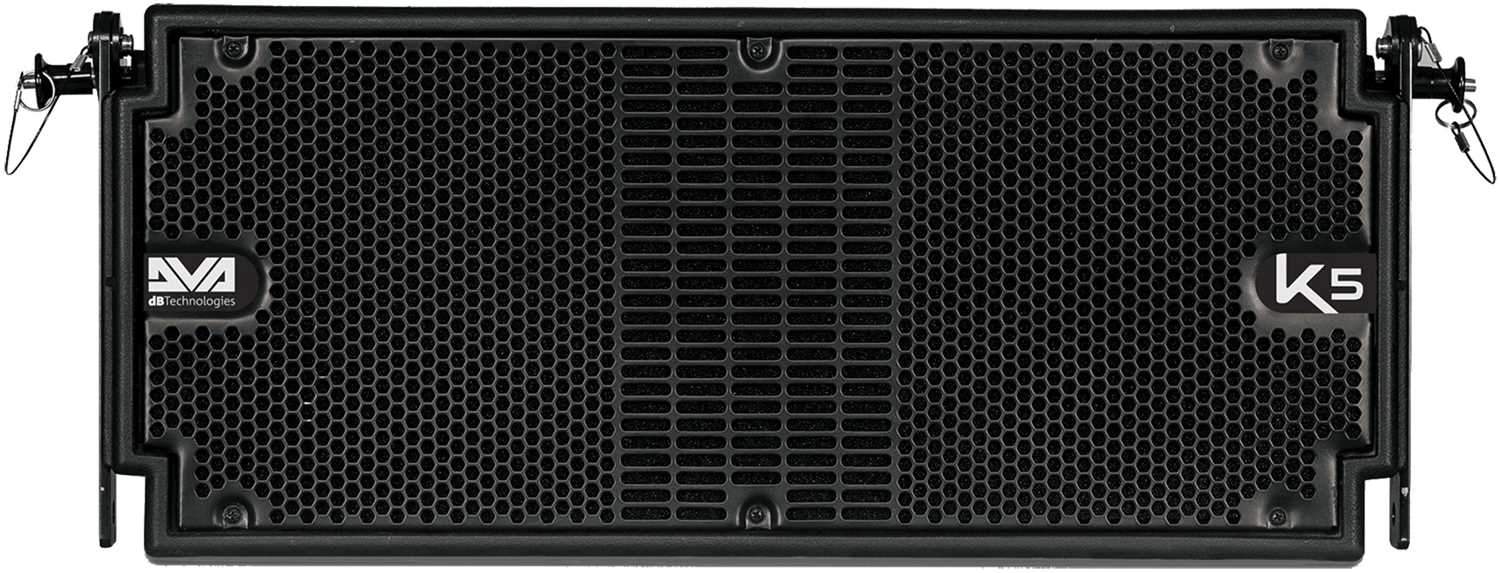

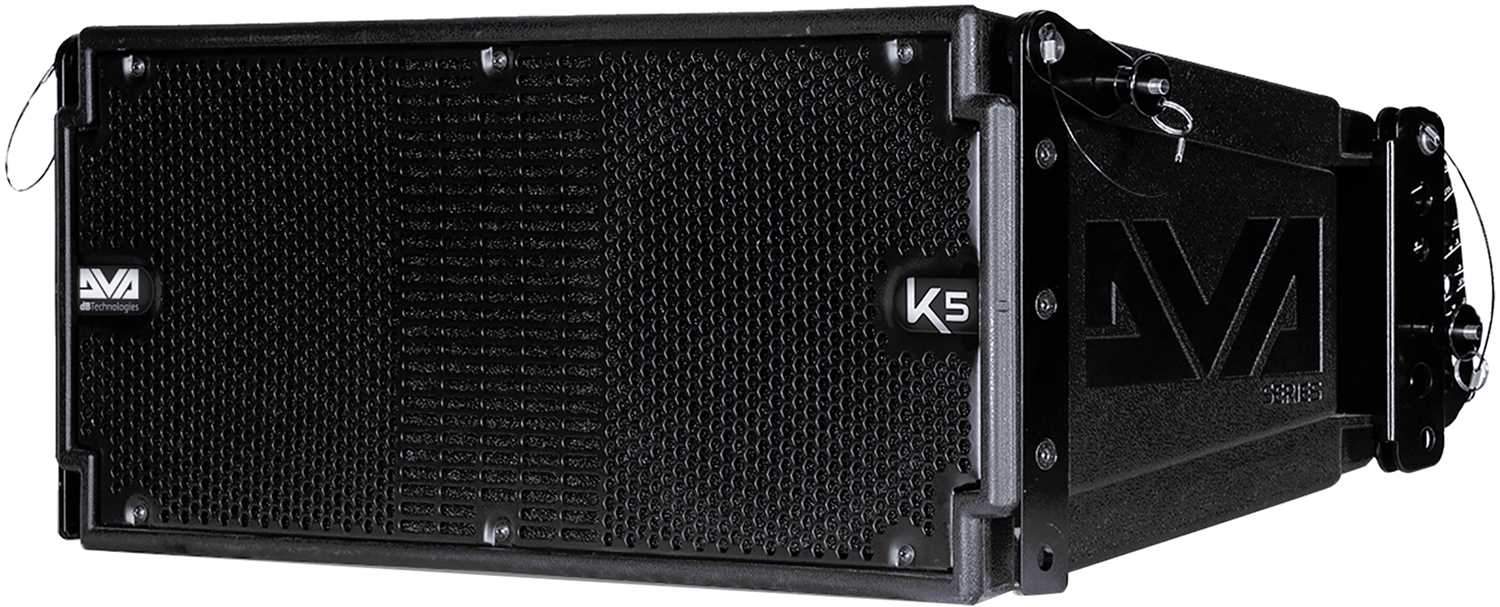

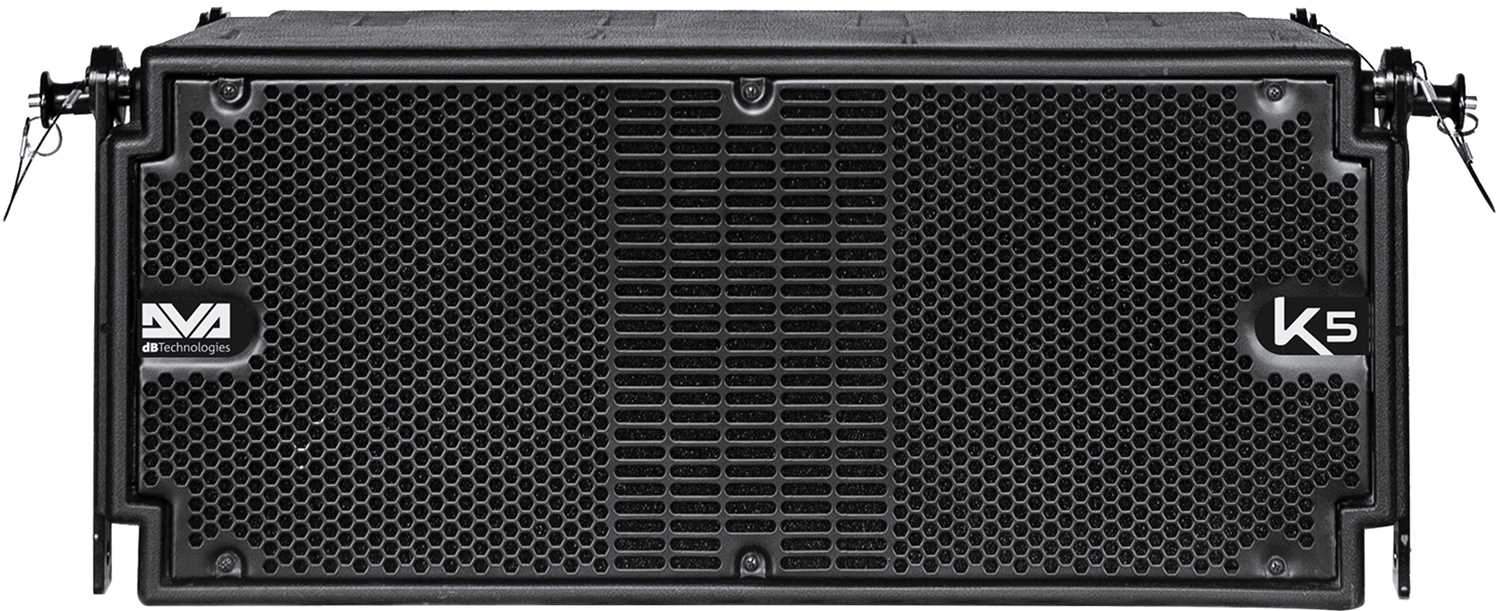

DB Technologies DVA-K5: The Ultimate 3-Way Powered Line Array for Unbeatable Sound
The DVA series has been a game-changer in the sound reinforcement industry since 2006, making line array technology accessible to a wider audience. Now, dBTechnologies takes it to the next level with the new 3-way active line array module DVA K5.
• Top-Notch Features: Equipped with a Class D 500 W RMS Digipro G3 digital amplifier, the DVA K5 can reach up to 129 dB SPL. It aims to build on the success of the DVA T4, with technological upgrades inspired by the DVA T8.
• Versatile Design: The module includes 2 1,4' drivers, a 6' neodymium midrange, and an 8' neodymium woofer. An advanced DSP user interface allows precise system tuning.
• Exceptional Build Quality: Housed in a sturdy polypropylene box with an internal anti-vibration metal structure, the DVA K5 delivers an excellent acoustic response and a great weight-performance ratio.
The DVA K5 is perfect for live events, concerts, and venues seeking high-quality sound reinforcement. Its advanced features and precise tuning make it a top choice for sound engineers and professionals. With its unique design and state-of-the-art technology, the DVA K5 is a must-have for anyone serious about sound.
Specifications:
- Speaker Type: 3-Way Active Line Array Module
Acoustical data
- Frequency Response [+/- 3dB]: 70 - 19,000 Hz
- Max SPL: One Unit: 129 dB
- HF: 2x1 '
- Voice Coil HF: 1.4 '
- MF: 1x 6.5 '
- Type MF : Neodymium
- Voice Coil MF: 2 '
- LF: 1x8 '
- Voice Coil LF: 2.5 '
- Type LF: Neodymium
- Directivity (HxV): 100x15° Single unit
Amplifier
- Amp Technology: Digipro G3
- Amp Class: Class D
- RMS Power : 500 W
- Peak Power : 1000 W
- Cooling: Convection
- Power Supply : 500 W SMPS with Auto Range PSU
Processor
- Controller: DSP 56 Bit
- AD/DA Converter: 24 bit/48 KHz
- Limiter : Dual Active Multiband RMS, Peak, Thermal
- Crossover Frequency MF-HF: 1800 Hz
- Slope MF-HF: 24 dB/Octave
- Crossover Frequencies LF-MF: 340 Hz
- Slope LF-MF: 24 dB/Octave
Input
- Signal Input: 1x XLR Balanced
- Signal Output: 1x XLR Balanced
- Power Socket:
- 1x PowerCON In
- 1x PowerCON Out
- Controls:
- 1 x Input Sensitivity Rotary Switch
- 1 x DSP Rotary Encoder (LF Correction)
- 1 x DSP Rotary Encoder (MF-HF Correction)
Mechanics
- Housing: Polypropylene PP metal reinforced

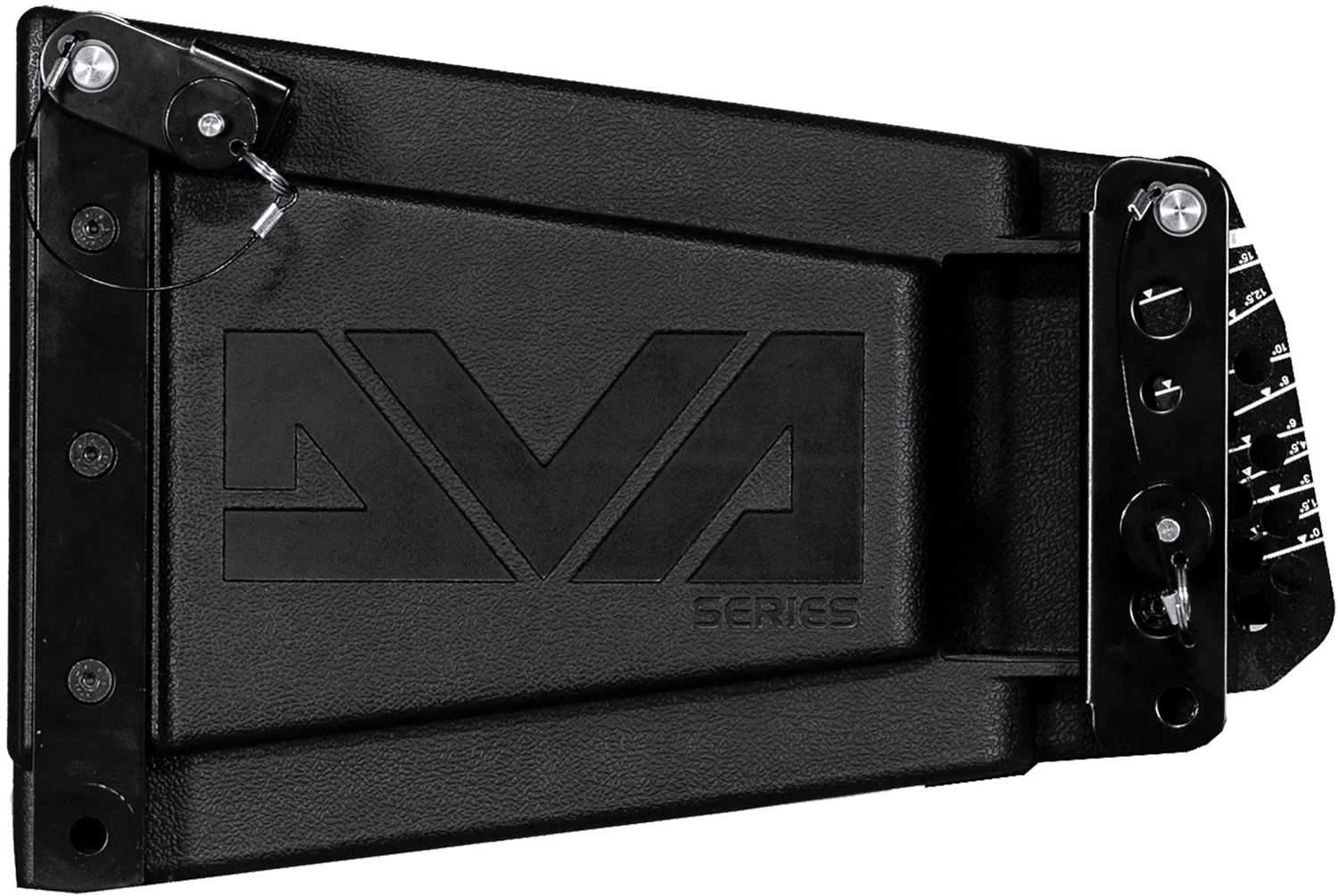

- Rigging Points: Integrated rigging hardware
- Width: 580 mm (22.83 in)
- Height: 240 mm (9.44 in)
- Depth: 327 mm (12.87 in)
- Weight: 14.2 kg (31.3 lbs)
The DB Technologies DVA-K5 3-Way Powered Line Array is perfect for live events, concerts, and venues looking for high-quality sound reinforcement. It's ideal for sound engineers and professionals. This module features a Class D 500 W RMS Digipro G3 digital amplifier, 2 1,4' drivers, a 6' neodymium midrange, and an 8' neodymium woofer. It has an advanced DSP user interface for precise tuning. Housed in a polypropylene box with an internal anti-vibration metal structure, it offers great acoustic response. Width: 580 mm (22.83 in), Height: 240 mm (9.44 in), Depth: 327 mm (12.87 in), Weight: 14.2 kg (31.3 lbs).
