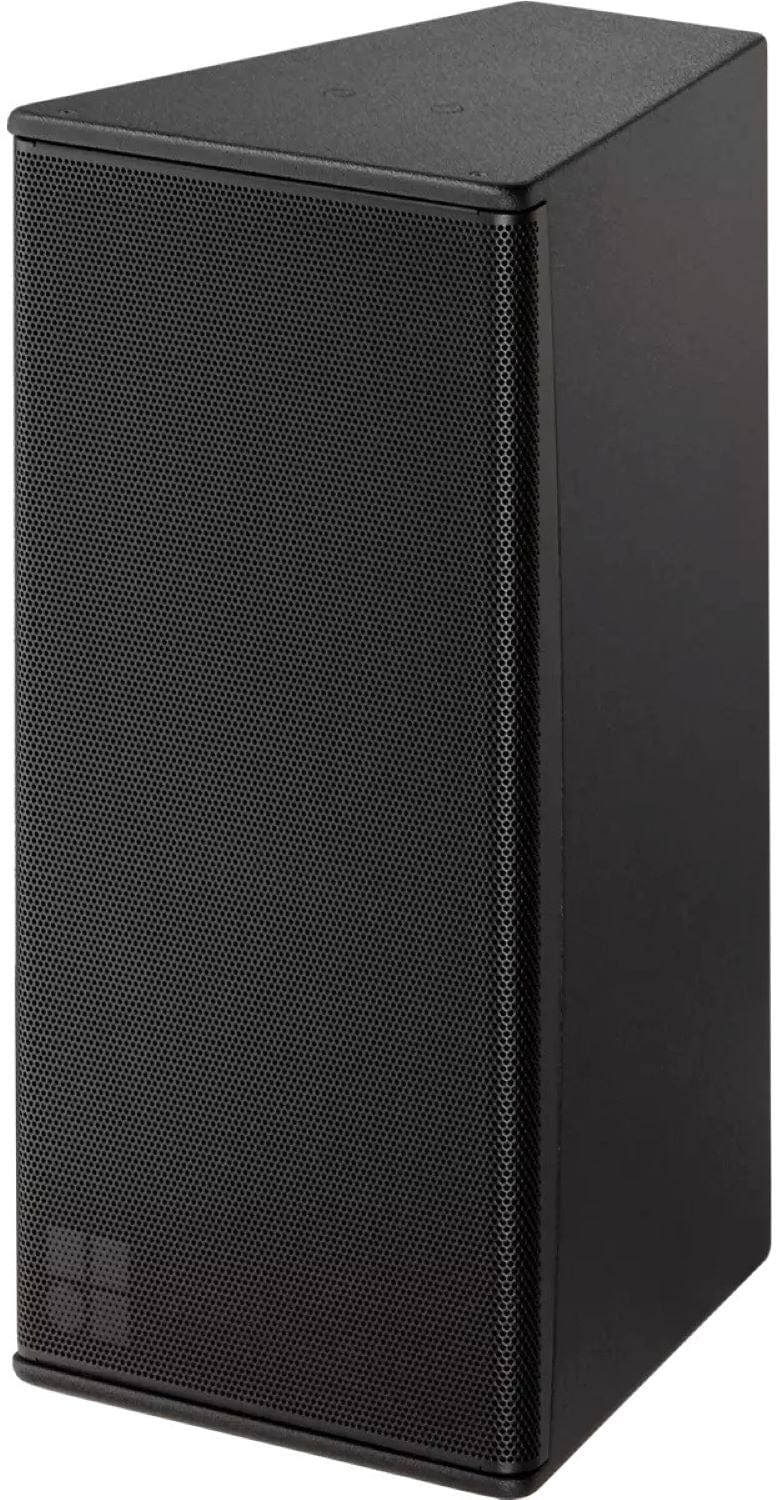

D&B Audiotechnik Z1618.000 10S High-Performance 10-Inch Passive Loudspeaker
• Exceptional Sound Quality: Delivers crystal-clear audio with a frequency response from 60 Hz to 18 kHz, ensuring a rich and immersive sound experience. • Versatile Usage: Can be used as full range systems and can be supplemented by different subwoofers from the xS-Series, suitable for various applications. • Durable Build: Constructed from marine plywood with an impact resistant black paint finish, and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls.
Features:
- Components 10'/1.4'
- Dispersion 75° x 50° rotatable
- SPLmax 130 dB
- Weight 13 kg / 29 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 60 Hz - 18 kHzz
- Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
- Max. sound pressure:
- with 10D: 127 dB
- with D20/5D/30D: 130 dB
- with D40/D80/40D: 130 dB
- Cabinets per amplifier channel: 3
- Loudspeaker data:
- Configuration: Installation specific high performance 2-way loudspeaker
- Nominal impedance: 12 Ω
- Power handling capacity (RMS/peak 10 ms): 200/1200 W
- Nominal dispersion angle (h x v): 75° x 50° rotatable
- Components:
- 10' driver with neodymium magnet
- 1.4' compression driver with CD horn
- Passive crossover network

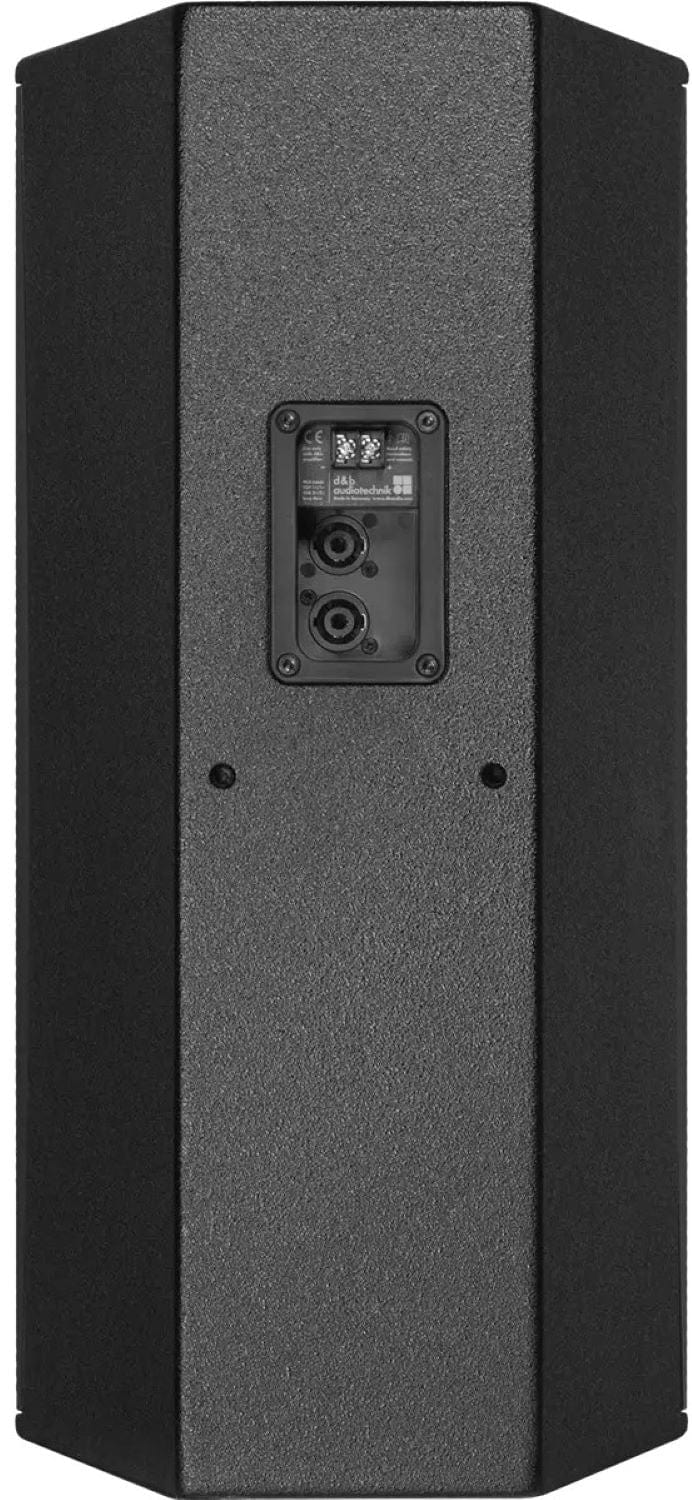

- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 580 x 283 x 350 mm / 22.8 x 11.1 x 13.8'
- Weight: 13 kg / 129 lb
This D&B Audiotechnik Z1618.000 10S loudspeaker is perfect for a variety of settings. Whether it's for schools, sports halls, or other venues, it can provide great sound. It has a frequency response from 60 Hz to 18 kHz, and can be used as a full range system or paired with subwoofers. It weighs 13 kg (29 lb) and has dimensions of 580 x 283 x 350 mm (22.8 x 11.1 x 13.8'). Ideal for those looking for a high-quality passive loudspeaker for their audio needs.
