D&B Audiotechnik XSL-SUB Cart Package

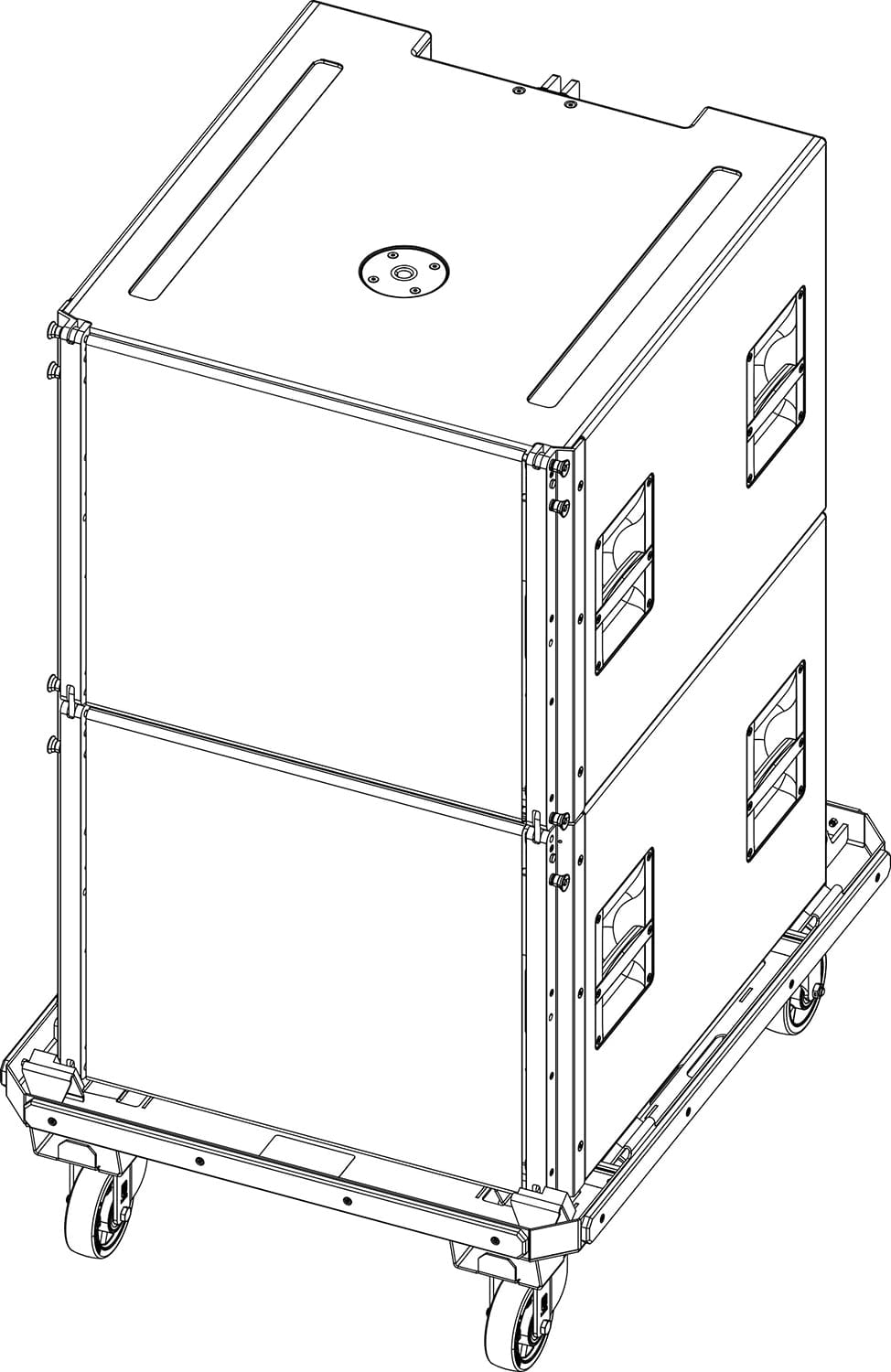

Discover the D&B Audiotechnik XSL-SUB Cart Package, a game-changer for transporting and storing XSL subwoofers! This package comes with a sturdy cart that makes moving and setting up subwoofers a breeze, perfect for touring and events.
What's included:
• 2x D&B Audiotechnik Z0774.000 XSL-SUB Subwoofers with NLT4 F/M Connections
The XSL-SUB is a must-have for enhancing your sound. It's a cardioid subwoofer for the XSL System, ideal for adding depth to your audio. Use it to supplement XSL8 and XSL12 loudspeakers, whether flown or ground stacked.

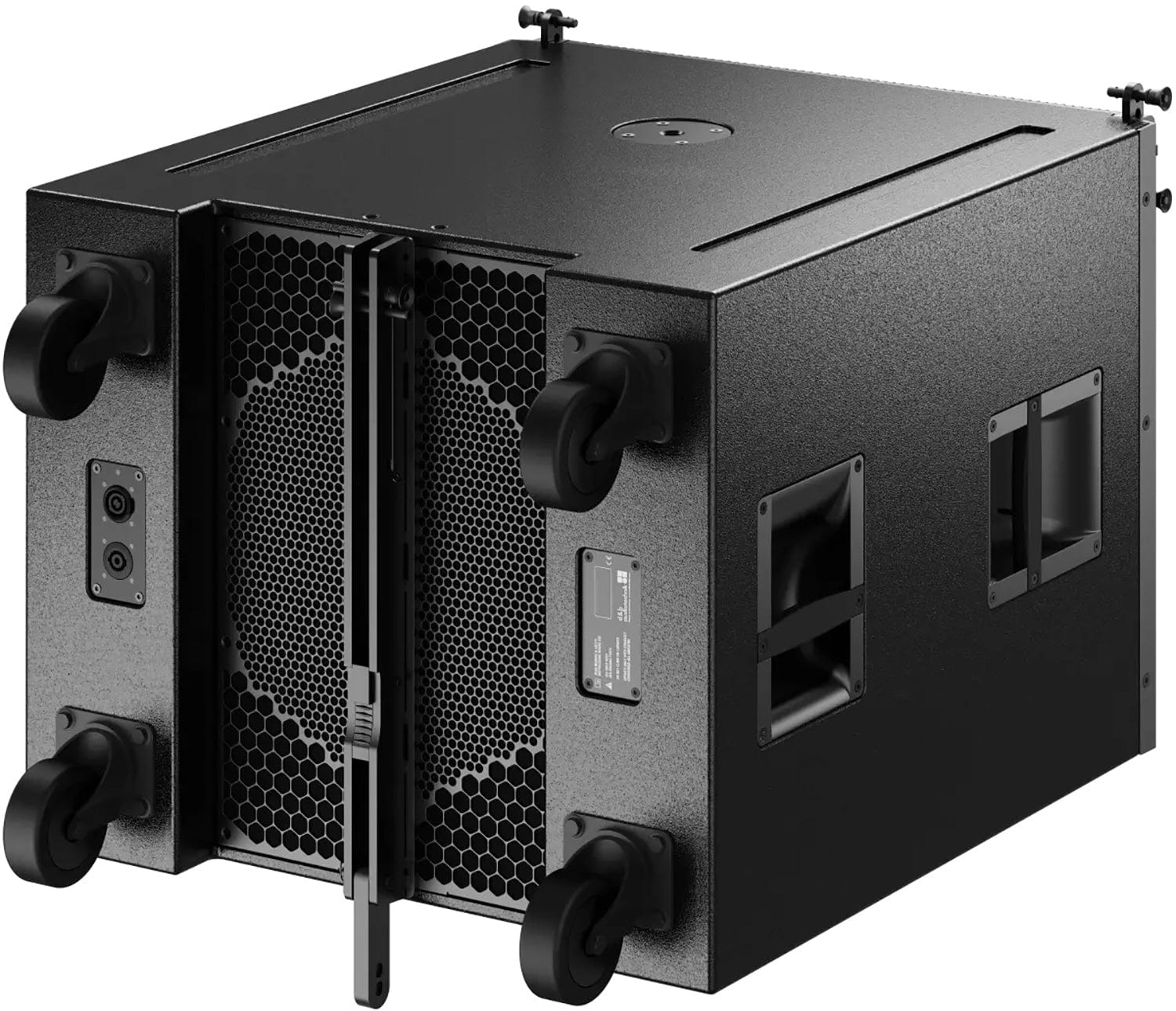

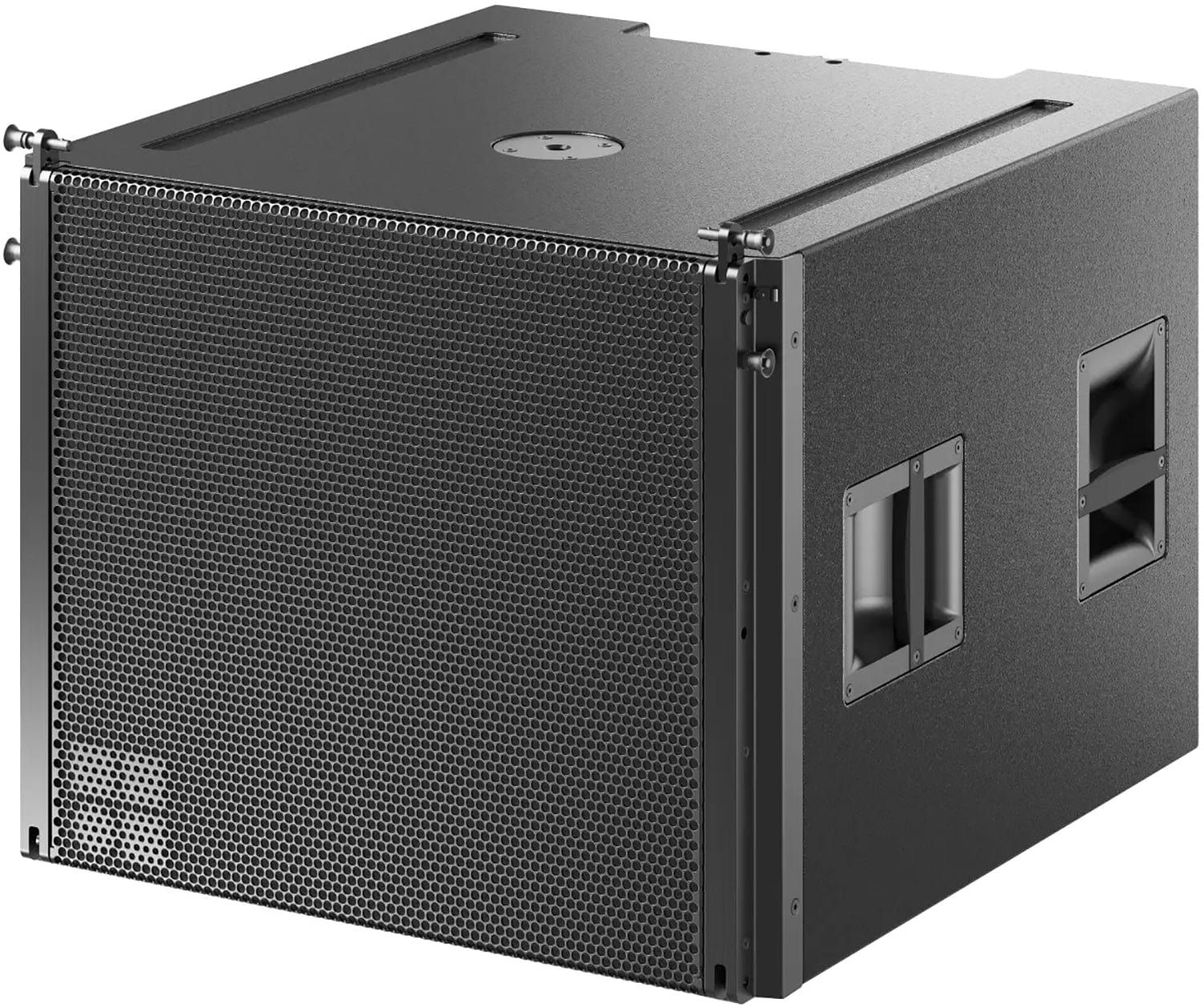

With its innovative design, the XSL-SUB offers accurate low-frequency reproduction. Its cardioid dispersion pattern reduces unwanted energy, delivering crystal-clear sound. It features two long excursion neodymium drivers, an 18” in the front and a 12” at the rear, for powerful bass.
The cabinets are built tough with marine plywood and a protective finish. They're ready for any environment, with a rigid metal grille and water-repellent fabric.
Key Features:
- • Easy Mobility: The durable cart ensures hassle-free transportation.
- • Accurate Sound: Cardioid design for precise low-frequency reproduction.
- • High-Quality Build: Marine plywood and protective finish for long-lasting use.
Specifications:
- System data:
- Max. sound pressure with D40/D80/40D: 137 dB
- Frequency response (-5 dB standard): 37 Hz - 110 Hz
- Frequency response (–5 dB INFRA mode): 35 Hz - 85 Hz
- Cabinets per D40/D80/40D: 4
- Loudspeaker data:
- Nominal impedance front/rear: 8/16 ohms
- Power handling capacity front (RMS/peak 10 ms): 700/1500 W
- Power handling capacity rear (RMS/peak 10 ms): 400/800 W
- Splay angle settings: 0° and 2.5°
- Components:
- 1 x 18' front LF driver
- 1x 12' rear LF driver
- Connections: NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D:): 565 x 700 x 7732 / 898 mm (22.2 x 27.6 x 30.42 / 35.4')
- Weight: 66 kg (146 lb)
The D&B Audiotechnik XSL-SUB Cart Package is designed for easy transportation and storage of XSL subwoofers. Ideal for touring and event setups, it includes a durable cart. The package comes with 2x D&B Audiotechnik Z0774.000 XSL-SUB Subwoofers with NLT4 F/M Connections. The subwoofers are cardioid, reducing unwanted energy and providing accurate low-frequency reproduction. They have two long excursion neodymium drivers. The cabinets are made of marine plywood with a protective finish. Dimensions are 565 x 700 x 7732 / 898 mm (22.2 x 27.6 x 30.42 / 35.4') and weight is 66 kg (146 lb).
