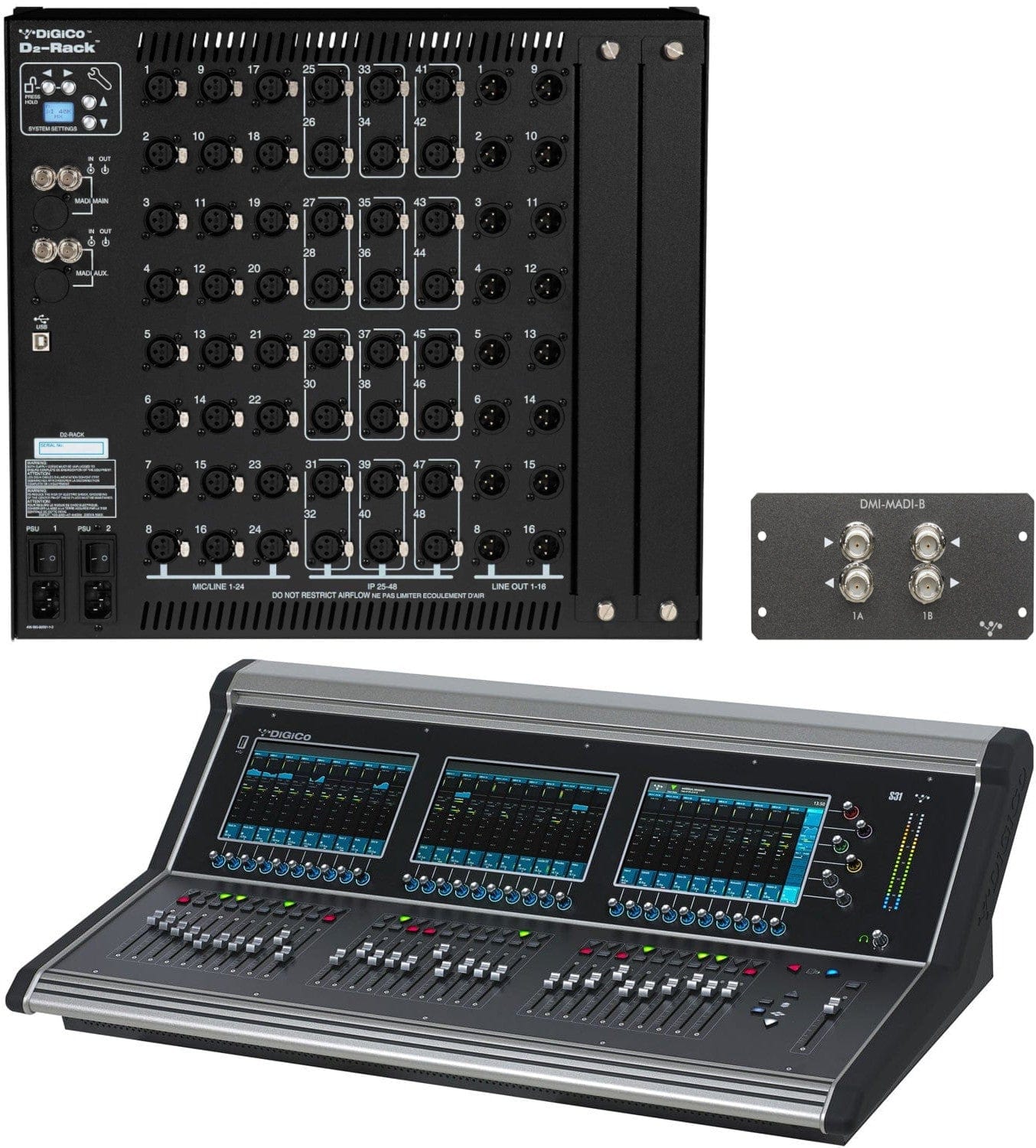

DiGiCo X-S31 Professional Audio Bundle with MADI Expansion
This comprehensive bundle is a game-changer for sound engineers. It includes:
- S31 DIGITAL MIXING CONSOLE
- D2-RACK with 48-Channel XLR and BNC MADI Connection
- DMI-MADI-B Expansion Card

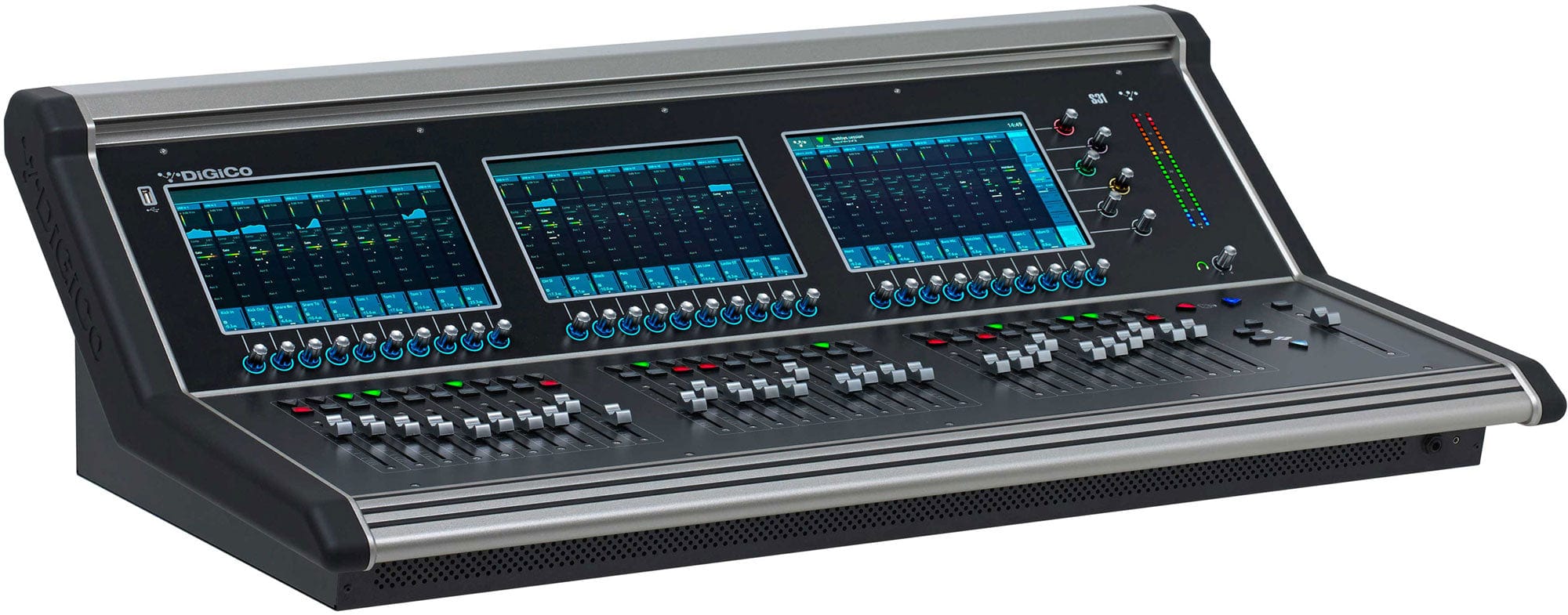

S31 DIGITAL MIXING CONSOLE
Why Choose the S31?
• World-class audio quality for amazing mixes
• Compact and portable for easy setup anywhere
• User-friendly interface for seamless operation
The S31 has been a hit with sound engineers globally. It offers flagship audio quality, power, and flexibility in a compact design that fits in a car. With enhanced functionality and accessibility, it unlocks endless mixing creativity at an unbeatable price.
The S31's expanded work surface is intuitive, with three 10-inch multi-touch screens above three banks of 10 faders. It provides clear visual feedback and controls 30 channels simultaneously. With 48 flex-channels, 16 busses, and 96kHz performance, it's a true DiGiCo gem.
Based on the same innovative design as the industry-leading SD-Range, the S31 features proprietary algorithms and a new ARM QuadCore RISC processor working in harmony with the FPGA core. This results in faster processing and lower power consumption, all in the trusted workflow of top engineers.
Under The Hood
• High-power QuadCore SoC for smooth mixing
• Intuitive encoder rings with HTL for clear feedback
• Triple screens for easy channel viewing and setup
The S31 offers unlimited mixing. Its integration of a high-power QuadCore SoC, high-bandwidth memory, a low-power 484-ball array FPGA, and a fourth-generation control SHARC DSP provides unprecedented power and a future upgrade path.
The HTL functionality of the encoder rings enhances visual feedback, and unused parameters are greyed out. The triple screens help new users and reduce distractions, with touchscreens responsive to EQ shaping and fine-tuning available via rotary encoders.
Changing channel bank layouts and mixing channels is easy with a simple drag-and-drop on the screen.
I/O
• 24 Mic inputs and 12 Line outputs for versatile connections
• UB MADI interface for DAW recording
• Dual DMI slots for interfacing with various formats
The console's rear panel has 24 Mic inputs, 12 Line outputs, a UB MADI interface for DAW recording, and dual DMI option card slots for connecting to formats like Analogue, MADI, Dante, Waves SoundGrid, or Calrec's Hydra 2 Network.
Install the DiGiCo Waves SoundGrid DMI card to access 32 fully integrated low-latency Waves stereo MultiRacks, with up to eight plug-ins per rack, for 128 additional I/O.

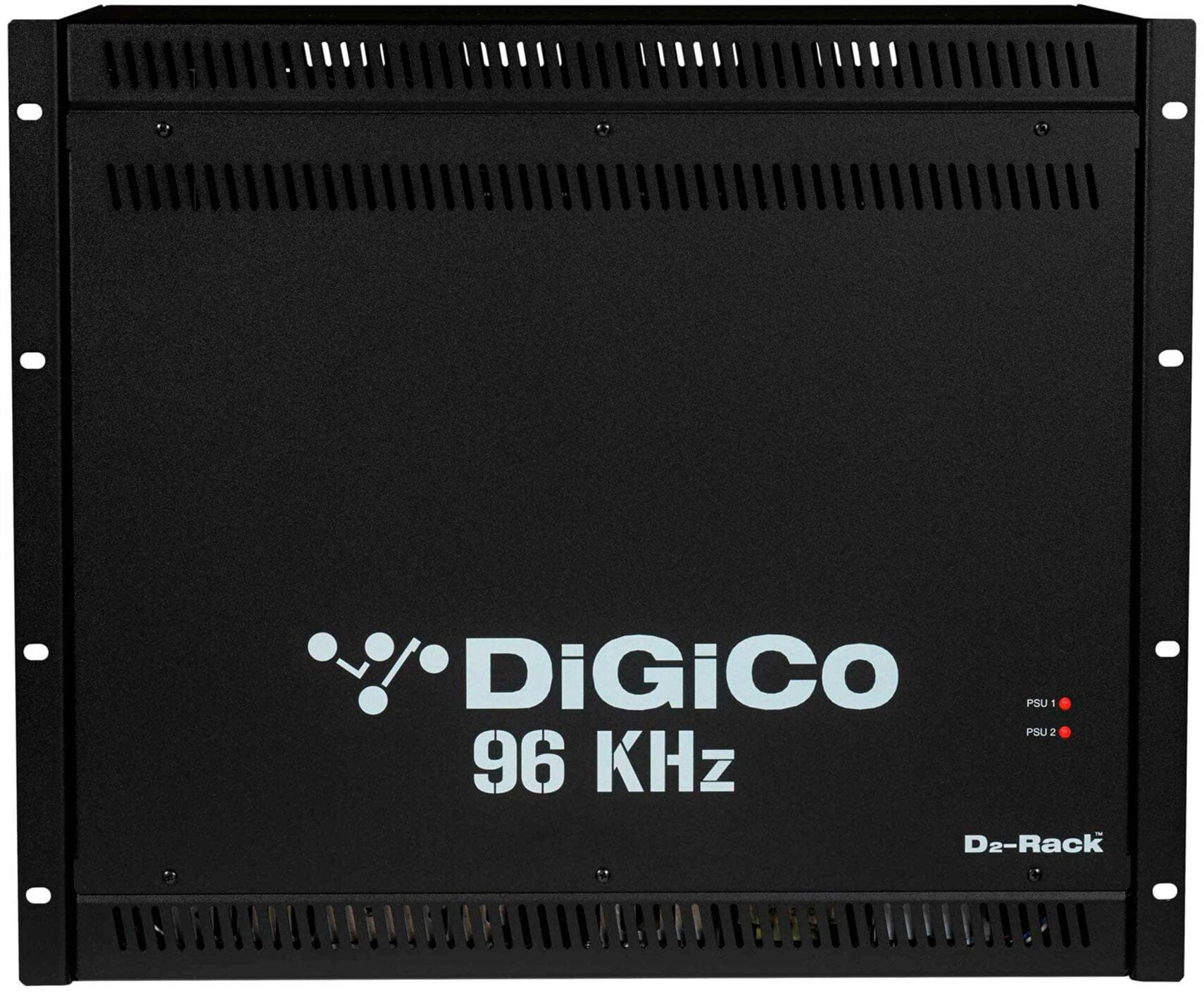

D2-RACK with 48-Channel XLR and BNC MADI Connection
Powerful and Flexible Connectivity
• Expandable channel count for growing needs
• High sample rates for top-notch audio
• Dual redundant power supplies for reliability
The D2-Rack leads DiGiCo's digital connectivity with expandable channels and high sample rates. It's a 9U rack with 48 inputs and 16 outputs as standard, expandable to 32 outputs. Inputs can be 48 mic or 24 mic/24 AES/EBU.
Dual MADI ports (BNC or DiGiCo Cat5e) enable rack sharing at 48kHz or digital splits for recording, creating a 96kHz MADI connection without I/O reduction. It comes with dual redundant power supplies for reliability.

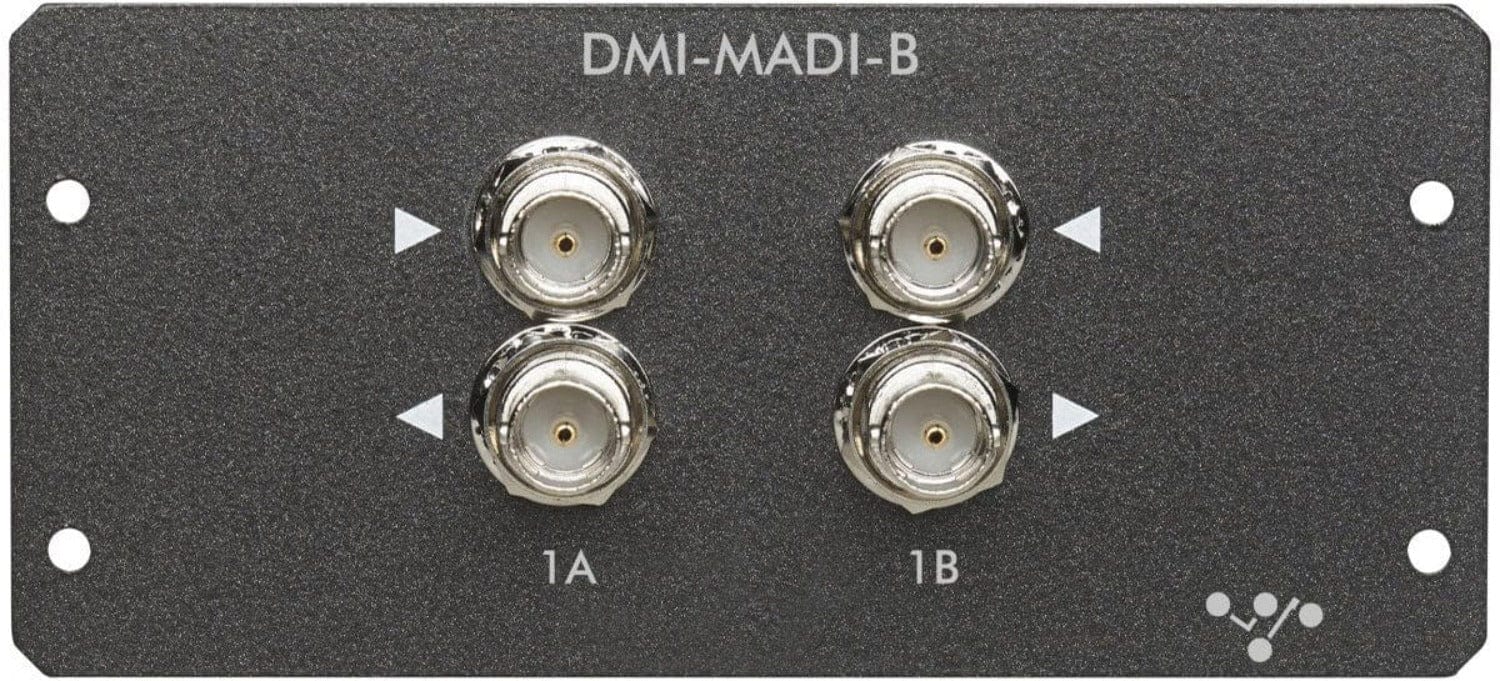

DMI-MADI-B Expansion Card
This card offers seamless MADI connectivity.
• Connects Standard MADI streams at 48KHz or 96KHz
• Works with various DiGiCo racks
• Allows SD console control of 4REA4 I/O
MADI is a popular audio transmission protocol. This card has 75Ω Coaxial (BNC) connections, supports 64 channels in and out at 48kHz and 96kHz, and is compatible with standard BNC MADI devices. It also enables DiGiCo I/O control via an SD console through a 4REA4 and is compatible with multiple DiGiCo series.
This DiGiCo audio bundle is perfect for sound engineers on the go. The S31 digital mixing console, D2-Rack, and DMI-MADI-B Expansion Card offer professional audio solutions. The S31, with its compact design, high-quality audio, and user-friendly interface, is great for live events, recording studios, and broadcast. The D2-Rack, a 9U rack with expandable channels and high sample rates, provides reliable connectivity. The DMI-MADI-B Expansion Card enables seamless MADI connections. Whether you're a seasoned pro or just starting, this bundle has the tools you need for outstanding audio production.
