Upgrade Your DS10 Rack with D&B Audiotechnik's All-in-One Kit
Enhance your audio system's functionality and performance with D&B Audiotechnik's Z5563.000 DS10 Rack Upgrade Kit. This all-in-one solution provides everything you need to take your DS10 rack to the next level, making it perfect for modern professional environments.
Key Features:
- • Connects Dante networks to AES3 digital audio signals and distributes Ethernet control data
- • Integrated 5-port switch offers redundancy, VLANs, and multicast filtering for extended connectivity
- • Four AES3 input channels provide flexibility for various applications
Technical Specifications:
- • Control and indicators include toggle switch, LED indicators for switch port modes/audio loss, sync error, and subscribed (RX subscription)
- • Digital inputs: 4 channels (2 x AES3) with 3 pin XLR female connectors, sampling rate of 32 - 192 kHz, and synchronization via sample rate converter (SRC)
- • Digital outputs: 16 channels (8 x AES3) with 3 pin XLR male connectors, sampling rate of 48 / 96 kHz, and synchronization via Dante network
- • Network: etherCON1 connector, built-in 5-port Ethernet switch, 100/1000 Mbit
- • Power supply: powerCON1 mains connector, rated mains voltage of 100 - 240 V, 50 - 60 Hz
- • Dimensions: 1 RU x 19'' x 232 mm, weight: 3.75 kg (8.26 lb)

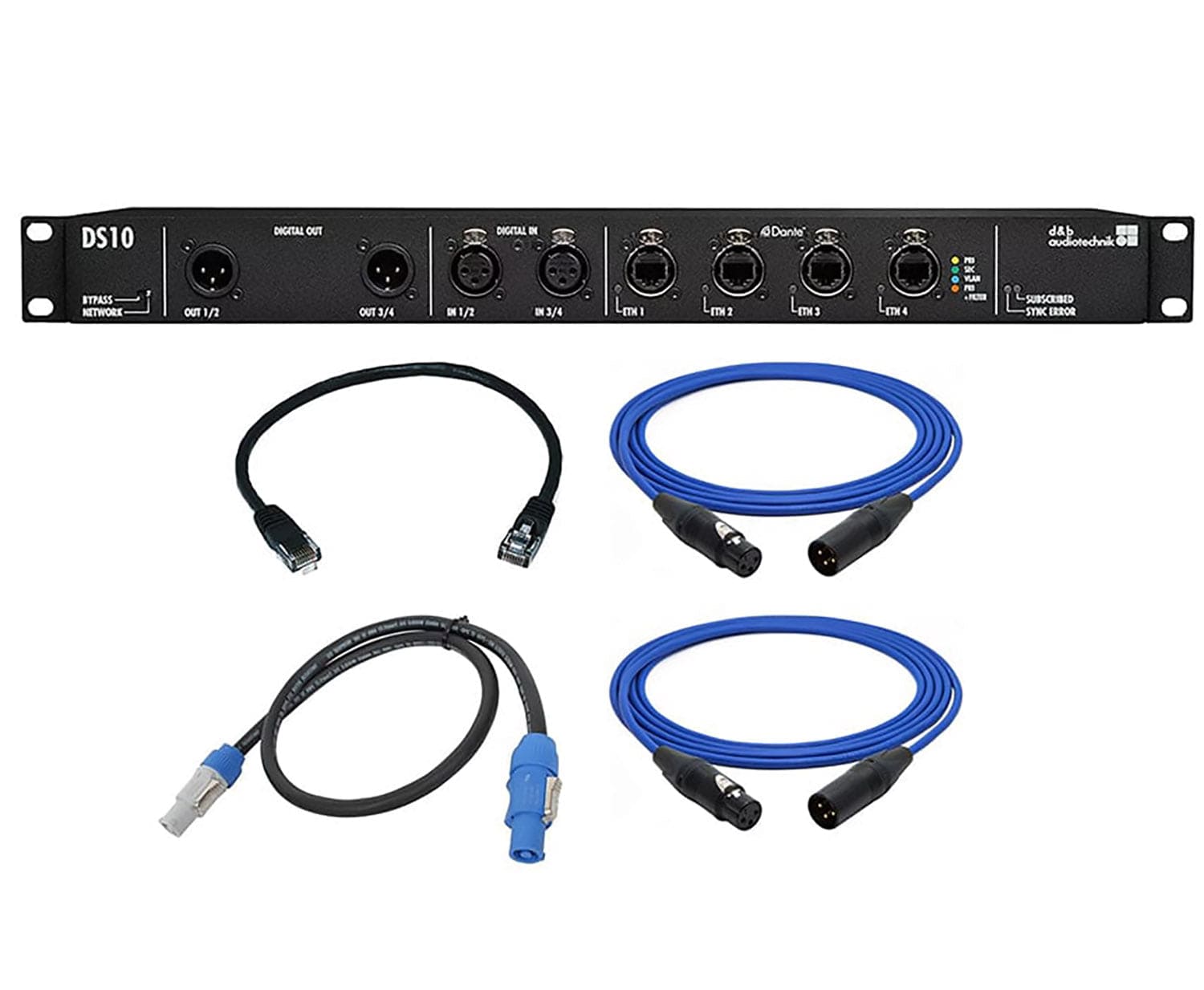

What's Included:

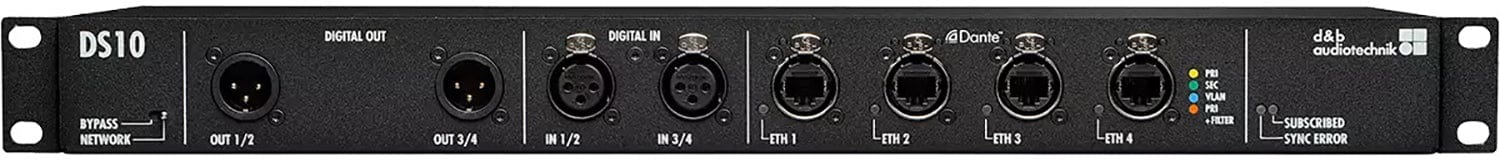

- • 1x D&B Audiotechnik Z4010.000 DS10 Audio Network Bridge Unit

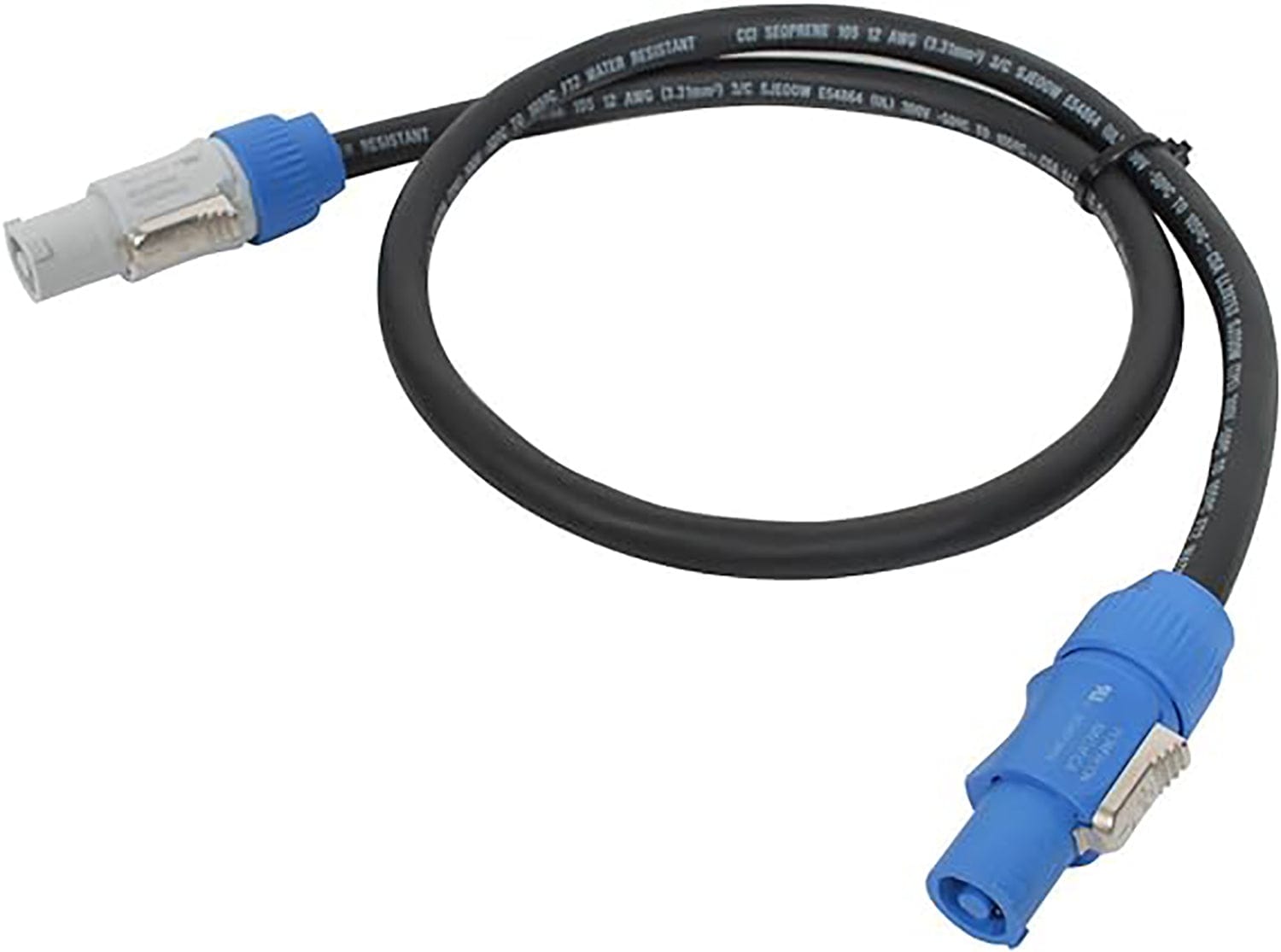

- • 1x Z2610.130 Power Cord (PowerCON/PowerCON)

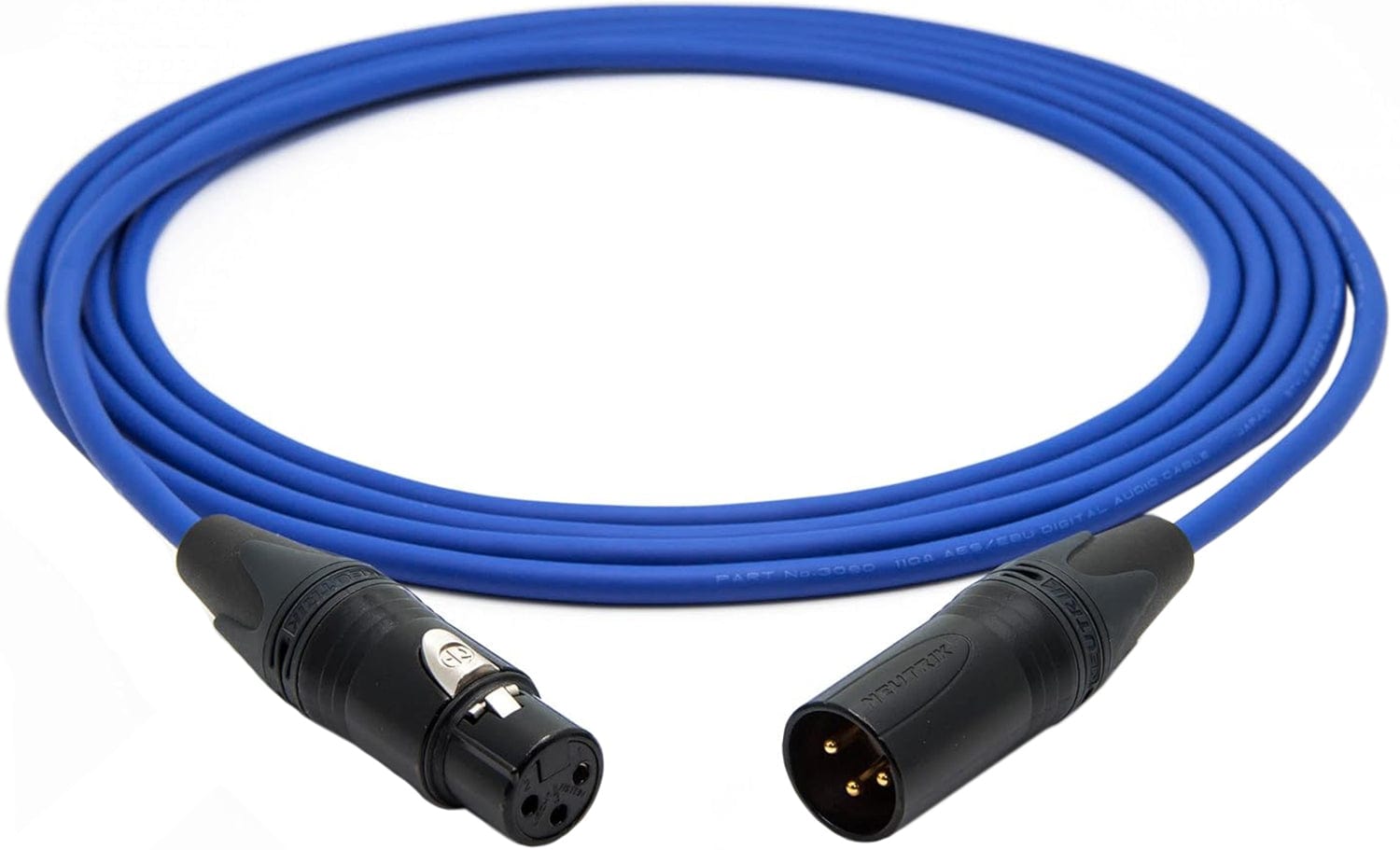

- • 2x E7500.024 AES/EBU XLR Cable
- • 1x K6018.025 CAT5e Patch Cable
This D&B Audiotechnik Z5563.000 DS10 Rack Upgrade Kit is perfect for professional audio setups. Whether you're in a mobile or installation environment, it can enhance your DS10 rack's functionality. The target users are audio professionals looking to upgrade their systems. The kit includes a network bridge unit, power cord, XLR cables, and a patch cable. The network bridge unit interfaces between Dante networks and AES3 digital audio signals. It has an integrated 5-port switch for extended connectivity. The unit's dimensions are 1 RU x 19'' x 232 mm and it weighs 3.75 kg (8.26 lb). It operates on mains voltages 100 V – 240 V, 50 – 60 Hz.
