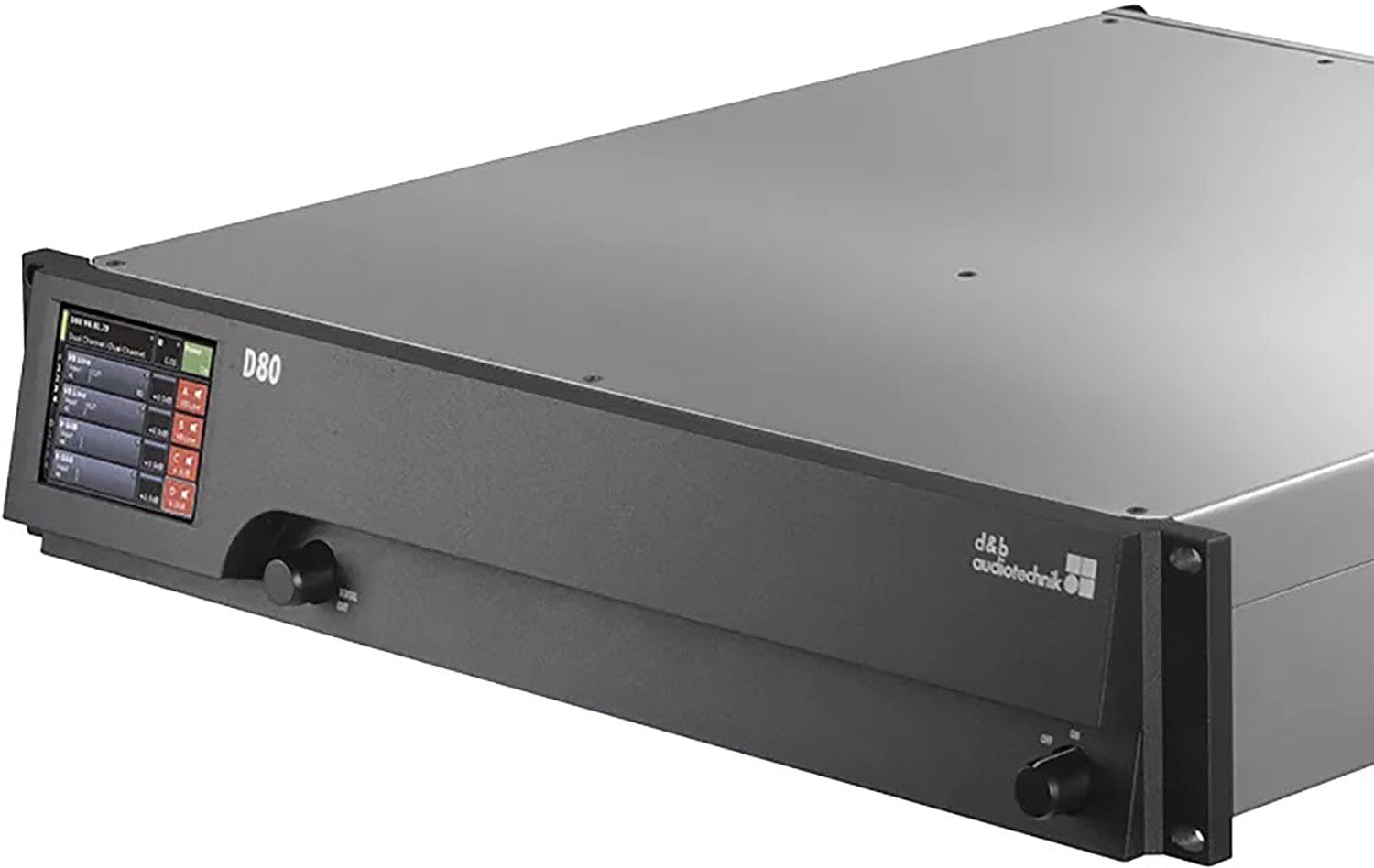

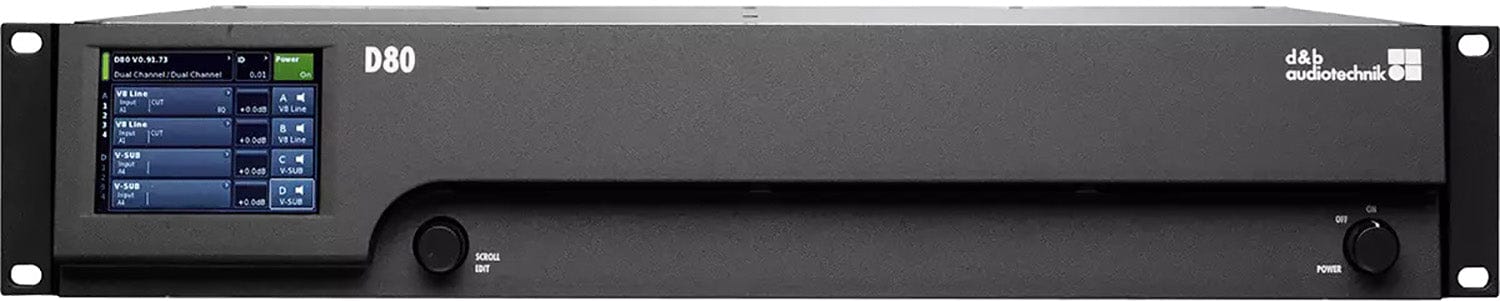

D&B Audiotechnik Z2710.501 D80 High Power 4 Channel Amplifier

D&B Audiotechnik Z2710.501 D80 High-Power 4-Channel Amplifier

Get ready to experience audio like never before with the D&B Audiotechnik Z2710.501 D80 High-Power 4-Channel Amplifier! Whether you're setting up a mobile sound system or an installation, this amplifier is a powerhouse. • All d&b loudspeaker setups available - it's a match made in audio heaven! • Maximum output power of 4 x 4000 W into 4 Ω - feel the bass! • Colour TFT touchscreen for easy menu access - no more fumbling around.

Features:

• Maximum output power 4 x 4000 W into 4 Ω
• All current d&b loudspeaker setups
• Display Colour TFT touchscreen, 3.5'/320 x 240 pixel

Specifications:

• Digital Signal Processing:
  • Equalizer: 2 x 16-band PEQ/notch/shelving/asymmetric
  • Latency analog and digital inputs: 0.3 ms
  • Delay setting: 0.3 - 10000 ms
  • Configurations: current d&b loudspeakers and linear mode
  • Function switches: d&b loudspeaker specific circuits
  • Frequency generator: Pink noise or Sine wave
  • Sampling rate: 96 kHz/27 Bit ADC/24 Bit DAC
• Controls and indicators:
  • POWER: Mains power switch
  • SCROLL/EDIT: Digital rotary encoder
  • Display: Colour TFT touchscreen, 3.5'/320 x 240 pixel
  • ISP, GR, OVL A/B: Colour TFT

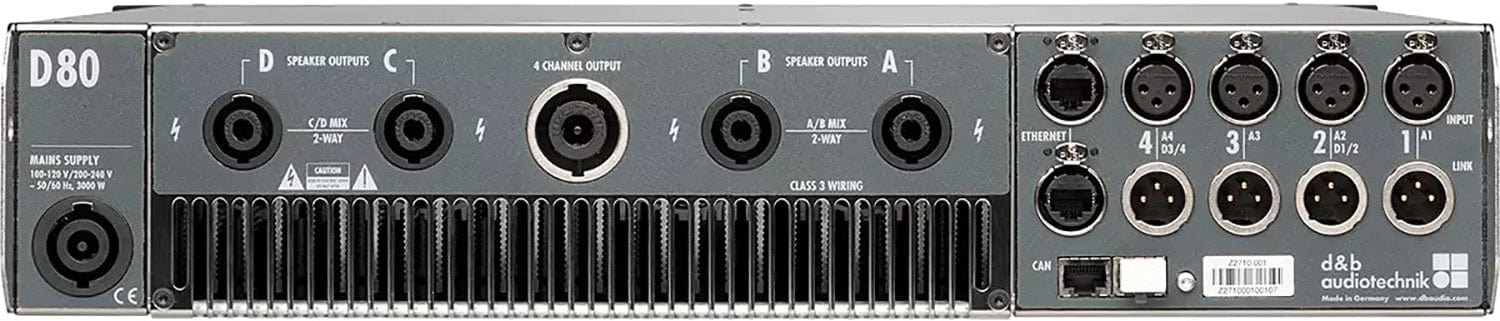

• Connectors:
  • INPUT ANALOG (A1 - A4): 3 pin XLR female
  • ANALOG LINK (A1 - A4): 3 pin XLR male
  • INPUT DIGITAL (D1/2, D3/4): 3 pin XLR female AES3
  • DIGITAL LINK (Output): 3 pin XLR male
  • Sampling Digital AES/EBU: 48 kHz/96 kHz
  • Speaker outputs A/B/C/D: NL4
  • 4 Channel output: NL8
  • CAN: 2 x RJ 45 parallel
  • ETHERNET: 2 x etherCON, 10/100 Mbit Ethernet
  • Mains connector: powerCON -HC
• Data (linear setting with subsonic filter):
  • Maximum output power per channel (THD+N < 0.5%, all channels driven):
    • CF = 6 dB at 4 / 8 ohms: 4 x 2600/2000 W
    • CF = 12 dB at 4 / 8 ohms: 4 x 4000/2000 W
  • S/N ratio (unweighted, RMS):
    • Digital input: > 114 dBr
• Power supply:
  • Type: Autosensing switch mode power supply with active Power Factor Correction (PFC)
  • Rated mains voltage high range: 208 - 240 V, 50 - 60 Hz
  • Rated mains voltage low range: 100 - 127 V, 50 - 60 Hz
• Dimensions / weight:
  • Dimensions (H x W x D): 2 RU x 19' x 530 mm/20.9'
  • Weight: 19 kg/42 lb

The D&B Audiotechnik Z2710.501 D80 High-Power 4-Channel Amplifier is perfect for both mobile and installation audio setups. Ideal for audio enthusiasts and professionals alike. It has a 2 RU height, 19-inch width, and is 530 mm (20.9 inches) deep, weighing 19 kg (42 lb).
