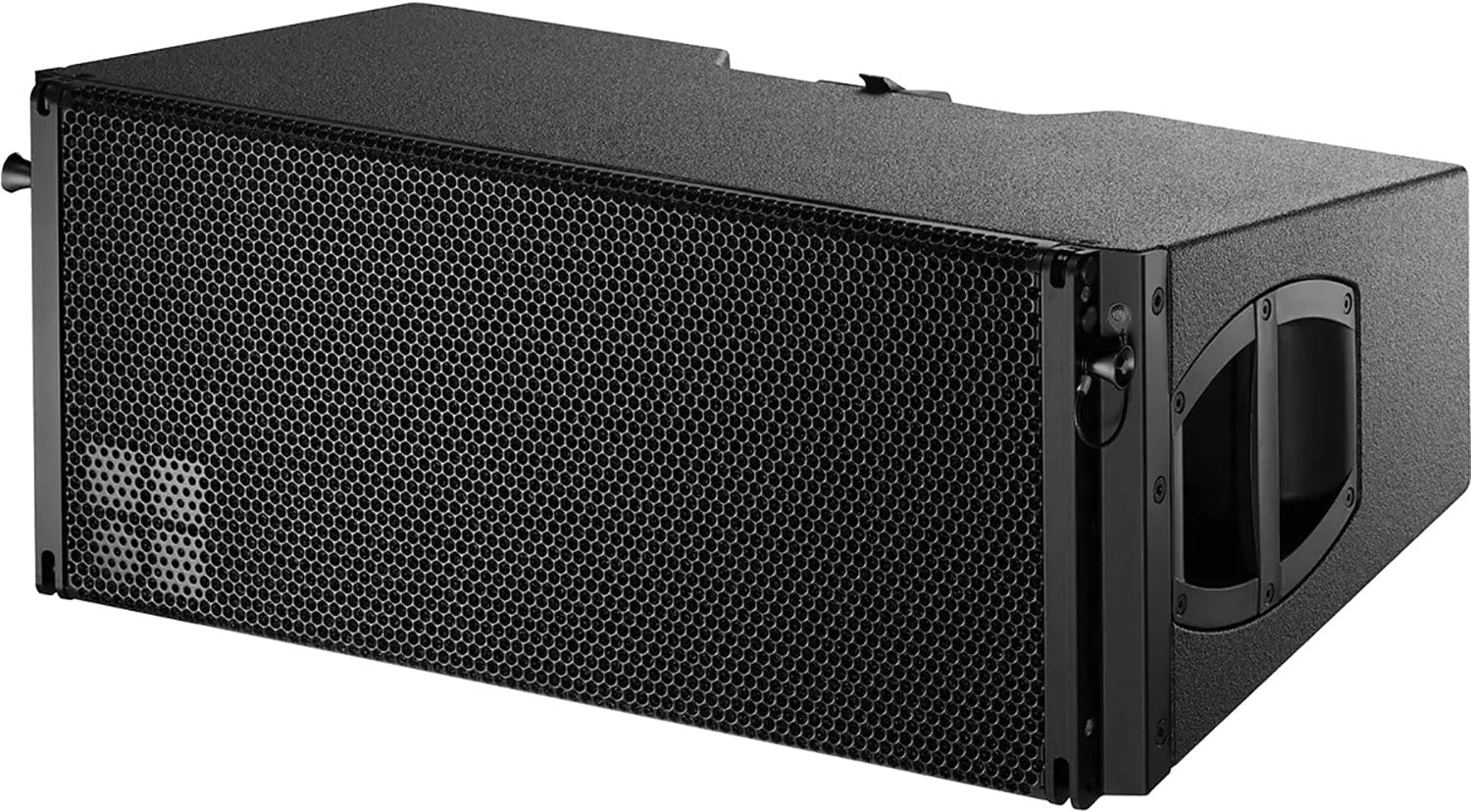

D&B Audiotechnik Z0708.002 Y12 Loudspeaker with NLT4 F/M Connections

D&B Audiotechnik Z0708.002 Y12 High-Performance Loudspeaker with Versatile Connections

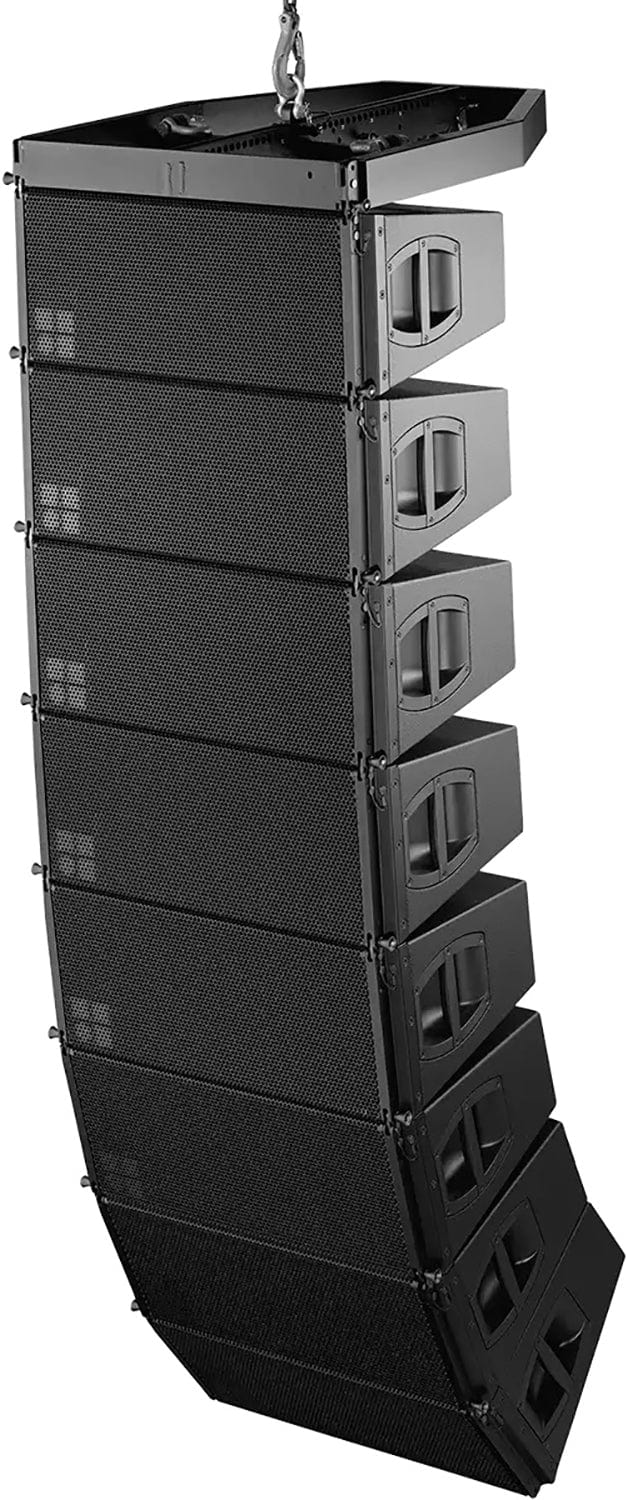

Discover the power of the compact Y12 line array loudspeaker! • Designed for vertical column use, it's perfect for concerts, events, and installations. • Its 2-way passive design with two 8” drivers and a 1.4” compression driver delivers outstanding sound quality. • With a 120° horizontal directivity and customizable splay angles, it offers great flexibility. High search volume keywords like 'loudspeaker', 'line array', and'sound quality' are naturally incorporated.

Specifications:

• System data:
  • Frequency response (-5 dB standard): 54 Hz - 19 kHz
  • Frequency response (-5 dB CUT mode): 100 Hz - 19 kHz
  • Max. sound pressure:
    • with 10D: 134 dB
    • with D20/30D: 137 dB
    • with D40/D80/40D: 139 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 2-way passive line array loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 400/1600 W
  • Nominal dispersion angle (horizontal): 120°
  • Splay angle settings: 0° - 14° (1° increment)
  • Components:
    • 2 x 8' driver with neodymium magnet
    • 1.4' exit compression driver
    • passive crossover network
  • Connections: 2 x NLT4 F/M
• Dimensions / weight:
  • Dimensions (H x W x D): 257 x 630 x 375 mm (10 x 24.8 x 14.8')
  • Weight: 20 kg (44 lb)

This D&B Audiotechnik Z0708.002 Y12 loudspeaker is great for concerts, events, and installations. It's compact and easy to use. The dimensions are 257 x 630 x 375 mm (10 x 24.8 x 14.8') and it weighs 20 kg (44 lb). It has a 2-way passive design with two 8” drivers and a 1.4” compression driver, delivering excellent sound quality. It offers 120° horizontal directivity and customizable splay angles from 0° to 14° (1° increment), making it highly flexible for various setups.
