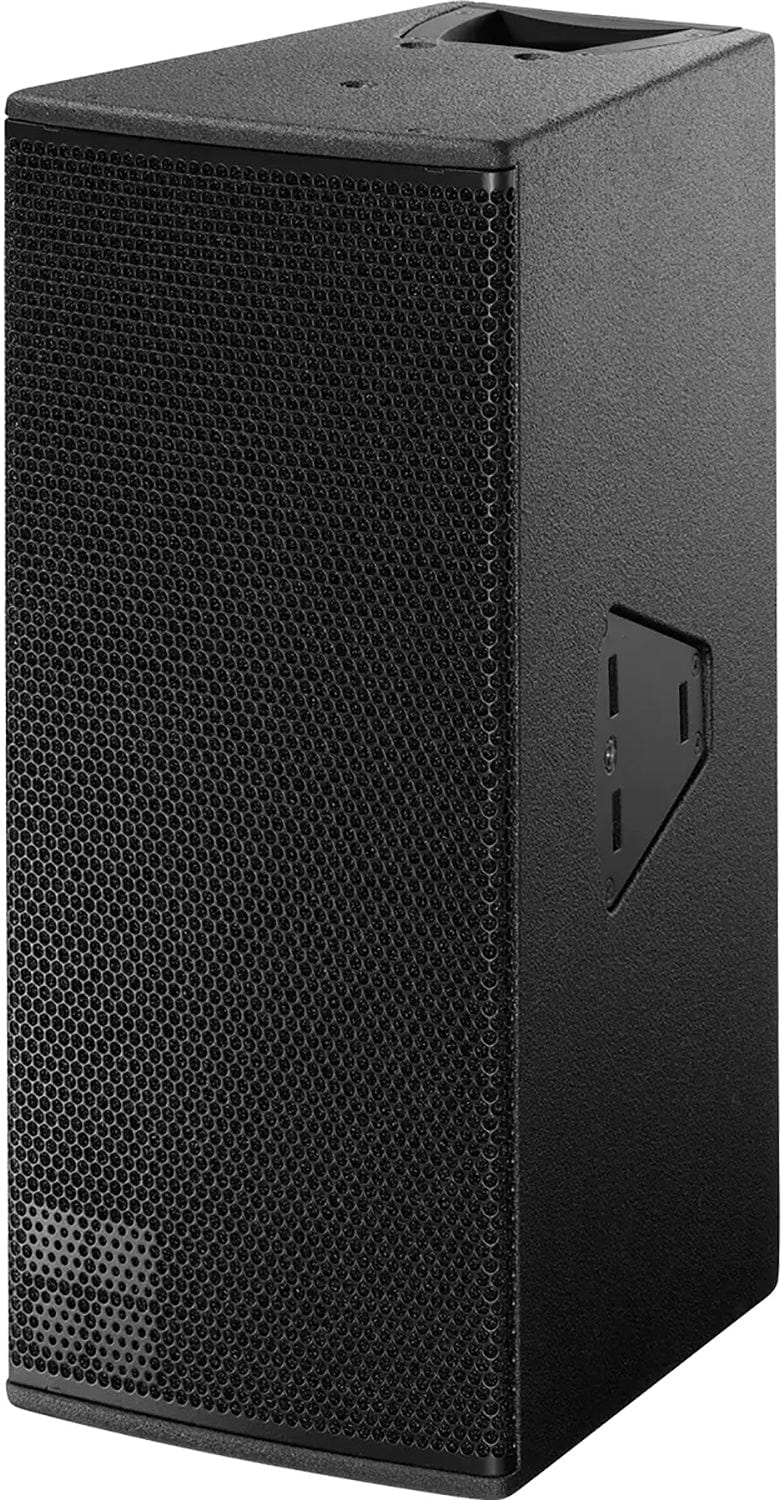

D&B Audiotechnik Z0703.002 Y10P Loudspeaker with NLT4 F/M Connections

D&B Audiotechnik Z0703.002 Y10P High-Performance Loudspeaker with Versatile Connections

• Compact and powerful, this 2-way passive Y10P loudspeaker is a must-have for any audio setup. It features two 8” drivers in a dipole arrangement with a 1.4” compression driver on a rotatable CD horn, delivering outstanding sound quality.• With its advanced bass-reflex port design and sophisticated horn geometry, it offers full bandwidth capabilities and extended LF output. The 110° horizontal directivity (controlled down to 500 Hz) and 40° vertical dispersion ensure wide and precise sound coverage.• The horn can be rotated 90° for horizontal orientation, providing flexibility in deployment. Whether used as a stand-alone full range system or combined with other Y-Series elements, it's perfect for various setups. The cabinet, made of marine plywood with PCP finish, is durable and weather-resistant. The front is protected by a rigid metal grill with acoustic foam. It has handles and M10 threaded inserts for easy rigging.

Specifications:

• System data:
  • Frequency response (-5 dB standard): 59 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 118 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 131 dB
    • with D20/30D: 134 dB
    • with D40/D80/40D: 136 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 2-way passive point source loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 400/1600 W
  • Nominal dispersion angle (h x v): 110° x 40°
  • Components:
  • 2 x 8' driver with neodymium magnet
  • 1.4' exit compression driver
  • passive crossover network

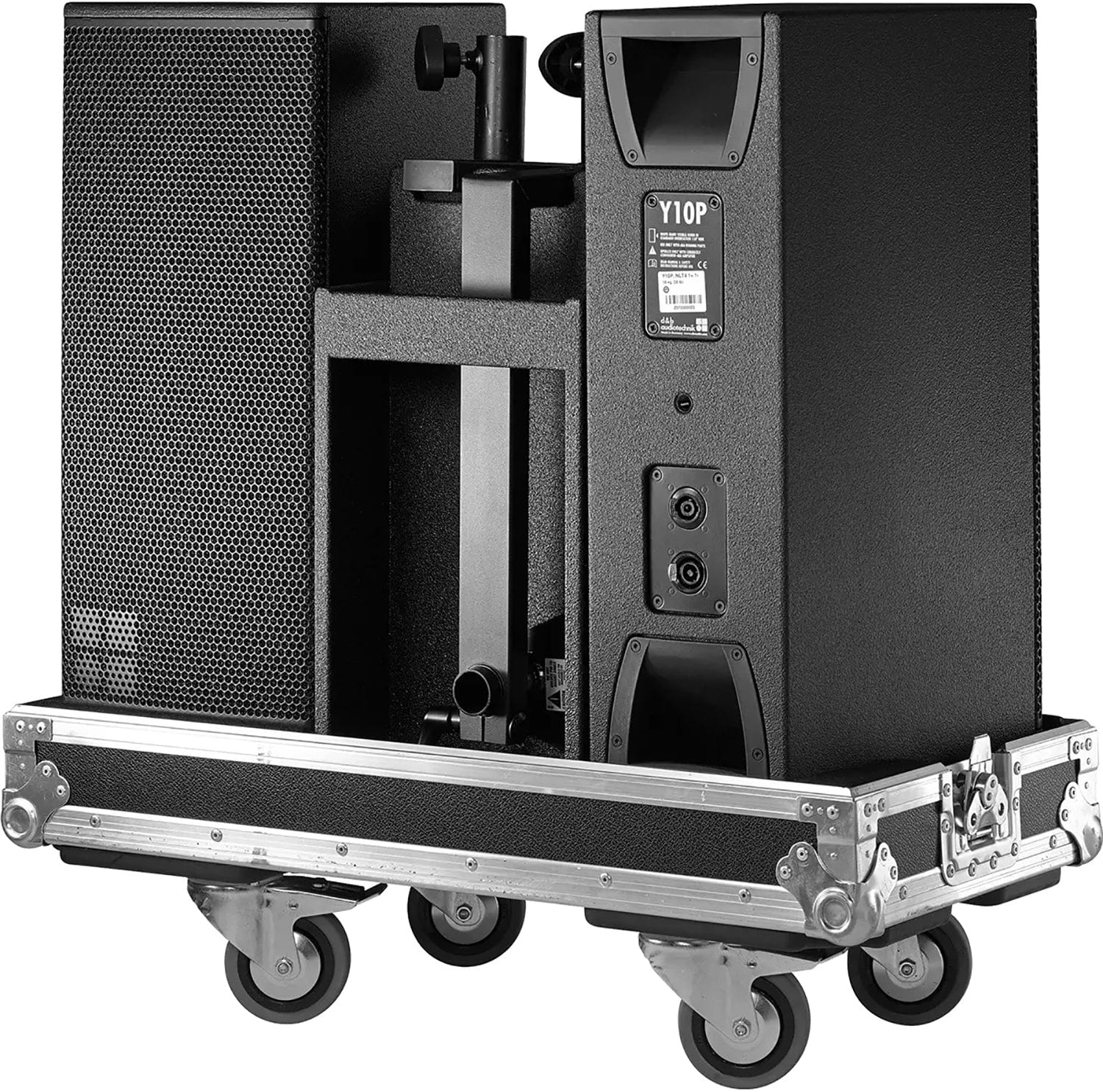

  • Connections: 2 x NLT4 F/M
• Dimensions / weight:
  • Dimensions (H x W x D): 580 x 257 x 341 mm (22.8 x 10 x 13.4')
  • Weight: 18 kg (40 lb)

This D&B Audiotechnik Z0703.002 Y10P loudspeaker is perfect for audio professionals and enthusiasts. It's great for indoor and outdoor events like concerts, parties, and meetings. The compact size (580 x 257 x 341 mm) and lightweight (18 kg) make it easy to set up and transport. With its high performance sound capabilities, it can handle various audio needs.
