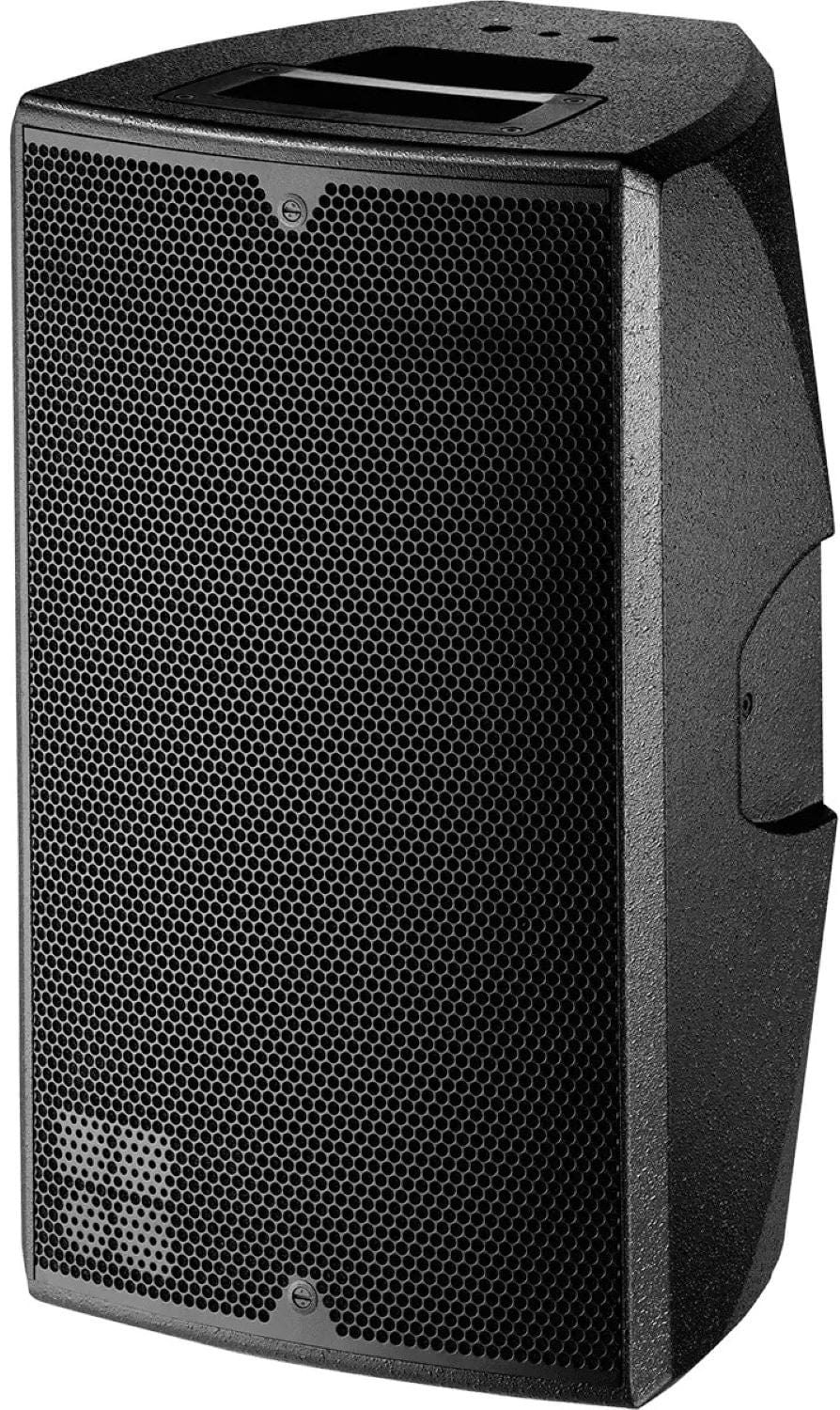

D&B Audiotechnik Z0602.100 E12-D 12-Inch Passive Loudspeaker - Weather-Resistant
• High Performance: These multipurpose loudspeakers feature an integrated 12'/1.3' exit coaxial driver design with neodymium magnet and constant directivity horn loading, delivering outstanding sound quality.
• Versatile Dispersion: Available in two dispersion versions. The E12 offers an 80° x 50° pattern (hor. x vert.), and the E12-D provides a wider 110° x 50° pattern. Plus, both horns can be rotated 90° without tools for flexible coverage.
• Weather-Resistant: Ideal for outdoor use! The cabinets have a durable black PCP finish for impact and weather protection. They come with a recessed connector panel and a cover plate for easy cable management.
Specifications:
- System data:
- Frequency response (–5 dB standard): 50 Hz – 18 kHz
- Frequency response (–5 dB CUT mode): 100 Hz – 18 kHz
- Max. sound pressure (1 m, free field):
- E12/E12-D with D6: 131/130 dB
- E12/E12-D with D12: 134/133 dB
- Input level (100 dB-SPL/1 m): –17 dBu
- Loudspeaker data:
- Nominal impedance: 8 ohms
- Power handling capacity (RMS/peak 10 ms): 300/1600 W
- Nominal dispersion angle (hor. x vert.): 80° x 50°, 110° x 50°
- Components: 12” driver with neodymium magnet coaxial 1.3” exit compression driver with 3” coil and rotatable CD horn Passive crossover network
- Connections:
- Weight: 16 kg (35 lb)
This D&B Audiotechnik Z0602.100 E12-D 12-Inch Passive Loudspeaker is perfect for outdoor use. Musicians, event organizers, and anyone looking for high-quality outdoor sound will love it. It has a weight of 16 kg (35 lb). With its high-performance design, versatile dispersion options, and weather-resistant features, it's a great choice for any outdoor audio setup.
