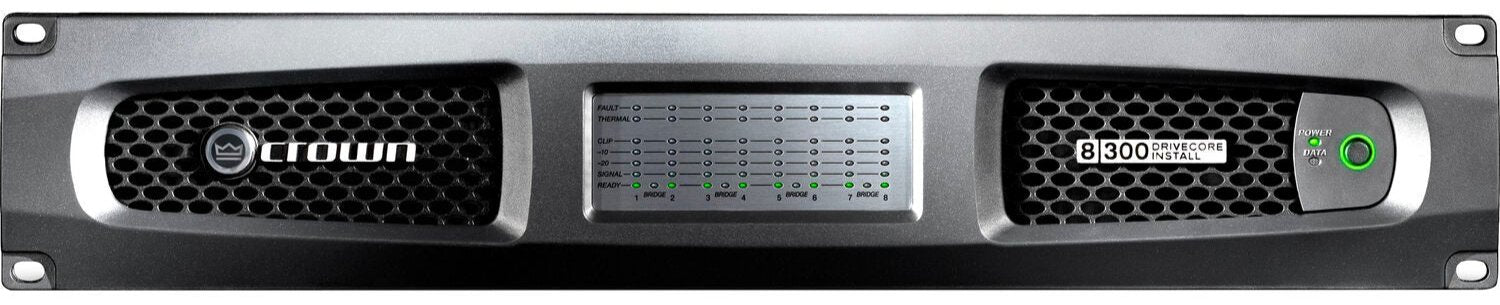

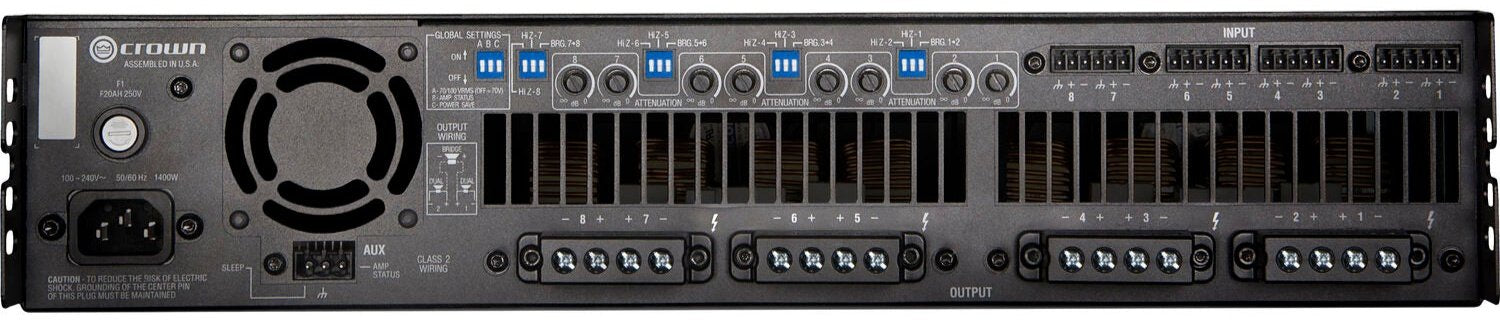

Crown DCi 8 300 DriveCore Install: The Ultimate 8-Channel 300 Watt Amplifier
The DriveCore Install series amplifiers are a game-changer! They're high-performance installation amps based on DriveCore tech. Designed to the highest quality standards, they give system integrators what they need for 21st century sound applications. They're versatile, compact, and energy-efficient, continuing Crown's leadership in power amp tech.
Features:
- • True rack density – Get 300W or 600W power points in 2-, 4-, or 8-channel setups within a 2 Rack Unit size. More channels mean smaller rooms, lower costs, and more installation flexibility.
- • Direct drive constant voltage – Save money with smaller wiring for 70V RMS or 100V RMS speakers. No need for a step-up transformer for better audio quality and efficiency.
- • Channel independent hi-Z/low-Z selection – Drive one or two speakers in low-Z or hundreds in high-Z (70V RMS or 100V RMS) with channel-by-channel load management.
- • Bridgeable channel pairs – Even in 100V RMS mode, the DCi series channels can be bridged for high-power apps like subwoofers.
- • Remote on/off interface – Integrate the amp into a control system for easy power management. Turn it on and off remotely to save energy.
- • Efficient cooling design – Internal fans provide targeted airflow to heat-generating parts, maximizing cooling and minimizing energy waste and noise.
- • Advanced power factor correction (PFC) universal power supply – A high-efficiency supply works in different conditions, reducing power dissipation and heat in racks.
Specifications:
- Output channels: 8
- Frequency response (8Ω, 20Hz - 20kHz): ±0.25dB
- Total harmonic distortion (at full rated power, 20Hz - 20kHz): 0.35%
- Damping factor (20Hz to 100Hz): >1000
- Load impedance (stereo/dual mode): 2Ω - 16Ω; 70Vrms and 100Vrms
- Load impedance bridge mono: 4Ω - 16Ω; 140Vrms and 200Vrms
- Cooling: Continuously variable speed forced air, front to back airflow
- Maximum fan noise (re dBA SPL @ 1M): 47
- Required AC mains (±10%): 100V-240V ~ 50/60Hz
- Power connector: 15A IEC
- Dimensions:
- W x H x D: 483 mm x 89 mm x 362 mm
- 19 in x 3.5 in x 14.25 in
- Weight: 10.66 kg (23.5 lbs)
The Crown DCi 8 300 DriveCore Install amplifier is perfect for professional and commercial sound applications. System integrators will love its advanced features. It comes in a 2 Rack Unit size, with dimensions of 483 mm x 89 mm x 362 mm (19 in x 3.5 in x 14.25 in) and weighs 10.66 kg (23.5 lbs). It offers 8 output channels and has great frequency response, low distortion, and high damping factor. With features like true rack density, direct drive constant voltage, and channel independent hi-Z/low-Z selection, it's a top choice for creating amazing sound setups.
