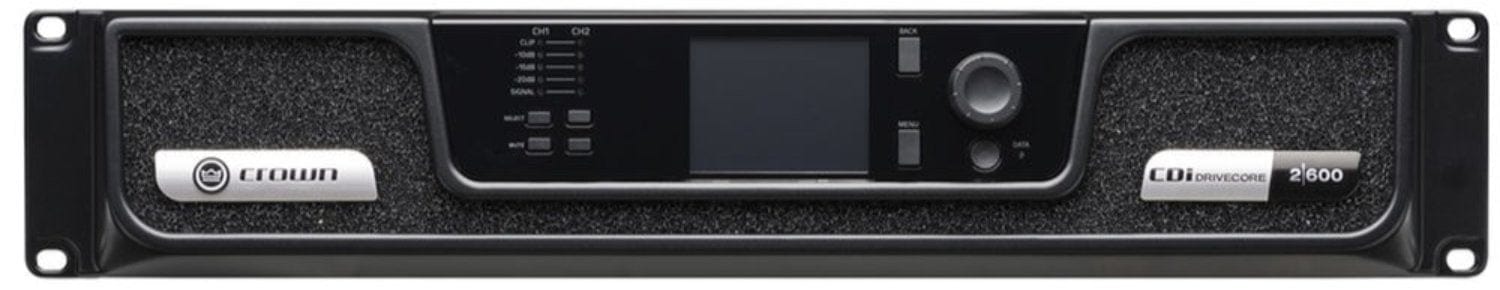

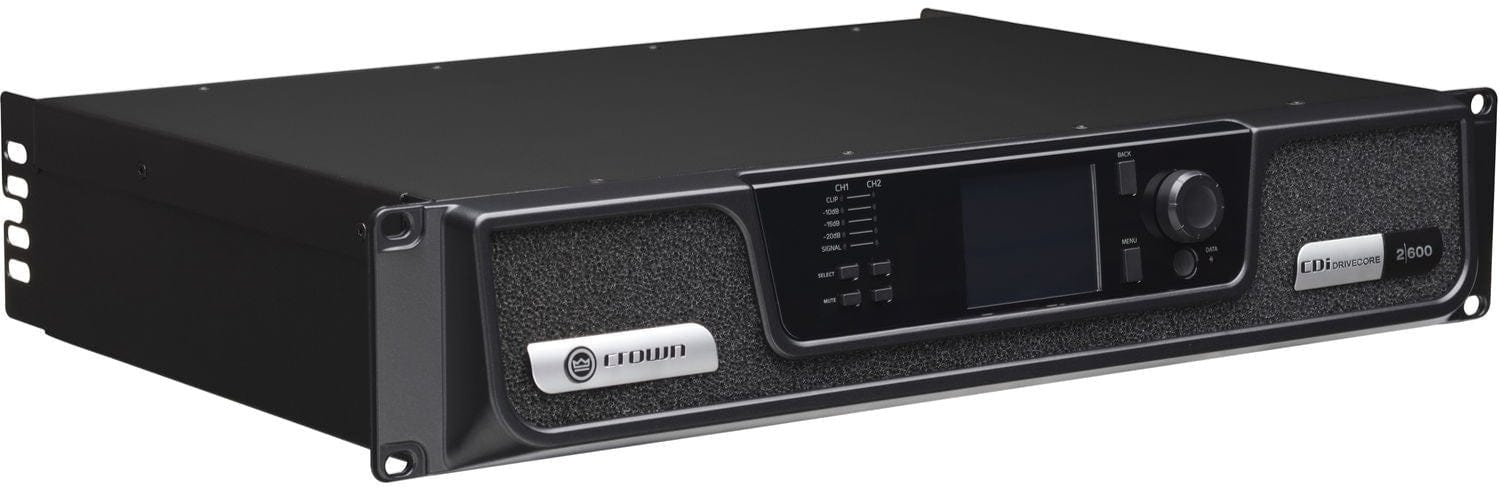

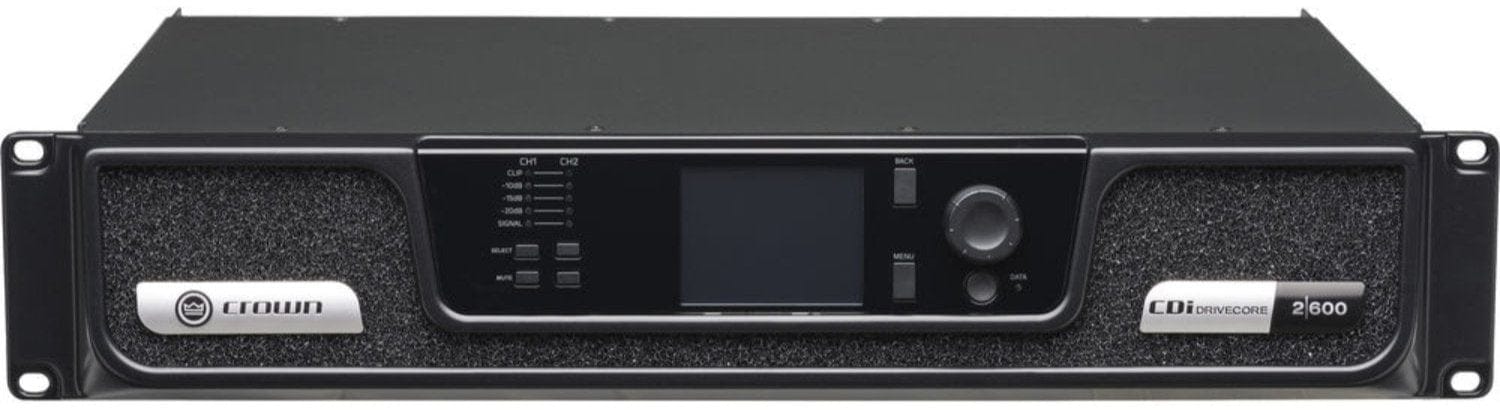

Crown CDi2x600 High-Power 2-Channel Amplifier
The CDi DriveCore Series amps are a game-changer! They offer top-notch performance, a great feature set, and won't break the bank. Using tech from our flagship amp, the CDi DriveCore 2|600 is perfect for medium-sized installs like cinemas, churches, bars, and lounges. It's super easy to use, with network control/monitoring, high-level DSP, a front-panel interface, and can drive up to 100Vrms speaker loads without a transformer. Plus, it comes pre-loaded with JBL speaker tunings for quicker installs.
Features:
- • DriveCore Technology: Crown's special tech cuts down on components, boosts reliability, and gives amazing audio quality.
- • Network Control & Monitoring: Control, configure, and monitor through Harman's HiQnet Audio Architect software over a standard TCP/IQ network.
- • DSP: Customize settings with the on-board Digital Signal Processor.
Specifications:
- BLU link: No
- Channels: 2
- Sensitivity (for full rated power at 8 ohms): 0.7V RMS
- Rated Power Output (per channel @ 4 ohms): 600W
- Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz at 8 ohms): > 104dB
- THD (full rated power, 20 Hz - 20 kHz): 0.35%
- Damping Factor (20 Hz to 100 Hz): > 1000
- Frequency Response (8Ω, 20 Hz - 20 kHz): +/-0.5dB
- Crosstalk (below rated power) 20 Hz to 1 kHz: > 80dB
- Input Impedance (nominally balanced, nominally unbalanced): 20 kΩ balanced, 10 kΩ unbalanced
- Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion): 19 x 3.5 x 12.25
- Weight: 14.56 lbs (6.6 kg)
- Power Supply Connector: 'Standard IEC type 320 inlet for detachable connector 100 – 240V~'
This Crown CDi2x600 amplifier is perfect for medium-sized installations such as cinemas, houses of worship, bars, and lounges. It's designed for easy use in various applications. With 2 channels, it has a rated power output of 600W per channel at 4 ohms. The dimensions are 19 x 3.5 x 12.25 inches (depth not including 1.3 inch front panel protrusion) and it weighs 14.56 lbs (6.6 kg). It comes with features like DriveCore Technology for great audio, network control and monitoring, and a DSP for custom configuration.
