Crown CDi1000 500W 2-Channel Power Amplifier
The CDi Series amplifiers are a must-have for those seeking top-notch sound in installed applications. With four models (CDi 1000, CDi 2000, CDi 4000, and CDi 6000) differing only in output power, they offer ruggedness and lightness, delivering unbeatable value.
Features:
- • Ultra-versatile - works with 2-, 4-, 8-ohm loads and 70V and 140V outputs.
- • Switch-mode universal power supply for reliable performance.

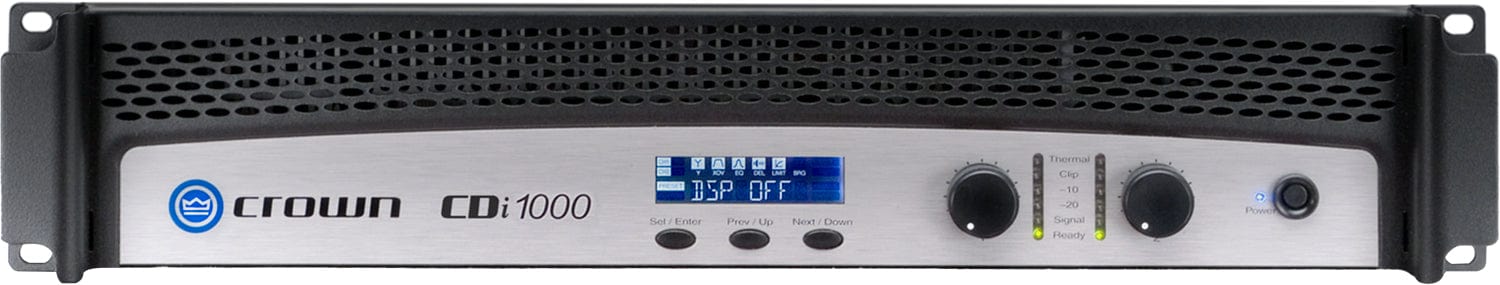

- • Intuitive front-panel LCD for easy configuration.
- • Onboard digital signal processing with crossovers, EQ filters, delay, and output limiting.
- • Up to 20 user-defined DSP presets for customized sound.
Specifications:
- Channels: 2
- Sensitivity (for full rated power at 8 ohms): 1.4V
- Rated Power Output (per channel @ 4 ohms): 500W Stereo
- Signal to Noise Ratio (below rated 1 kHz power at 8 ohms): 100 dB (A-weighted)
- THD: < 0.5%
- Damping Factor (20 Hz to 400 Hz): > 500
- Frequency Response (at 1W, 20 Hz - 20 kHz): + 0 dB, -1 dB
- Crosstalk (below rated power) 20 Hz to 1 kHz: >70 dB
- Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced
- Dimensions: 3.5' x 19' x 12.25'
- Weight: 22.0 lbs
- IEC Power Connector: 15A
This Crown CDi1000 500W 2-Channel Power Amplifier is perfect for professional installed sound applications. Ideal for sound engineers and installers. It has a length of 19 inches, width of 3.5 inches, height of 12.25 inches, and weighs 22 lbs.
