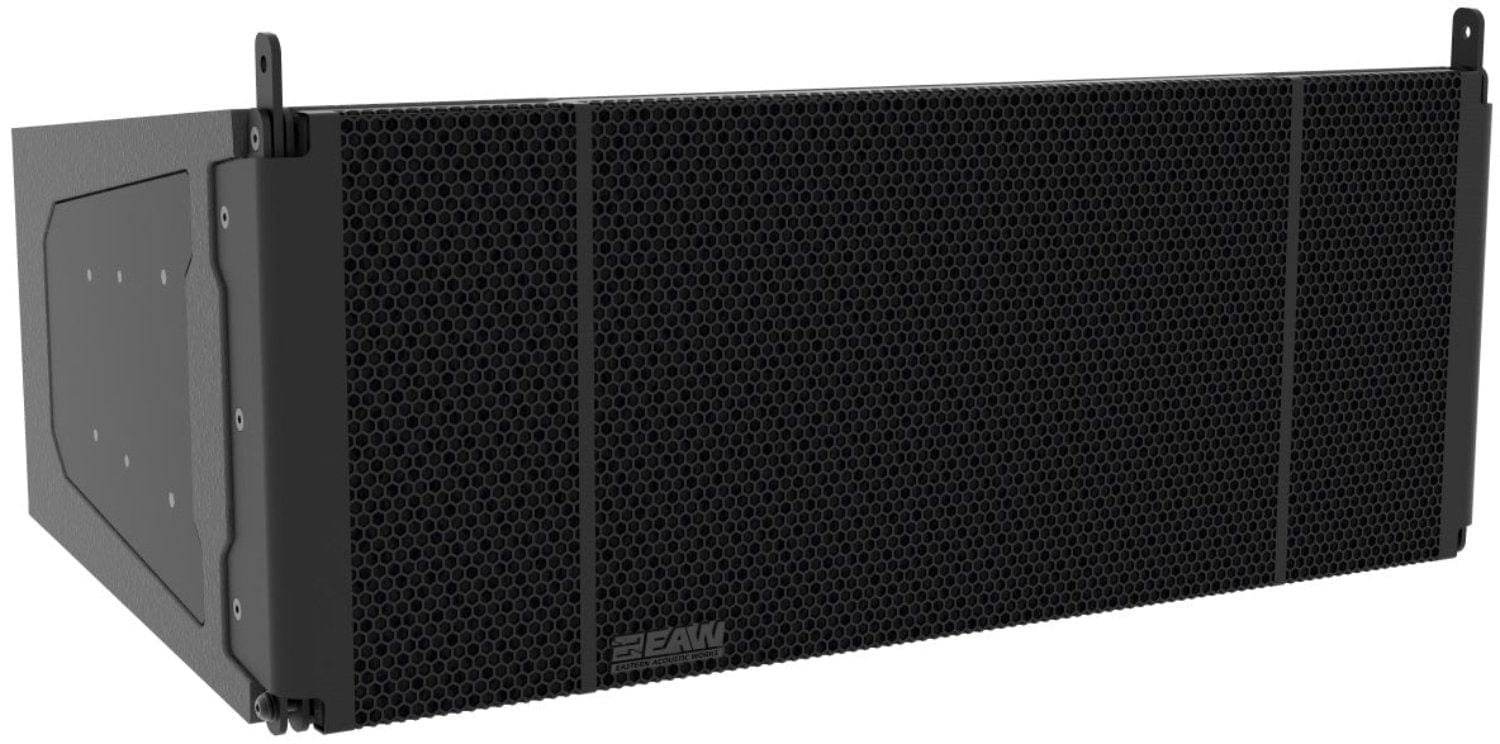

EAW KF810P 80x10° Weather-Protected Line Array Speaker - Black
The KF810P is a powerhouse speaker that combines advanced driver tech and precision design for amazing audio. Here's what makes it stand out:
- • Advanced Driver Tech: Integrates two ported 10-inch low-frequency drivers, four 5-inch midrange drivers, and two high-frequency drivers for powerful, controlled sound.
- • Precision Engineering: Tuned, phase-aligned spacing of low-frequency components ensures extended pattern control.
- • Studio-Quality Sound: Utilizes EAW's Concentric Summation Array (CSA) technology for seamless summation across all subsystems, delivering smooth, accurate sound from 50 Hz to 20 kHz.
Features:
- Light. Small. Loud.
- Architecturally Transparent
- Concealed Wiring and Rigging
- True Narrow 80° or True Wide 110° Horizontal Dispersion Choice
- Flexible mounting, weather protection
Specifications:
- Performance:
- Max SPL: 145dB
- Operating Range: 50 Hz to 20 kHz
- Nominal Beamwidth: KF810|80 = 80° Horizontal x 10° Vertical, KF810|110 = 110° Horizontal x 10° Vertical
- RMS Power Handling: LF: 1000w, HF: 500w
- Input Impedance: LF: 8 Ω, MF/HF: 8 Ω
- Physical:
- Physical/Rigging: 3-Point Integrated Rigging
- Dimensions (H ¡Á W ¡Á D): 12.6 x 32.9 x 17.4in (320 ¡Á 835 ¡Á 443mm)
- Net Weight: 88lbs (40kg)
- Color: Black
- Shipping Weight: 98lbs (44.5kg)
- Flyware: KF810P|FLYBAR/ADAPTERBAR - See Resolution
- Angle Increments: 0.0°, 0.9°, 2.0°, 3.2°, 4.3°, 5.4°, 6.6°, 7.7°, 10.0°
The EAW KF810P is a weather-protected line array speaker perfect for events, venues, and installations. Its advanced driver technology and precision engineering deliver powerful, controlled audio. With a max SPL of 145dB and operating range from 50 Hz to 20 kHz, it's ideal for filling large spaces with great sound. It features 3-point integrated rigging, dimensions of 12.6 x 32.9 x 17.4in, and a net weight of 88lbs. Whether you're a sound engineer, venue owner, or event planner, the KF810P is a great choice for achieving professional-quality audio in any setting.
