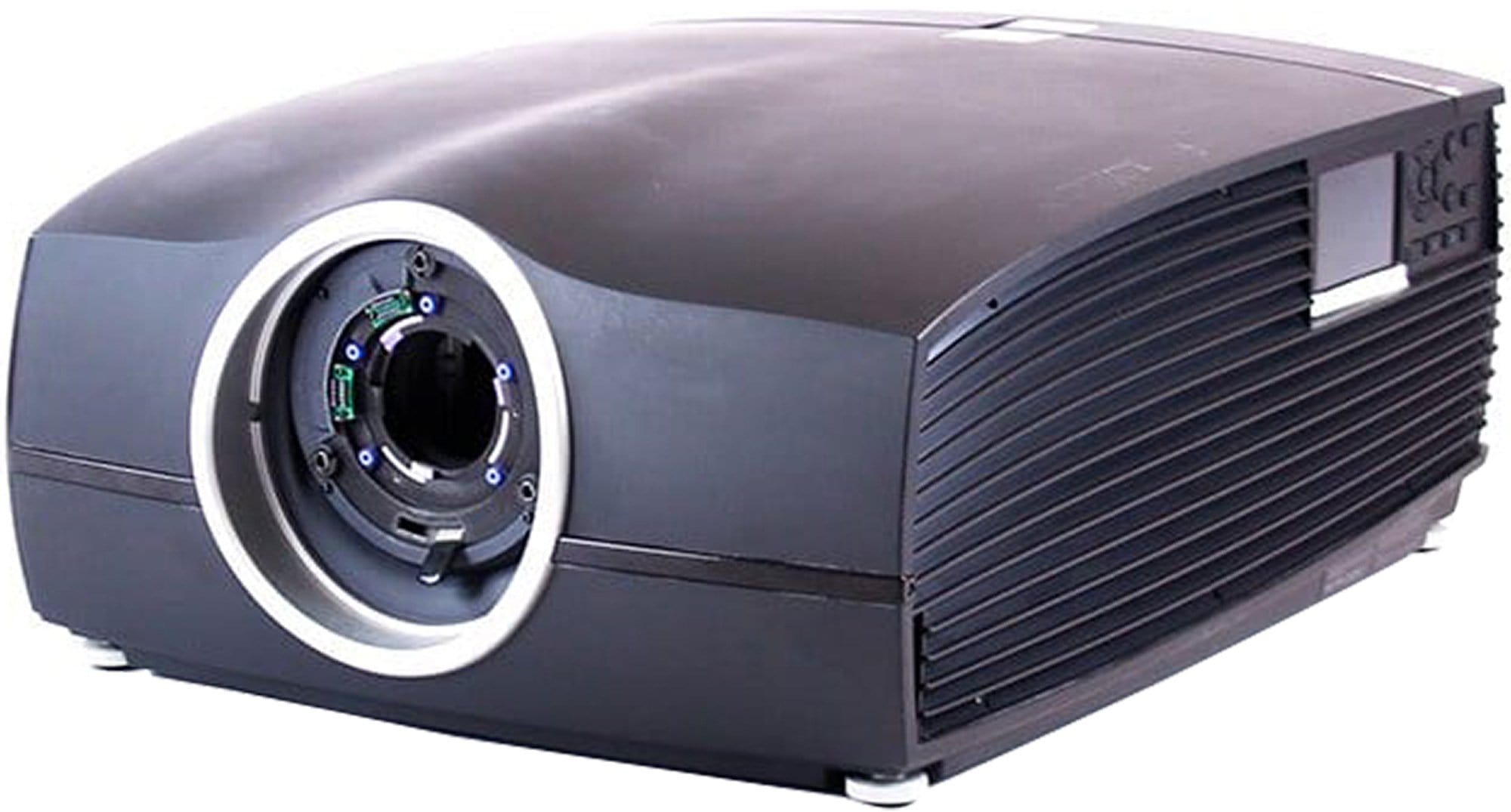

Barco F90-4K13 Ultra-High-Definition 4K DLP Video Projector

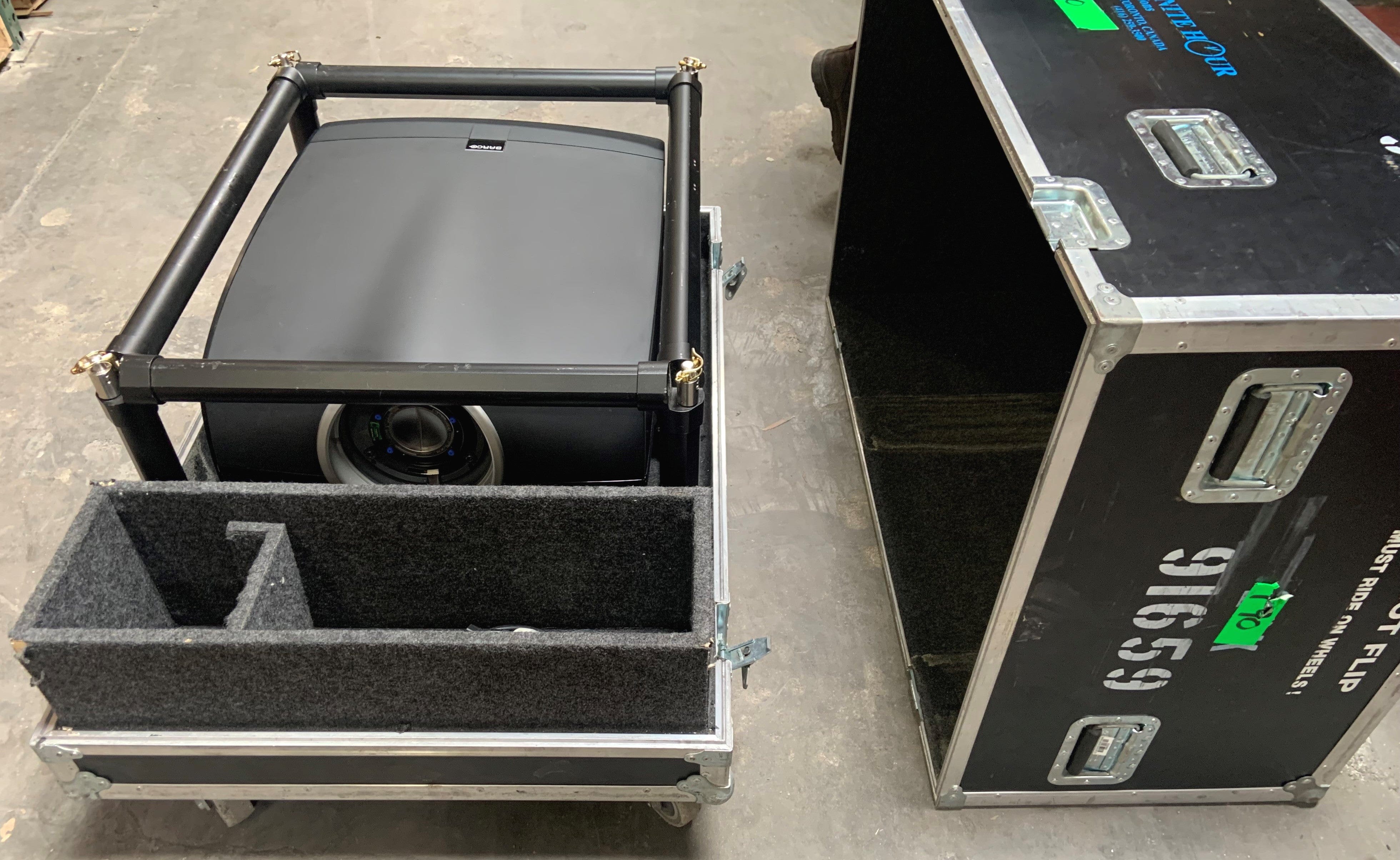

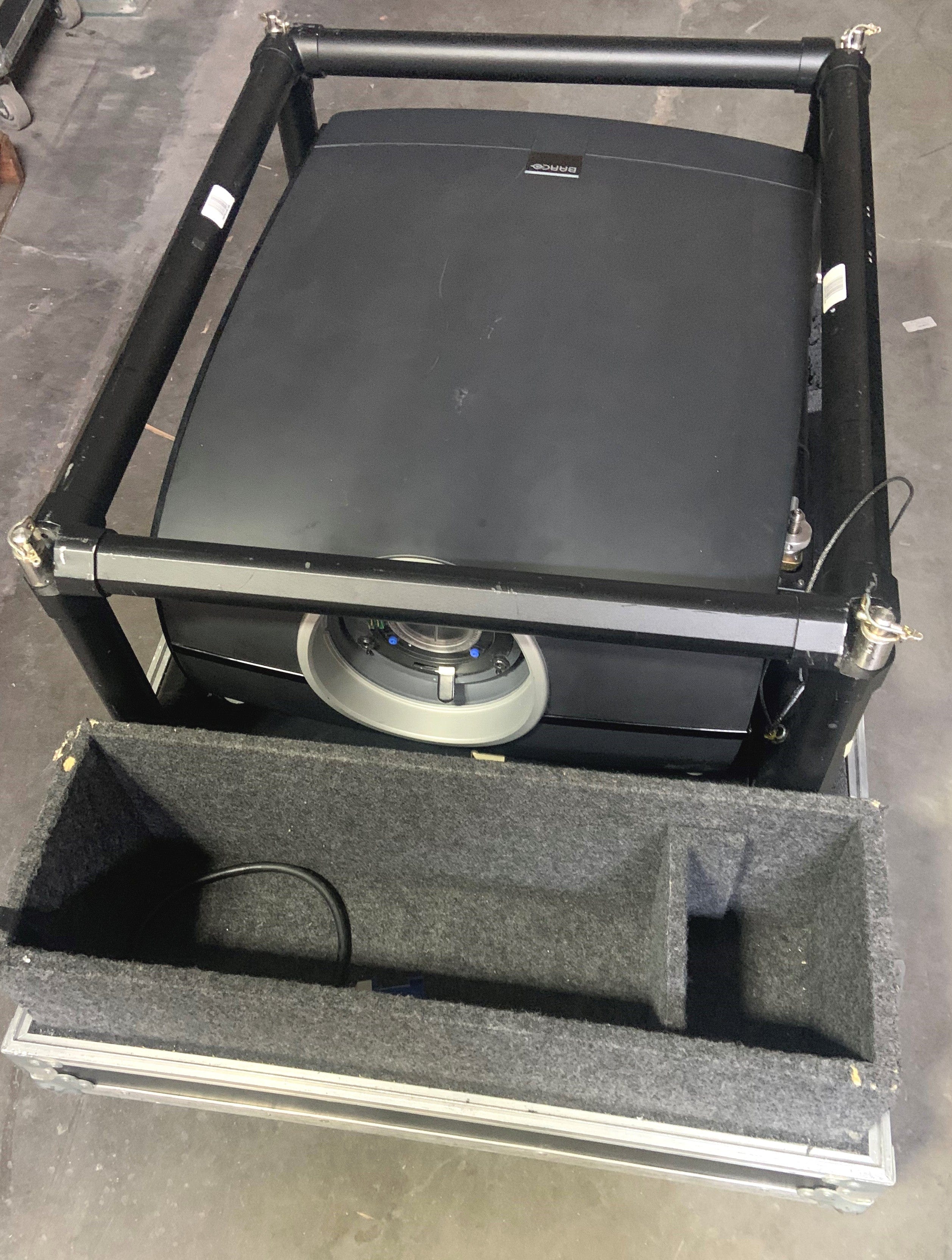

Road Case and mounting frame included, No Remote included. Lens Available, not included.
Get ready to transform your viewing experience with the Barco F90-4K13 projector! With its stunning image quality and laser phosphor light source, you can deliver exceptional experiences while saving time and money.
Superior image quality - Enjoy razor-sharp 4K UHD resolution images with high detail and vibrant colors that meet the Rec. 709 color space. An advanced optical design ensures a constant light output for worry-free operation.
Unprecedented business value - Increase uptime and drive down costs with the F90-4K13's laser-phosphor light source and advanced cooling design. It offers up to 40,000 hours of operation without lamp changes, saving on maintenance and consumables.
Ultimate installation flexibility - This projector can be installed in any orientation, giving you more freedom in placement. With a wide range of high-resolution lenses, it can accommodate almost any configuration.
Specifications:
- Projector type: Single chip DLP laser phosphor projector
- Resolution: 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native)
- Brightness:
- 11,700 center lumens*
- 10,500 ANSI lumens*
- 11,800 ISO lumens*
- Contrast ratio: 1,800:1 sequential, 10,000:1 dynamic*
- Brightness uniformity: 90%
- Aspect ratio: 16:10
- Lens type: FLD+
- Optical lens shift:
- Vertical up to 146%, depending on lens
- Horizontal up to 70%, depending on lens
- Motorized zoom and focus (+ lens memory FLDX lenses)
- Motorized lens shift (with position memory on all lenses)
- Color correction: P7 RealColor
- CLO (constant light output): Yes**
- Light source: Laser phosphor
- Light source lifetime: Up to 60,000 hours, depending on mode of operation
- Sealed DLP core: Yes
- Orientation:360° rotation, no restrictions
- 3D: Active stereoscopic 3D
- Image processing: Embedded warp & blend engine
- Keystone correction: Yes

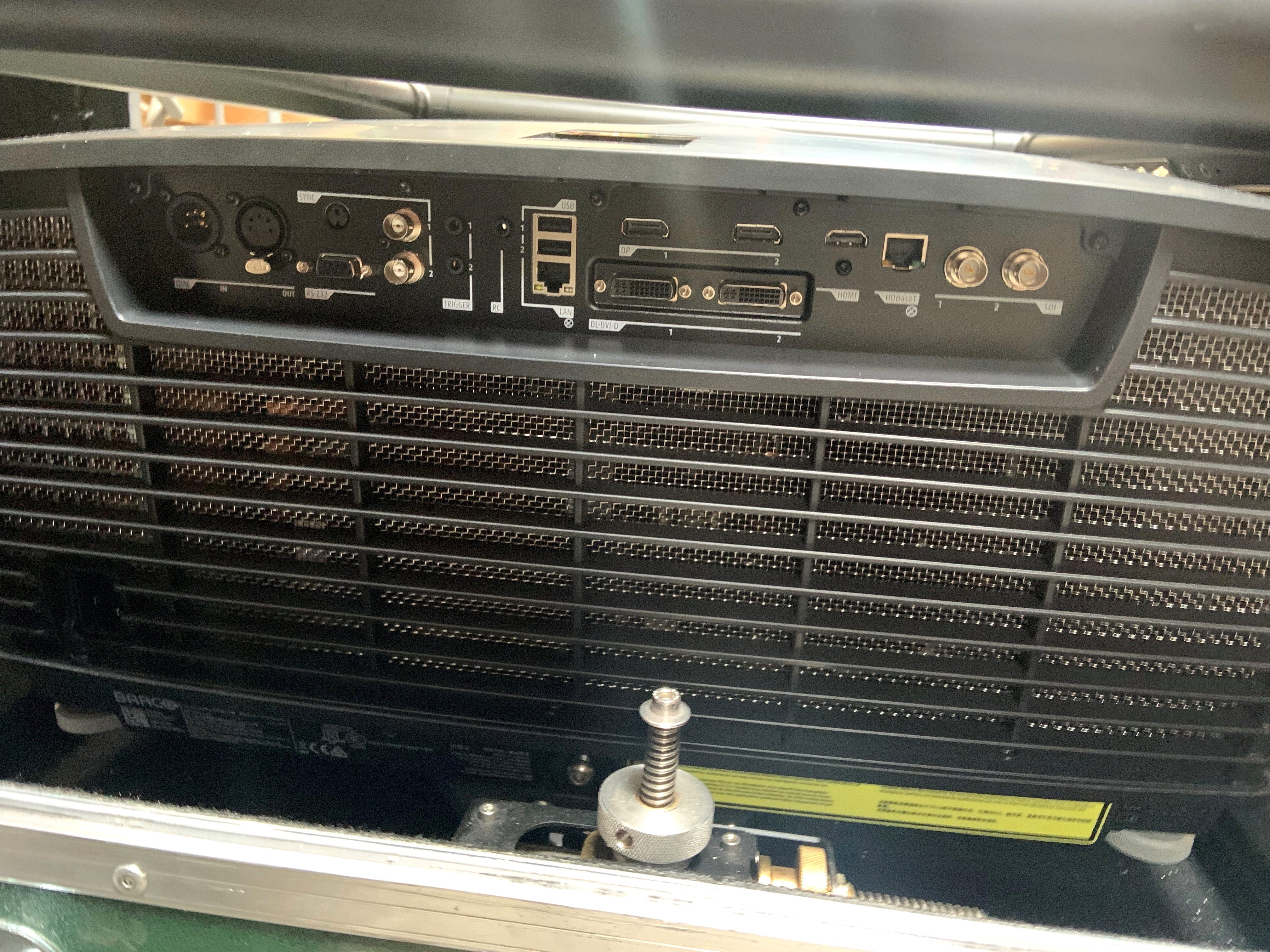

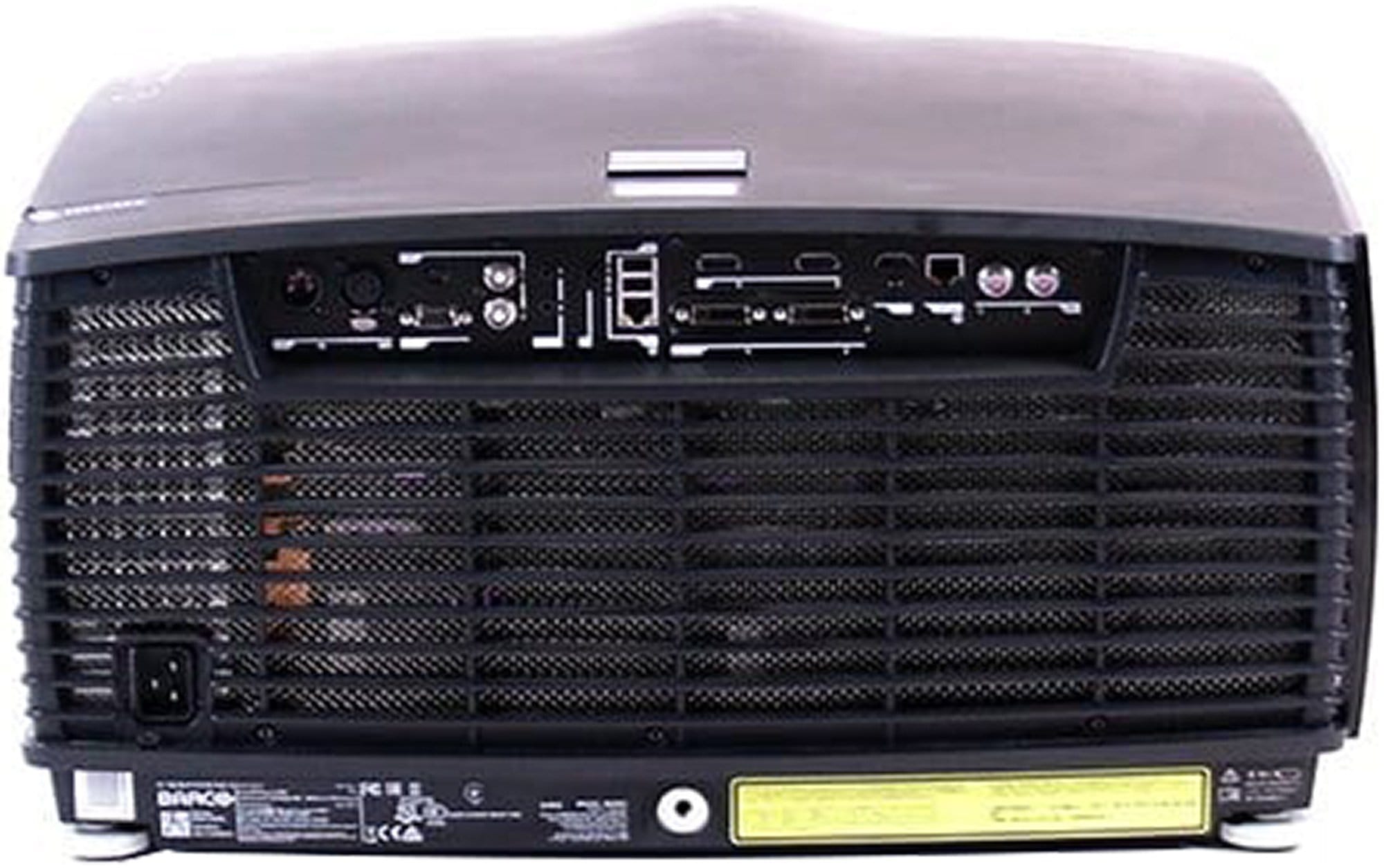

- Inputs: HDSDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI2.0 (HDCP2.2, HDR10), RJ 45 Ethernet, DMX in/out***, RS232 in, 2x USB, 12v out
- Input resolutions:
- Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz
- refresh rates: 24Hz to 120Hz for WQXGA (2560x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
- Software tools: Projector Toolset
- Control: IR, RS232, RJ45, XLR wired
- Network connection: 10/100 Ethernet, RJ45
- Power requirements: 110-240V / 50-60Hz
- Power consumption: 1500 W nominal, 2180 W maximum
- BTU per hour: 5100 BTU/h nominal, 7430 BTU/h maximum
- Standby power: .5W
- Noise level (typical at 25°C/77°F): 38 dB(A)
- Operating temperature: 10 - 45 °C (sea level)
- Storage temperature: -20 to 60 °C
- Operating humidity: 20 - 80% RH
- Storage humidity: 10 - 90% RH
- Dimensions (WxLxH): 575 x 730 x 295 mm / 22.64 x 28.74 x 11.61 in
- Weight: 44.5 kg / 98.1 lbs
- Standard accessories: Power cord (CEE Form)
- Certifications: CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, KCC, RCM, UkrSEPRO
- 24-7 documentation: This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.
- Notes
- * When measured with the FLD+ 1.7-2.5:1 (R9801216) on-axis and in Wide Angle position
- ** SW upgradable. Please contact an authorized Barco representative for details.
- *** When used in long-life mode, available through SW upgrade
The Barco F90-4K13 projector is perfect for a variety of settings. It's great for high-demand visitor attractions, simulation applications, events, retail, advertising, boardrooms, and auditoriums. It's also ideal for theme park dark rides and interactive experiences. This projector has a resolution of 3,840 x 2,400 (4K UHD) or 2,560 x 1,600 (WQXGA native). It weighs 44.5 kg (98.1 lbs) and has dimensions of 575 x 730 x 295 mm (22.64 x 28.74 x 11.61 in). It comes with a road case and mounting frame, but no remote. A lens is available separately.
