Audio-Technica NET 3000 HH System LESS CAP 470-530

Audio-Technica NET 3000 HH SYS LESS CAP 470-530 (No Capsule)

Discover the 3000 Series network-enabled systems, offering the same features and configurations as the standard systems, along with network monitoring and control via Audio-Technica's Wireless Manager software. Each network-enabled receiver comes with an AT8631 joining plate.

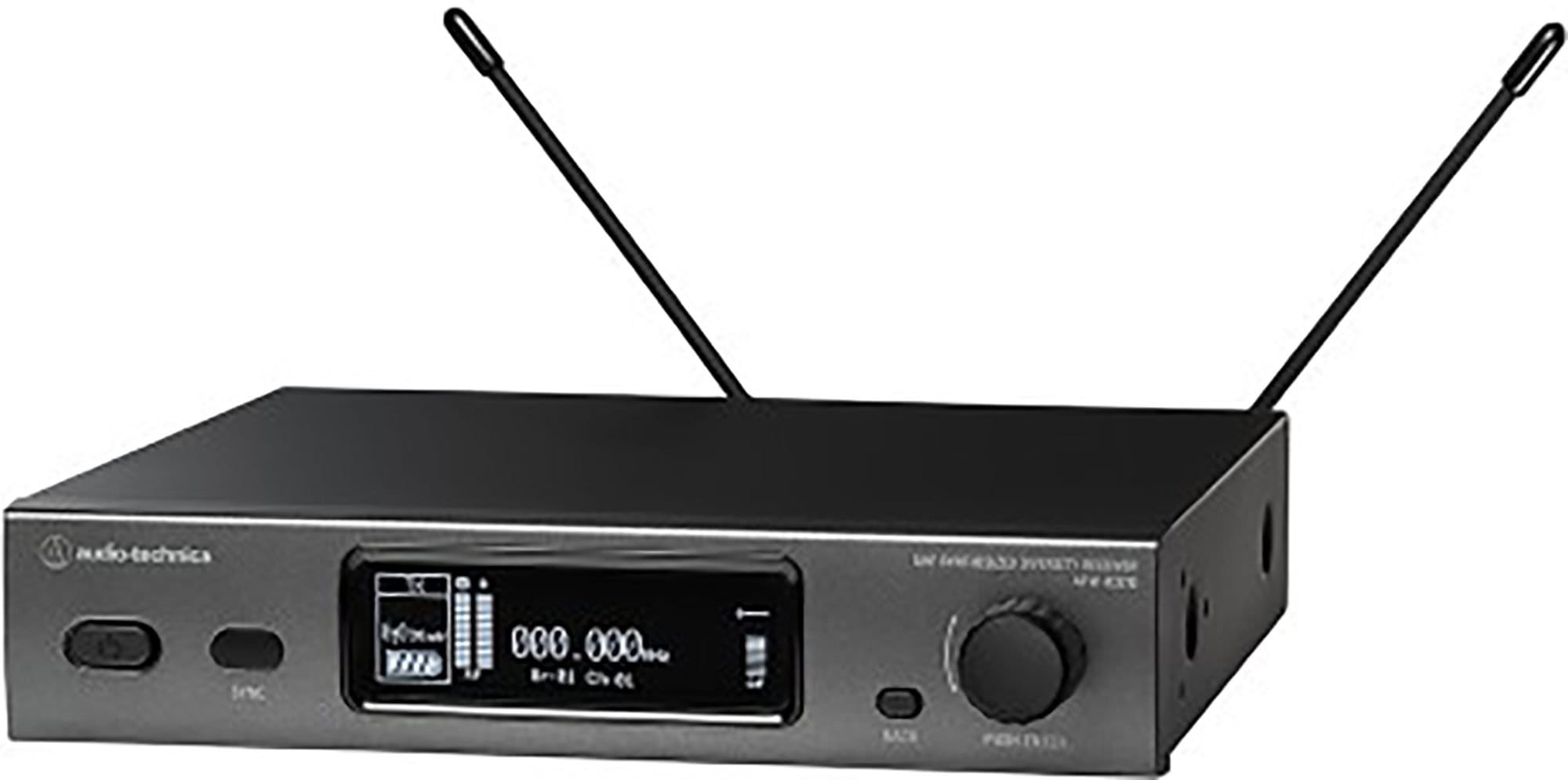

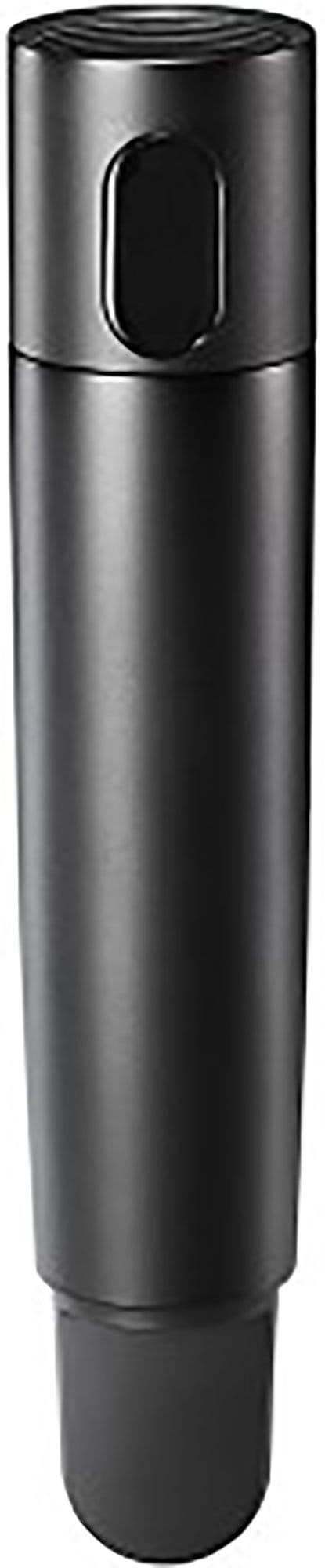

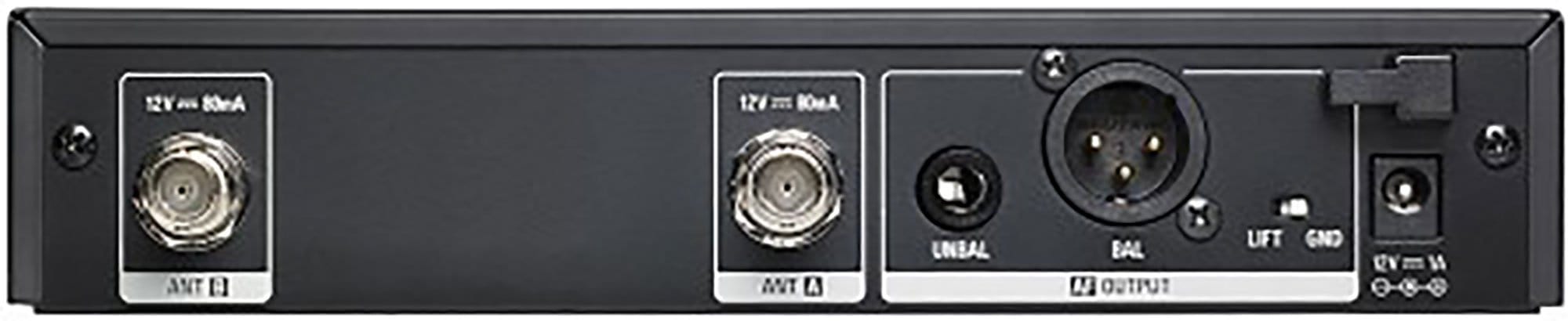

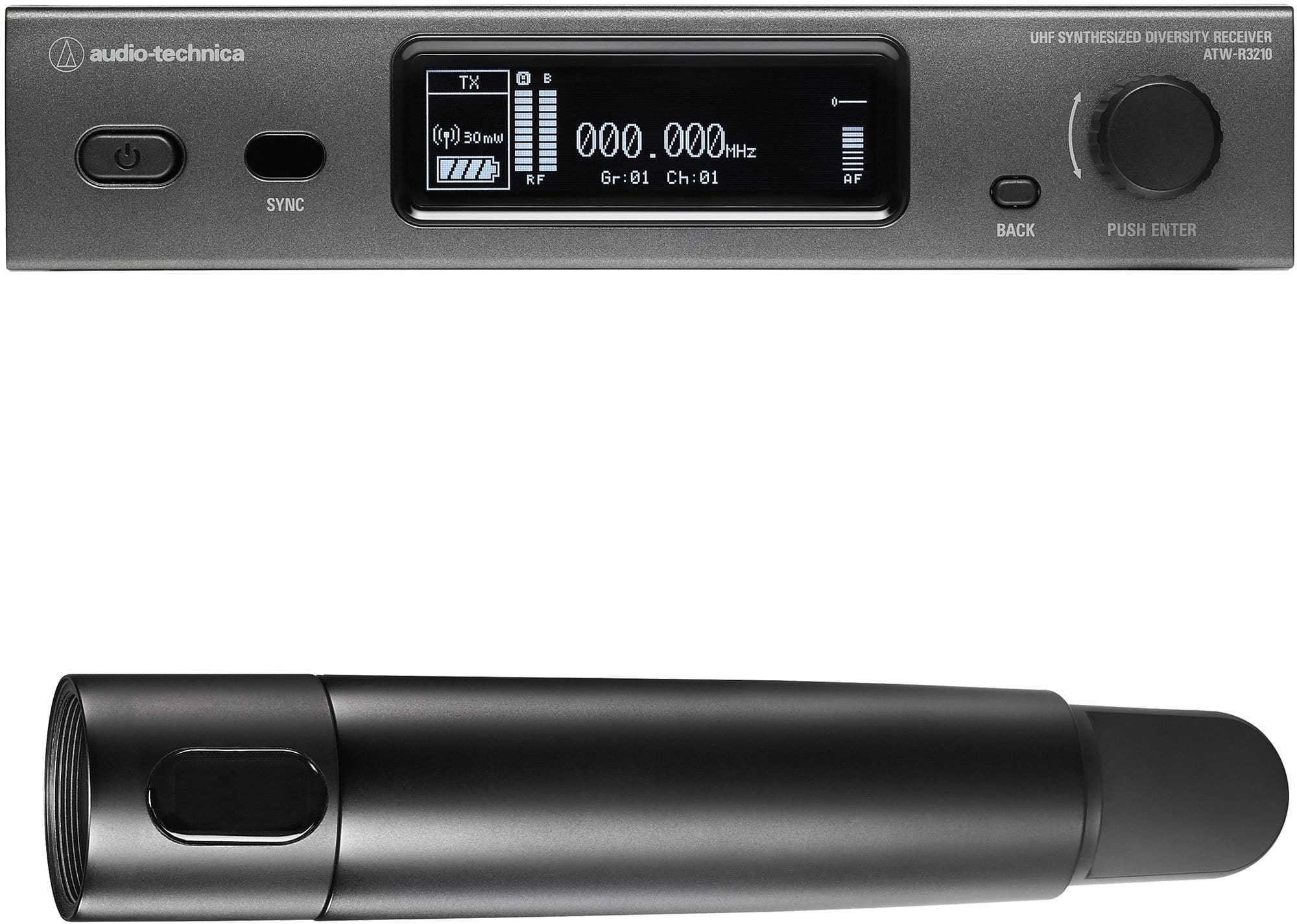

Includes the ATW-R3210N network-enabled receiver and ATW-T3202 handheld transmitter (handle only, capsule sold separately).

Features:

• • Wide 60 MHz UHF tuning bandwidth for maximum versatility in a crowded RF environment. Available in DE2 (470–530 MHz) and EE1 (530–590 MHz).
  • Unique multifunction button on transmitters to switch to backup frequency in case of interference.
  • Network-enabled system with ATW-R3210N receiver for network monitoring and control via Wireless Manager software.

Benefits:

• • True Diversity operation reduces dropouts, ensuring clear audio transmission.
  • Auto Squelch feature maximizes range and minimizes interference for seamless communication.

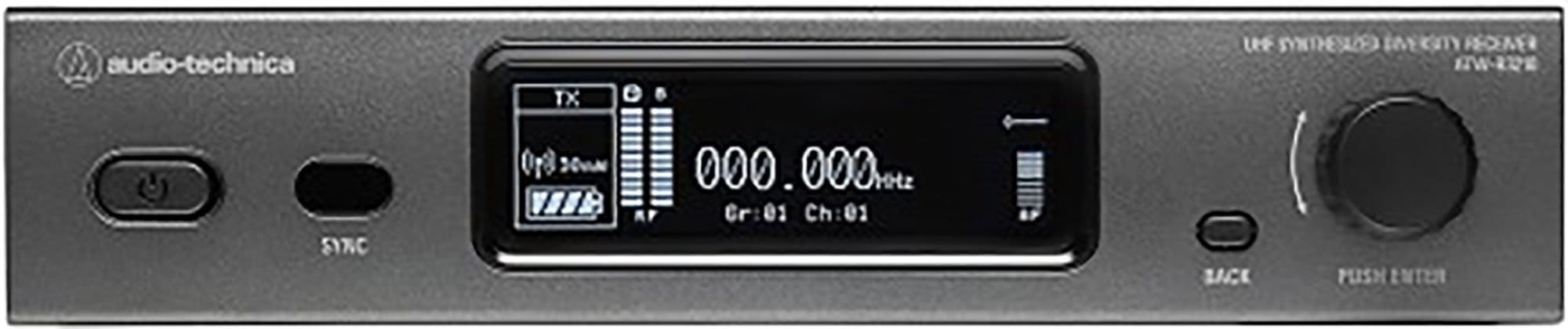

  • OLED screens on transmitters and receivers provide optimal readout of key settings and alerts.

Specifications:

• Operating Frequencies: Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
  • Minimum Frequency Step: 25 kHz
  • Modulation Mode: FM
  • Maximum Deviation:
  • ATW-T3201: ±38 kHz (THD:10%)
  • ATW-T3202: ±36 kHz (THD:10%)

  • Dynamic Range:
  • ATW-T3201 Mic input: > 115 dB (A-weighted), typical
  • ATW-T3201 Inst input: > 112dB (A-weighted), typical
  • ATW-T3202: > 115 dB (A-weighted), typical

  • Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
  • Operating Range: 100 m (328') in open range environment with no interfering signals.
  • Operating Temperature Range: -5° C to +45° C (23° F to 113° F)

This Audio-Technica system is perfect for professionals in live events, presentations, and broadcasts. It offers a wide 60 MHz UHF tuning bandwidth, ensuring maximum versatility in a crowded RF environment. With features like true diversity operation and auto squelch, it provides clear audio transmission and seamless communication. The OLED screens on transmitters and receivers offer optimal readout of key settings and alerts. The system includes the ATW-R3210N network-enabled receiver and ATW-T3202 handheld transmitter (handle only, capsule sold separately). Operating frequencies are in Band DE2 (470.125 to 529.975 MHz). It has a minimum frequency step of 25 kHz, modulation mode of FM, and specific maximum deviation, dynamic range, and total harmonic distortion values. The operating range is 100 m in an open range environment with no interfering signals, and the operating temperature range is -5° C to +45° C.
