Sennheiser ew 500 G4-935 Wireless Vocal Mic AW+
Get ready to rock the stage with this amazing wireless vocal mic! It features a true naversity half-rack receiver in a full-metal housing, along with an intuitive OLED display for complete control.
Why choose this mic? • It's the pro's choice, trusted by renowned sound engineers for its flexibility, especially in multi-channel settings on global music stages. • With up to 88 MHz bandwidth and up to 32 channels, it offers great connectivity. • The Ethernet connection for Wireless Systems Manager (WSM) control software enables advanced frequency coordination in multi-channel setups.
This is the pinnacle of the evolution series, powered by Sennheiser's renowned e 900 capsules like e 935, e 945, and e 965 on a lightweight black aluminum handheld transmitter, perfect for taking on the world's biggest live stages.

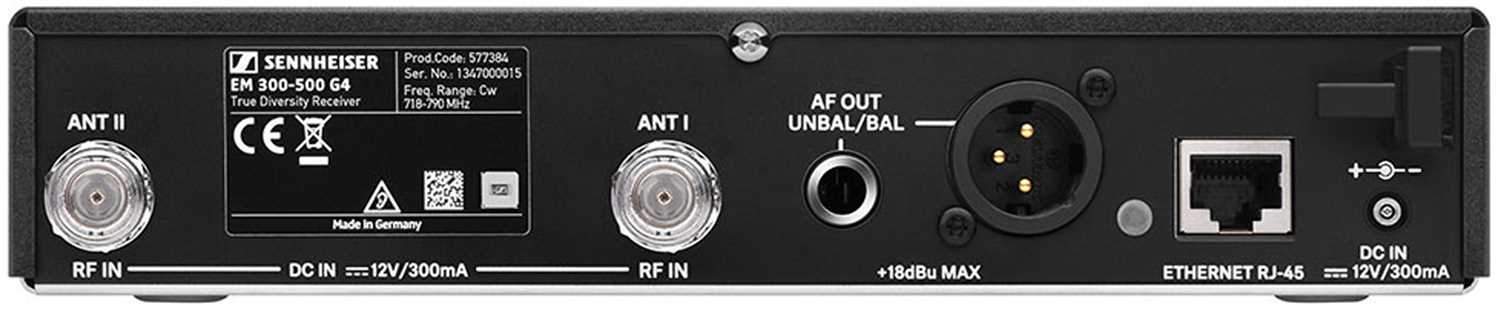

What's in the box:- EM 300-500 G4 true naversity receiver

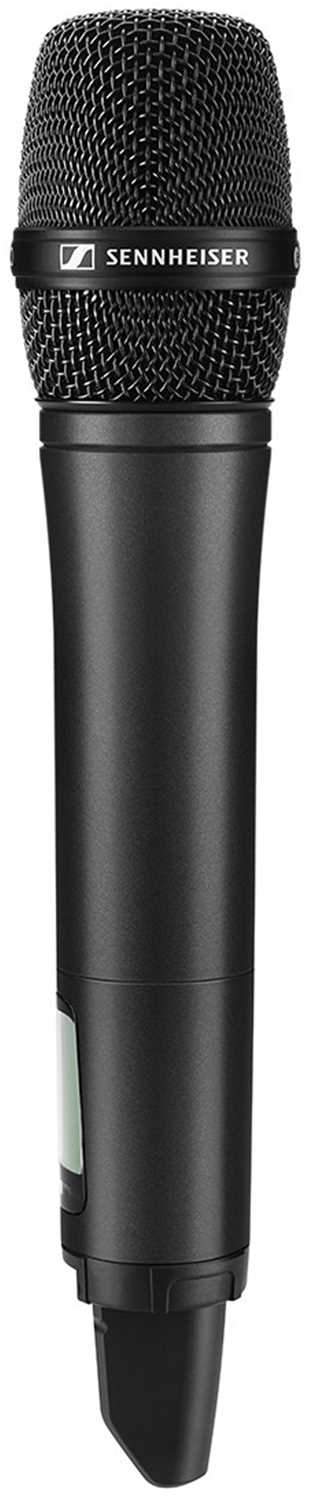

- SKM 500 G4 handheld transmitter
- MMD 935-1 microphone head (only 935 variants)
- MZQ 1 microphone clamp
- 2 AA batteries
- power supply
- GA 3 rackmount set
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet
Features:

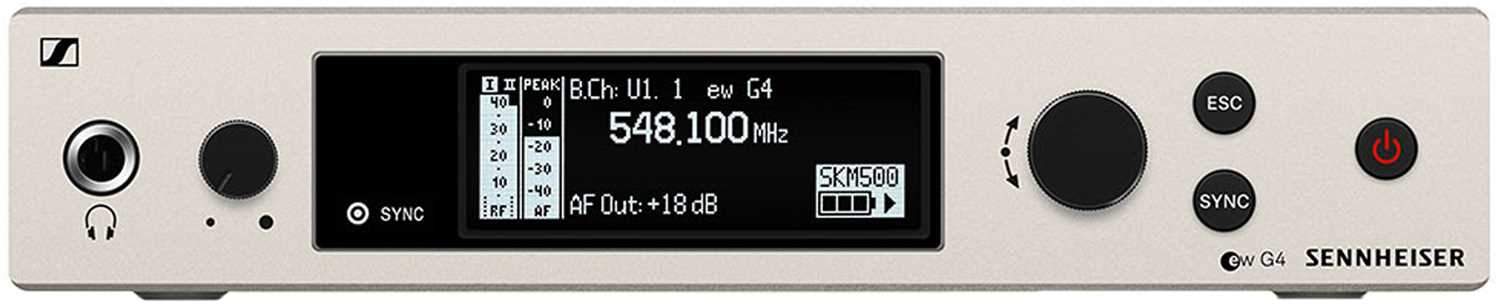

- True naversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Specifications:
- Frequency range: 470 - 558 MHz
- Dimensions: Approx. 202 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: Approx. 980 g
- Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: 115 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 350 mA
- Adjacent channel rejection: Typically 75 dB
- Intermodulation attenuation: Typically 70 dB
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: < 2.5 V for 52 dBA eff S/N
- Squelch: 5 to 25 dB V in steps of 2 dB
- Equalizer
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: True naversity
- Blocking: 75 dB
SKM 500 G4
- Dimensions: Approx. 50 x 265 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 450 g
- Signal-to-noise ratio: 115 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 μA
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±15 ppm
MMD 935-1
- Sound pressure level (SPL): 154 dB SPL
- Transducer principle: dynamic
- Pick-up pattern: cardioid
- Sensitivity: 2.5 mV/Pa
This Sennheiser ew 500 G4-935 Evolution Wireless G4 Vocal Mic is perfect for live stage performances. It's designed for professional sound engineers and musicians who want top-notch audio quality on stage. The receiver is in a full-metal housing with an intuitive OLED display. The handheld transmitter is lightweight black aluminum. The overall dimensions of the receiver are approximately 202 x 212 x 43 mm and it weighs around 980 g. The handheld transmitter is about 50 x 265 mm and weighs approximately 450 g (including batteries). It offers great features like up to 32 compatible channels, up to 88 MHz bandwidth, and advanced frequency coordination via Ethernet for multi-channel setups.
