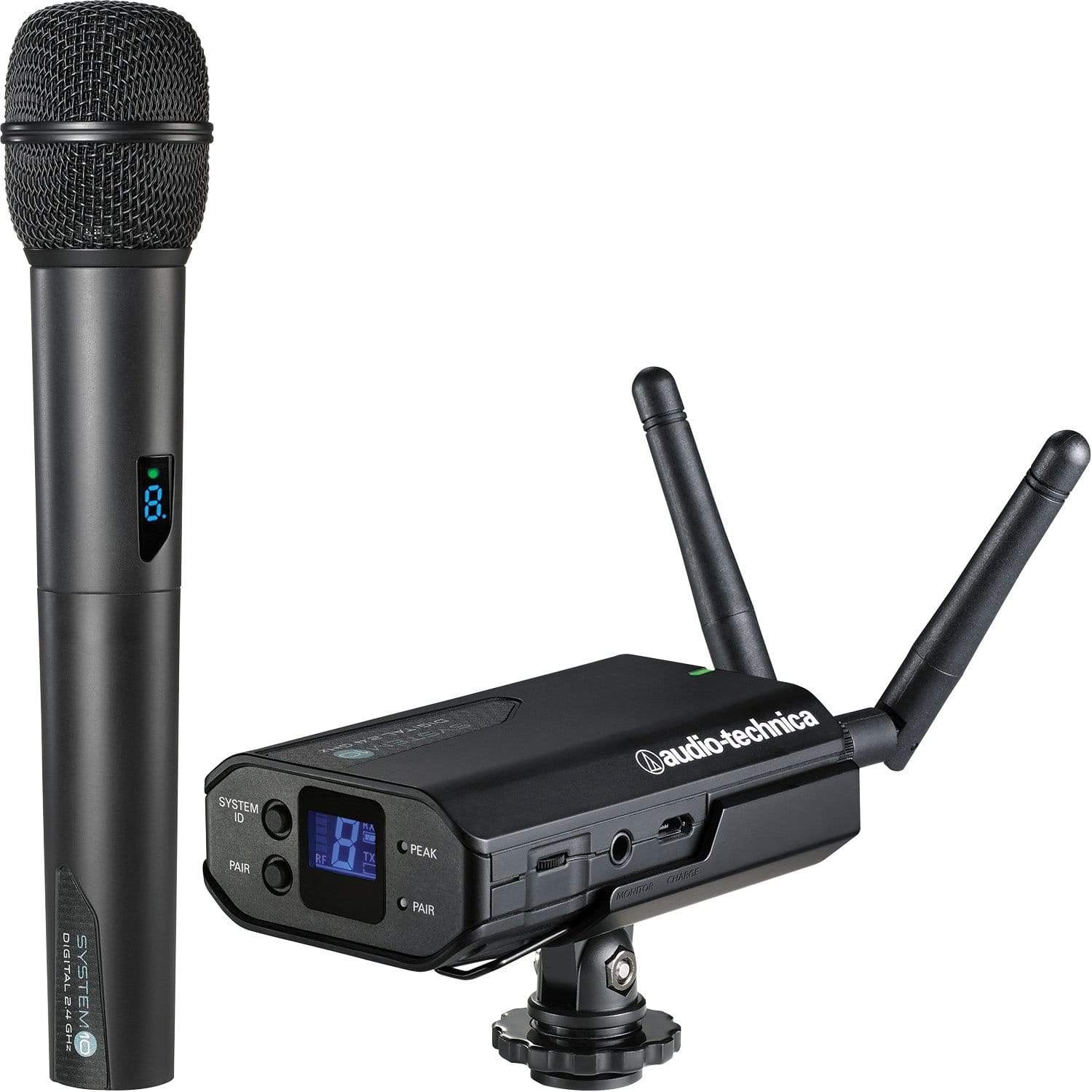

Audio Technica System 10 Wireless Mount Set with Hand-Held Mic
This system includes the Audio Technica ATW-R1700 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex stand clamp.
Get ready to capture high-quality audio on the go with the Audio Technica System 10 Wireless Mount Set! Ideal for video production, electronic news gathering (ENG), and all mobile applications, this compact and portable system is designed to meet your needs.
With its multiple mounting options, the receiver can be easily attached to a variety of cameras and recording devices. The System 10 Camera-Mount high-fidelity digital wireless system offers three levels of naversity assurance: frequency, time, and space, ensuring seamless and interference-free operation.
Key Features:
- • Digital 24-bit/48 kHz wireless operation for crystal-clear sound
- • Operates in the 2.4 GHz range, free from TV interference
- • Ultra compact receiver with multiple mounting options
System Specifications:
- Operating frequencies: 2.4 GHz ISM band
- Dynamic range: >109 dB (A-weighted), typical
- Total harmonic distortion: <0.05% typical
- Operating range: 100' / 30m radius, 200' / 60m diameter typical
- Open range environment with no interfering signals
- Operating temperature range: 0°C to +40°C / 32°F to 104°F
- Battery performance may be reduced at very low temperatures
- Frequency response: 20Hz to 20kHz, depending on microphone type
- Audio sampling: 24 bits / 48 kHz

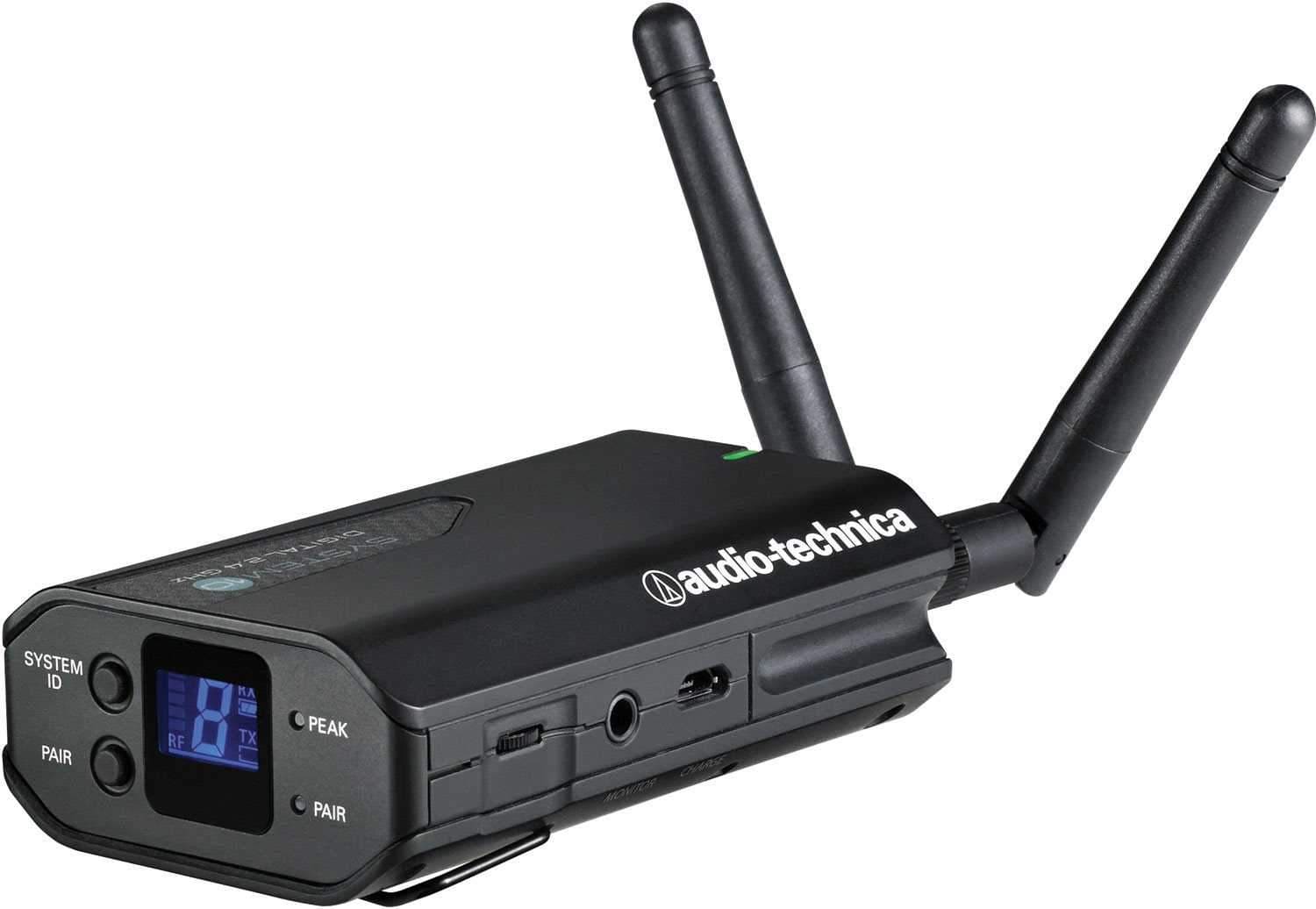

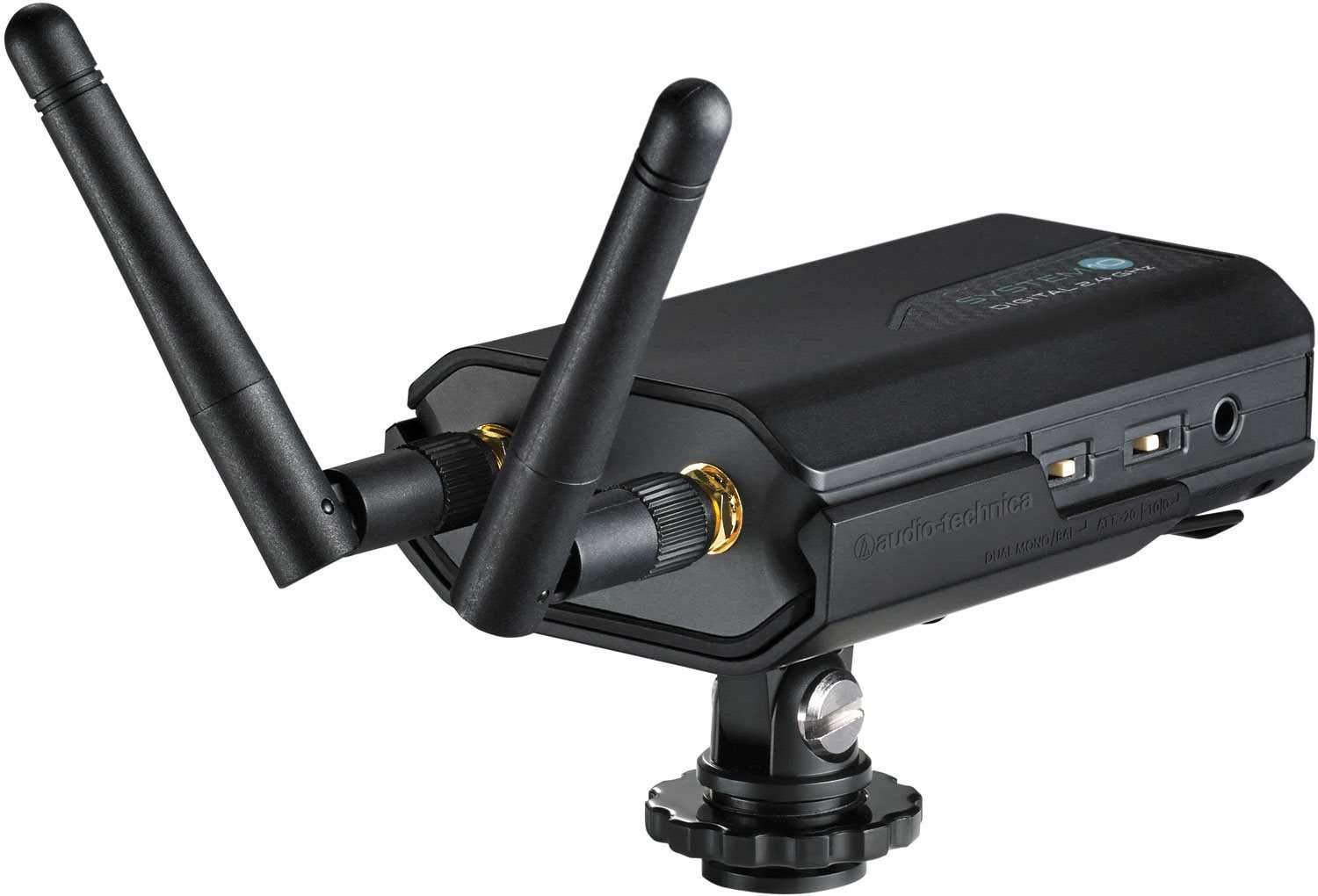

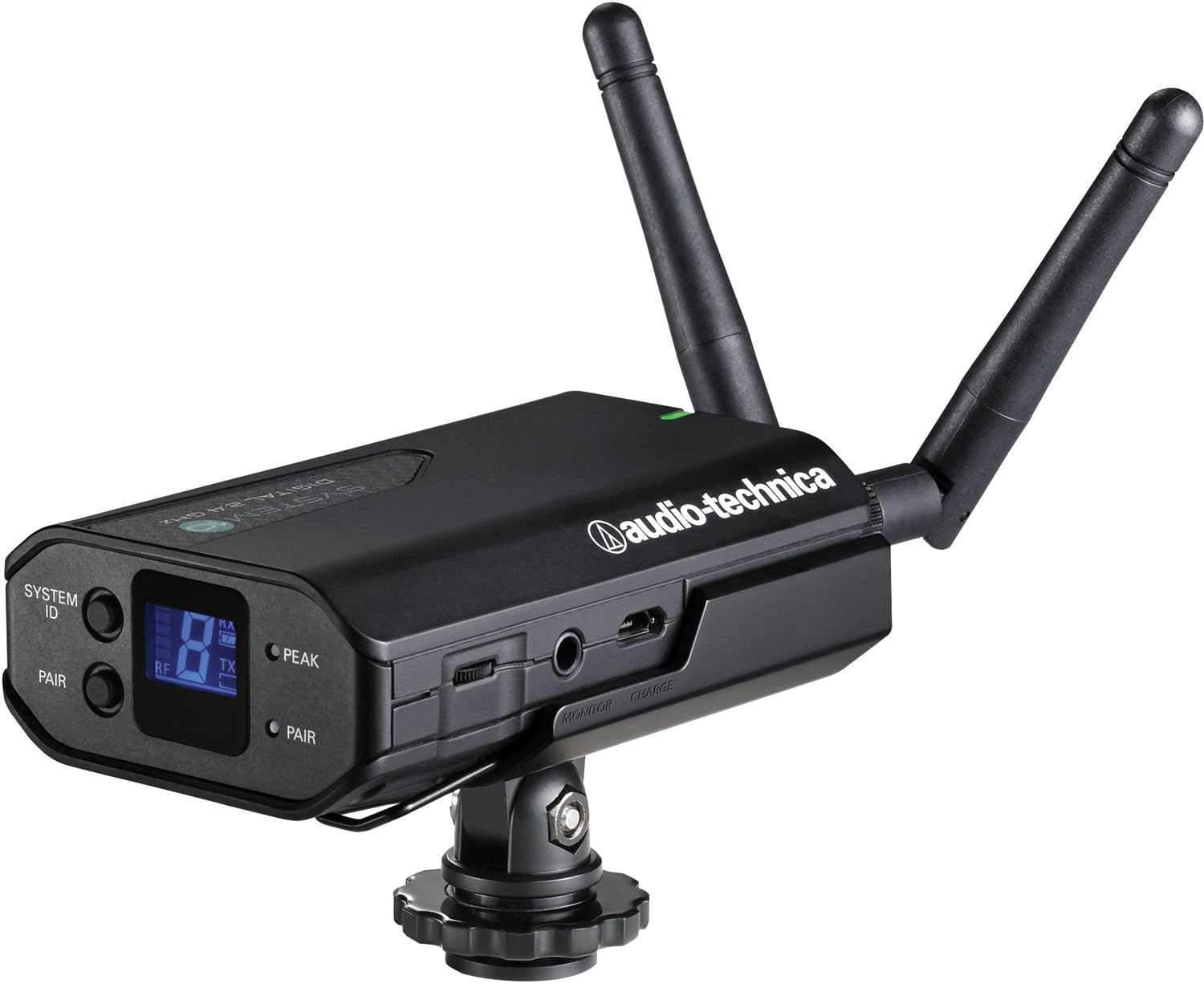

Receiver Specifications:
- Receiving system: naversity (frequency/time/space)
- Maximum output level: 3.5 mm (1/8'), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
- Power supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
- Batteryinternal battery: 3.7V rechargeable Li-ion battery
- Battery rating: 5.5 Wh 1,460 mAh
- Battery life: 12 hours, depending on environmental conditions
- Battery charging time: 4 hours 30 minutes, depending on environmental conditions
- Charging temperature range: 5°C to +35°C / 41°F to 95°F
- Dimensions: 2.20' x 3.60' x 1.09' / 56mm x 91.4mm x 27.8mm (W x H x D)
- Net weight:105 grams / 3.7 oz
- Accessories included: (2) antennas, camera shoe mount, AC adapter (USB-type), USB cable, 3.5mm (1/8') stereo cable

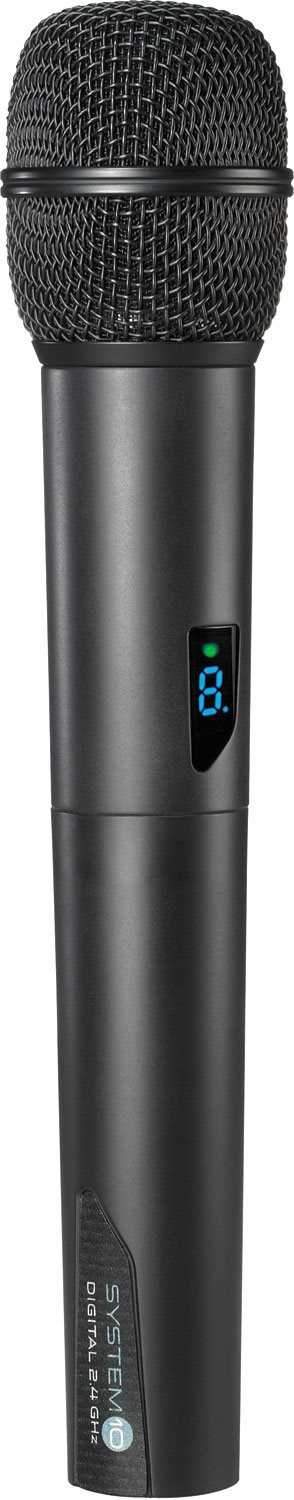

Handheld Transmitter Specifications:
- RF power output: 10 mW
- Spurious emissions: Following federal and national regulations
- Batteries: (2) 1.5V AA (not included)
- Battery life: >7 hours (alkaline) Depending on battery type and use pattern
- Dimensions: 10.03' x 1.97' (L x D)
- Net weight: 280 grams (9.9 oz) without batteries
- Accessory included: AT8456a quiet-flex stand clamp
The Audio Technica ATW-1702 System 10 Wireless Mount Set with Handheld Mic is perfect for content creators on the move. Whether you're shooting videos for YouTube, covering breaking news for a local station, or recording a podcast, this system has you covered. It features a compact and portable design, making it easy to take with you wherever you go. The receiver has multiple mounting options, allowing you to attach it to a variety of cameras and recording devices. The system also offers three levels of naversity assurance, ensuring seamless and interference-free operation. With a 2.4 GHz operating frequency, you won't have to worry about TV interference. The receiver is 2.20' x 3.60' x 1.09' (56mm x 91.4mm x 27.8mm) (W x H x D) and weighs 105 grams (3.7 oz). It comes with (2) antennas, a camera shoe mount, an AC adapter (USB-type), a USB cable, and a 3.5mm (1/8') stereo cable. The handheld transmitter is 10.03' x 1.97' (L x D) and weighs 280 grams (9.9 oz) without batteries. It includes an AT8456a quiet-flex stand clamp and requires (2) 1.5V AA batteries (not included).
