Audio Technica ATW1101G Wireless Instrument System
Audio-Technica's System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.
System 10 wireless ensures clear communications by providing three levels of naversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

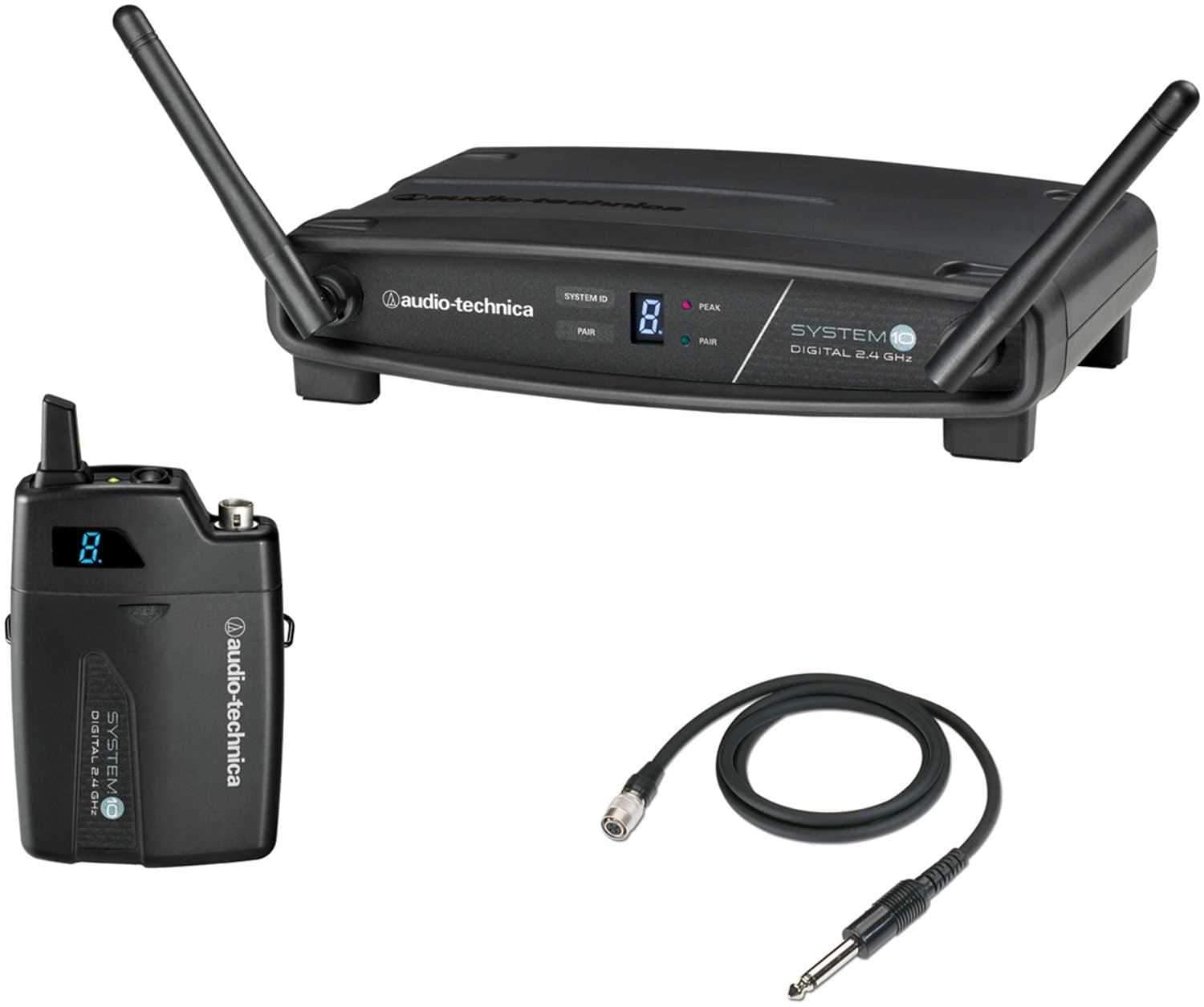

Includes ATW-R1100 receiver and ATW-T1001 UniPak transmitter with AT-GcW guitar/instrument input cable.
Features: - • Digital 24-bit/48 kHz wireless operation for crystal-clear sound quality and reliable performance
- • 2.4 GHz range - free from TV interference, ensuring seamless performance
- • Three levels of diversity assurance: frequency, time, & space for ultimate signal integrity
- • Automatic frequency selection for interference-free operation
- • Easy operation with instant channel selection, sync, and set-up
- • State-of-the-art digital receiver for dependable performance
- • Balanced XLR and unbalanced 1/4' output jacks with level control
Specifications: - Operating Frequencies: 2.4 GHz ISM band
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Range: 30 m (100') typical (Open range environment with no interfering signals)
- Operating Temperature Range: 0° C to +40° C (32° F to 104° F) (Battery performance may be reduced at very low temperatures)
- Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)
This Audio Technica ATW1101G Digital Wireless Instrument System is perfect for musicians and presenters. It operates in the 2.4 GHz range, away from TV interference. With features like digital 24-bit/48 kHz wireless operation, three levels of diversity assurance, and automatic frequency selection, it offers clear sound and easy operation. The system includes the ATW-R1100 receiver and ATW-T1001 UniPak transmitter with an AT-GcW guitar/instrument input cable. Operating frequencies are in the 2.4 GHz ISM band. Dynamic range is >109 dB (A-weighted), typical. Total harmonic distortion is <0.05% typical. Operating range is 30 m (100') typical in an open range environment with no interfering signals. Operating temperature range is 0° C to +40° C (32° F to 104° F). Frequency response is 20 Hz to 20 kHz (depending on microphone type).
