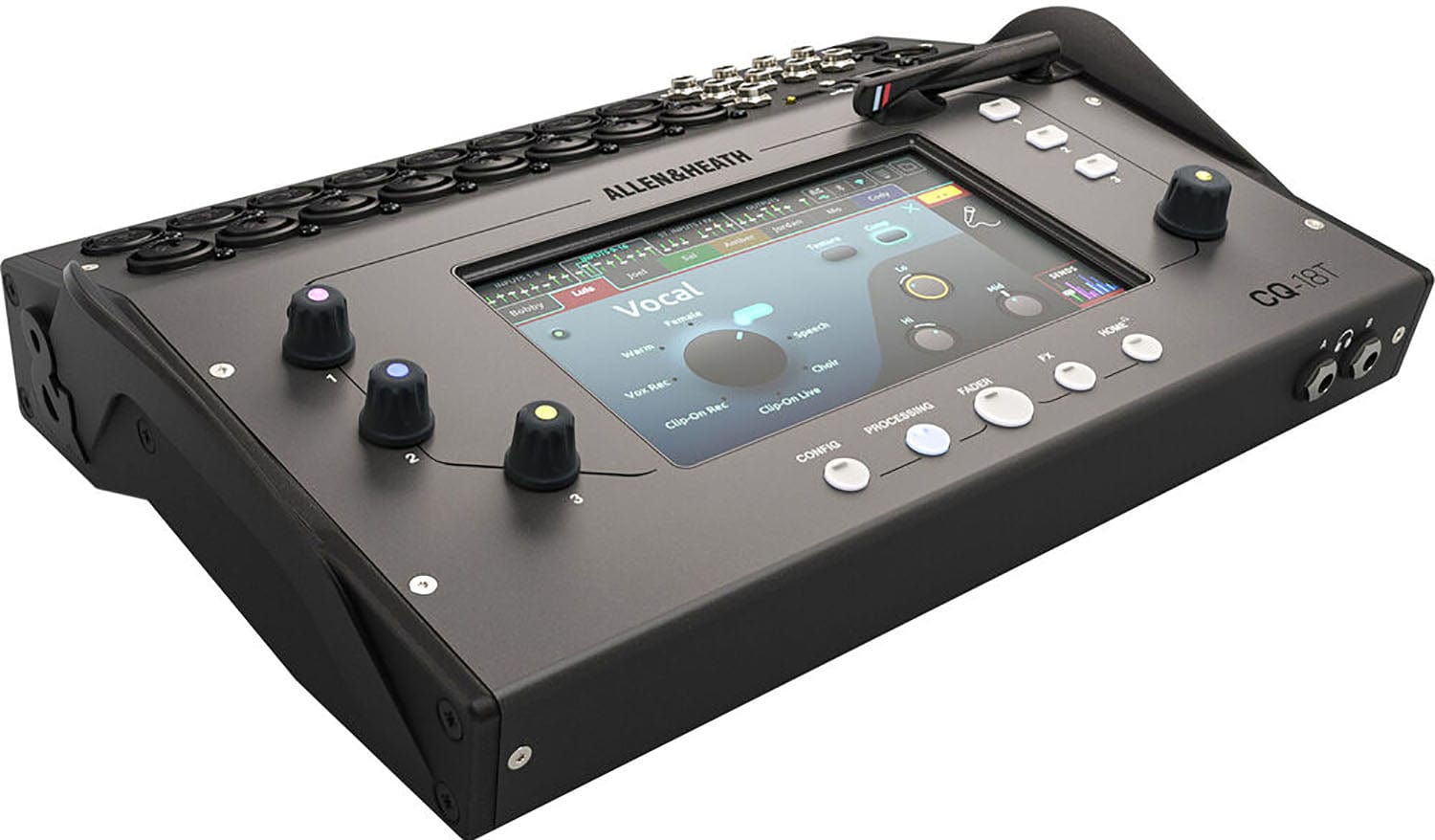

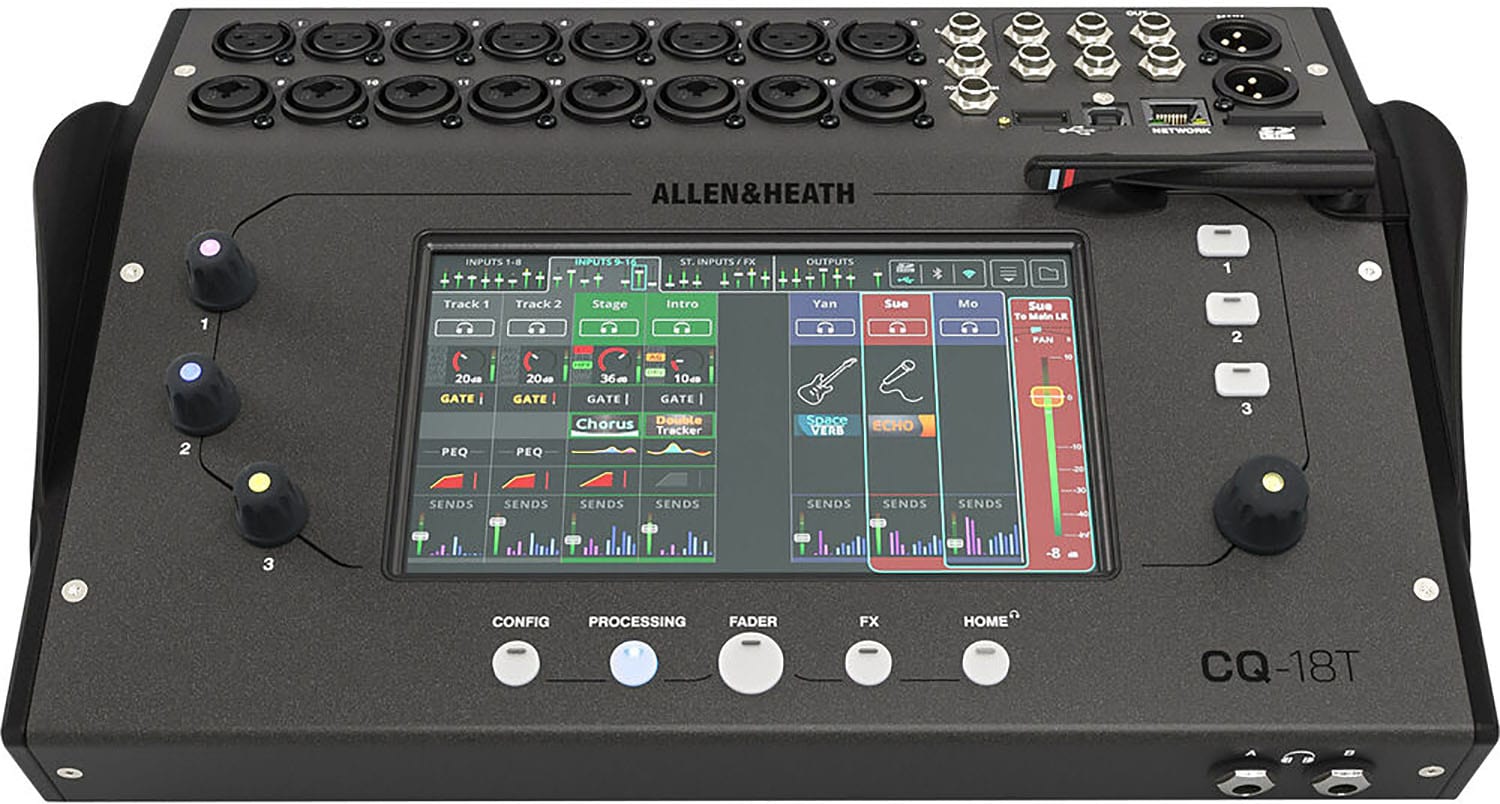

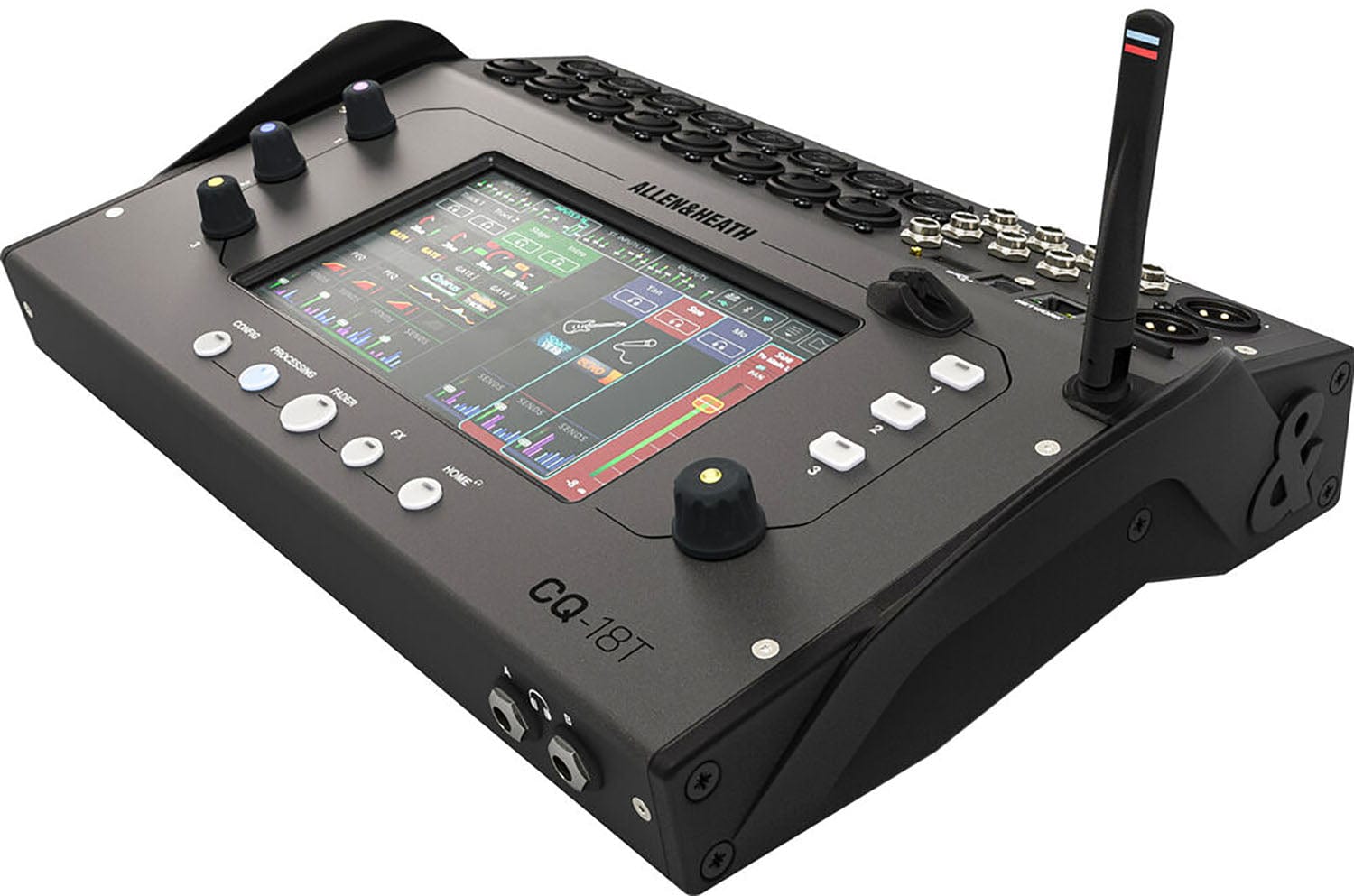

Allen & Heath CQ-18T Compact Digital Mixer

Allen & Heath CQ-18T: The Ultimate Compact Digital Mixer

Meet the CQ-18T, an ultra-compact digital audio mixer that offers unparalleled flexibility. Whether you're a professional sound engineer or a budding musician, this mixer is designed to meet your needs.

Key Features:

• • 19 Inputs for Versatile Mixing
• • Built-in WiFi and Network Connectivity
• • 96kHz Processing for High-Quality Audio

The CQ-18T packs a punch with its extensive range of features. With 19 inputs, including 16 mono/linkable and 3 stereo inputs, you can mix multiple audio sources with ease. The built-in WiFi and network connectivity allow for remote operation, giving you the freedom to control your mixer from anywhere. And with 96kHz processing, you can enjoy high-quality audio playback and recording.

Specifications:

• Inputs:
  • Mic/Line Inputs: Balanced XLR, Balanced XLR/TRS Combi, fully recallable preamp
    • Phantom Power: +48V (+3V / -2V)
    • Input Sensitivity: -60 to +0dBu
    • Line Inputs (Combi Sockets): -20dB Pad (Fixed)
    • Analogue Gain: 0dB to +60dB, 1dB steps
    • Maximum Input Level: +17dBu (XLR), +30dBu (TRS)
    • Input Impedance: >1.5kΩ (XLR), >10kΩ (TRS)
    • THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, USB soundcard, @0dBu 1kHz)
    • THD+N, Mid gain +30dB: 0.004% -88dBu (20Hz-20kHz, USB soundcard, @-30dBu 1kHz)
  • Stereo Line Input:
    • Stereo Line Input Connection: Balanced, 1/4' TRS Jack, Normalled (Left/Mono)
    • Input Sensitivity: Nominal +4dBu
    • Trim: +/-24dB
    • Maximum Input Level: +21dBu
    • Input Impedance: >10kΩ

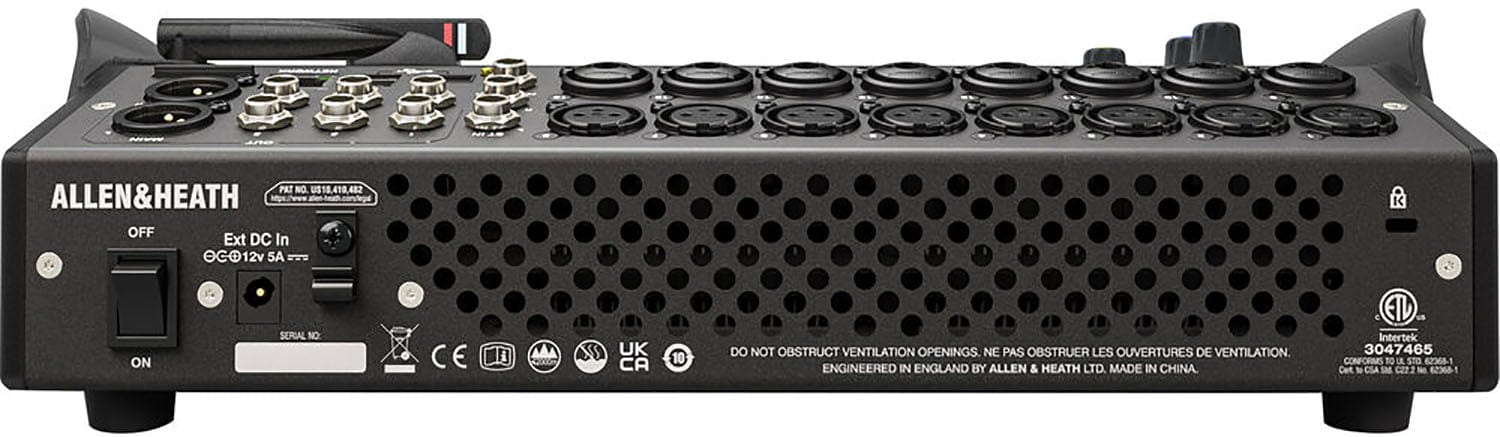

• Outputs:
  • Main LR Outputs: Balanced, XLR
  • Outputs 1-6: Balanced, 1/4' TRS Jack
    • Output Impedance: <75Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -88dBu (muted, 20Hz-20kHz)
• System:
  • System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
    • Dynamic Range: 110 dB
    • Frequency Response: +0/-0.5dB 20Hz to 20kHz
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • THD+N, Mic routed to Main L/R Out: +10dBu input, 0dB system gain, 0.003%, -92dB (Relative, 20-20kHz)
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Sampling Rate: 96kHz
    • Bit Depth: Custom bit depth, up to 96-bit
    • Latency: <0.7mS, Local Mic Input to Main L/R, with all processing in or out
    • Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
    • Power: 12V DC, 5A (100-240V AC, 50/60Hz input PSU supplied), 35W max
• Record/Playback:
  • USB-A:
    • Stereo Record: 48/96 kHz, 24-bit WAV format. Patchable from Outputs, ST in, or FX Units
    • Stereo Playback: 44.1/48/96 kHz, 16/24 bit, Mono/Stereo WAV files
  • USB-B: USB 2.0, Core Audio compliant, ASIO/WDM for Windows, 48/96 kHz, 24-bit
    • Send / Return: 24 channels / 22 channels
  • SD Card: SDHC, 32 GB, UHS-I, Class 10 for maximum channels, 48/96 kHz, 24-bit
    • Multitrack Record: 16 channels @ 96kHz or 48kHz
    • Multitrack Playback: 16 channels @ 96kHz or 48kHz
• Connectivity:
  • Wi-Fi Access Point: 802.11 a/b/g/n/ac (dual band, auto channel)
  • Bluetooth: 4.1 (high quality stereo playback)
• Weights and Dimensions (Width x Depth x Height, Weight):
  • As Used: 346 x 242 x 89 mm (13.6' x 9.5' 3.5'), 3 kg (6.6 lbs)
  • Packed in shipping box: 430 x 310 x 200 mm (16.9' x 12.2' x 7.9'), 3.8 kg (8.4 lbs)

The Allen & Heath CQ-18T Compact Digital Mixer is perfect for both professional sound engineers and musicians on the go. Its ultra-compact design makes it easy to transport, measuring 346 x 242 x 89 mm (13.6' x 9.5' 3.5') and weighing just 3 kg (6.6 lbs). With 19 inputs, including 16 mono/linkable and 3 stereo inputs, you can mix multiple audio sources with ease. The built-in WiFi and network connectivity allow for remote operation, giving you the freedom to control your mixer from anywhere. And with 96kHz processing, you can enjoy high-quality audio playback and recording.
