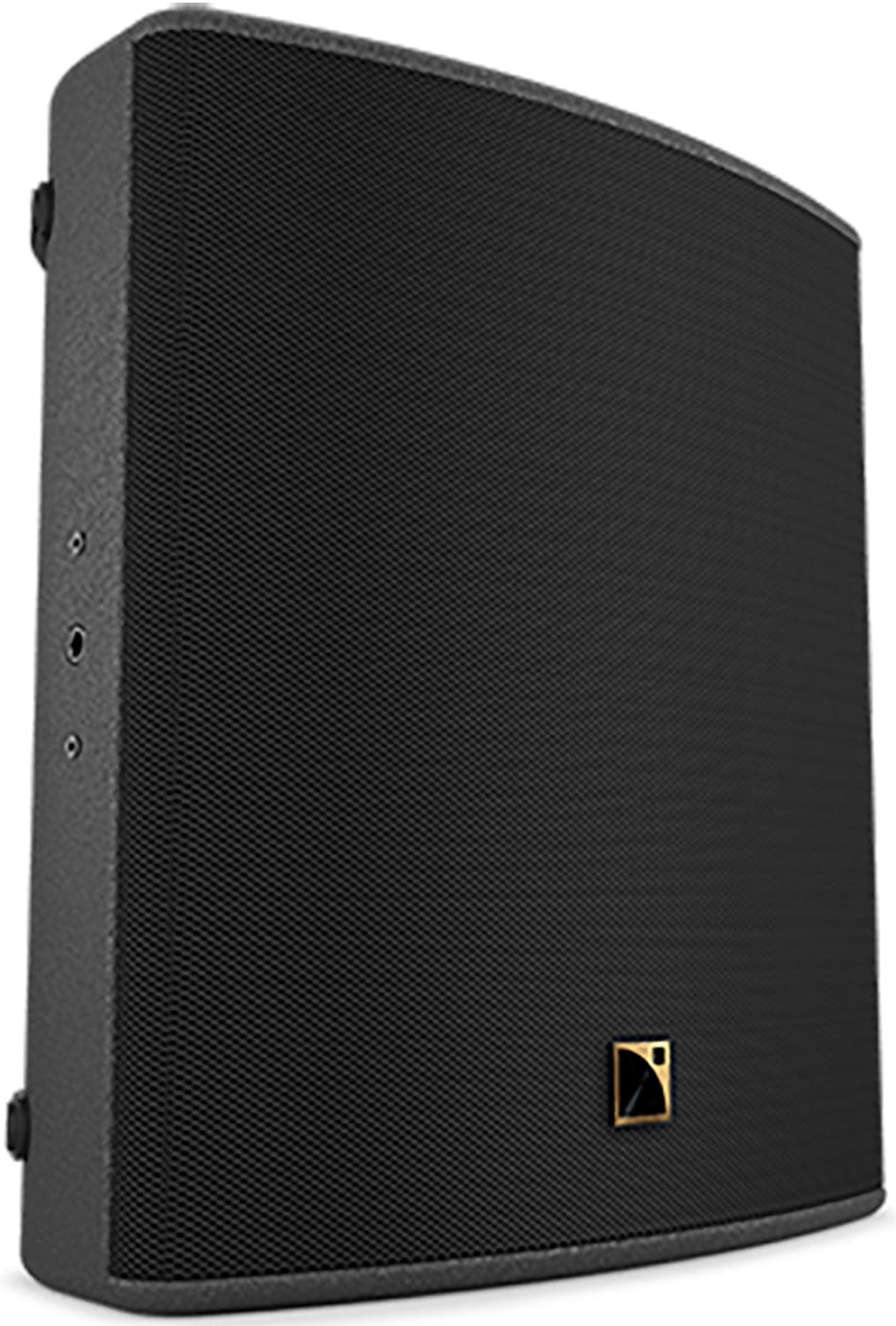

L-Acoustics X12WR Passive 2-Way Coaxial Speaker - Your Ultimate Sound Solution
Get ready to experience unparalleled sound quality with this 2-way passive enclosure. It features a premium 3 in diaphragm compression driver coaxially loaded by a 12 in low-mid frequency transducer, all mounted in a bass-reflex cabinet. The cabinet is crafted from premium grade Baltic beech and birch plywood for durability. The front is protected by a coated steel grill and an acoustically transparent fabric. It also comes with two ergonomic handles and two 35 mm pole mount sockets. You can set it at two angles (35 and 55 degrees) for stage monitoring. Dedicated accessories allow for wall-mount, ceiling-mount, and flown configurations in vertical and horizontal orientations. It has four M10 threaded inserts for external rigging elements and a DIN580-compatible M8 threaded insert for safety. It's exclusively driven and protected by a proprietary amplified controller through a dedicated preset.
Features:
- • Versatile for any short throw duty - Be the jack of all trades!
- • Enjoy smooth off-axis response with COAXIAL technology
- • Experience controlled directivity with ELLIPSOID WAVEGUIDE
- • Get clear low-frequency power with L-VENTS
Specifications:
- Coverage (-6 dB):
- Vertical directivity : 90° symmetric
- Horizontal directivity : 60° symmetric
- Monitoring angles: 35° / 55°
- Transducers:
- LF transducer: 12' cone driver
- HF transducer: 3' diaphragm compression driver
- Acoustics (preset (X12)):
- Nominal impedance: 8
- Usable bandwidth: 59 Hz - 20 kHz (-10 dB), 63 Hz - 20 kHz (-6 dB), 70 Hz - 20 kHz (-3 dB)
- RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 331 W
- Maximum SPL: 136 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
- Physical data:
- Acoustical load: bass-reflex
- Cabinet: premium grade Baltic beech and birch plywood
- Dimensions (W, H, D): 430 mm, 496 mm, 375 mm / 16.9 in, 19.5 in, 14.8 in
- Weight (net): 20 kg / 44.1 lb
- Connectors: 2 ¡Á 4-point speakON
- IP: IP43
This L-Acoustics X12WR speaker is perfect for stage monitoring. Musicians, sound engineers, and event organizers will love it. It has a bass-reflex cabinet made of premium grade Baltic beech and birch plywood. The dimensions are 430 mm (W) x 496 mm (H) x 375 mm (D) or 16.9 in x 19.5 in x 14.8 in, and it weighs 20 kg or 44.1 lb. It comes with 2 x 4-point speakON connectors and has an IP43 rating.
