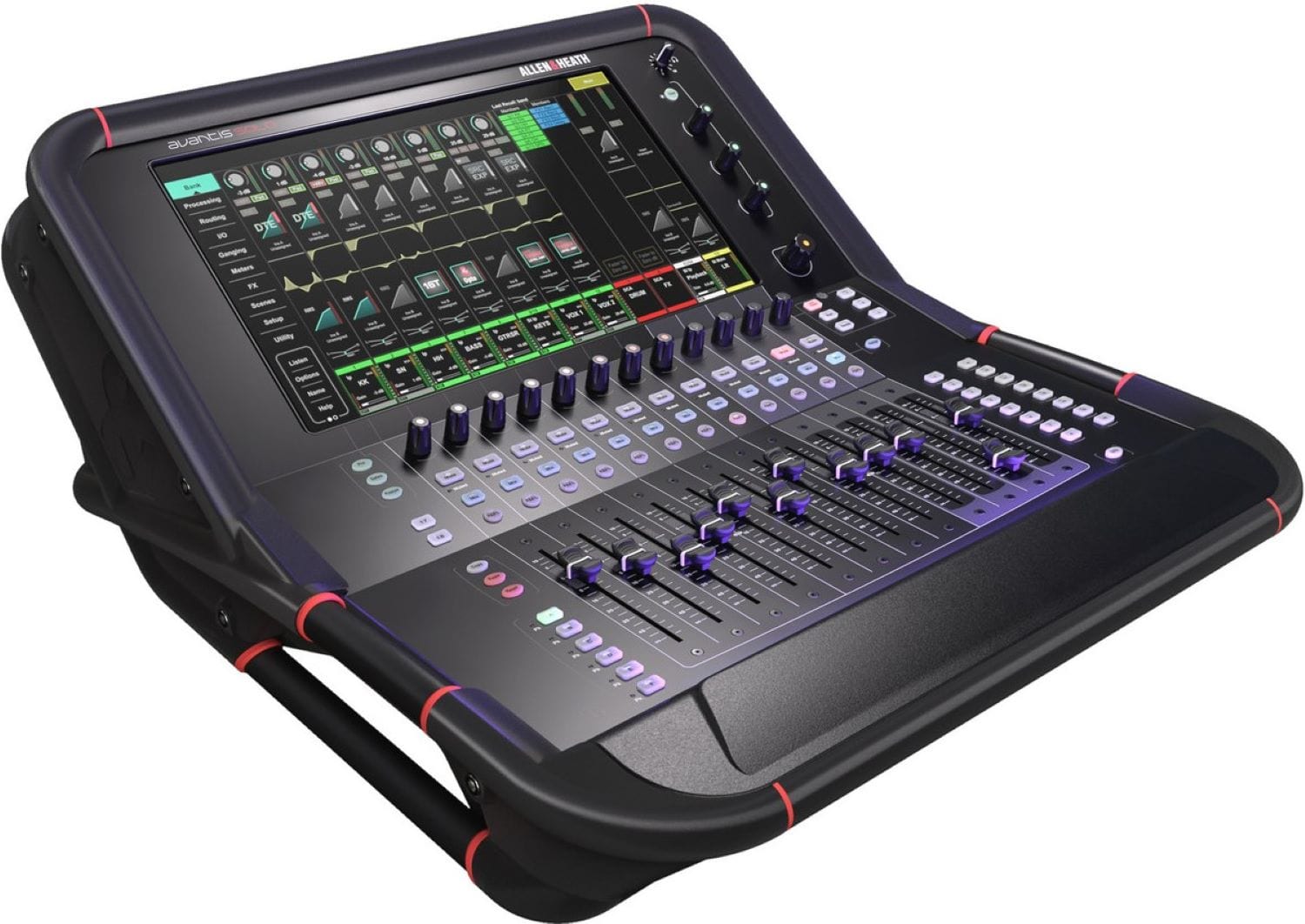

Allen & Heath AH-AVANTIS-SOLO 64 Channel HD Touchscreen Digital Mixer - Unleash Your Mixing Potential
Avantis is a powerful 64 channel / 42 configurable bus mixer platform. It features our amazing 96kHz XCVI FPGA engine with ultra-low latency of just 0.7ms, along with add-on processing from our top-notch dLive mixing system.
Features:
- • 96kHz 64 channel / 42 bus digital mixer for incredible sound quality
- • XCVI FPGA core with ultra-low latency (0.7ms) for seamless mixing
- • Fully configurable mix bus architecture for ultimate flexibility
Benefits:
- • Super-tough, full metal chassis for long-lasting durability
- • Continuity UI for intuitive and fast workflows
- • dPack option adds dLive processing for enhanced performance
Specifications:
- Inputs:
- Mic/Line Inputs: Balanced, +48V phantom power
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN: -127dB with 150Ω source
- Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at +24V
- Digital Inputs:
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
- SRC range 24 bit, 32k - 192kHz, with bypass option
- System:
- Measured balanced XLR In to XLR Out, 22-40kHz, minimum Gain, Pad out
- Dynamic Range: 109dB
- System Signal to Noise: -92dB
- Frequency Response: 20Hz - 20kHz +0/-0.8dB
- THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
- Headroom: +18dB
- Sampling Rate: 96kHz
- Internal operating Level: 0dBu
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Meter Peak indication: -3dBFS (+19dBu at XLR out)
- Sampling Rate: 96kHz
- Outputs:
- Analogue Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -95dBu (muted, 22-22kHz), -90dBu (muted, 0-80kHz)
- Digital Outputs:
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
- 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz

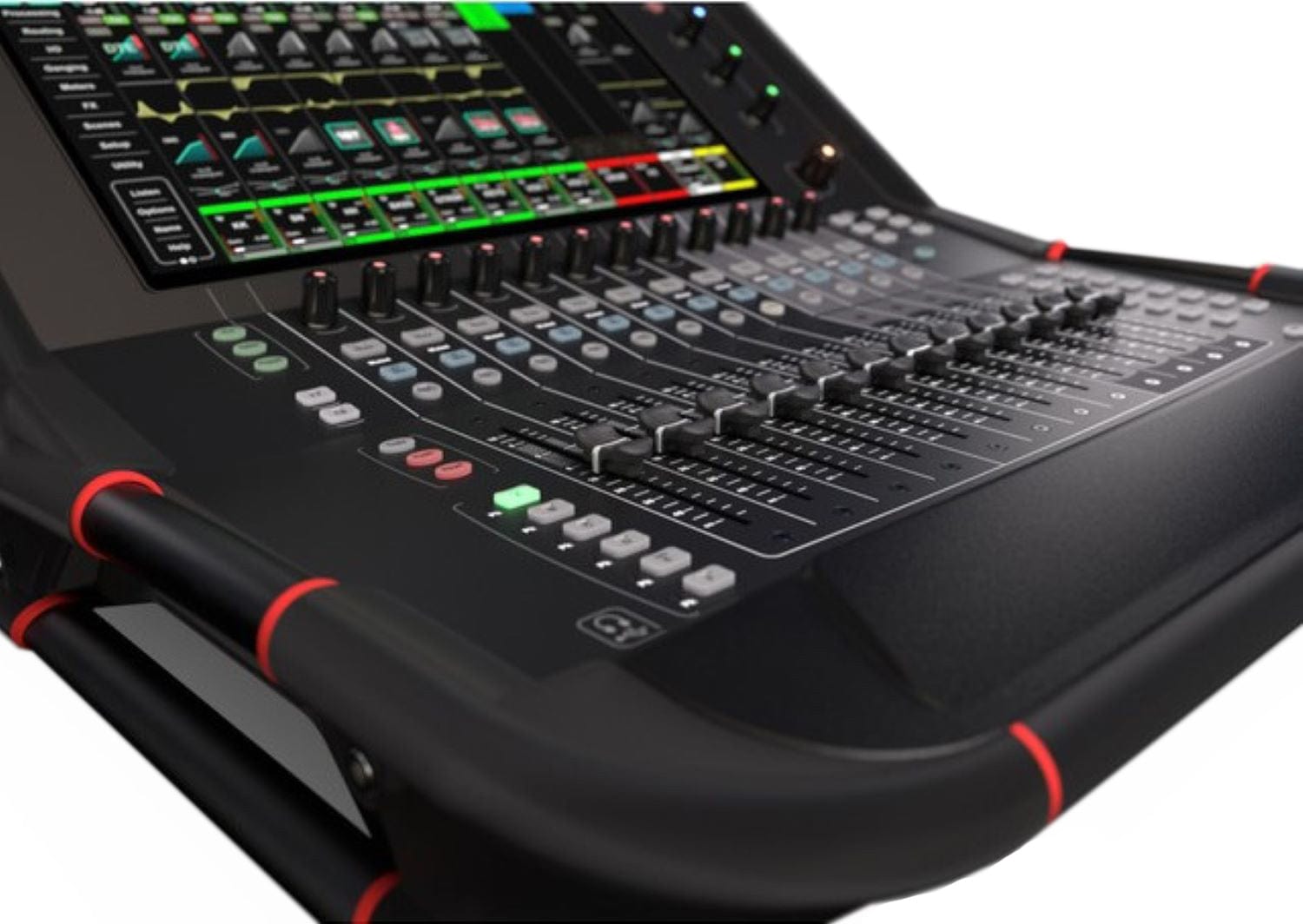

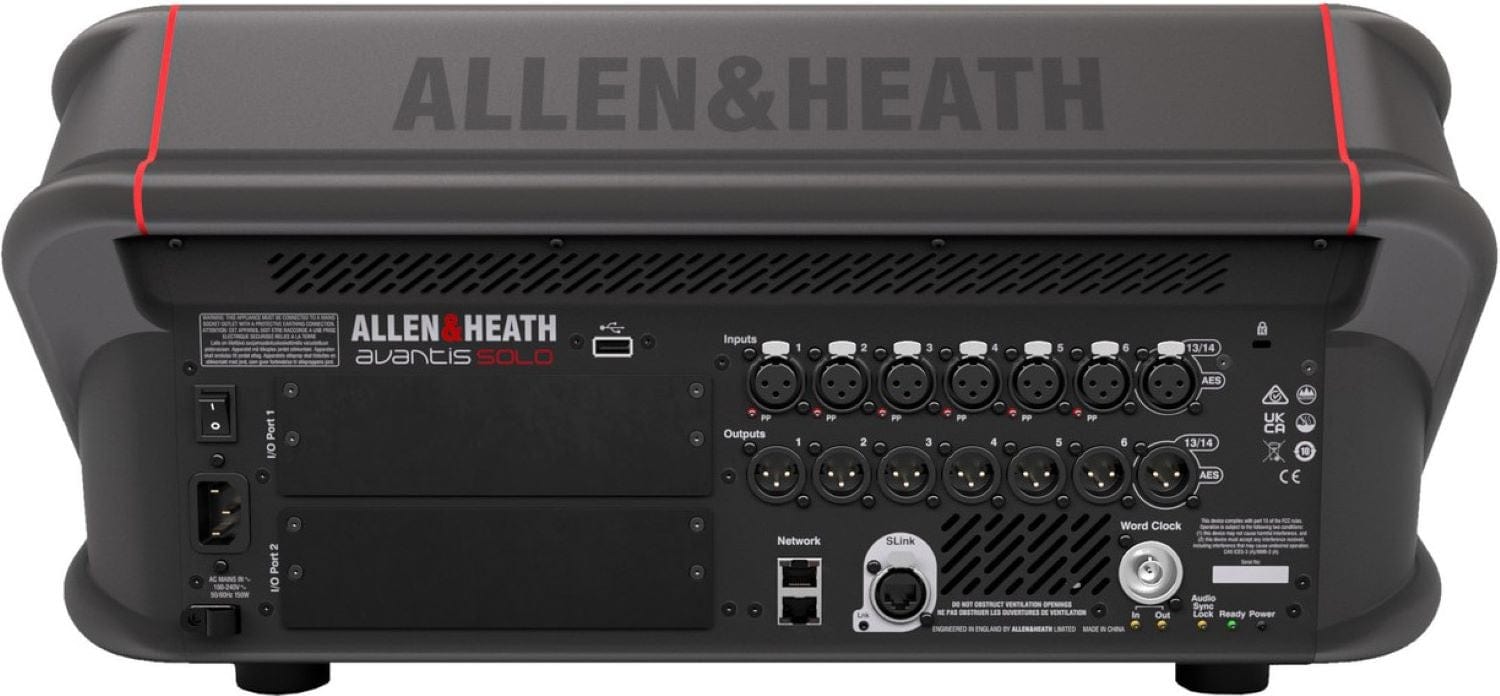

This Allen & Heath AH-AVANTIS-SOLO 64 Channel HD Touchscreen Digital Mixer is perfect for professional sound engineers and musicians. It's great for live performances, recording studios, and broadcast applications. With its 64 channels and 42 configurable buses, it offers plenty of flexibility. The mixer has a 15.6” Full HD capacitive touchscreen with gesture control for easy operation. It weighs around [weight] and has dimensions of [dimensions]. The input and output options include 6 analogue XLR Inputs / 6 analogue XLR Outputs, 1 Stereo AES In / 1 Stereo AES Out, and 2 I/O Ports for optional cards like Dante, MADI, and gigaACE.
