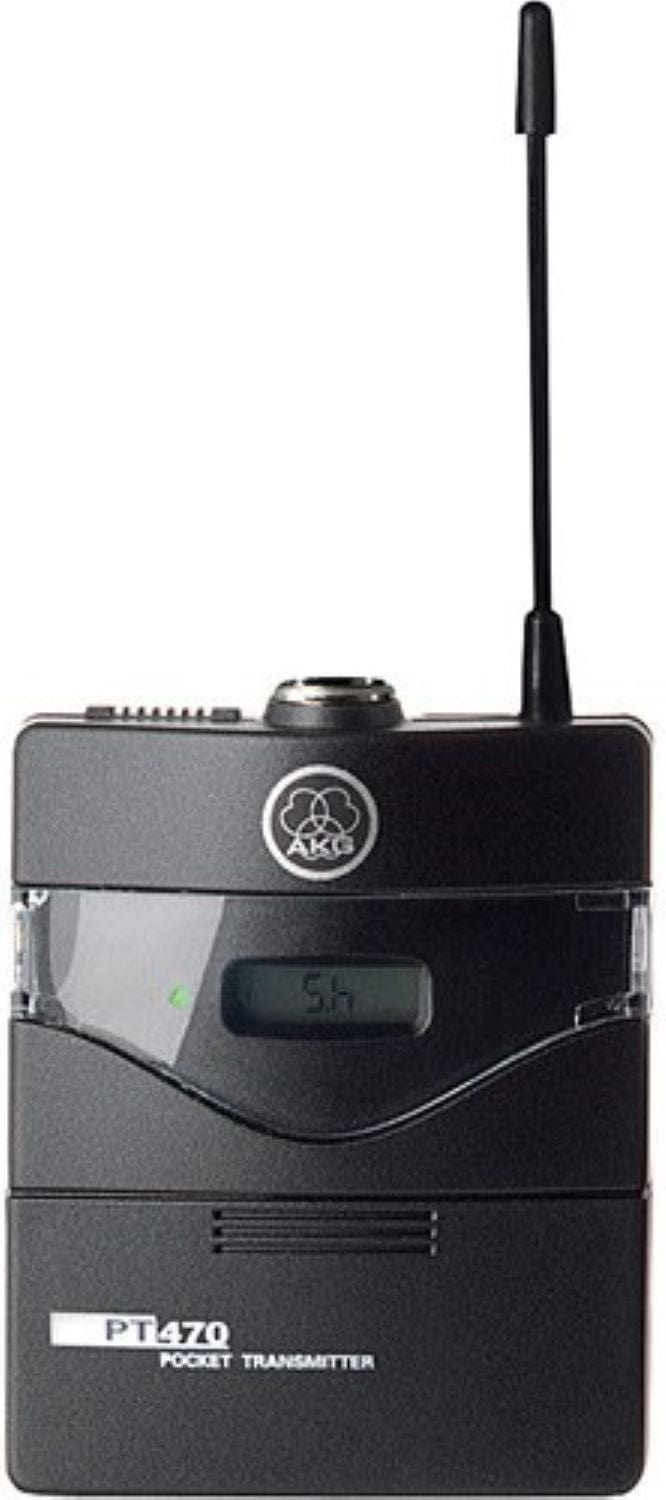

AKG PT470 Professional Wireless Body-Pack Transmitter - Band 7 - 50mW

AKG PT470 Pro Wireless Body-Pack Transmitter - Band 7 - 50 milliWatt

The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. It features pilot tone transmission to prevent unexpected startup noise and continuously sends transmitter data, including low battery info, to the receiver. With enhanced battery management, it offers up to 14 hours of operation on a single AA-size battery. The integrated charging contacts allow for charging a standard NiMH rechargeable battery inside the transmitter. An optional RMS4000 external mute switch enables remote muting. Its professional mini XLR audio connector makes it compatible with various lavalieres and headsets.

Features:

• • Pilot tone transmission for seamless operation
• • Compact & rugged design for durability
• • External mute switch for convenient control

Specifications:

• Audio:
  • • Audio Frequency bandwidth: 35 Hz to 20 kHz
  • • Signal to Noise: 120 dB-A
  • • THD at 1 kHz: 0.7%
• Enhanced:
  • • Peak deviation: 48 kHz
• Pocket Transmitter:
  • • Nominal deviation: 20 kHz
  • • Radio Output Power (min/max): 10 to 50 mW
  • • Transmitter Synchronization: Infrared
• Audio Input: 3-pin mini female XLR
  • • Maximum audio level: 12 dB
• Mute Switch Interface: 1/4' female mono jack
  • • Dimensions (LxHxW): 30 x 73.5 x 60 mm
  • Radio:
  • • Switching bandwidth: 30 MHz
  • • Recommended simultaneous channels: 2
  • • Number of selectable frequencies: 1220 (selectable in 25kHz steps)
  • • Frequency Selection: Selectable frequency in 25kHz steps
  • • Wireless channels within device: -
  • • Radio Range (Line of Sight): 100m (depending on antenna system)
  • • Switchable RF Power: no
  • • Modulation: FM (Frequency Modulation)
  • • Pilot Tone: Yes

The AKG PT470 Pro Wireless Body-Pack Transmitter is perfect for professionals on the go. Whether you're a musician performing live, a public speaker, or a videographer capturing footage, this transmitter provides reliable audio transmission. Its compact size (30 x 73.5 x 60 mm) makes it easy to carry and use in various settings. With features like pilot tone transmission, enhanced battery management, and an optional external mute switch, it offers convenience and functionality. It operates on a single AA-size battery for up to 14 hours and is compatible with a wide range of lavalieres and headsets via its professional mini XLR audio connector.
